Hummer H2. Manual - part 2541

J 29837-A Output Shaft Support Fixture. See Special Tools and Equipment .

Installation Procedure

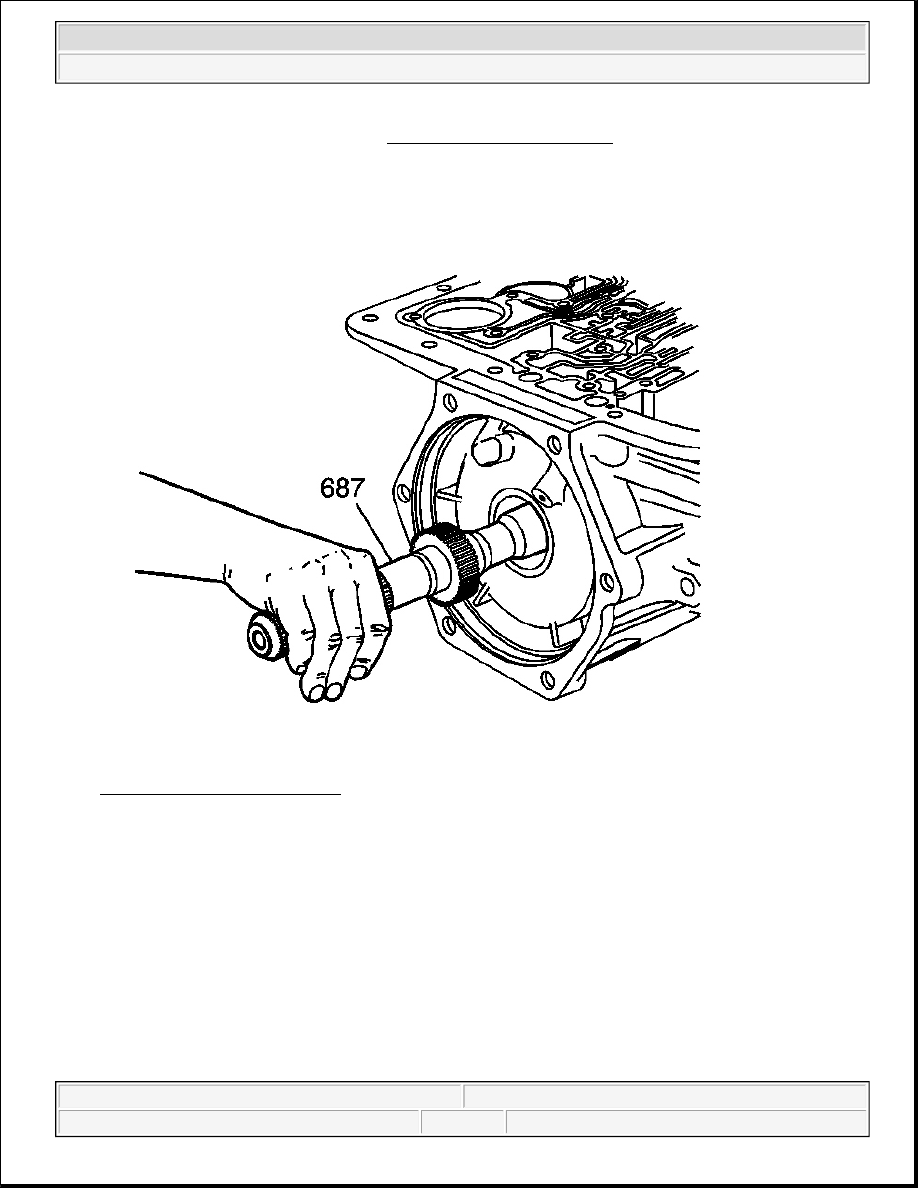

Fig. 136: View Of Output Shaft
Courtesy of GENERAL MOTORS CORP.

1. Install the output shaft (687).

IMPORTANT: It is important to note that the input shaft may need a light tap to fully seat

into position. If the input shaft is not completely engaged, the output shaft
to input carrier retainer (661) will not seat.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

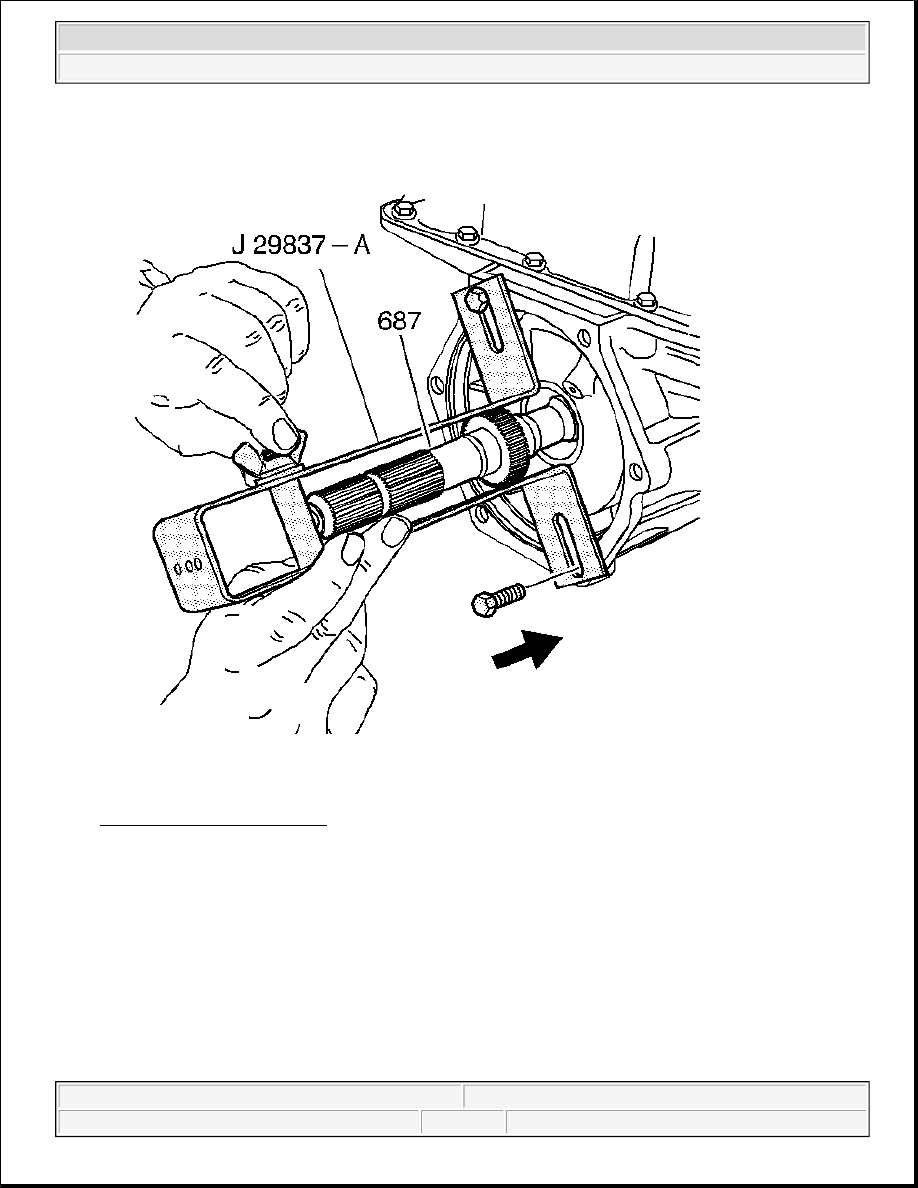

Fig. 137: Installing J 29837-A
Courtesy of GENERAL MOTORS CORP.

2. Install the J 29837-A .

INPUT CARRIER INSPECTION



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

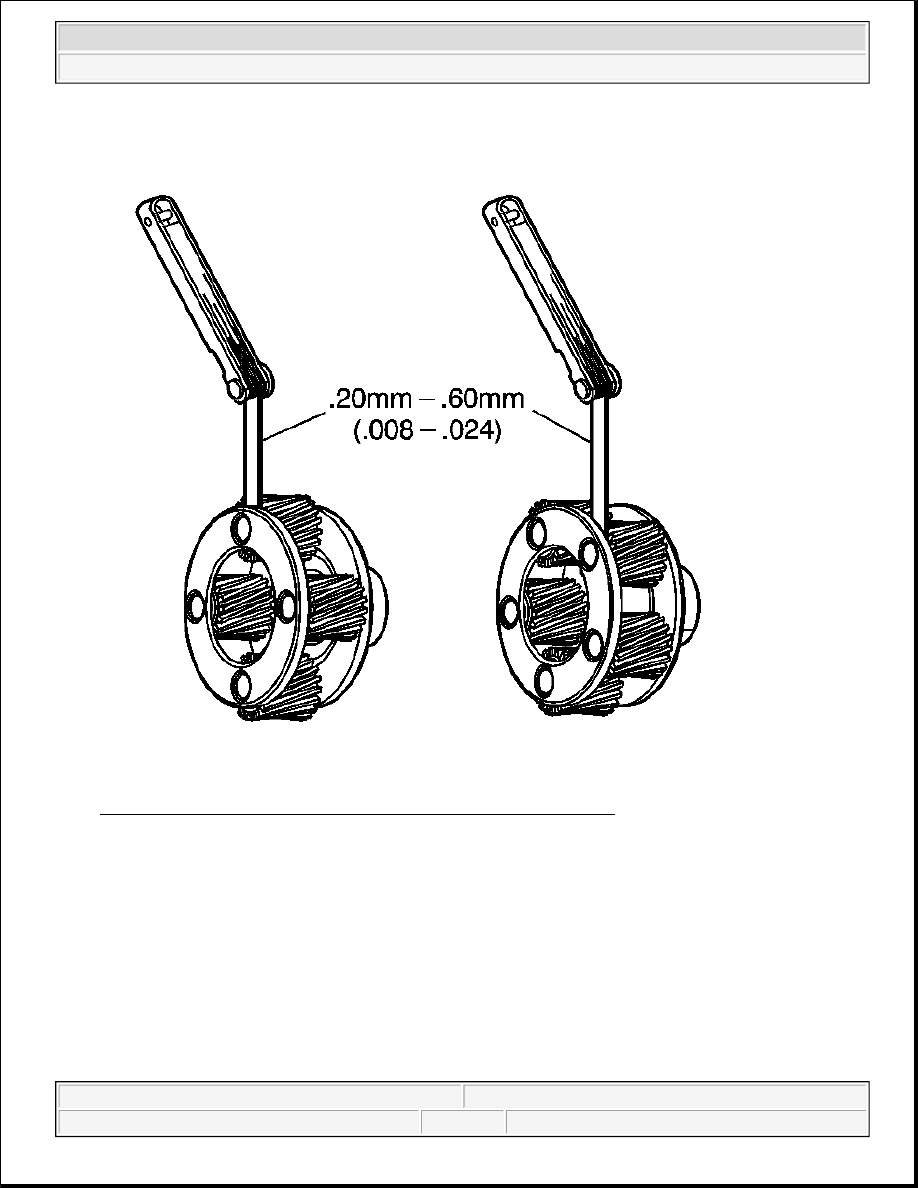

Fig. 138: Identifying Input Carrier Pinion End Play Measurements
Courtesy of GENERAL MOTORS CORP.

1. Check the input carrier pinion end play. The end play must not exceed 0.61 mm (0.024 in).

2. Inspect the input carrier for pinion gear damage, proper pin stake and keystoned pinion gears. Pinions

must rotate freely.

INPUT SUN GEAR BUSHINGS REPLACEMENT

Removal Procedure

IMPORTANT: Check end play on each pinion. Clearance is the same for 4 or 5 pinion

design.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



Tools Required

z

J 8092 Universal Driver Handle - 3/4 in - 10

z

J 34196-B Transmission Bushing Service Set. See Special Tools and Equipment .

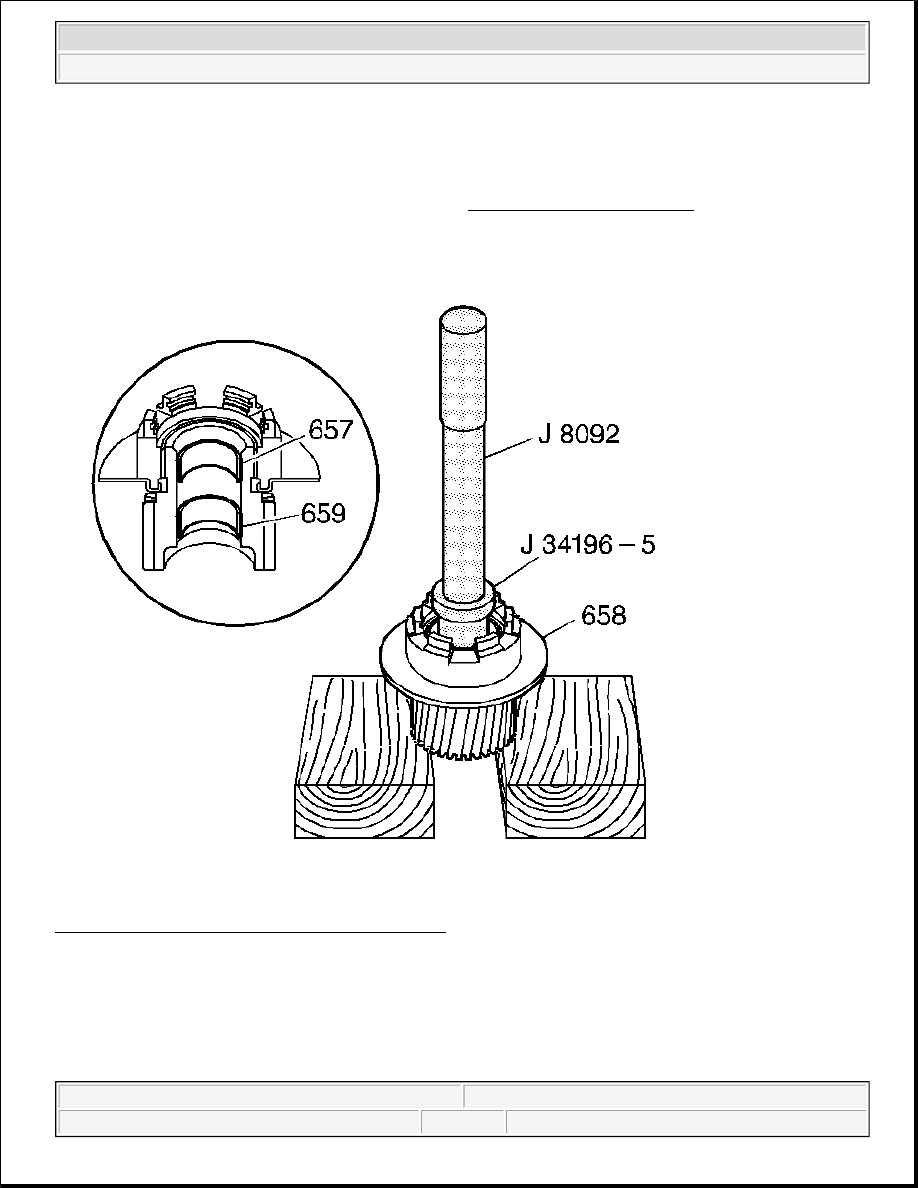

Fig. 139: Removing Input Sun Gear Front Bushing
Courtesy of GENERAL MOTORS CORP.

Using J 34196-5 which is part of kit J 34196-B with J 8092 , remove the input sun gear front bushing (657) and
rear bushing (659).

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E
