Damaged gear teeth

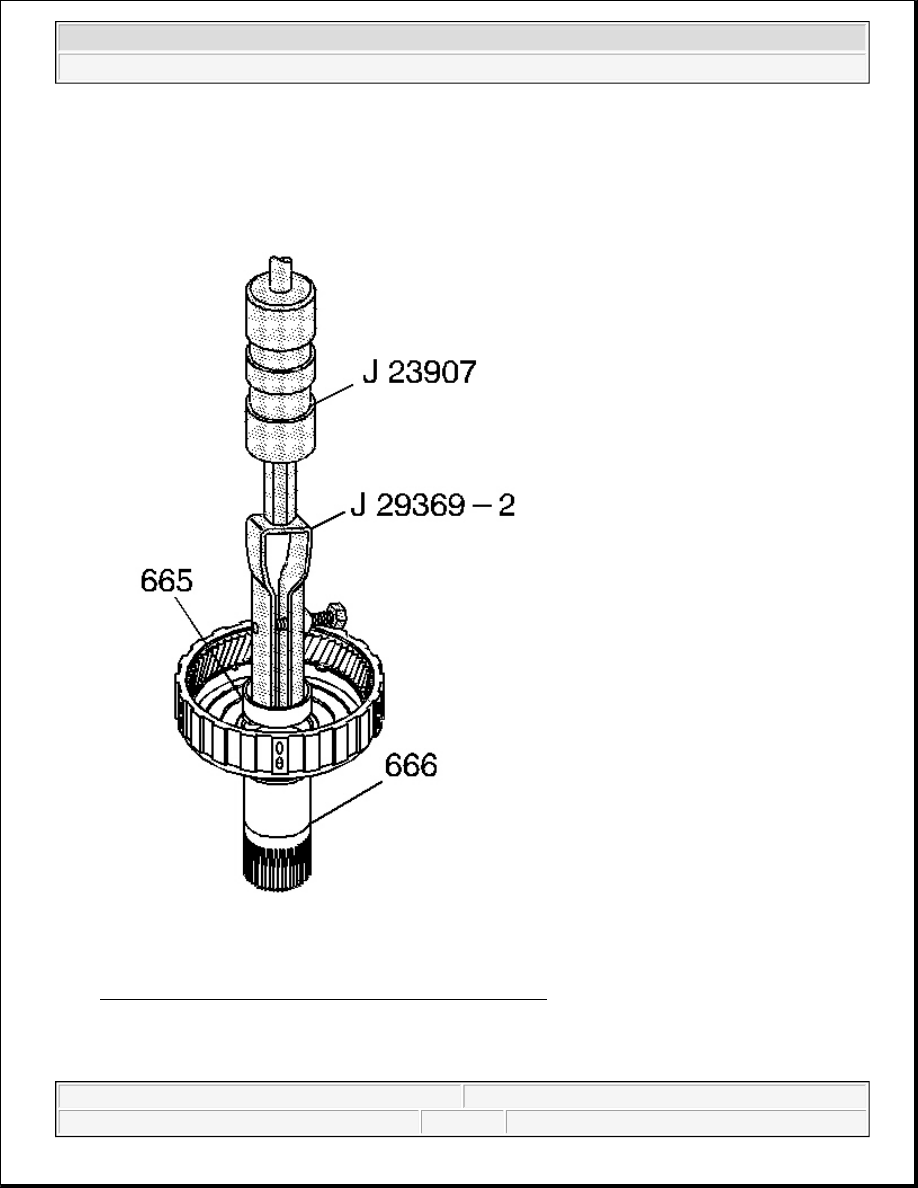

Fig. 128: Removing Reaction Carrier Shaft Front Bushing
Courtesy of GENERAL MOTORS CORP.

3. UsingJ 29369-2 with J 23907 , remove the reaction carrier shaft front bushing (665).



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

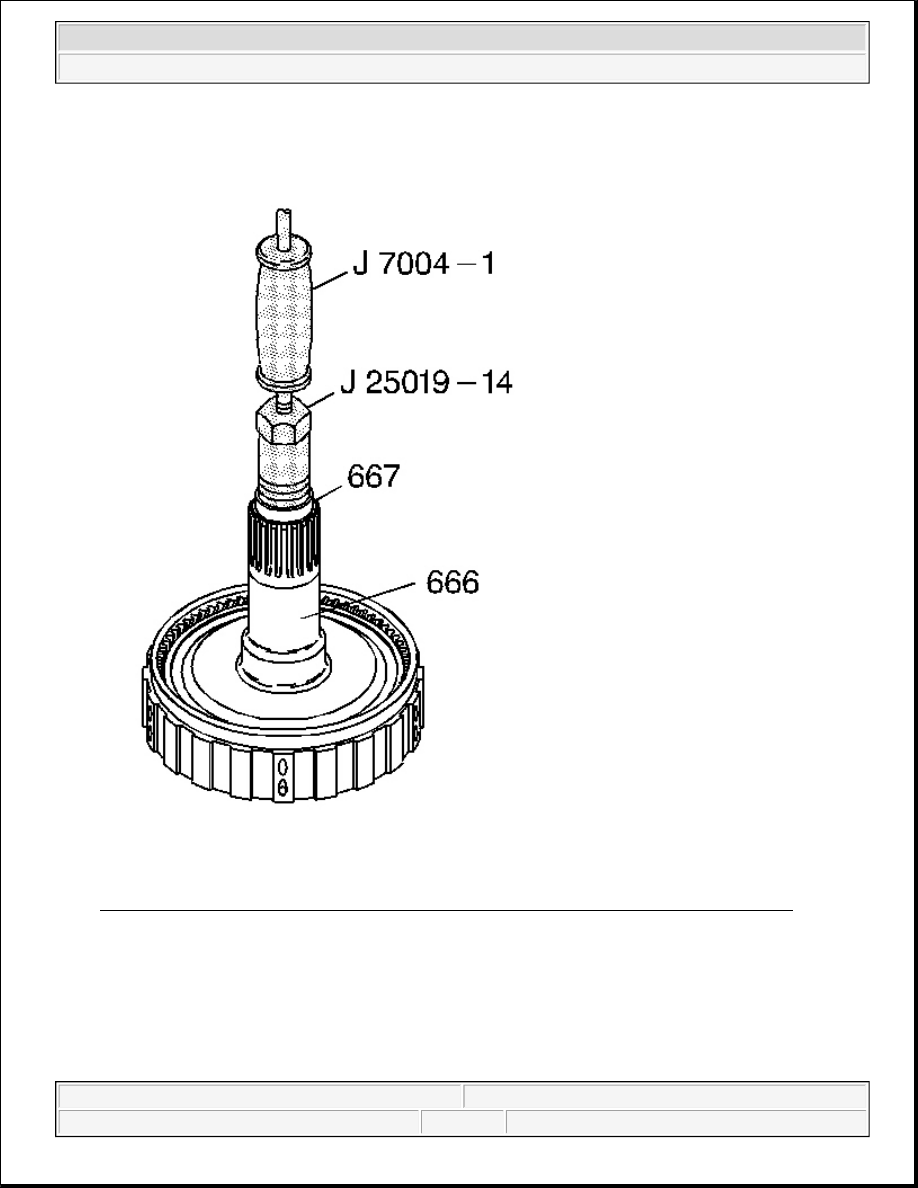

Fig. 129: Using J 25019-14 & J 25019-14 To Remove Reaction Carrier Shaft Rear Bushing
Courtesy of GENERAL MOTORS CORP.

4. UsingJ 25019-14 with J 7004-A , remove the reaction carrier shaft rear bushing (667).

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

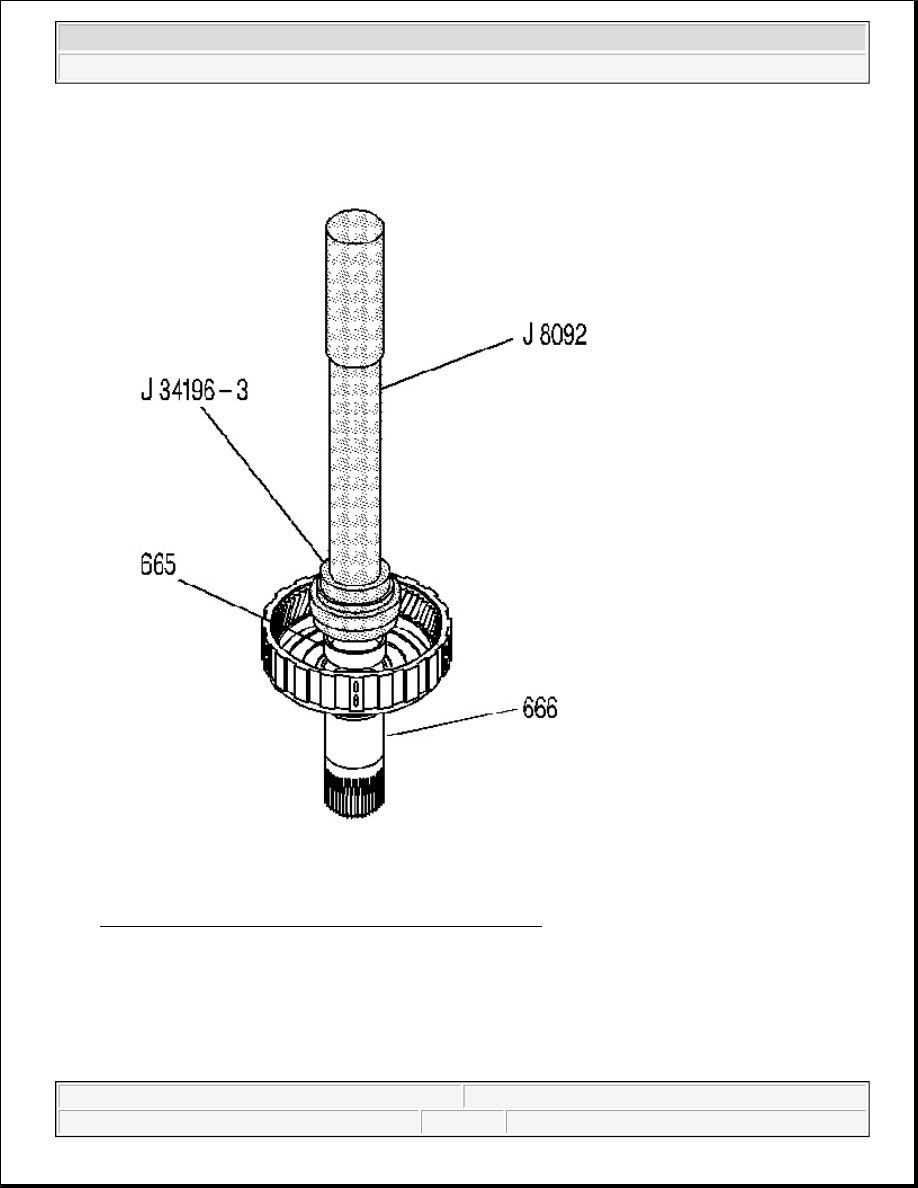

Fig. 130: Installing Reaction Carrier Shaft Front Bushing
Courtesy of GENERAL MOTORS CORP.

1. Using J 34196-3 which is part of kit J 34196-B with J 8092 , install a new reaction carrier shaft front

bushing (665).



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

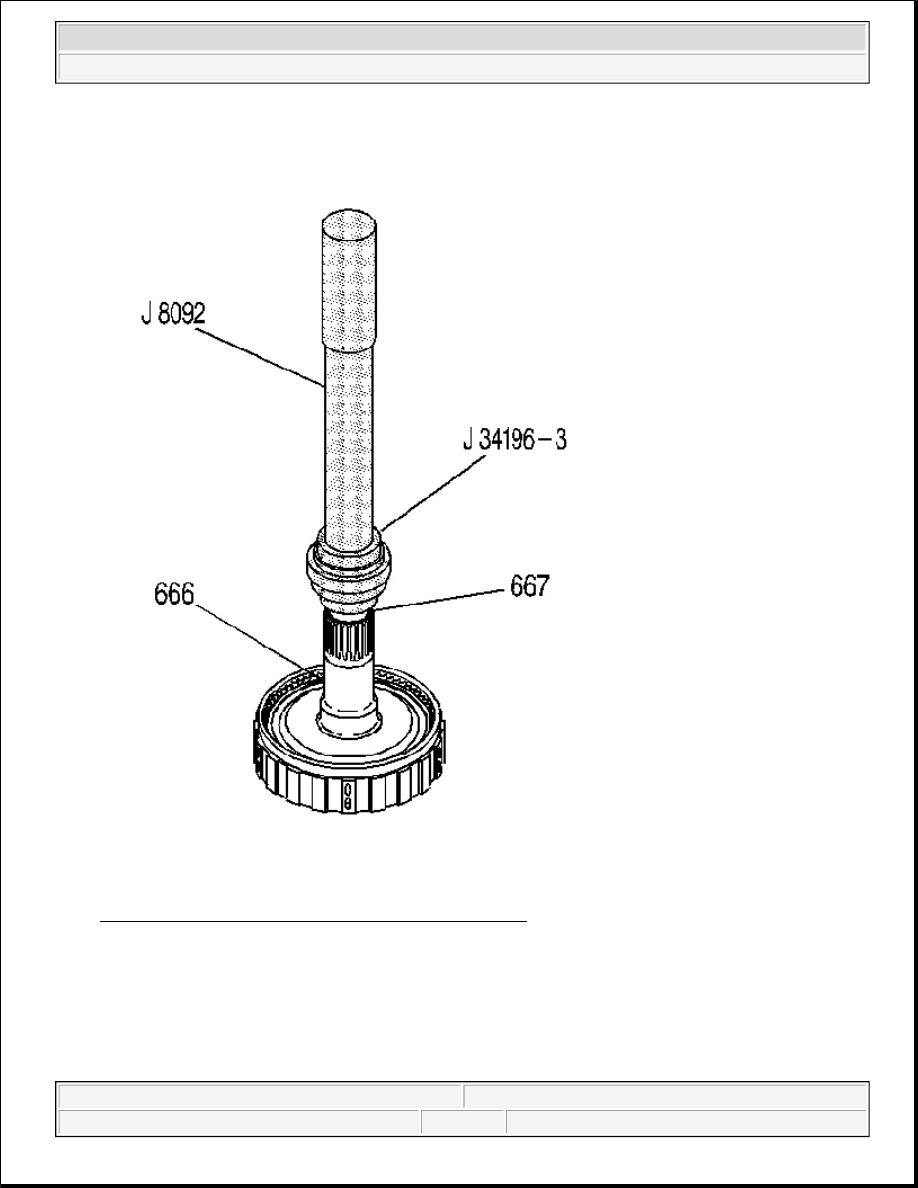

Fig. 131: View Of Reaction Carrier Shaft Rear Bushing
Courtesy of GENERAL MOTORS CORP.

2. Using J 34196-3 which is part of kit J 34196-B with J 8092 , install a reaction carrier shaft rear bushing

(667).

INPUT INTERNAL GEAR, REACTION SHAFT AND SHELL INSTALLATION

Tools Required



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E
