4. Install the low and reverse clutch support (679), roller clutch and roller clutch race (675) assembly into

the case. Position the hub side down during the installation.

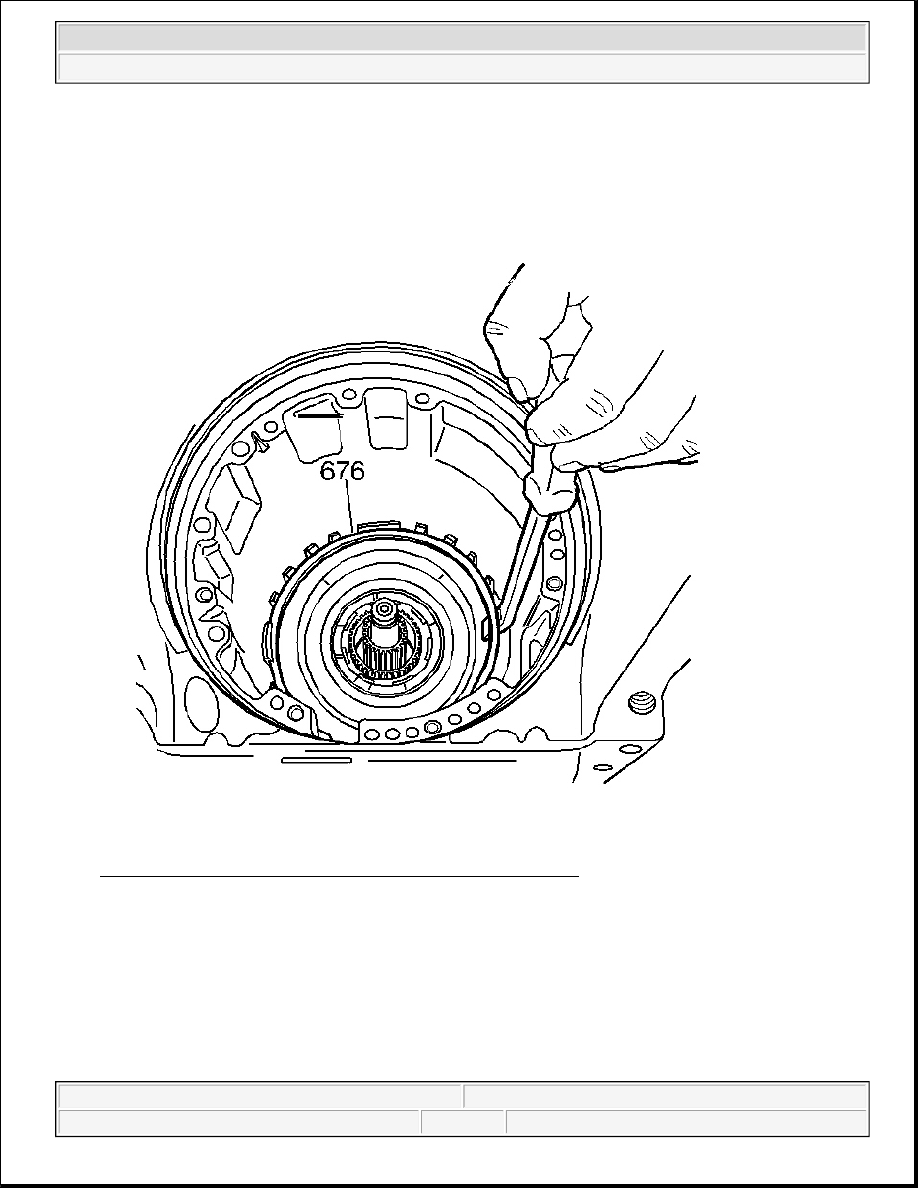

Fig. 121: Identifying Low And Reverse Support Retainer Ring
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Align the opening of the low and reverse clutch support retainer ring (676)

with the low and reverse clutch support retainer spring (680). It is
important that the low and reverse clutch support retainer ring opening is
centered around the retainer spring. This will allow the retainer ring to
fully seat in all of the transmission case lugs. If the retainer ring lays up
against the retainer spring, the retainer ring will not fully seat. Possible
damage to the transmission case lugs can occur if the low and reverse



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



5. Install the low and reverse support retainer ring (676) into the case.

REACTION SUN GEAR INSTALLATION

Tools Required

z

J 34196-B Transmission Bushing Service Set. See Special Tools and Equipment .

z

J 8092 Universal Driver Handle - 3/4 in

clutch support retainer ring is not fully seated in the transmission case
lug.

IMPORTANT: Do not remove the retaining ring (671), except to replace it.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

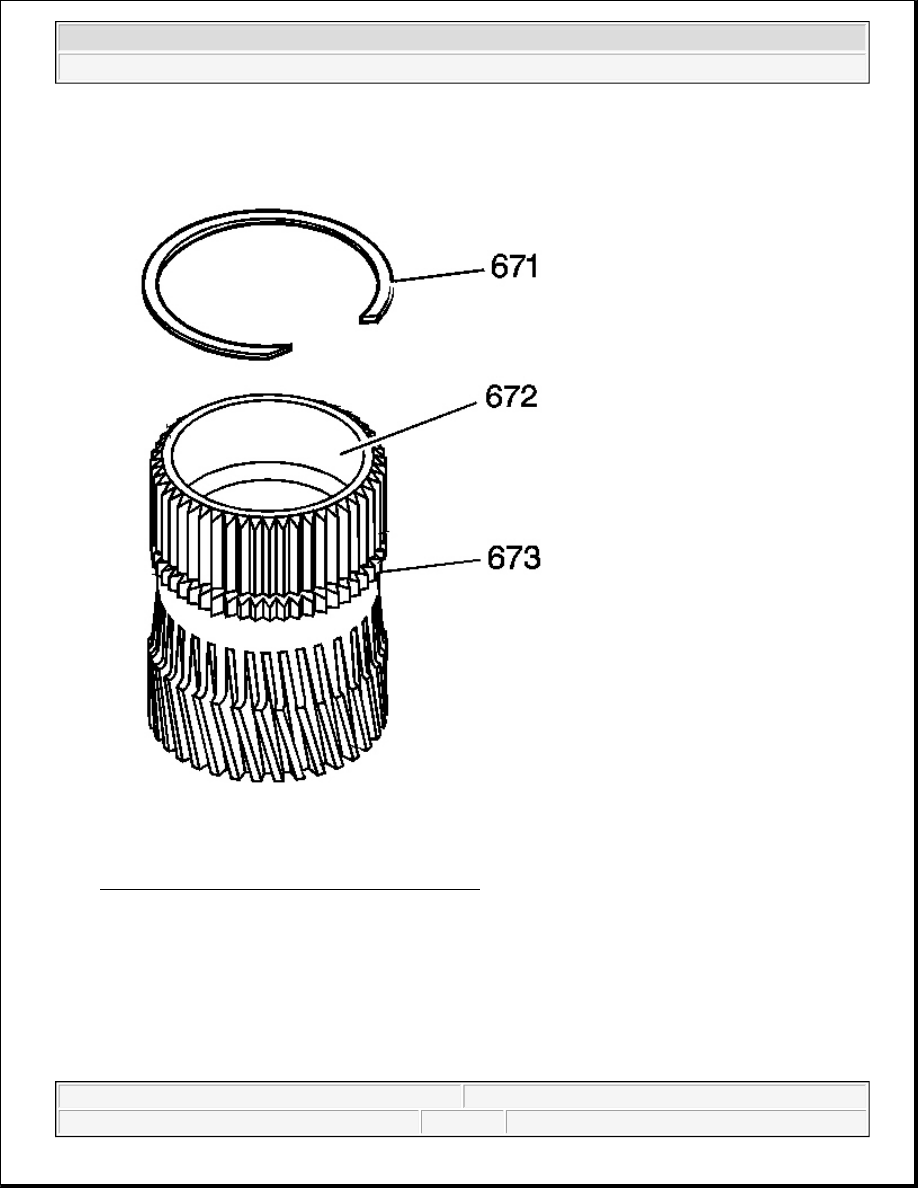

Fig. 122: Inspection Areas On Reaction Sun Gear
Courtesy of GENERAL MOTORS CORP.

1. Inspect the reaction sun gear (673) for the following defects:

z

Nicks

z

Scores

z

Damaged spline or teeth

z

A worn bushing (672)

z

A loose or weak retaining ring (671)



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

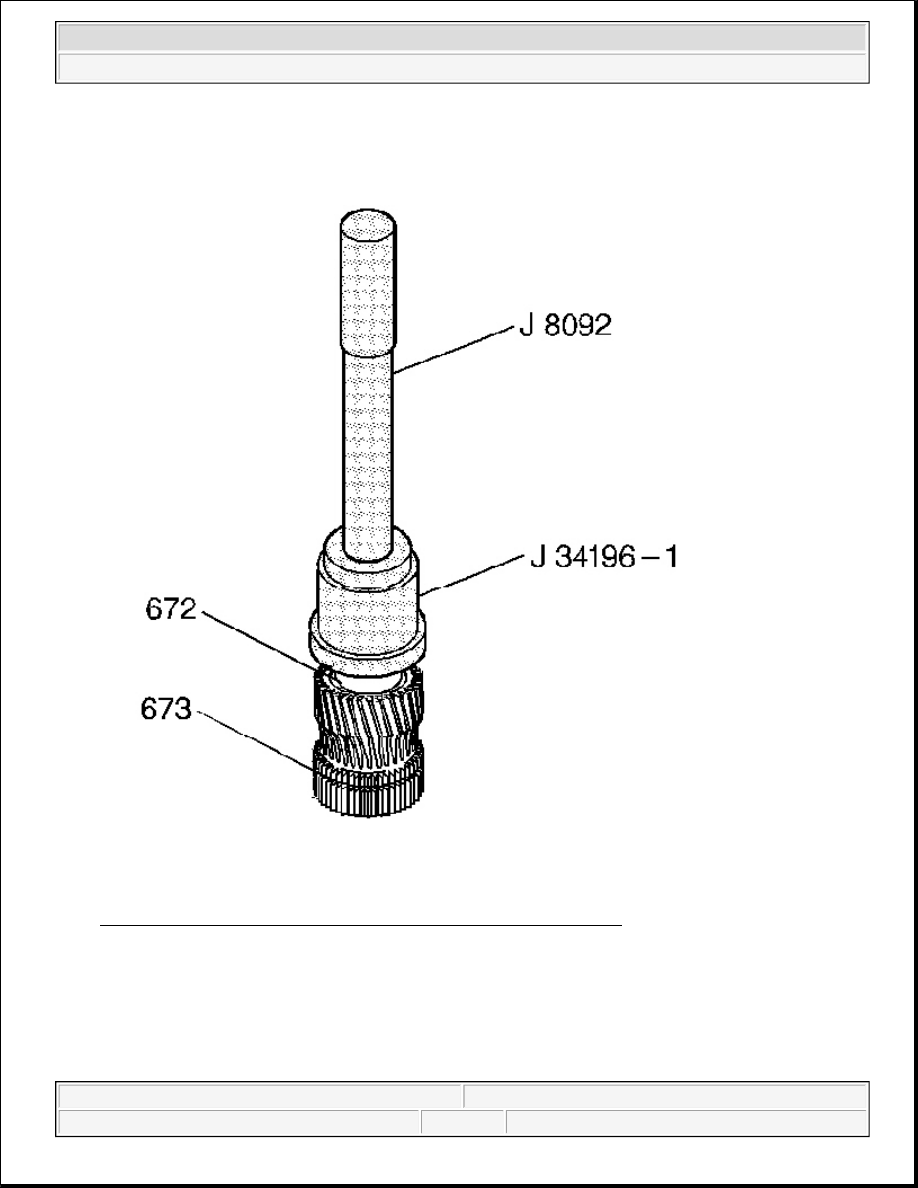

Fig. 123: Removing Reaction Sun Bushing From Reaction Sun Gear
Courtesy of GENERAL MOTORS CORP.

2. If the reaction sun gear bushing (672) needs replacement, use J 34196-1 which is part of kit J 34196-B

with J 8092 to remove the reaction sun bushing (672) from the reaction sun gear (673).
