Hummer H2. Manual - part 2526

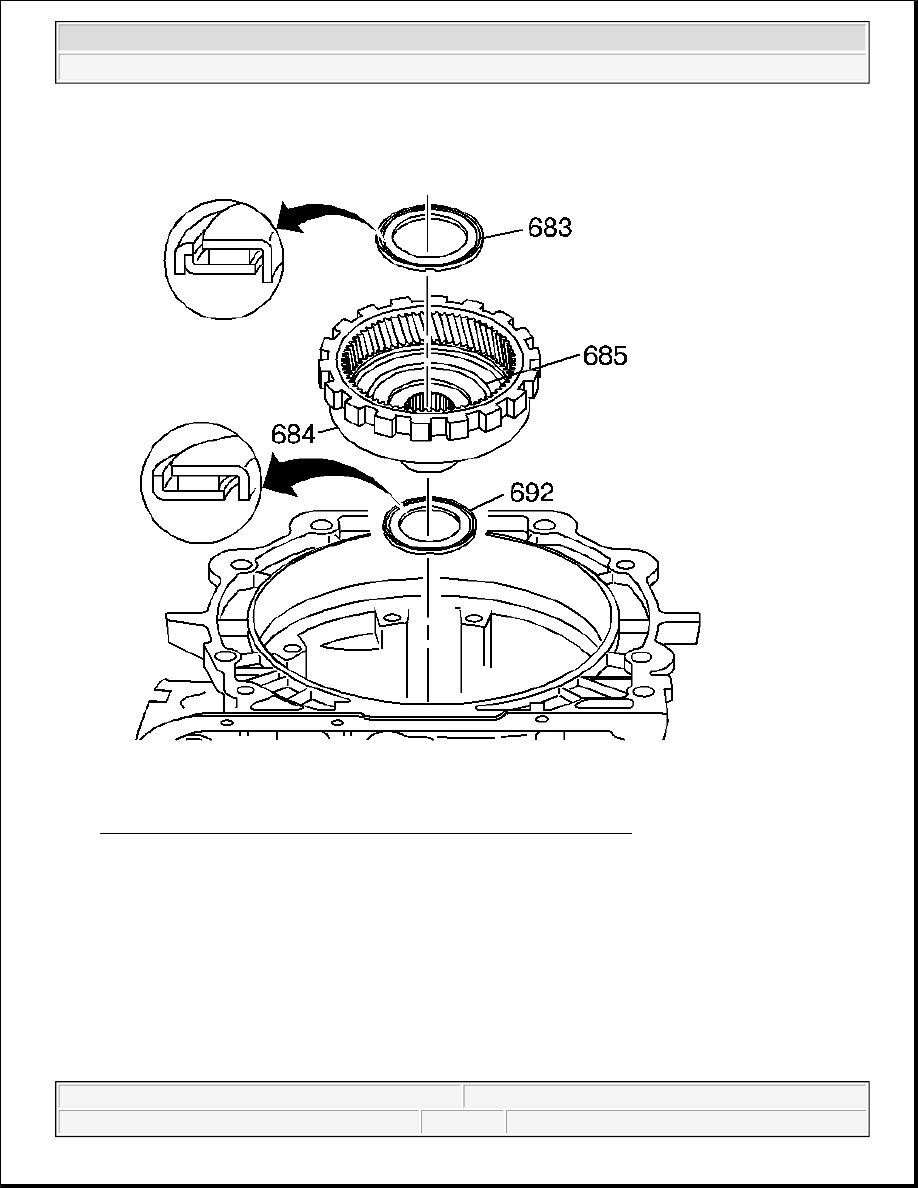

Fig. 78: View Of Reaction Carrier/Support Thrust Bearing Assembly
Courtesy of GENERAL MOTORS CORP.

10. Remove the following components:

1. The thrust bearing assembly (reaction carrier support) (683)

2. The internal reaction gear (684)

3. The internal reaction gear support (685)

4. The reaction gear support bearing (692)

INNER MANUAL LINKAGE REMOVAL



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

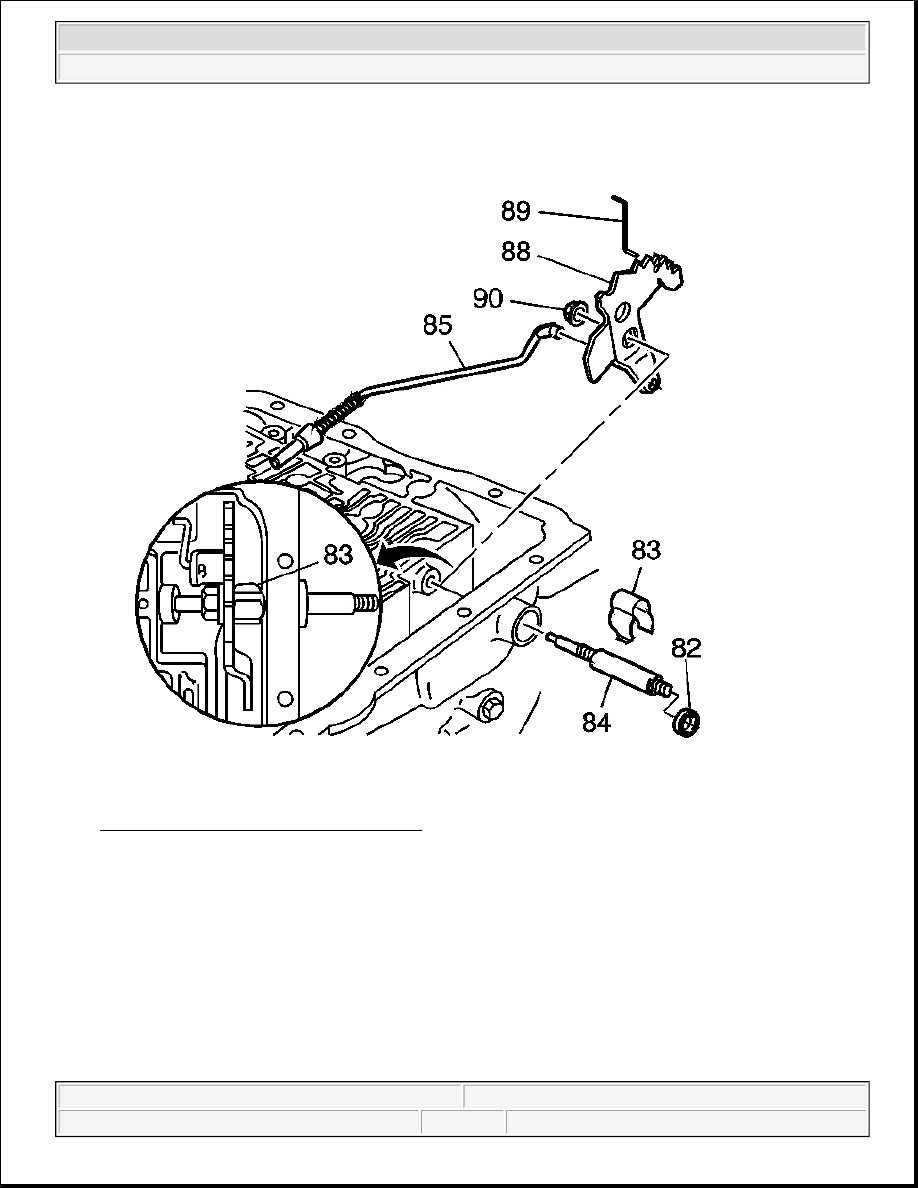

Fig. 79: Inspecting Inner Manual Linkage
Courtesy of GENERAL MOTORS CORP.

1. Remove the following parts:

1. Hex head nut (90)

2. Manual valve link (89)

3. Detent lever (88)

4. Parking lock actuator assembly (85)

5. Manual shaft retainer (83)

6. Manual shaft (84)



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

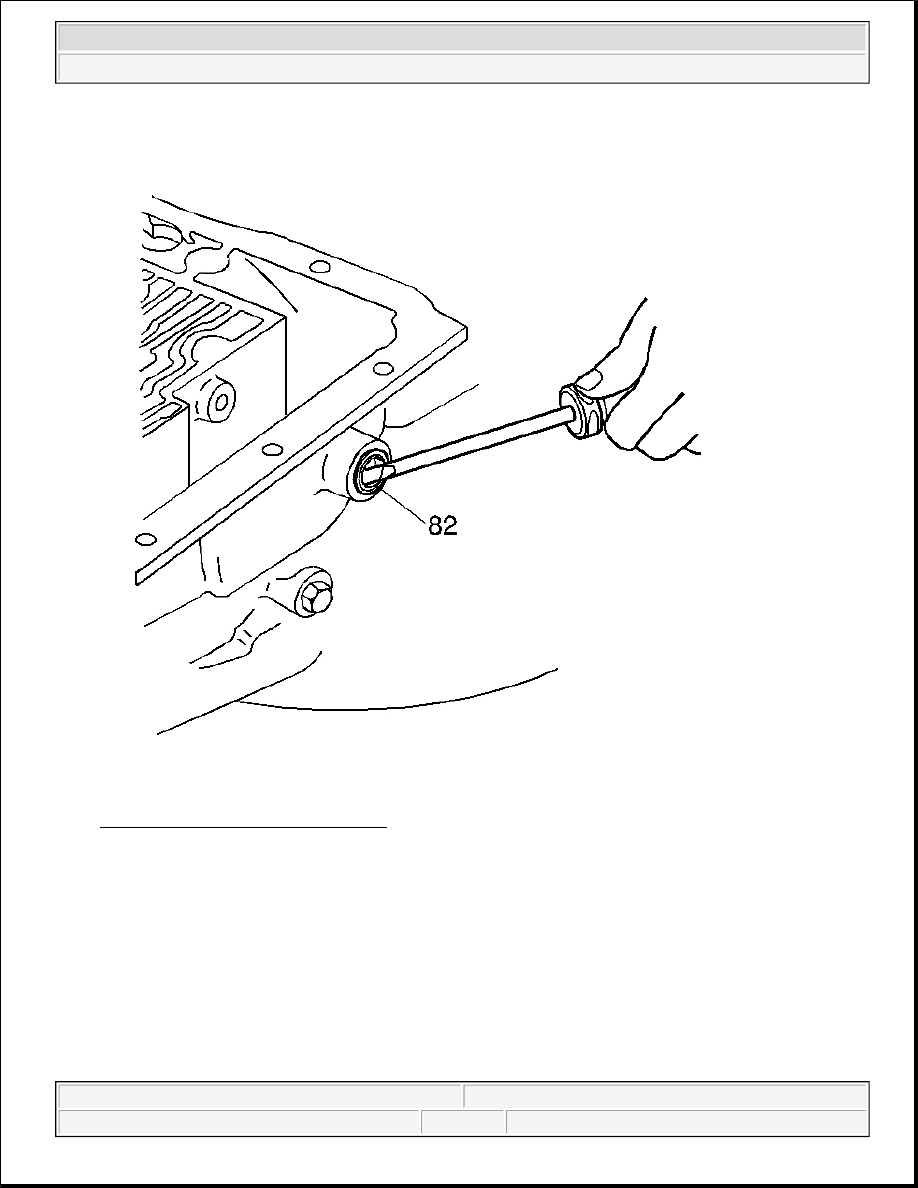

Fig. 80: Removing Manual Shaft Seal
Courtesy of GENERAL MOTORS CORP.

2. Remove the manual shaft seal (82) with a screwdriver.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

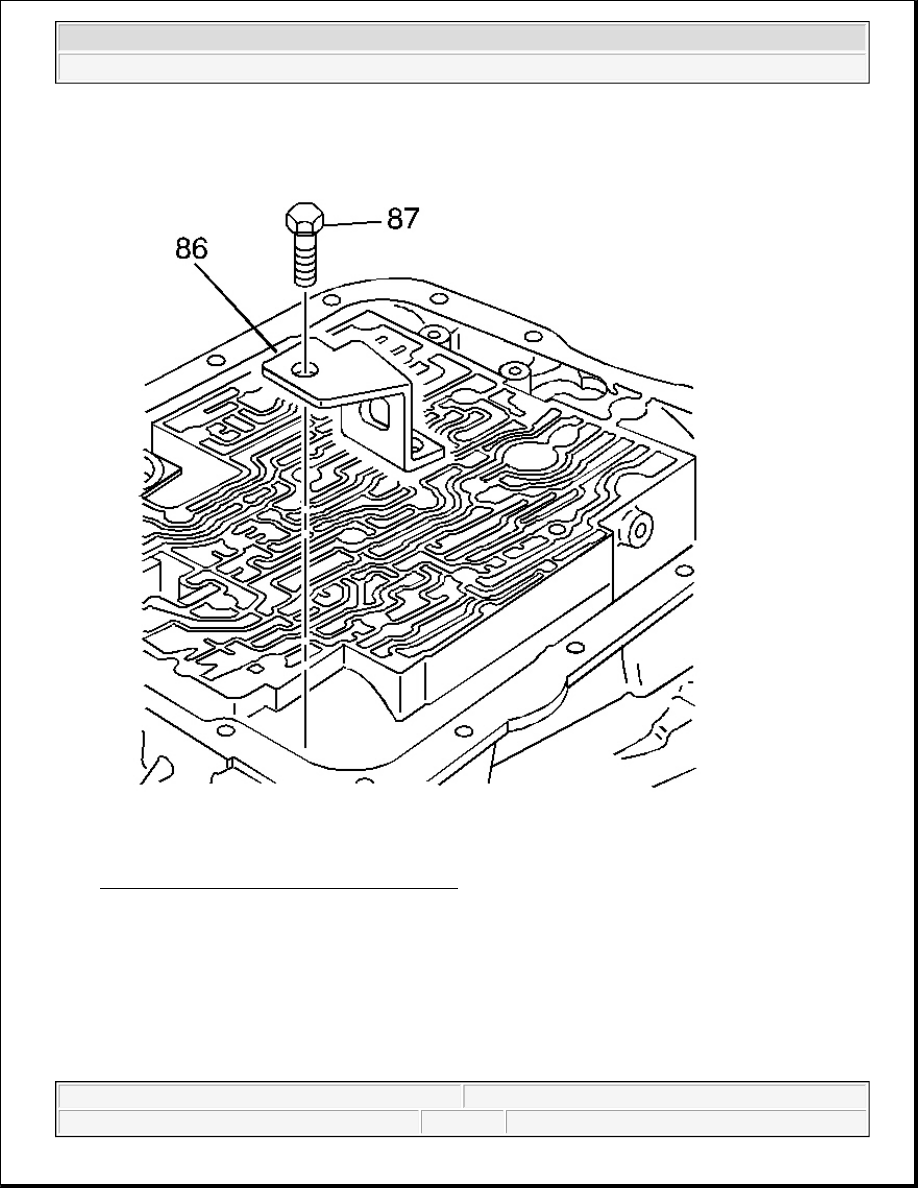

Fig. 81: View Of Parking Lock Bracket & Bolt
Courtesy of GENERAL MOTORS CORP.

3. Remove the following components:

1. The parking lock bracket bolt (87)

2. The parking lock bracket (86)

LOW AND REVERSE CLUTCH PISTON REMOVAL

Tools Required



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E
