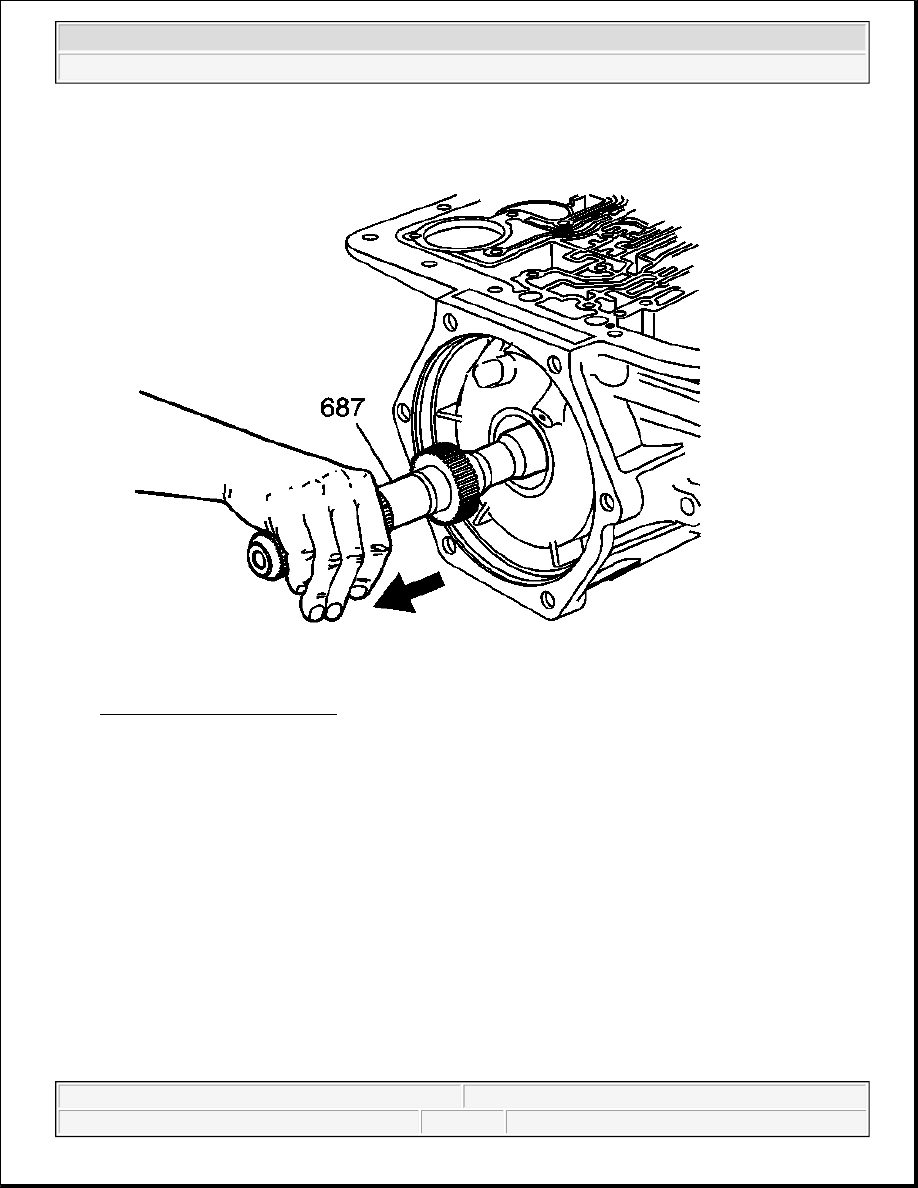

Fig. 74: Locating Output Shaft
Courtesy of GENERAL MOTORS CORP.

6. Remove the output shaft (687).



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

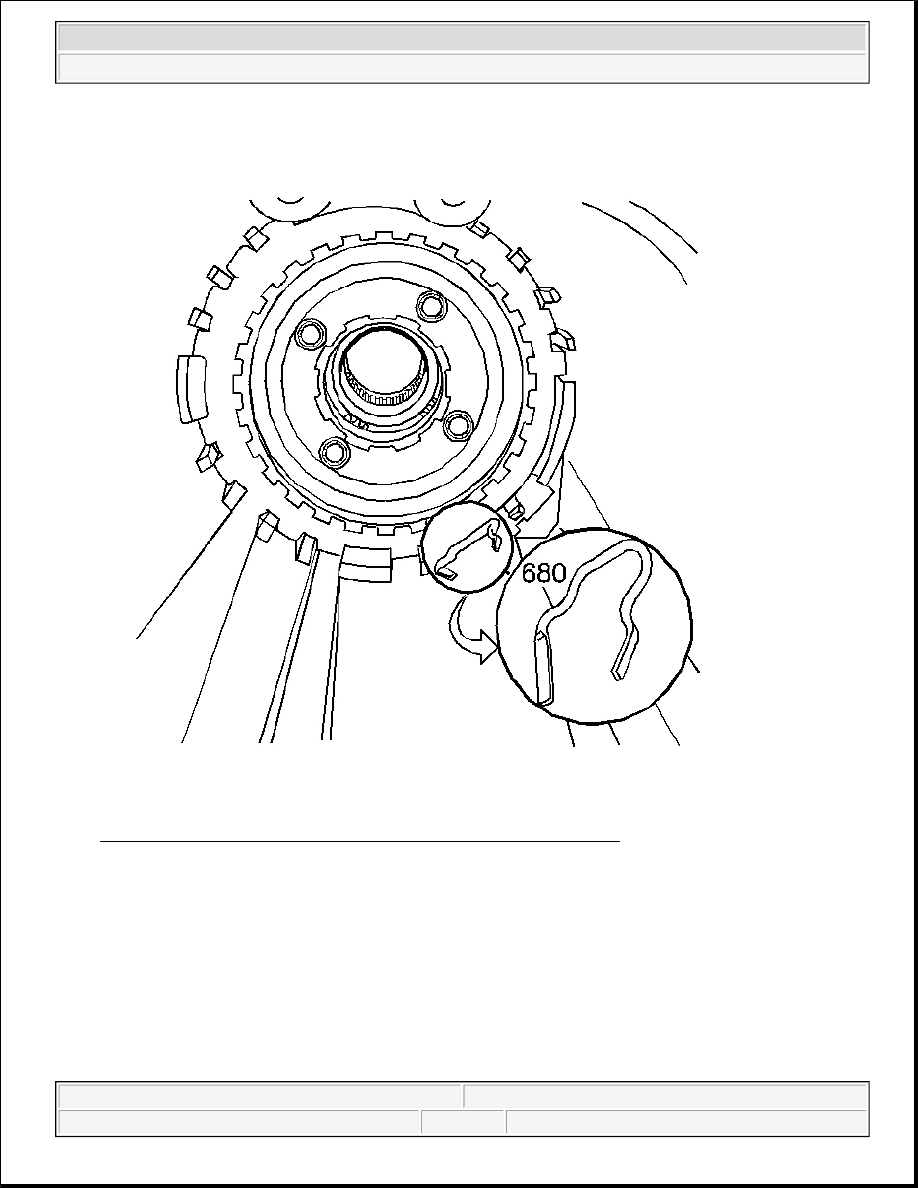

Fig. 75: View Of Low And Reverse Clutch Support Retainer Spring
Courtesy of GENERAL MOTORS CORP.

7. Remove the low and reverse clutch support retainer spring (680).



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

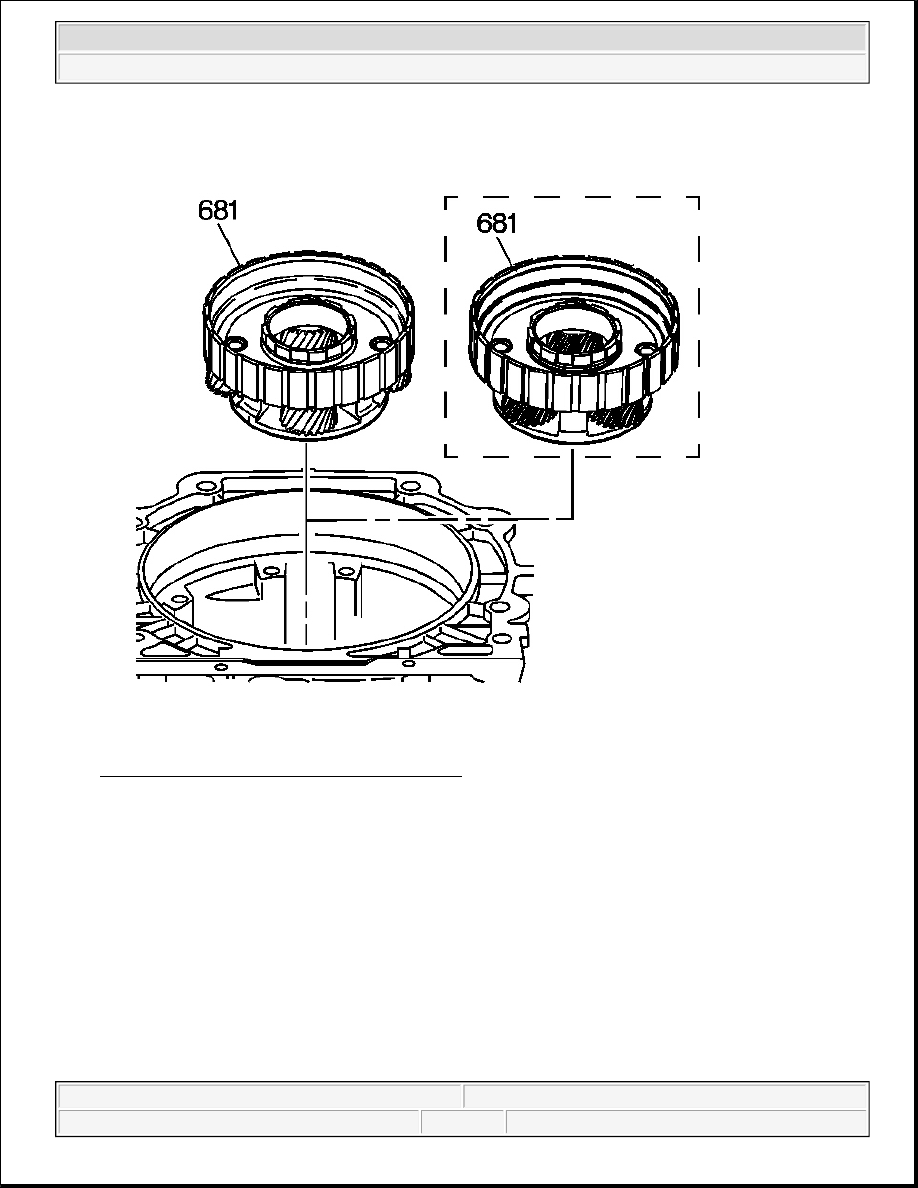

Fig. 76: Identifying Reaction Carrier Assembly
Courtesy of GENERAL MOTORS CORP.

8. Remove the reaction carrier assembly (681).

IMPORTANT: The reaction carrier assembly (681) can be a 4 or 5 pinion design

depending on the transmission model.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

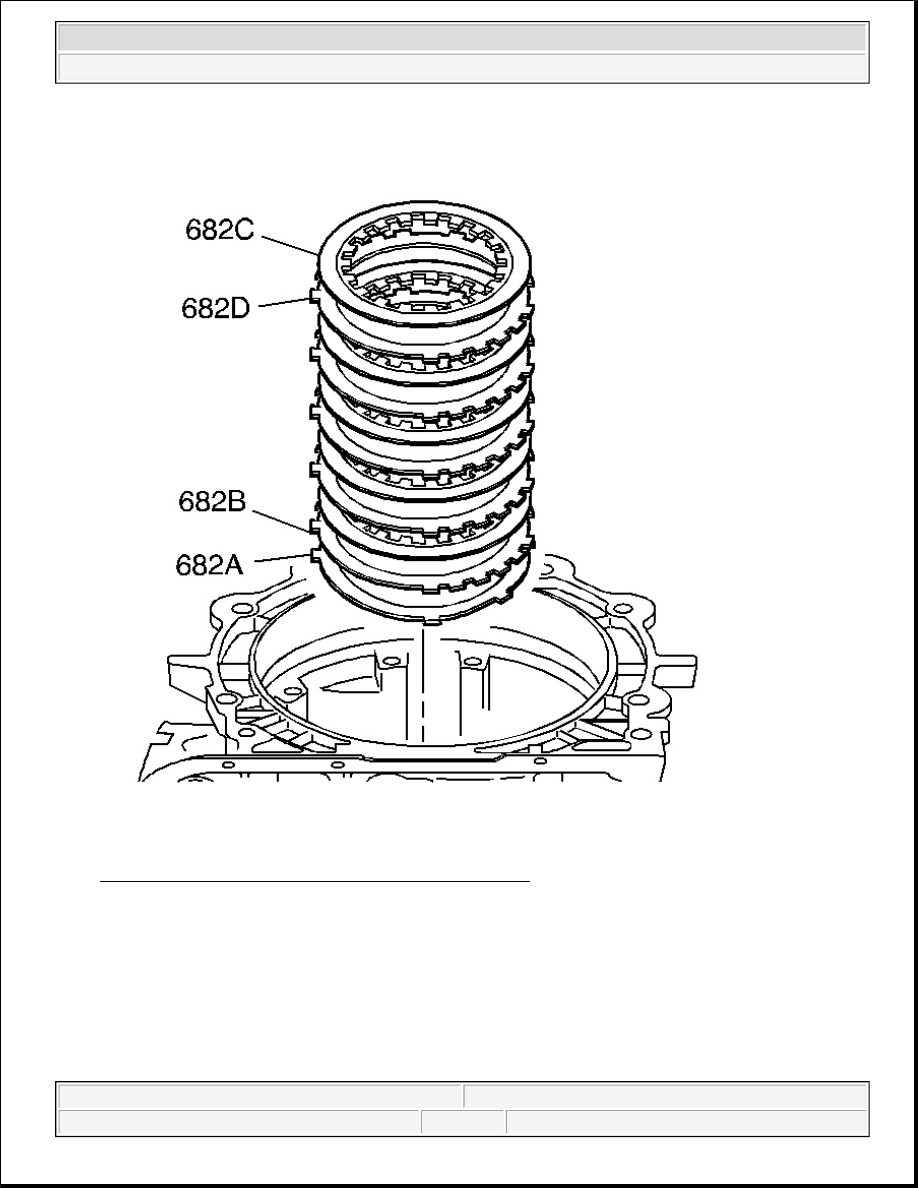

Fig. 77: Locating Low And Reverse Clutch Components
Courtesy of GENERAL MOTORS CORP.

9. Remove the following components:

1. The low and reverse clutch fiber plate assembly (682C)

2. The low and reverse clutch steel plates (682D)

3. The low and reverse clutch selective plate (682B)

4. The low and reverse clutch waved plate (682A)
