2. Install the screws to the windshield reveal molding.

Tighten: Tighten the screws to the windshield reveal molding to 2 N.m (18 lb in).

3. Install the front door sealing weatherstrip (1) to the pinchweld.

4. Close the door.

REARVIEW MIRROR REPLACEMENT

Removal Procedure

1. Use a flat-bladed tool in order to remove the wire cover, if equipped.

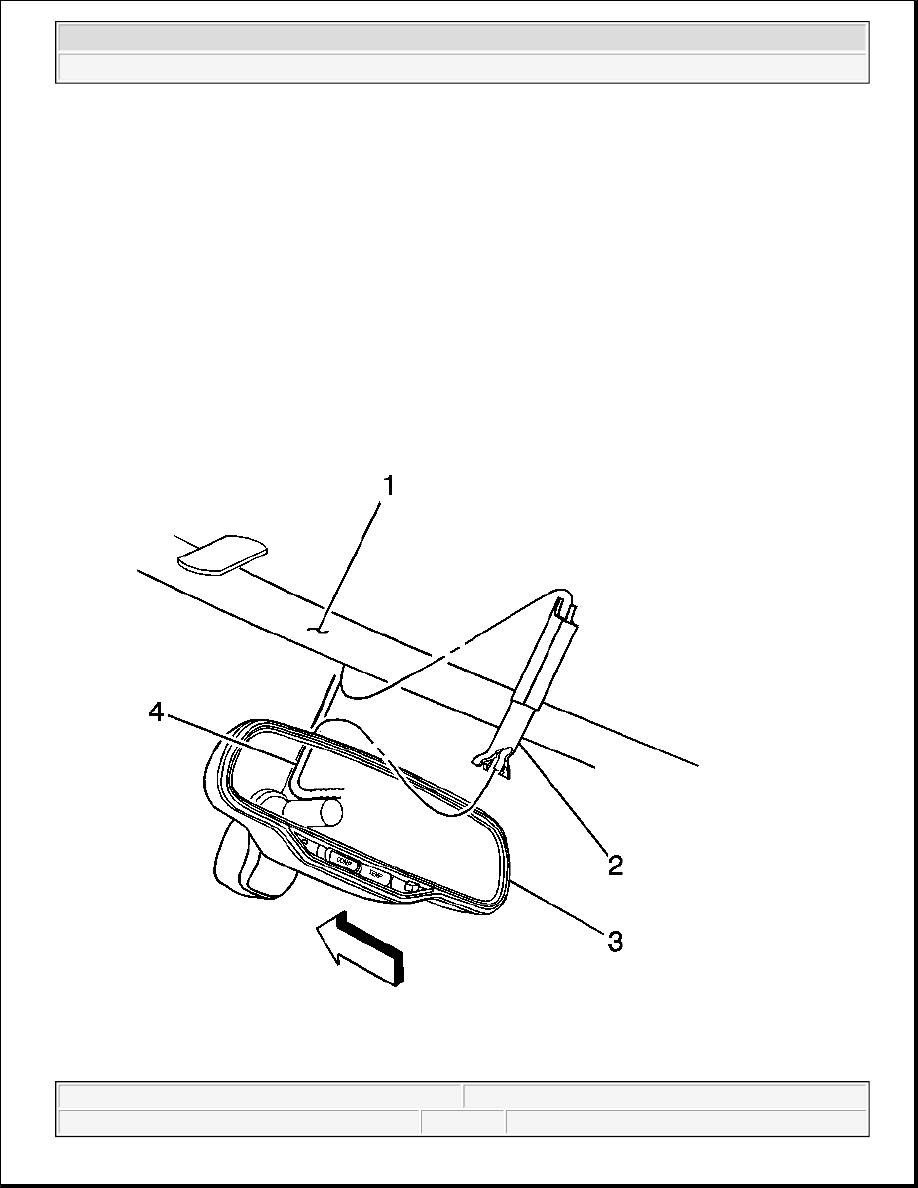

Fig. 14: Electrical Connector & Rearview Mirror



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connector (4), if equipped.

3. Using a TORX-head(R) screwdriver, loosen the set screw that holds the mirror base to the windshield

button.

4. Slide the mirror (3) off of the support.

Installation Procedure

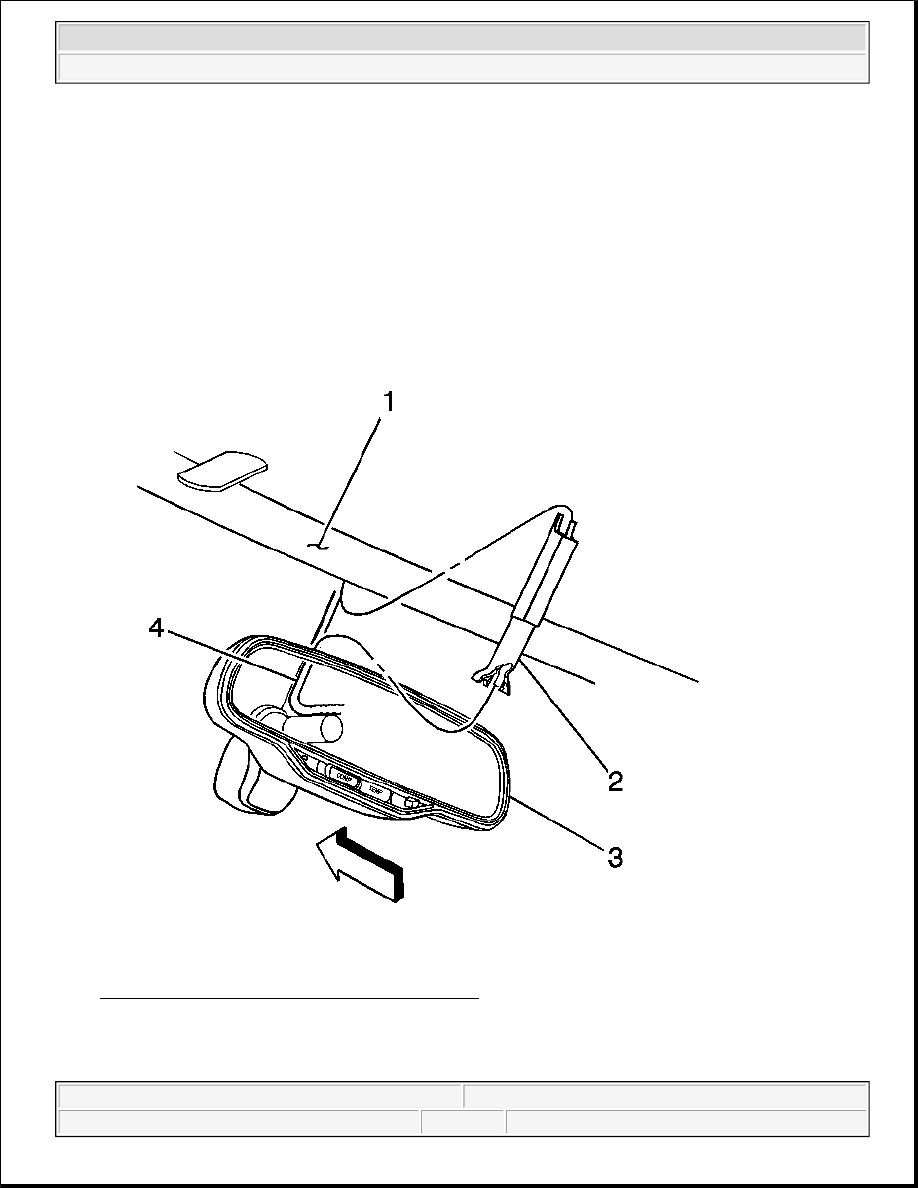

Fig. 15: Electrical Connector & Rearview Mirror
Courtesy of GENERAL MOTORS CORP.

1. Slide the mirror (3) onto the mirror support.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



2. Install the set screw.

Tighten: Tighten the set screw to 2 N.m (18 lb in).

3. Connect the electrical connector (4), if equipped.

4. Install the wire cover (2), if equipped.

5. Ensure the wire cover is tucked into the forward edge of the headliner (1).

6. Re-calibrate the compass. Refer to Compass Calibration and Variance Procedure .

REARVIEW MIRROR SUPPORT INSTALLATION

Tools Required

z

Inside Mirror Adhesive Kit GM P/N 1052369 or Equivalent

z

Safety Razor or Utility Knife

1. Determine the location of the mirror mounting base by marking the outside of the windshield with a

marking pencil where the base was previously located. If it is not clear where the base was mounted, use
the following steps to determine where the base should be installed:

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



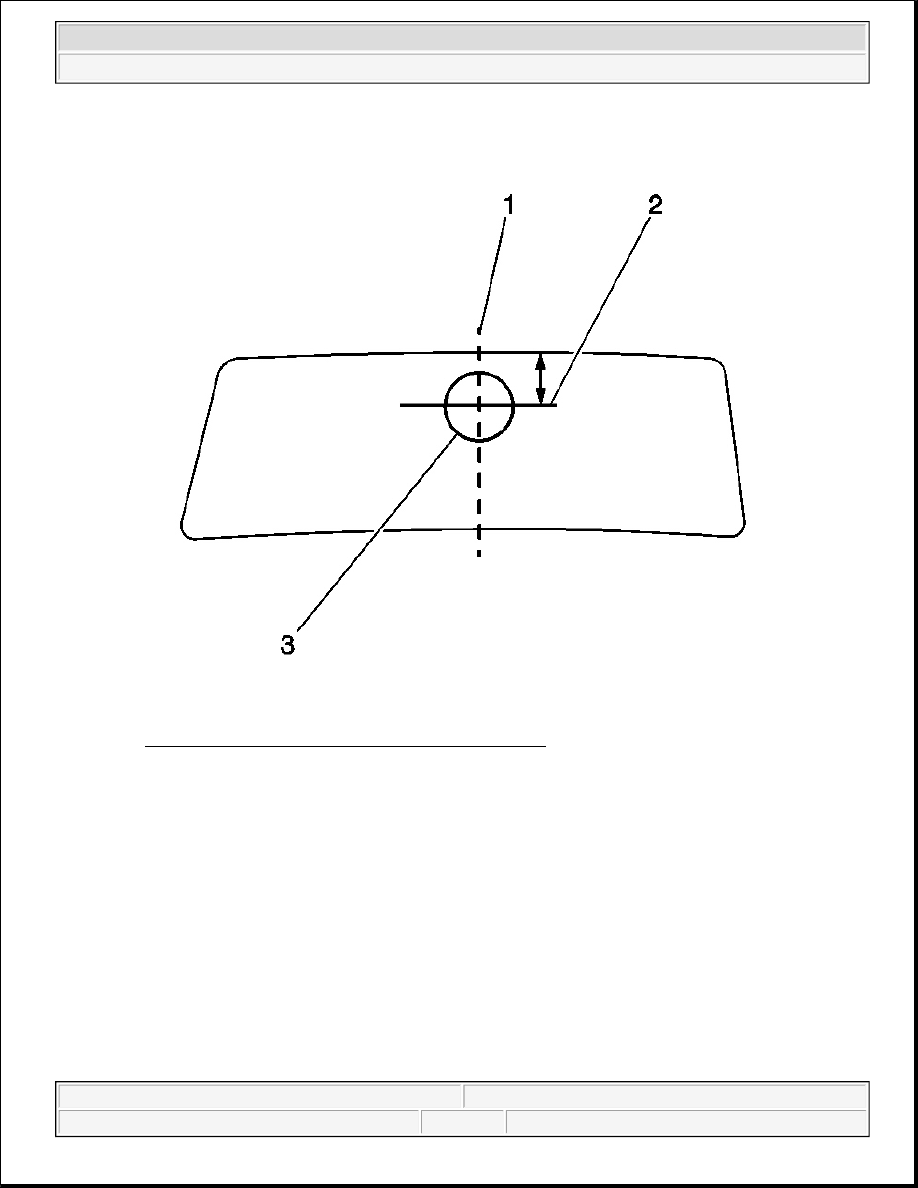

Fig. 16: Identifying Mirror Mounting Base Location
Courtesy of GENERAL MOTORS CORP.

1. Using a measuring tape, measure the distance between the windshield pillars from the base of the

shade line.

2. Using a marking pencil, halfway between the windshield pillars, draw a centerline (1) on the

windshield from the roof panel to the windshield base.

3. Draw a perpendicular line intersecting the centerline (2) at that location.

The top center of the mirror mounting base will be at the intersection of these lines.

2. Scrape the inside windshield glass thoroughly with a safety razor or utility knife in order to remove all

old adhesive.

3. If reinstalling the original mounting base, place the mirror mounting base in a suitable holding device,

such as a vice.

4. Scrape the mirror mounting base thoroughly with a safety razor or utility knife in order to remove all old
