REVERSE INPUT CLUTCH BUSHING REPLACEMENT

Removal Procedure

Tools Required

z

J 25019 Bushing Service Set. See Special Tools and Equipment .

z

J 34196-B Transmission Bushing Service Set. See Special Tools and Equipment .

z

J 7004-A Universal Remover. See Special Tools and Equipment .

z

J 8092 Universal Driver Handle - 3/4 in - 10

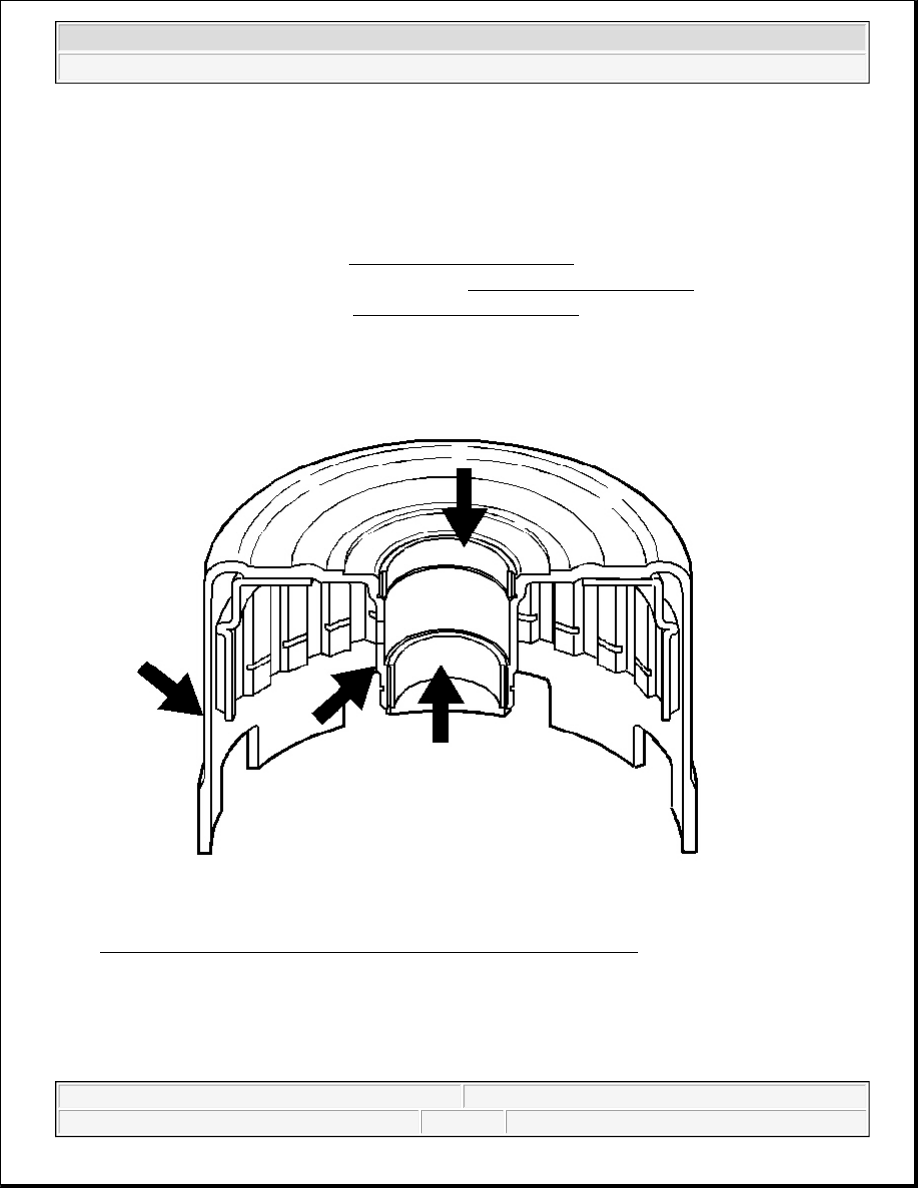

Fig. 344: Inspecting Reverse Input Clutch Housing & Drum Assembly
Courtesy of GENERAL MOTORS CORP.

1. Inspect the reverse input clutch housing and drum assembly for the following conditions:

z

Damaged or worn bushings

z

Surface finish on the hub and outer housing - check band surface for flatness



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



z

Leak at the weld

z

Heat distortion

z

Rolled or distorted retaining ring groove

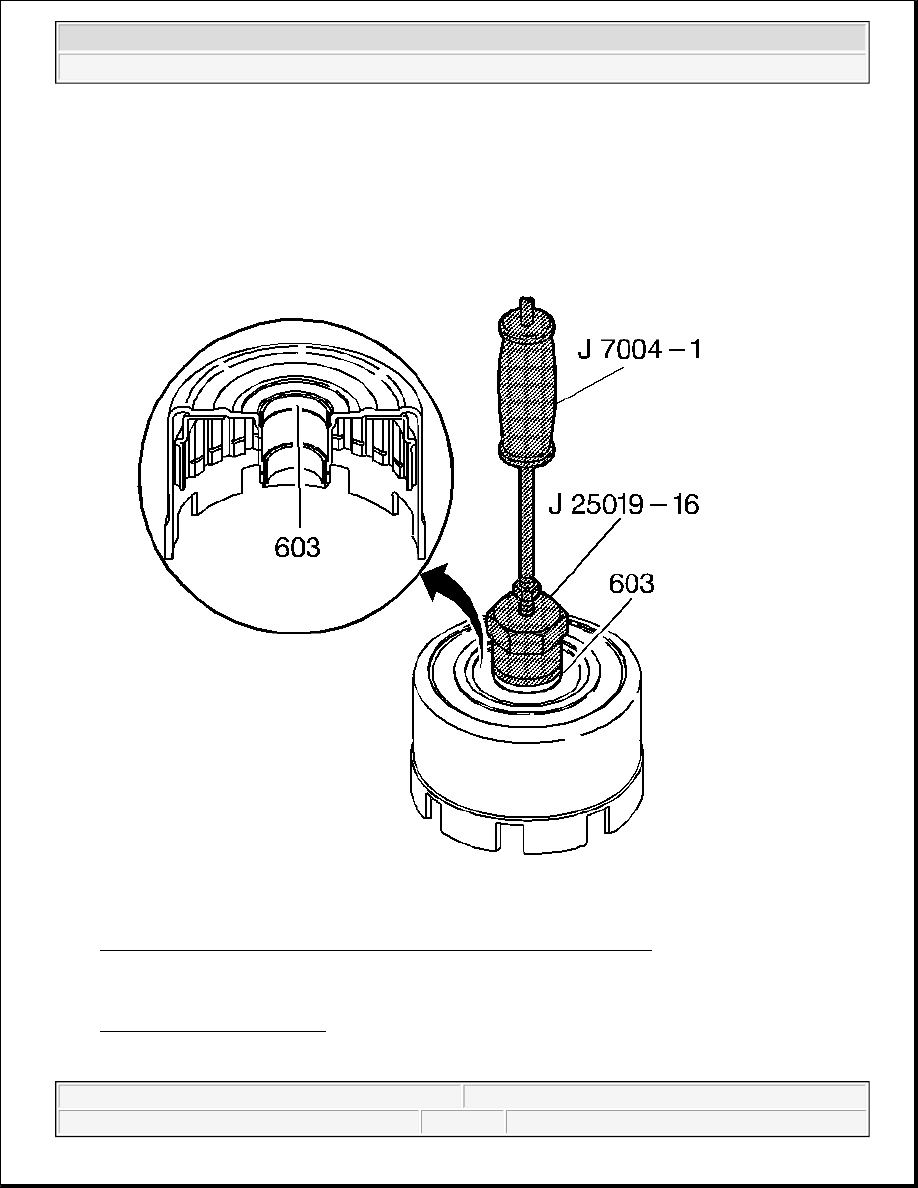

Fig. 345: J 25019-16 & J 7004-A & Reverse Input Clutch Front Bushing
Courtesy of GENERAL MOTORS CORP.

2. Using the J 25019-16 with the J 7004-A , remove the reverse input clutch front bushing (603). See

Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



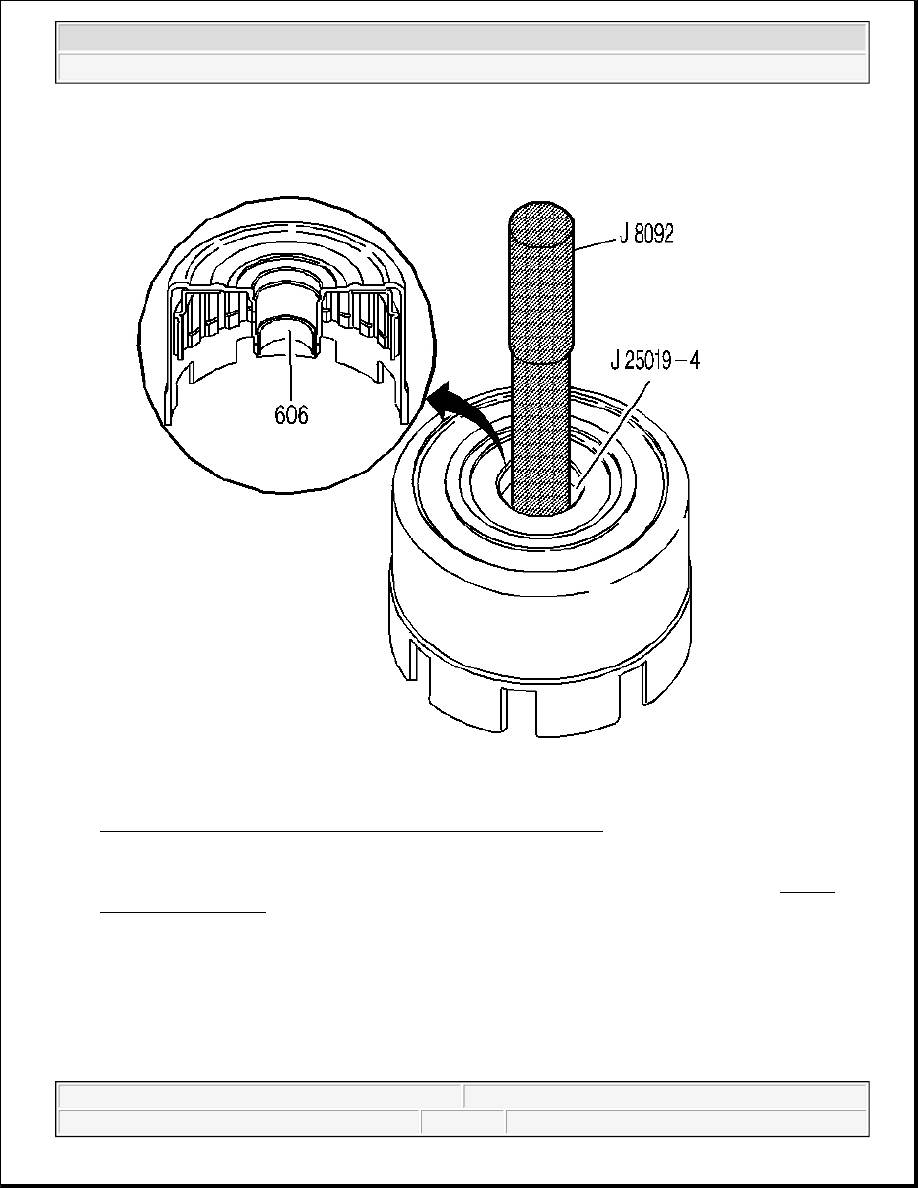

Fig. 346: J 25019-4, J 8092 & Reverse Input Clutch Rear Bushing
Courtesy of GENERAL MOTORS CORP.

3. Using the J 25019-4 with the J 8092 , remove the reverse input clutch rear bushing (606). See Special

Tools and Equipment .

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



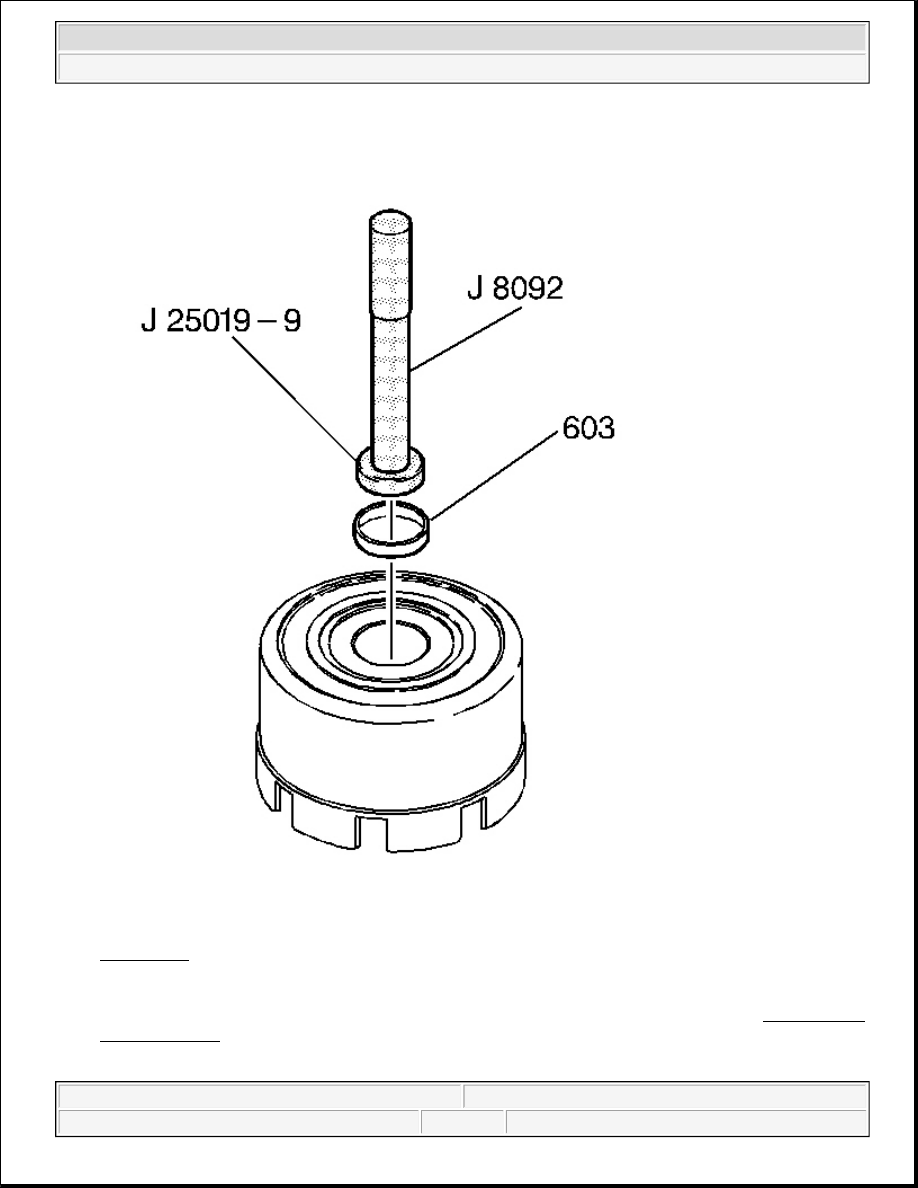

Fig. 347: or
Courtesy of GENERAL MOTORS CORP.

1. Using the J 25019-9 with the J 8092 , install a reverse input clutch front bushing (603). See Special Tools

and Equipment .
