TURBINE SHAFT SEALS INSTALLATION

Tools Required

J 36418-1B Turbine Shaft Seal Installer. See Special Tools and Equipment .

J 36418-2A Turbine Shaft Seal Sizer. See Special Tools and Equipment .

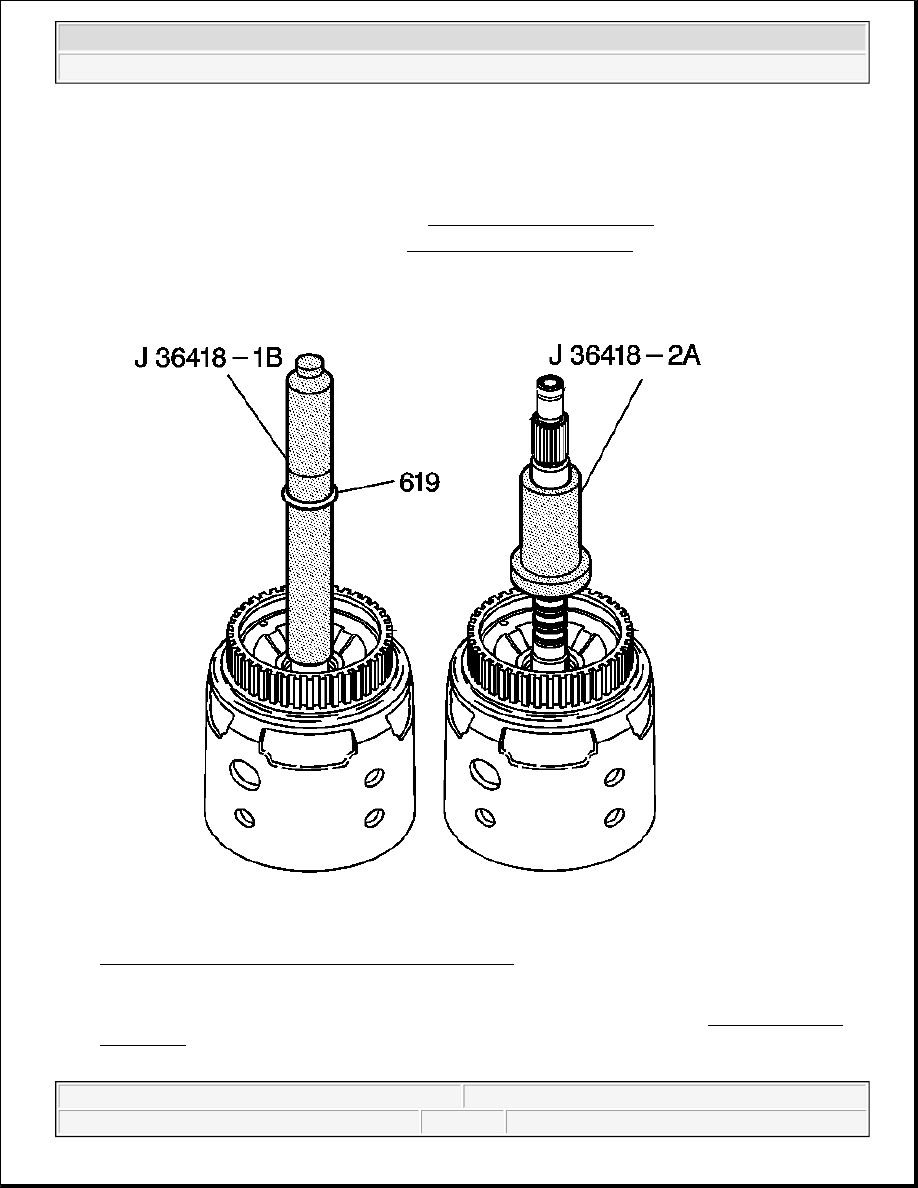

Fig. 340: Installing Four Turbine Shaft Oil Seal Rings
Courtesy of GENERAL MOTORS CORP.

1. Use the J 36418-1B in order to install the four turbine shaft oil seal rings (619). See Special Tools and

Equipment .

2. Place the J 36418-2A over the turbine shaft oil seal rings (619). Leave the J 36418-2A on the shaft until

2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

the reverse input clutch must be installed on the input clutch. See Special Tools and Equipment .

REVERSE INPUT CLUTCH DISASSEMBLE

Tools Required

J 23327-1 Forward Clutch Spring Compressor (Bridge). See Special Tools and Equipment .

J 25018-A Clutch Spring Compressor Adapter. See Special Tools and Equipment .

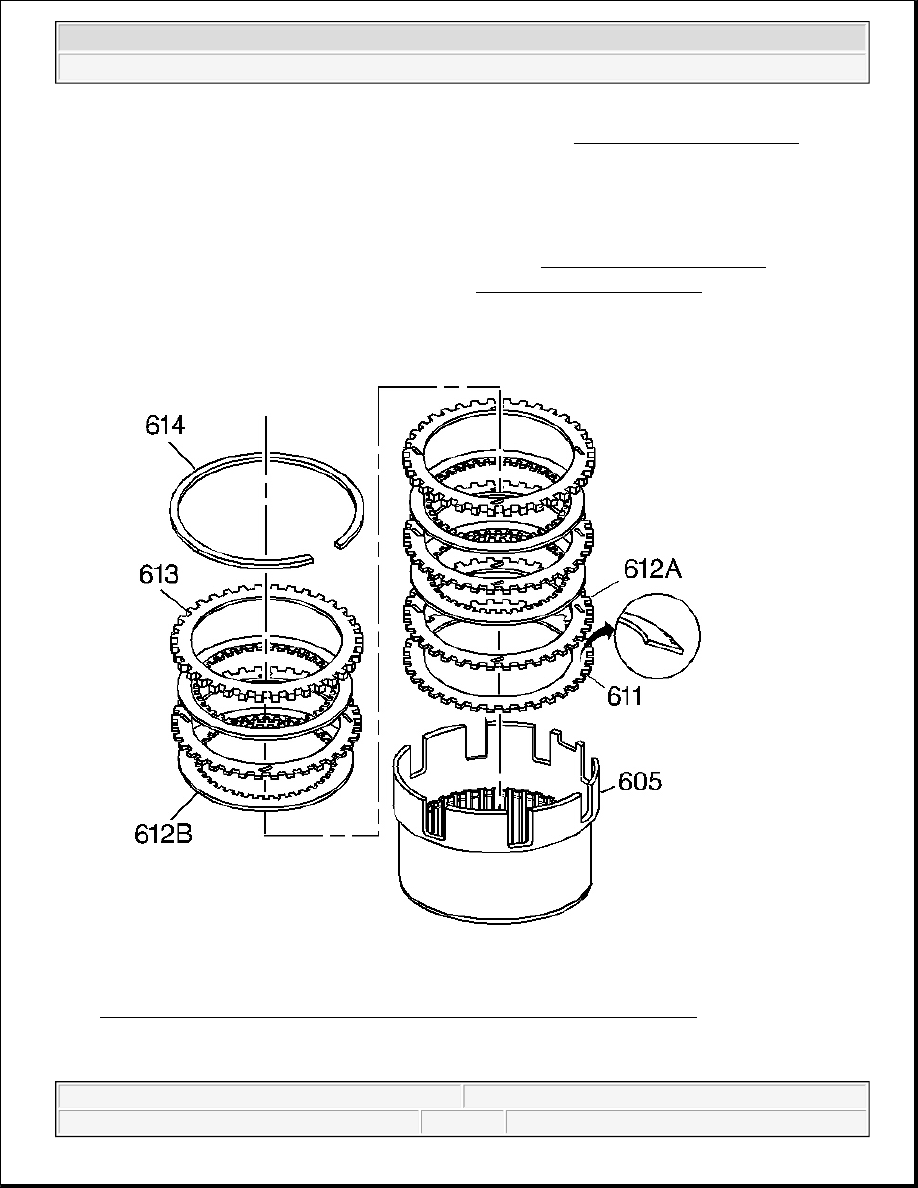

Fig. 341: Reverse Input Clutch Retaining Ring & Reverse Input Clutch Plates
Courtesy of GENERAL MOTORS CORP.

1. Remove the reverse input clutch retaining ring (614).

2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

2. Remove all reverse input clutch plates (611-613).

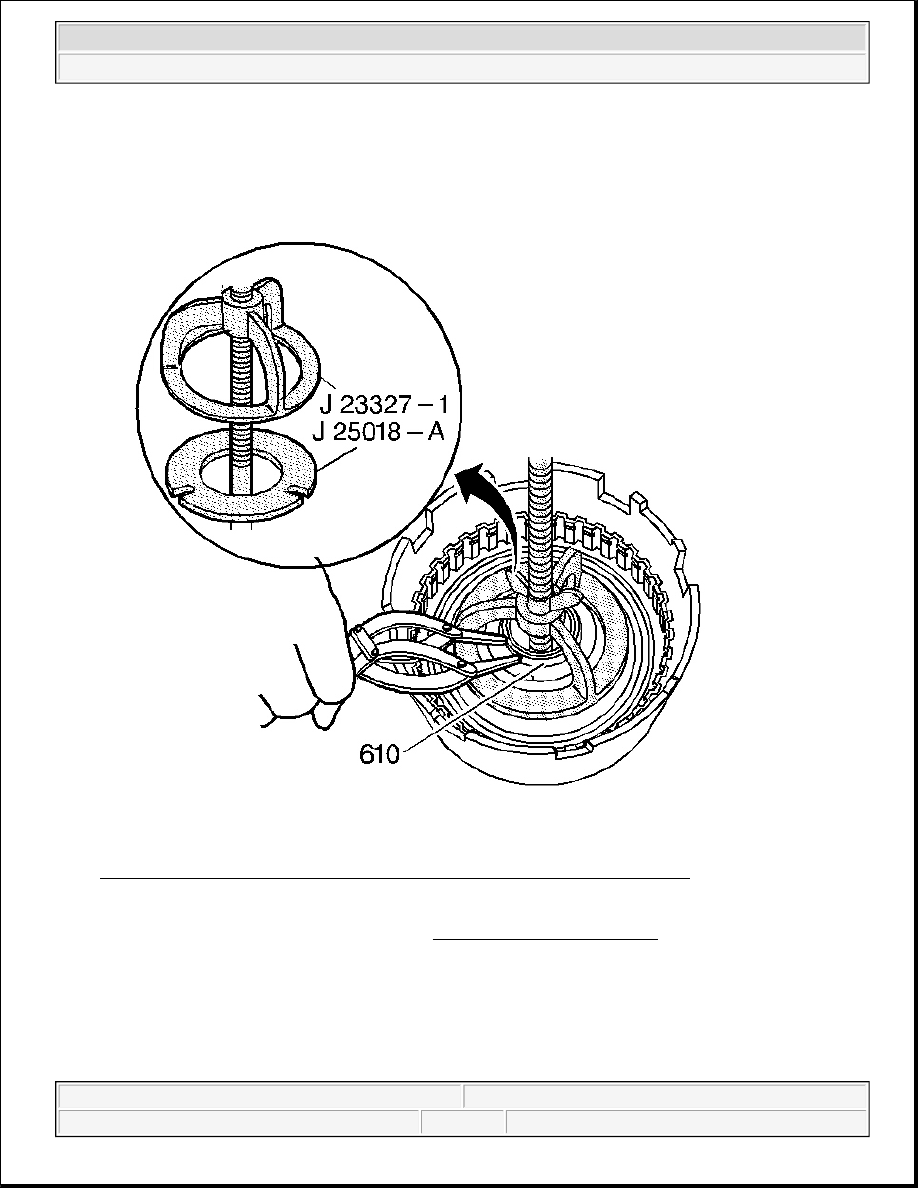

Fig. 342: J 23327-1, J 25018-A & Reverse Input Clutch Spring Retainer Ring
Courtesy of GENERAL MOTORS CORP.

3. Install the J 23327-1 and the J 25018-A . See Special Tools and Equipment .

4. Compress the reverse input clutch spring assembly.

5. Remove the reverse input clutch spring retainer ring (610).

2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

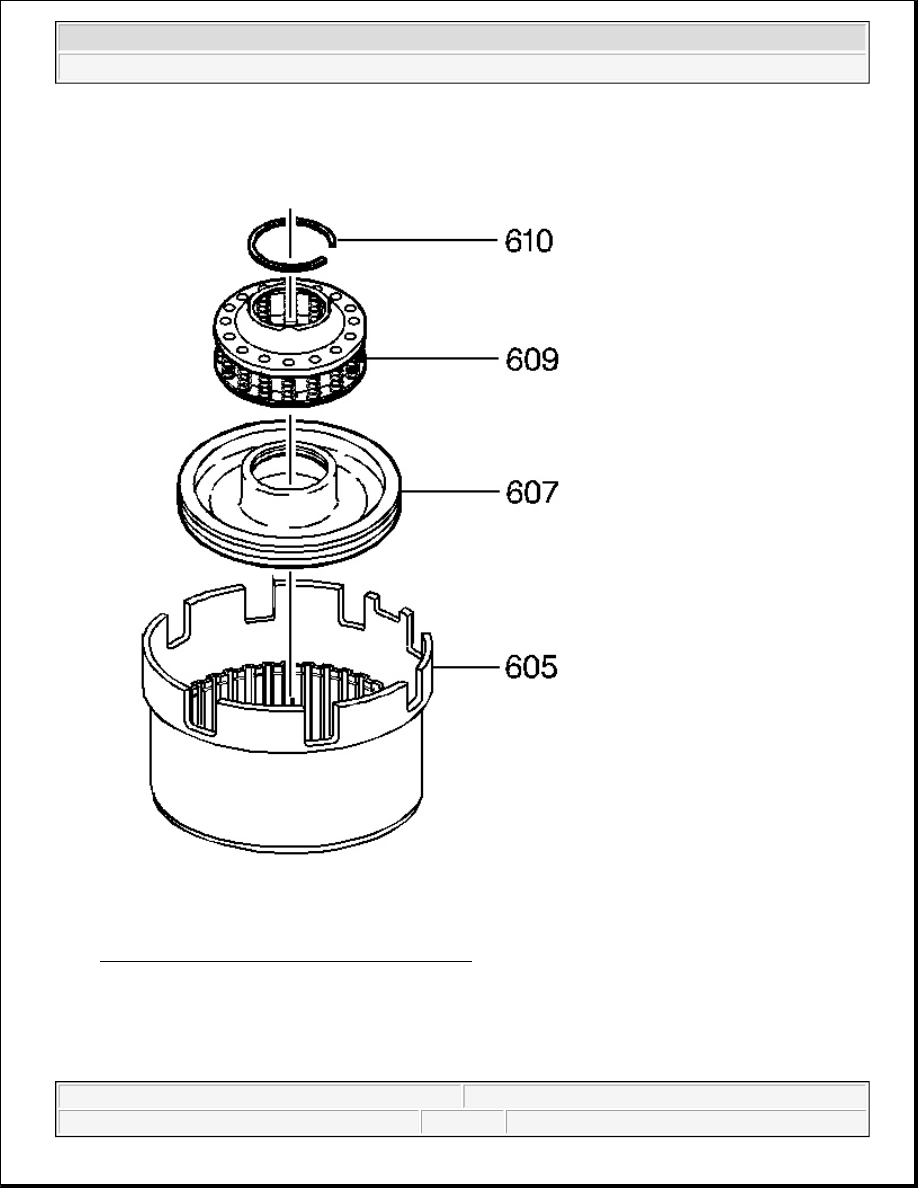

Fig. 343: Reverse Input Clutch Spring Assembly
Courtesy of GENERAL MOTORS CORP.

6. Remove the reverse input clutch spring assembly (609).

7. Remove the reverse input clutch piston assembly (607).
