Surface finish damage

3. Install the forward sprag assembly (642) into the forward clutch outer race (644).

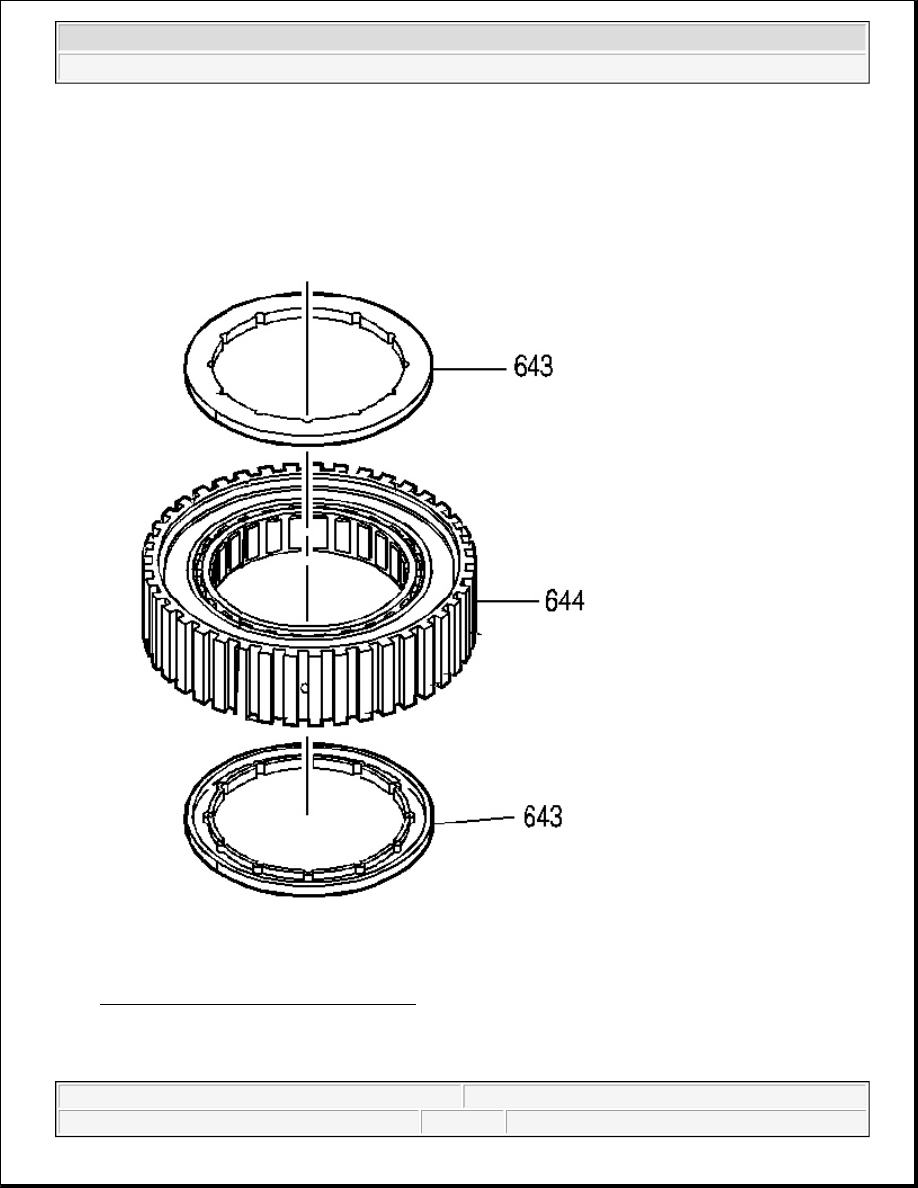

Fig. 327: Sprag Assembly Retainer Rings
Courtesy of GENERAL MOTORS CORP.

4. Inspect the sprag assembly retainer rings (643) for wear or damage.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



5. Install the sprag assembly retainer rings (643) into the forward clutch sprag assembly (644).

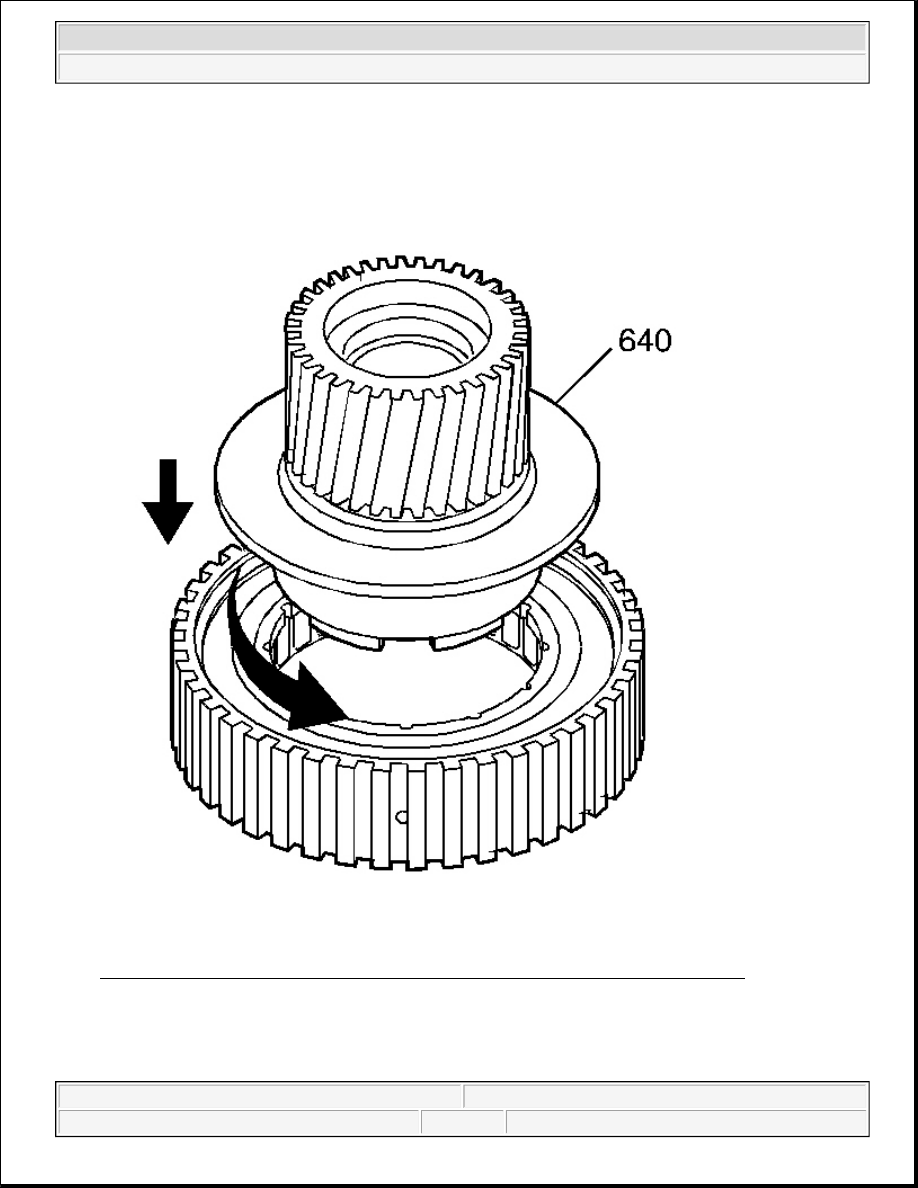

Fig. 328: Inspecting Forward Sprag Clutch Inner Race & Input Sun Gear Assembly
Courtesy of GENERAL MOTORS CORP.

6. Inspect the forward sprag clutch inner race and input sun gear assembly (640) for the following

conditions:



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



z

Damaged spline or gear teeth

z

Ring groove damage

z

Surface finish damage

z

Loose retainer

z

Wear

z

Cracks

7. Install the forward sprag clutch inner race and input sun gear assembly (640) into the forward sprag and

outer race assembly.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

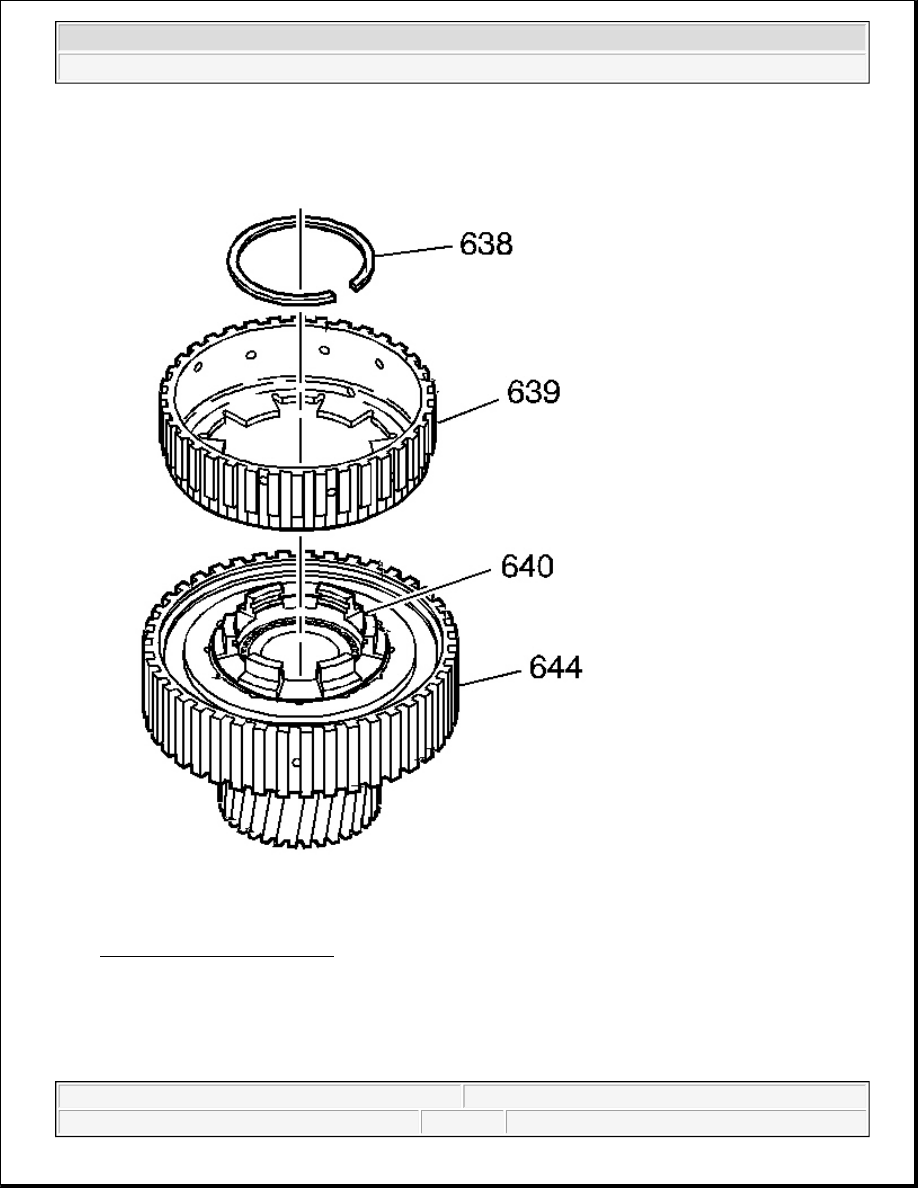

Fig. 329: Overrun Clutch Hub
Courtesy of GENERAL MOTORS CORP.

8. Inspect the overrun clutch hub (639) for the following conditions:

z

Spline damage

z

Plugged lubrication holes



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
