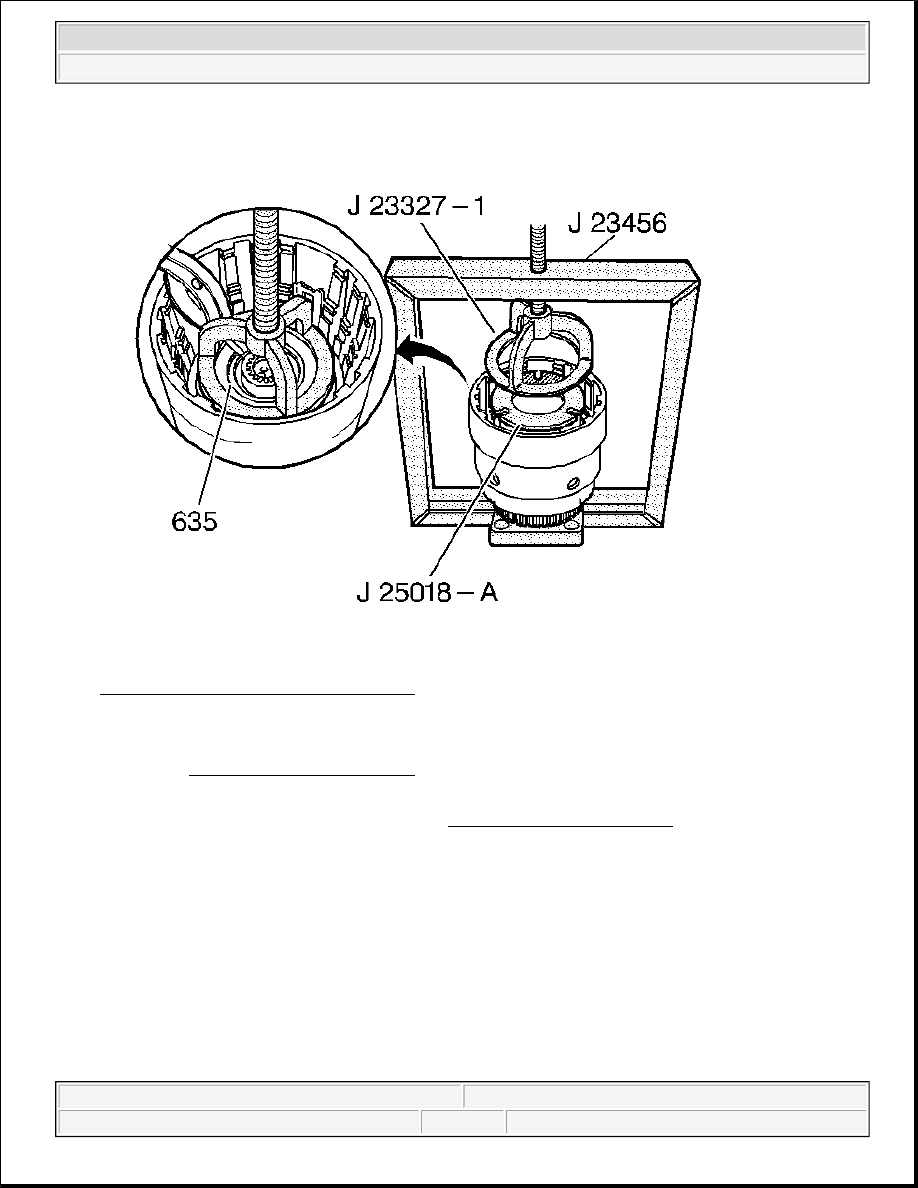

Fig. 319: View Of J 23327-1 & J 25018-A
Courtesy of GENERAL MOTORS CORP.

18. Install the J 23327-1 and the J 25018-A , and compress the overrun clutch spring assembly using J

23456 . See Special Tools and Equipment .

19. Install the overrun clutch spring retainer snap ring (635).

20. Remove the J 23327-1 and the J 25018-A . See Special Tools and Equipment .

INPUT HOUSING TO OUTPUT SHAFT SEAL INSTALLATION



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

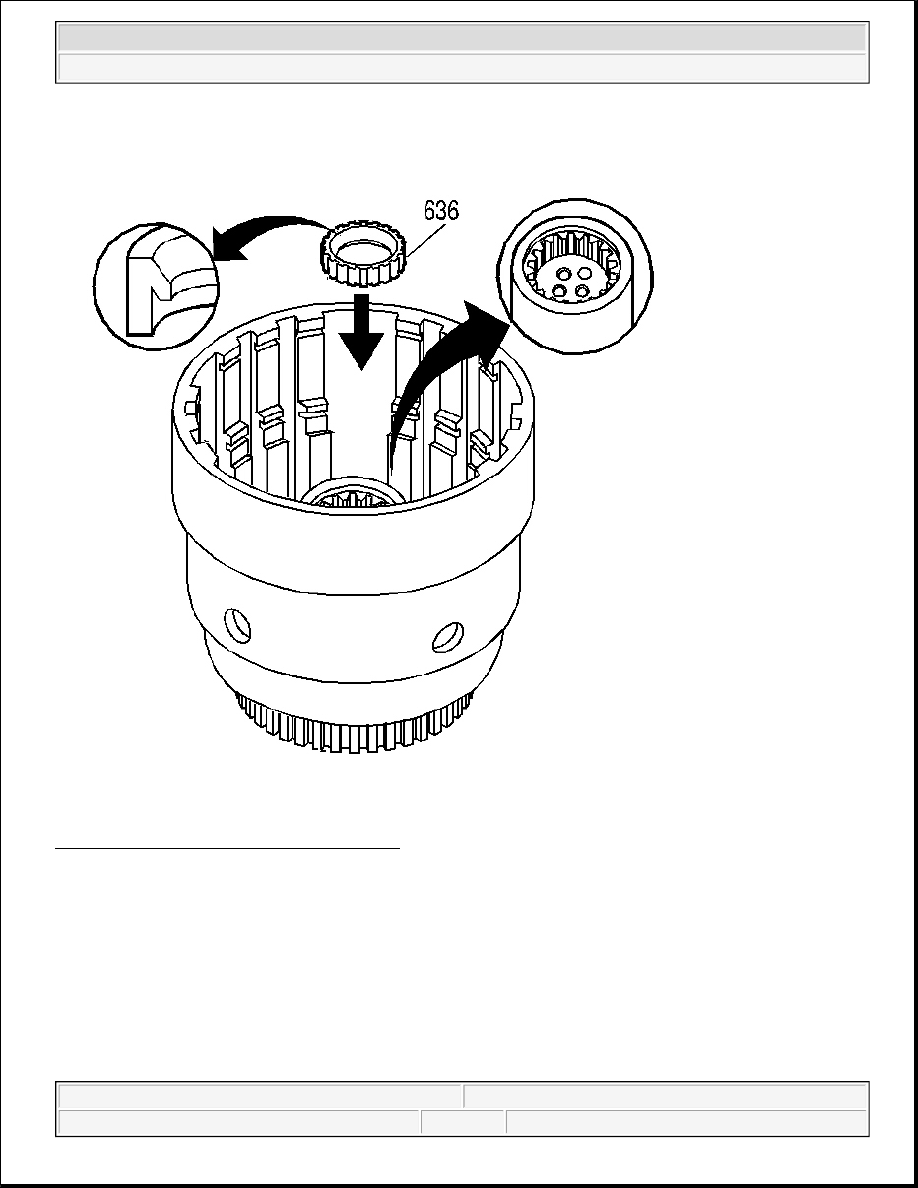

Fig. 320: Input Housing & Output Shaft Seal
Courtesy of GENERAL MOTORS CORP.

Install a new input housing to output shaft seal (636).

OVERRUN CLUTCH INSTALLATION



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

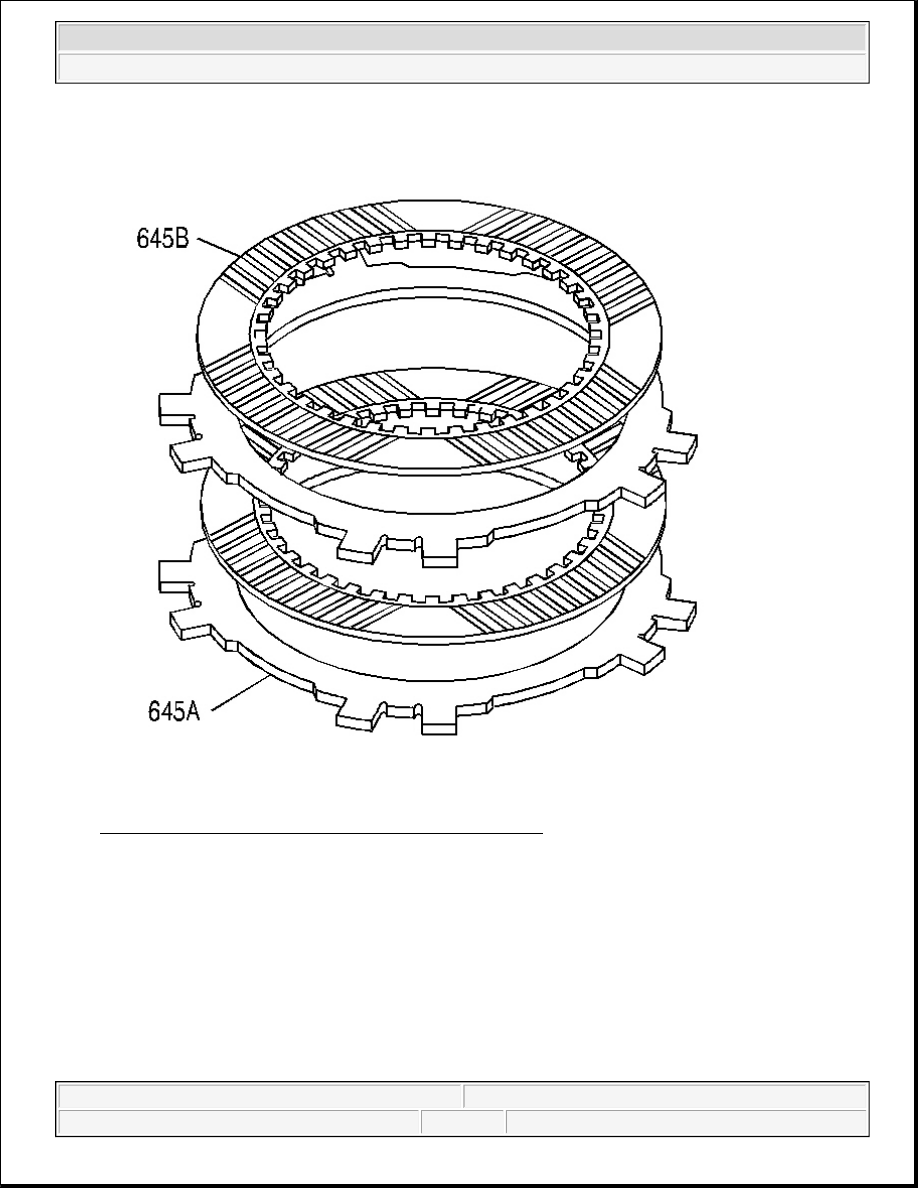

Fig. 321: Inspecting Fiber Plate Assemblies & Steel Plates
Courtesy of GENERAL MOTORS CORP.

1. Inspect the fiber plate assemblies (645B) and the steel plates (645A) for the following defects:

z

Damaged tangs

z

Delamination

z

Excessive wear

z

Wear or heat damage



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



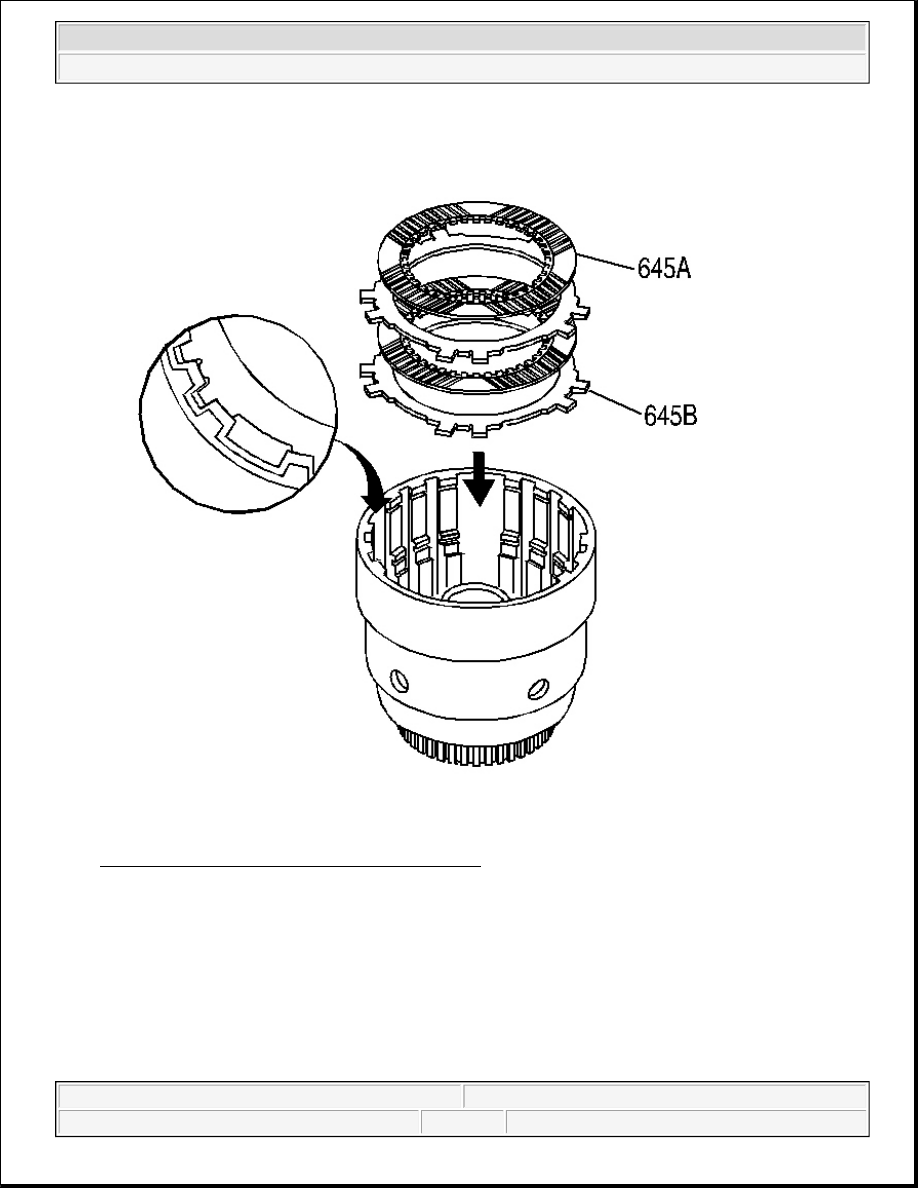

Fig. 322: Overrun Clutch Plates & Input Housing
Courtesy of GENERAL MOTORS CORP.

2. Install the overrun clutch plates into the input housing starting with a steel plate (645B) and alternating

with fiber plate assemblies (645A).

3. Index the plates in the input housing with the wide notches remaining open.
