Firmly seat the assembly.

11. Remove the J 29883 from the input housing. See Special Tools and Equipment .

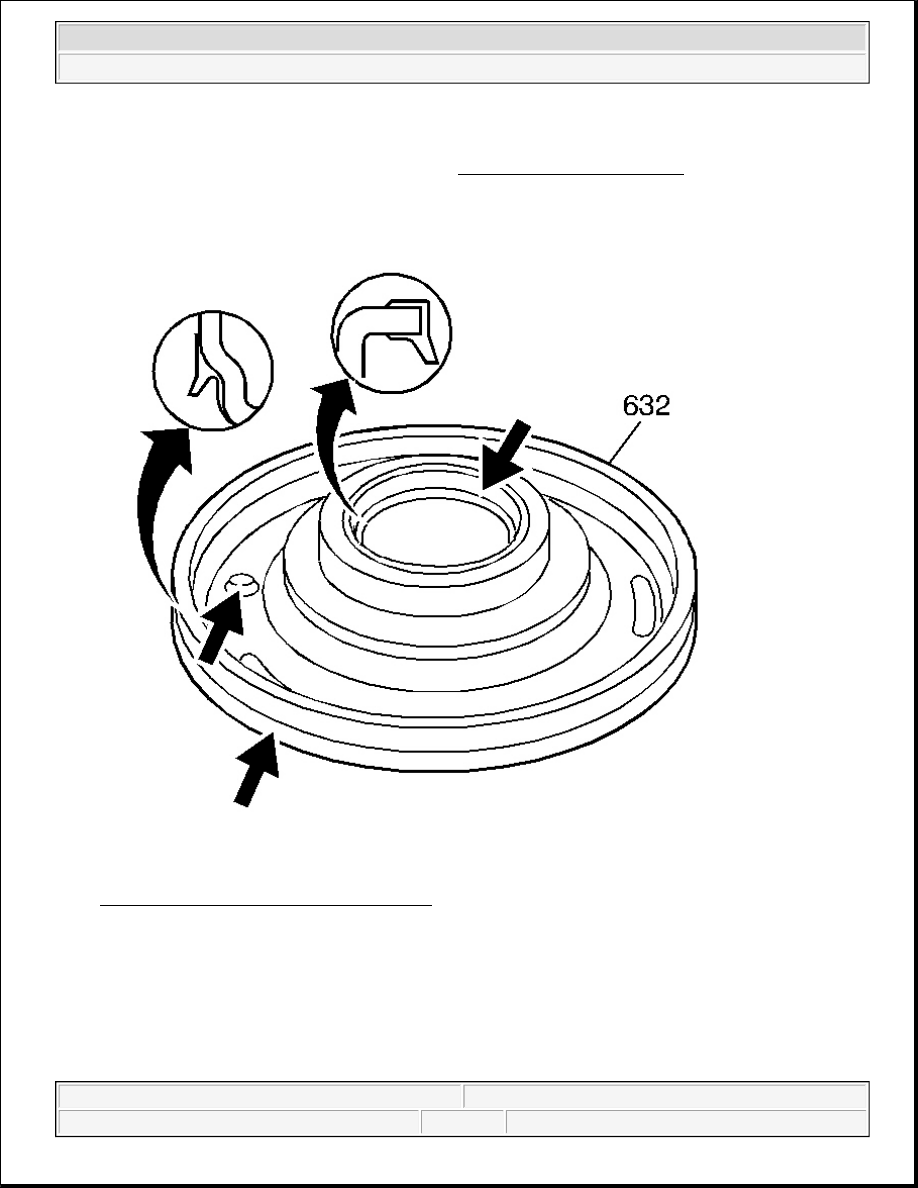

Fig. 315: Inspecting Overrun Clutch Piston
Courtesy of GENERAL MOTORS CORP.

12. Inspect the overrun clutch piston (632) for the following conditions:

z

Porosity or damage

z

Seal damage

z

Overrun clutch ball proper operation



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



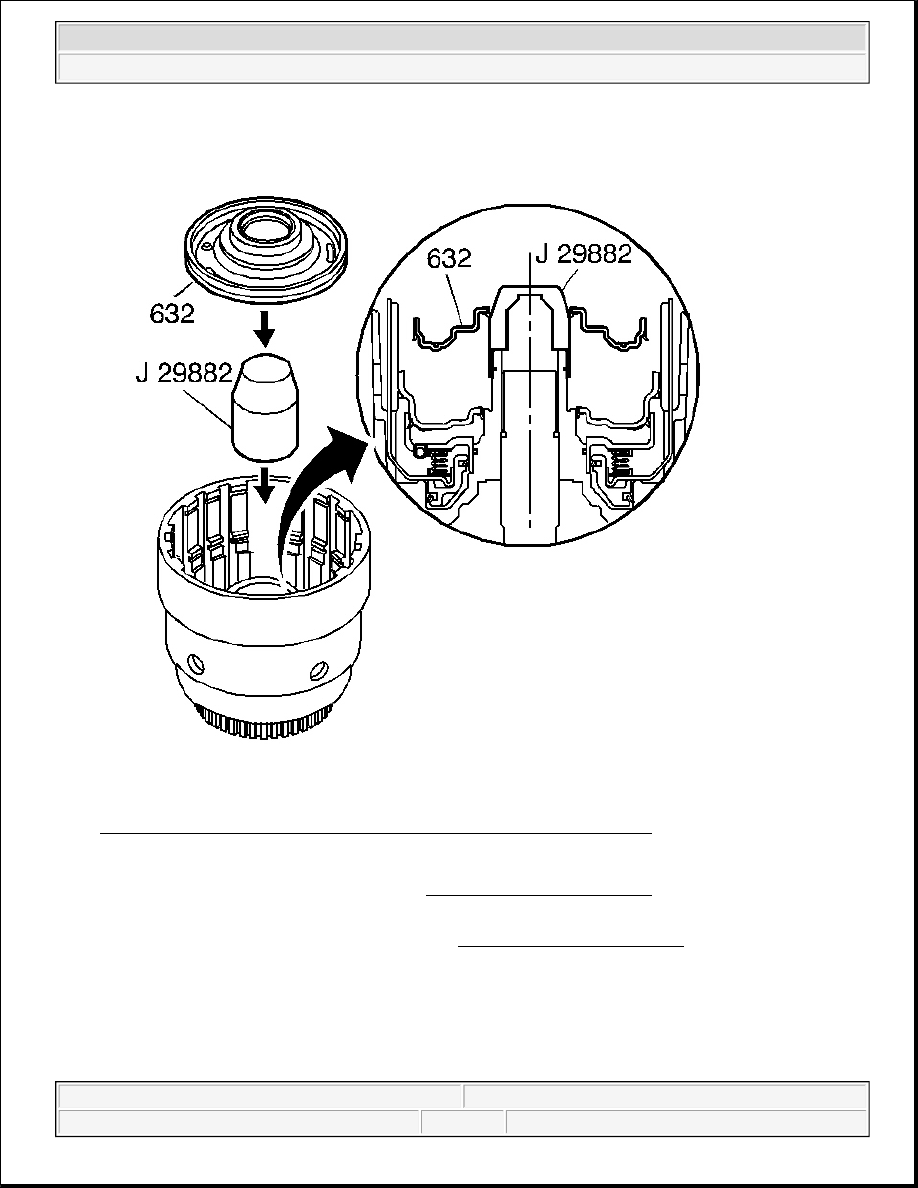

Fig. 316: Installing J 29882 & Overrun Clutch Piston On Input Housing
Courtesy of GENERAL MOTORS CORP.

13. Install the J 29882 on the input housing. See Special Tools and Equipment .

14. Install the overrun clutch piston (632) into the input housing.

15. Remove the J 29882 from the input housing. See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



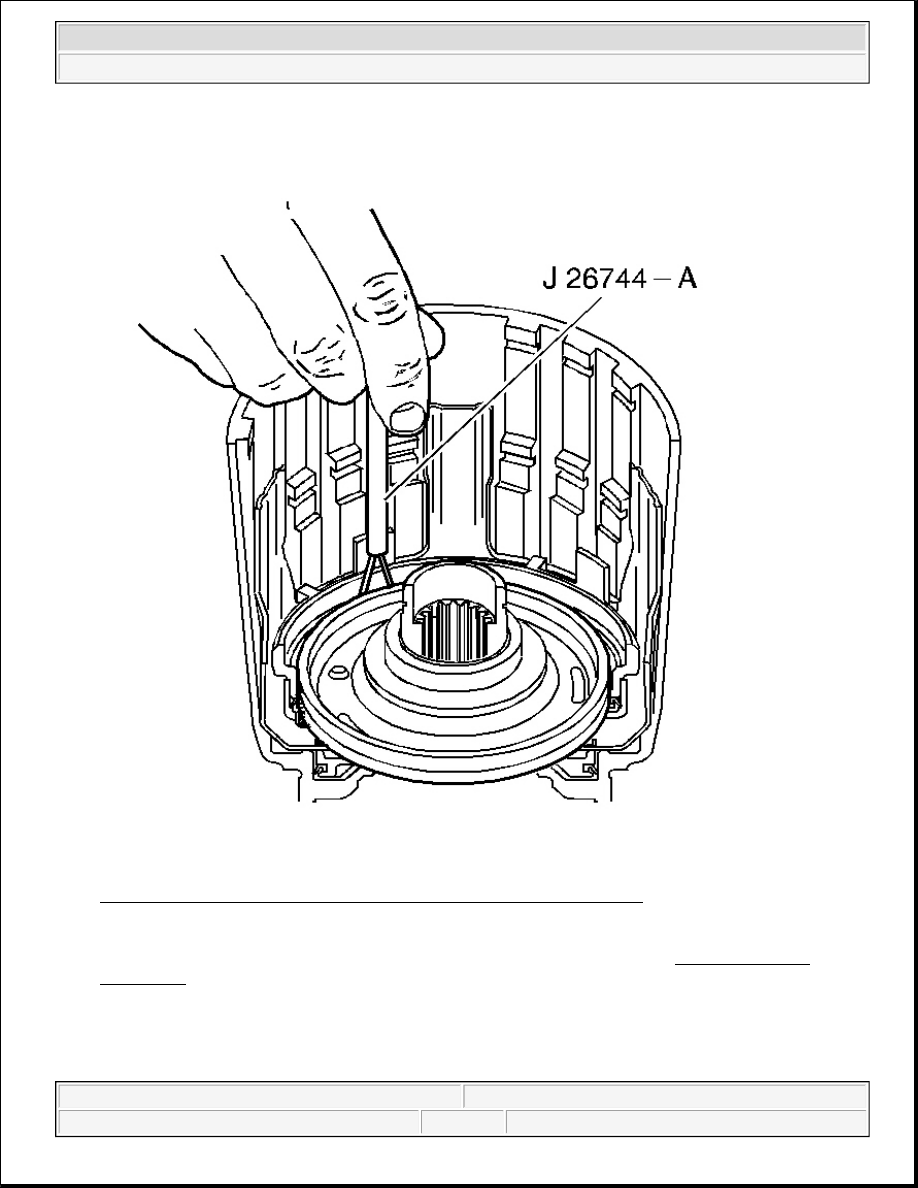

Fig. 317: Installing Overrun Clutch Piston Outer Seal Using J 26744-A
Courtesy of GENERAL MOTORS CORP.

16. Using the J 26744-A , carefully install the overrun clutch piston outer seal. See Special Tools and

Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



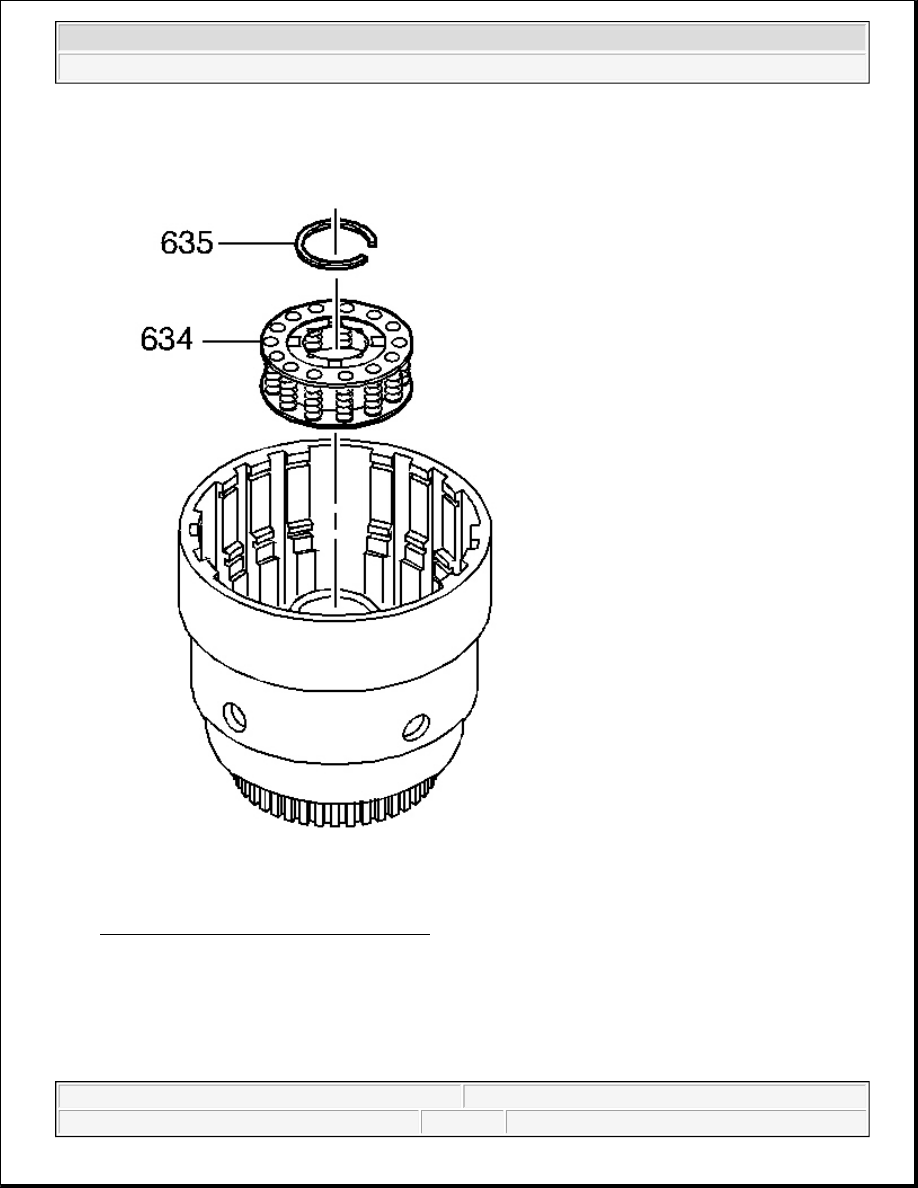

Fig. 318: Overrun Clutch Spring Assembly
Courtesy of GENERAL MOTORS CORP.

17. Install the overrun clutch spring (634) assembly.
