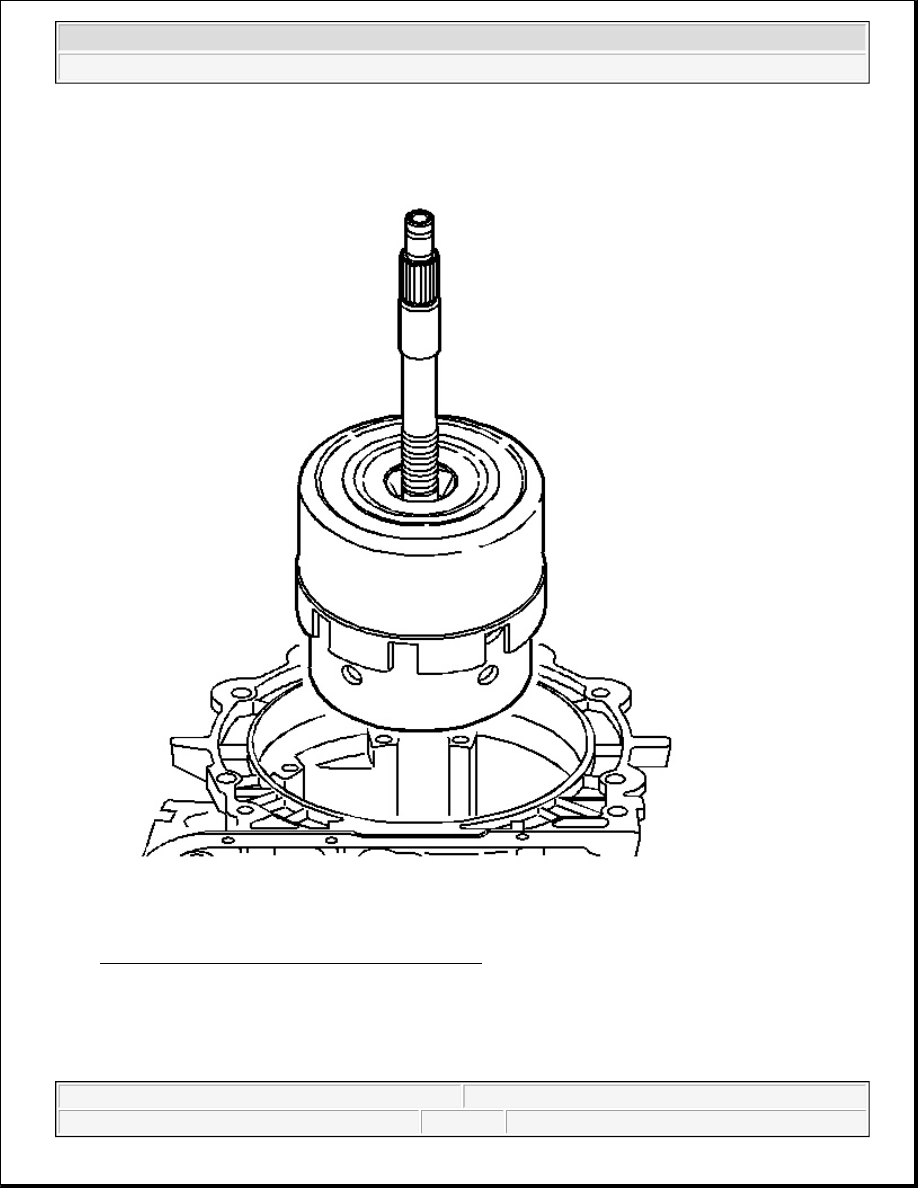

Fig. 221: Reverse Input & Input Clutch Assembly
Courtesy of GENERAL MOTORS CORP.

2. Remove the input housing and shaft assembly and the reverse input clutch housing and drum assembly.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



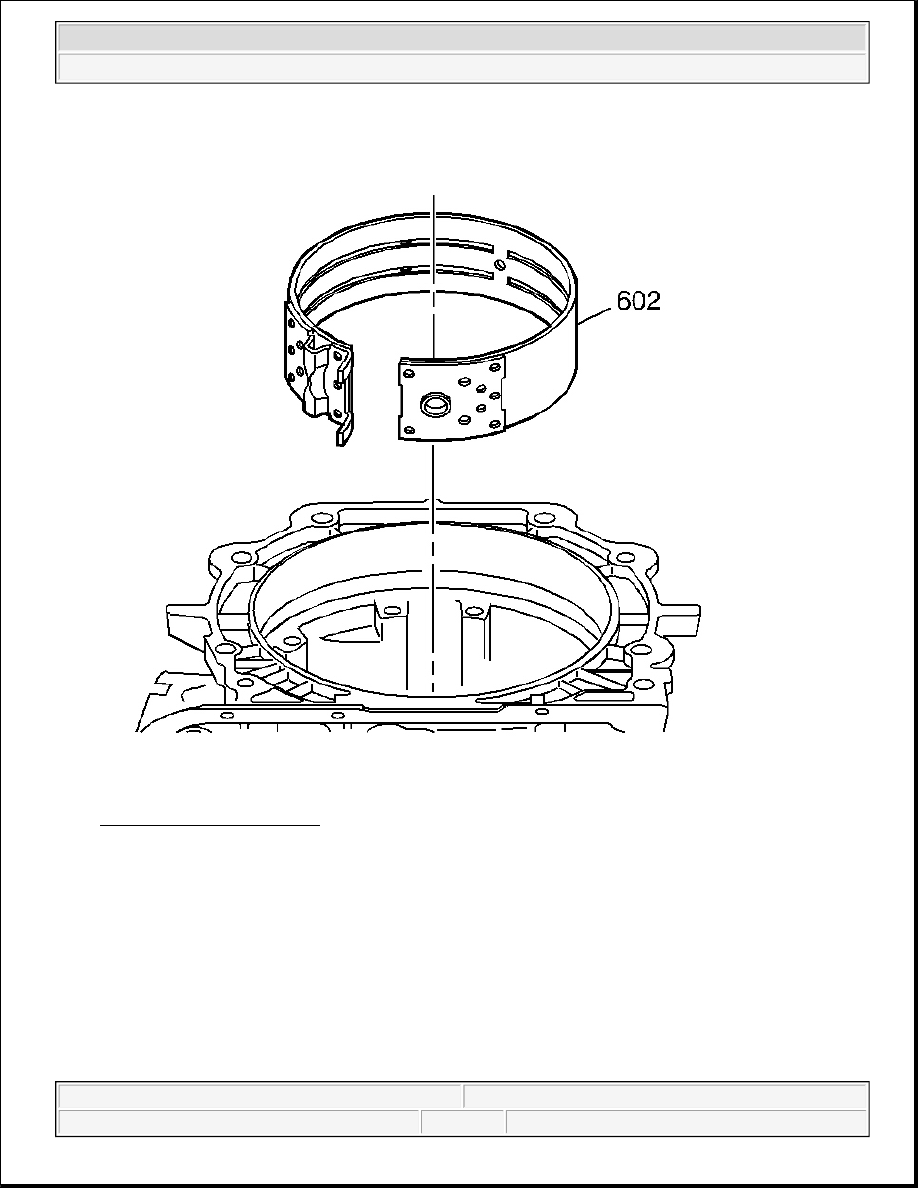

Fig. 222: 2-4 Band Assembly
Courtesy of GENERAL MOTORS CORP.

3. Remove the 2-4 band assembly (602).

REACTION GEAR SET REMOVAL



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



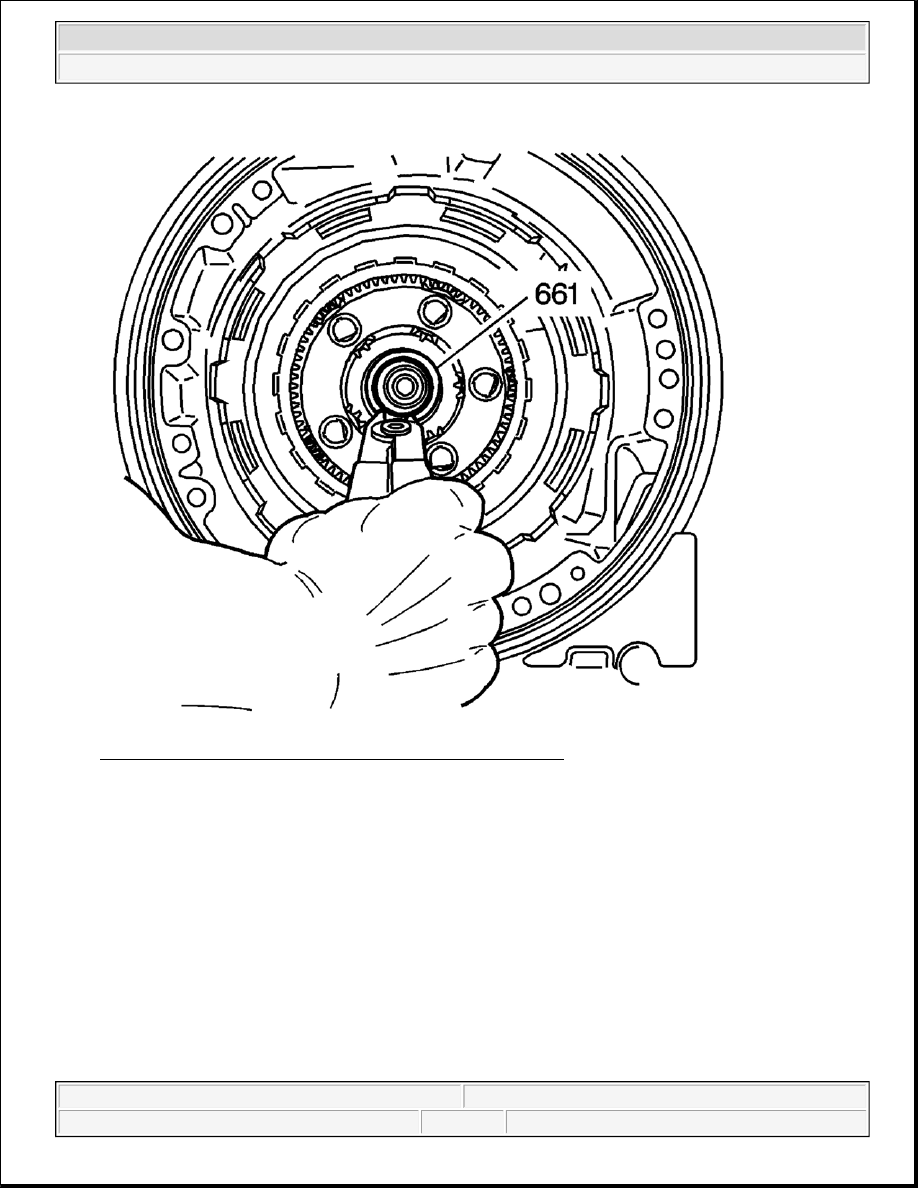

Fig. 223: Removing Output Shaft To Input Carrier Retainer
Courtesy of GENERAL MOTORS CORP.

1. Use snap ring pliers remove the output shaft to input carrier retainer (661).

IMPORTANT: The retainer must be replaced.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

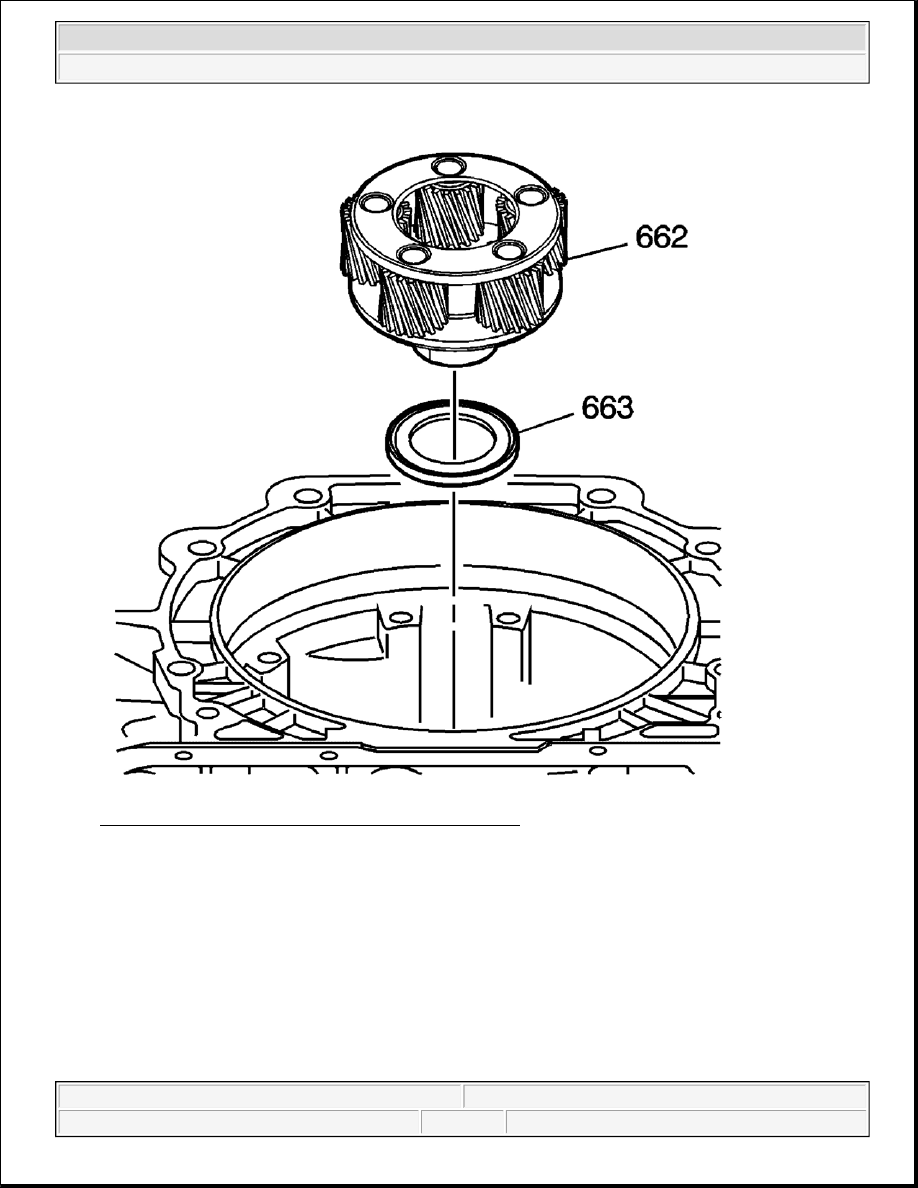

Fig. 224: Input Carrier Assembly & Bearing Assembly
Courtesy of GENERAL MOTORS CORP.

2. Remove the input carrier assembly (662) and remove the bearing assembly (663).

IMPORTANT: The carrier assembly can be a 4 or 5 pinion design depending on model.
