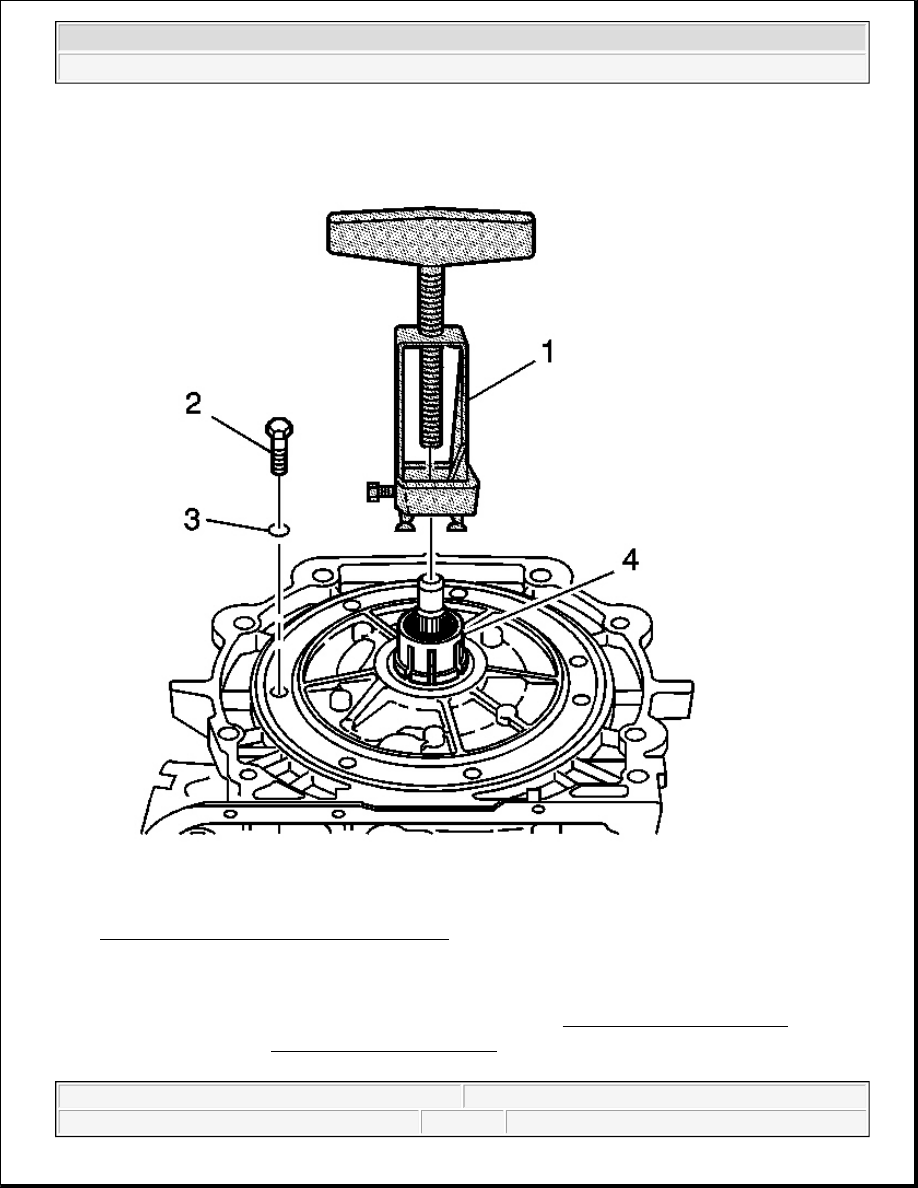

Fig. 217: Installing J 39119 Over Stator Shaft
Courtesy of GENERAL MOTORS CORP.

1. Remove all pump bolts (2).

2. Install J 39119 over stator shaft until it locks under splines. See Special Tools and Equipment .

3. Install J 37789-A . See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



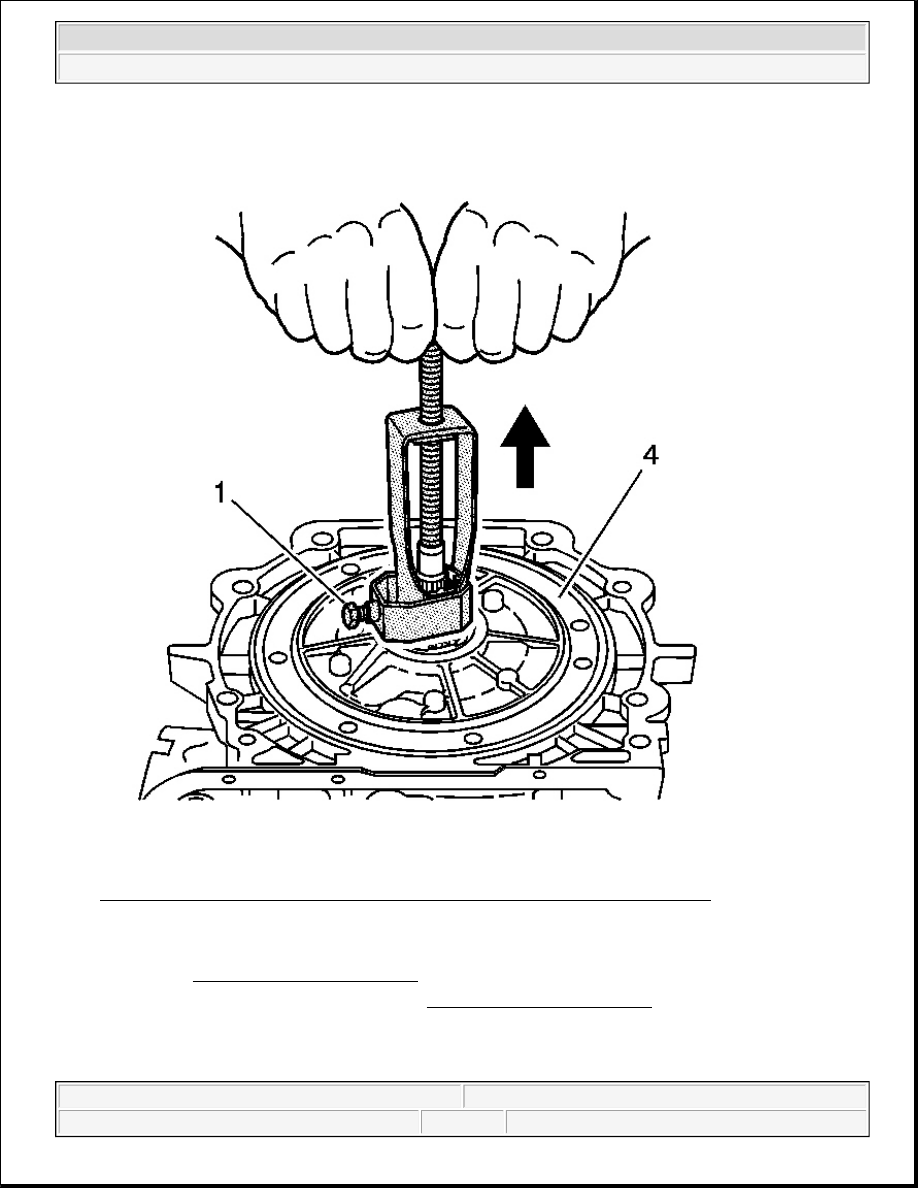

Fig. 218: Secure J 37789-A Around J 39119 By Tightening Bolt With A Wrench
Courtesy of GENERAL MOTORS CORP.

4. To prevent slipping, securely fasten theJ 37789-A around the J 39119 by tightening the bolt (1) with a

wrench. See Special Tools and Equipment .

5. Turn the T-handle on top of J 37789-A . See Special Tools and Equipment .

6. Lift the pump out of the case.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

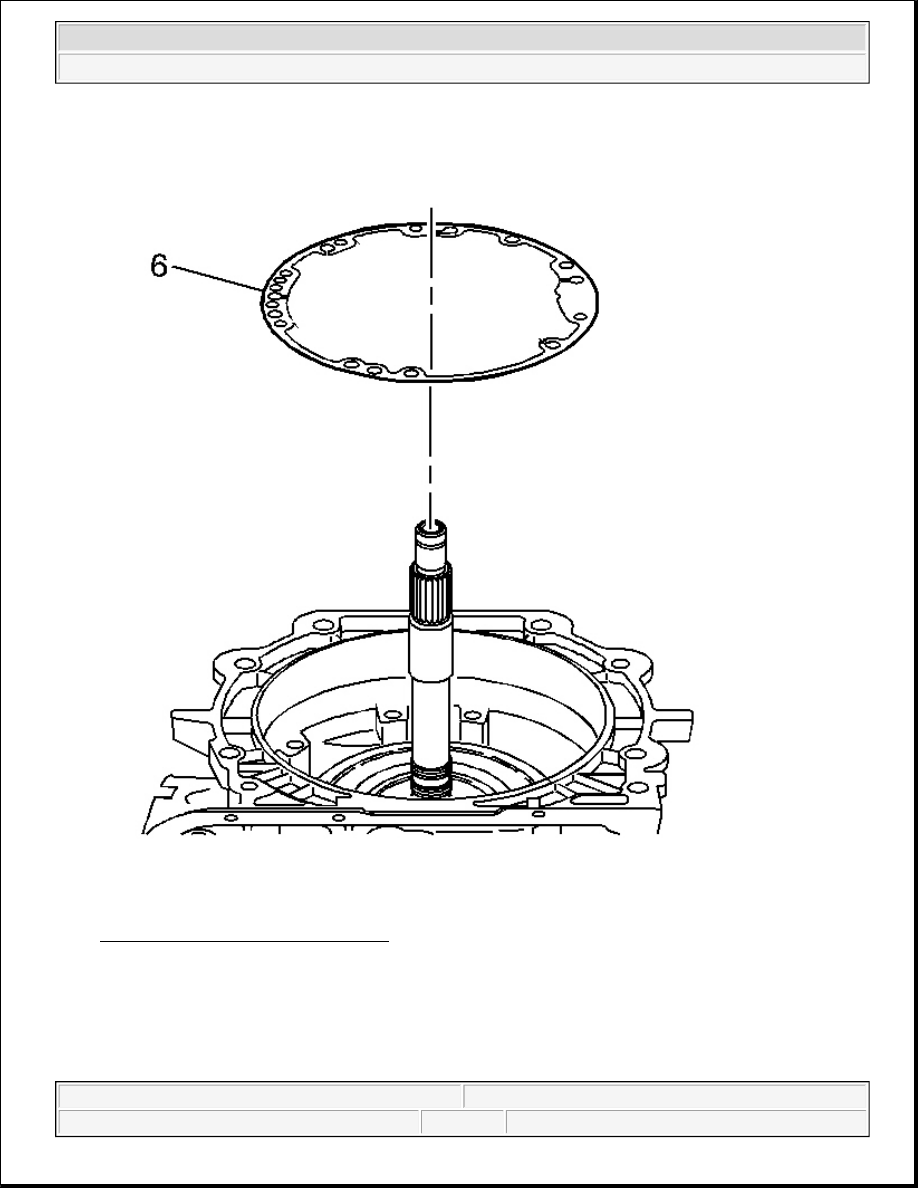

Fig. 219: Pump Cover & Case Gasket
Courtesy of GENERAL MOTORS CORP.

7. Remove the pump cover to case gasket (6).

2-4 BAND, INPUT CLUTCHES, INPUT GEAR SET REMOVAL



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

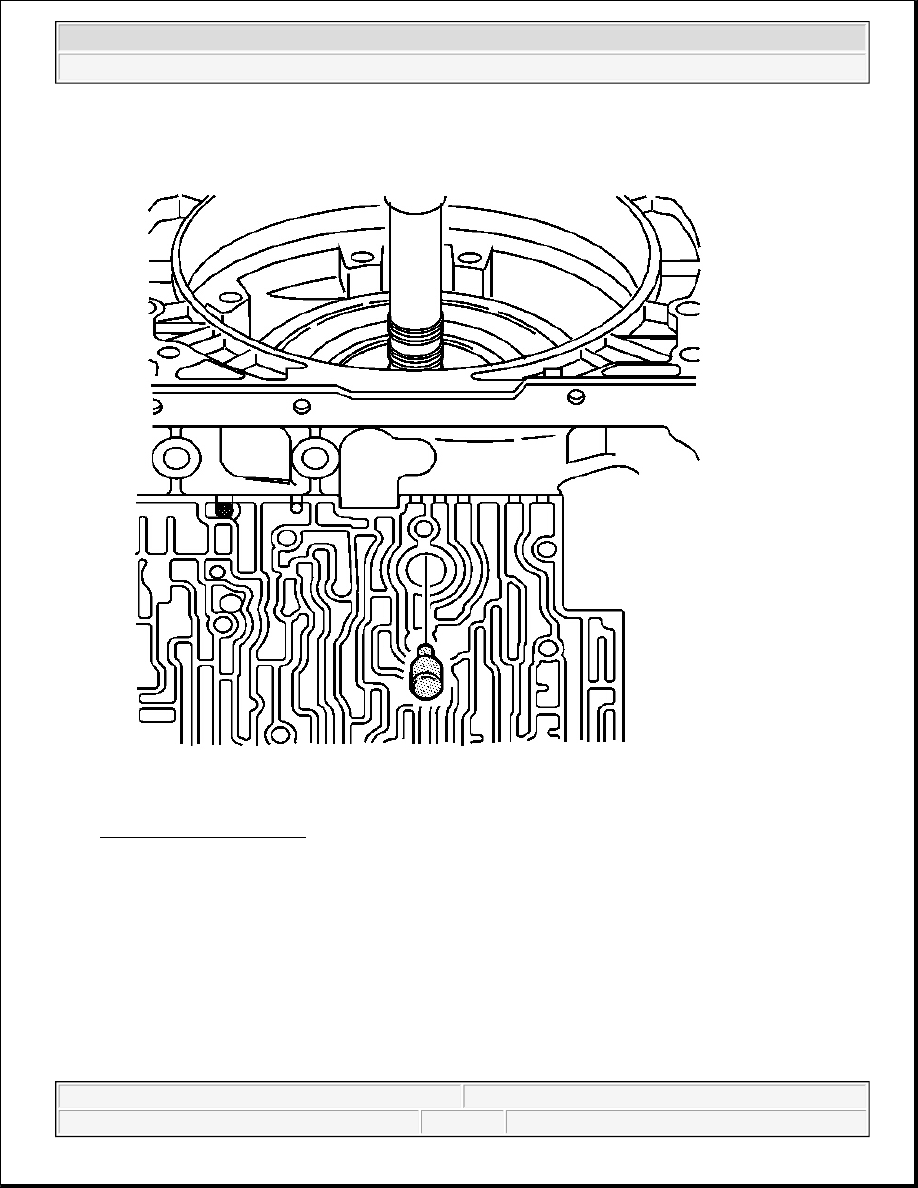

Fig. 220: Band Anchor Pin
Courtesy of GENERAL MOTORS CORP.

1. Remove the band anchor pin.



2004 Hummer H2
