Hummer H2. Manual - part 2288

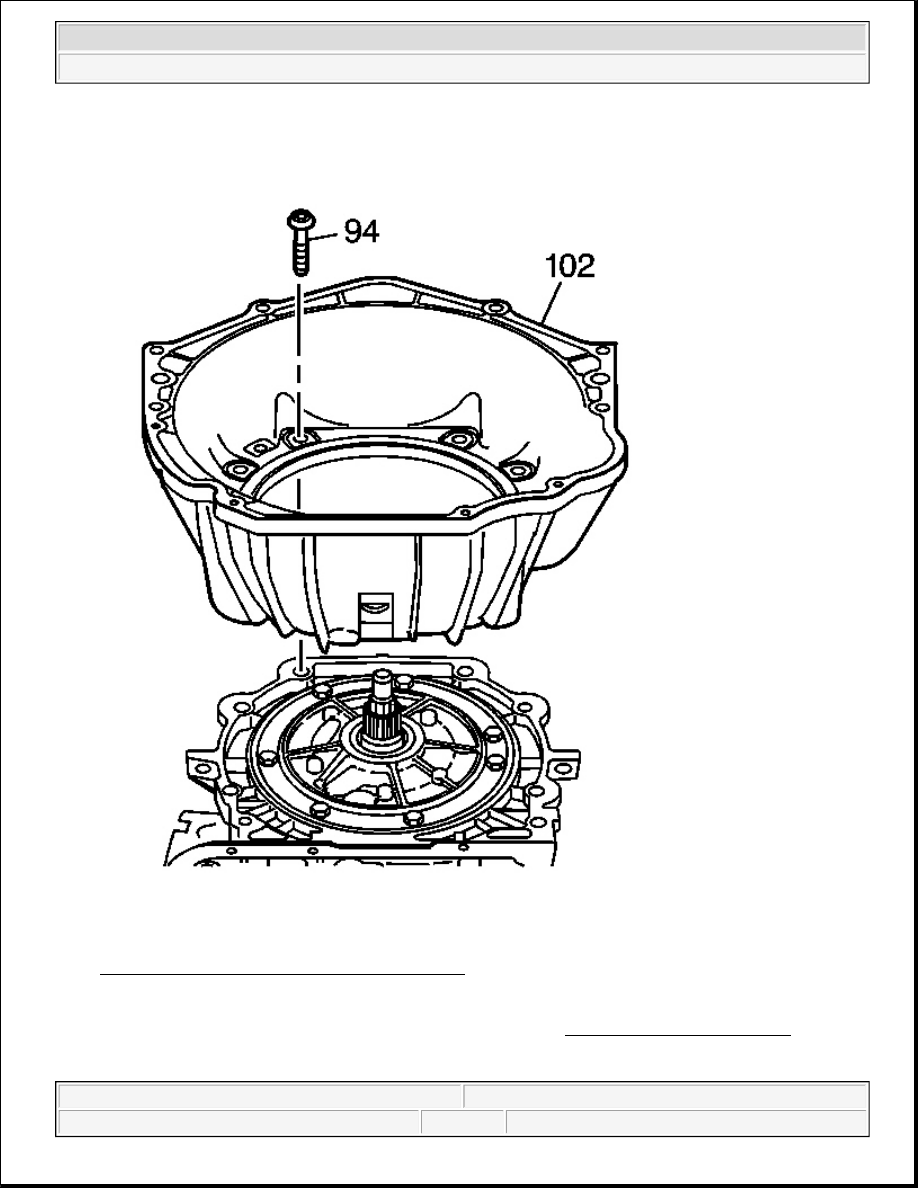

Fig. 186: Removing Converter Housing & Bolts
Courtesy of GENERAL MOTORS CORP.

1. Remove the converter housing bolts (94). Use the J 41510 . See Special Tools and Equipment .

2. Remove the converter housing (102).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



2-4 SERVO COVER AND ASSEMBLY REMOVAL

Tools Required

J 29714-A Servo Cover Compressor. See Special Tools and Equipment .

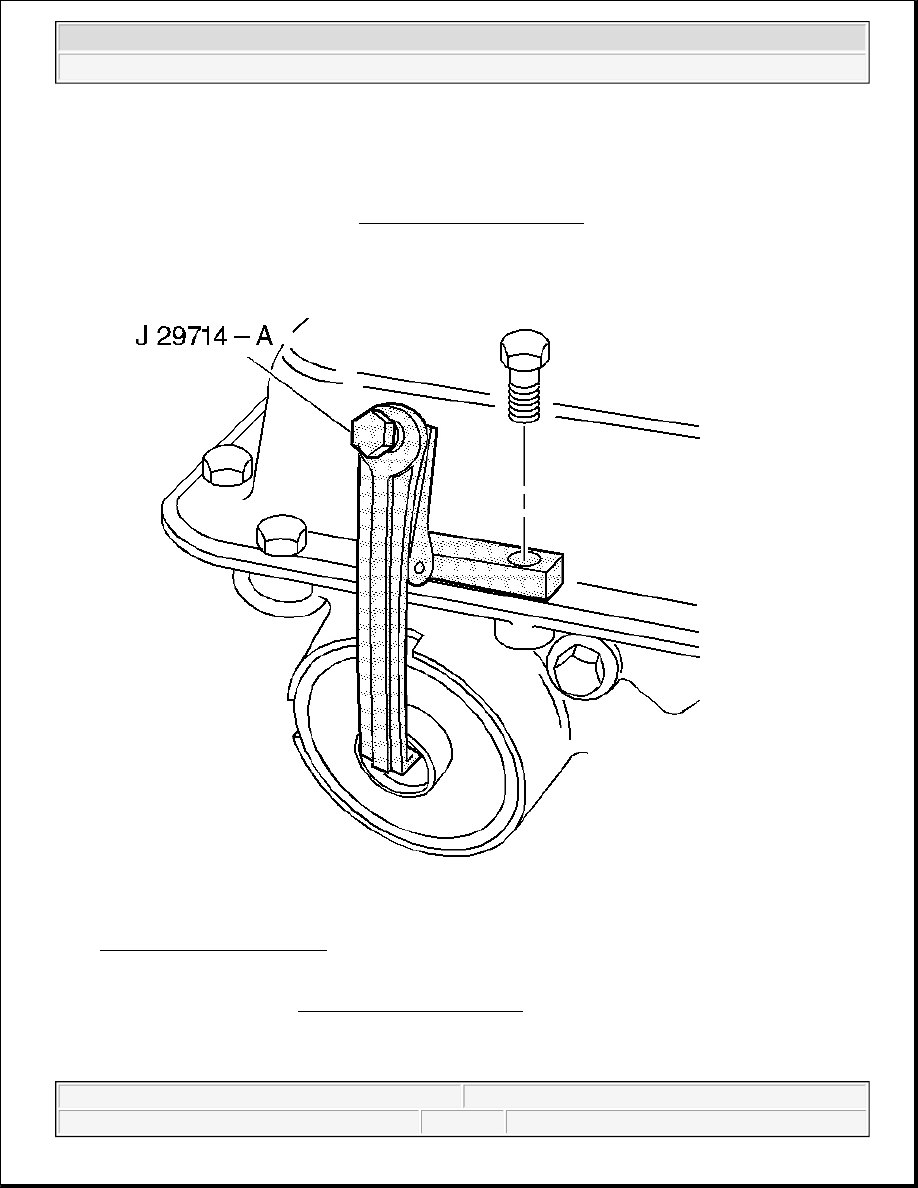

Fig. 187: Installing J 29714-A
Courtesy of GENERAL MOTORS CORP.

1. Install the J 29714-A . See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

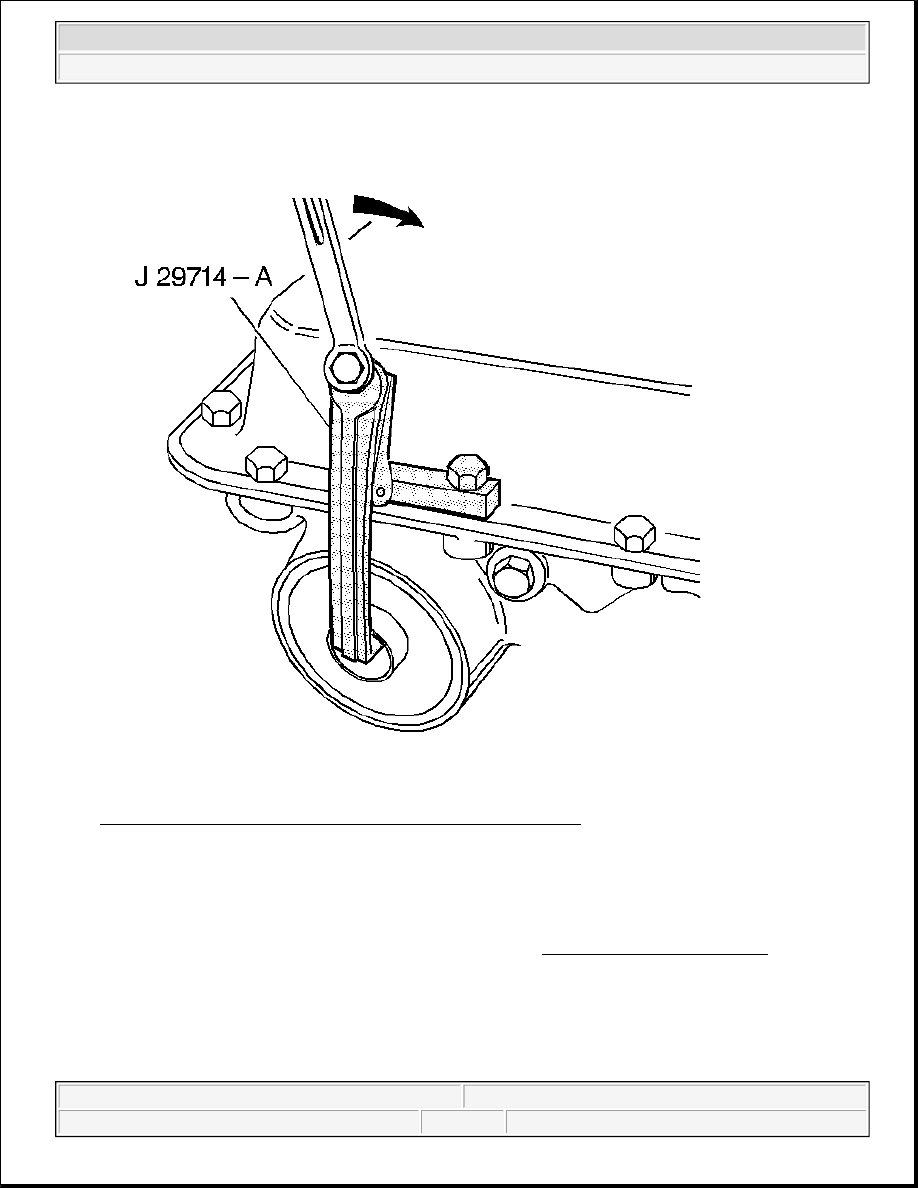

Fig. 188: Tightening J 29714-A Bolt To Compress Servo Cover
Courtesy of GENERAL MOTORS CORP.

2. Tighten the J 29714-A bolt to compress the servo cover. See Special Tools and Equipment .

IMPORTANT: If cover does not move inwards with tool, use a block of wood or suitable

material and lightly tap on cover using a hammer to free up cover in bore.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

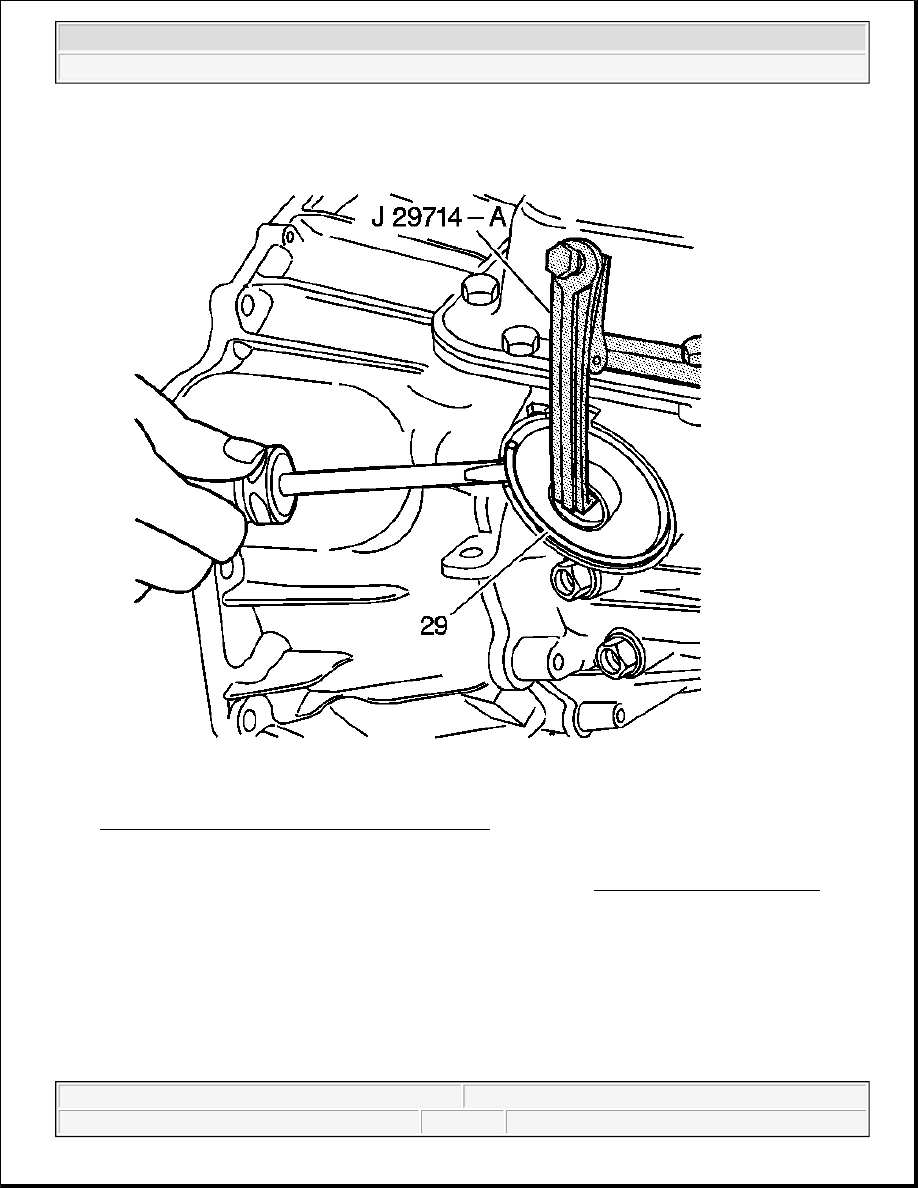

Fig. 189: Servo Cover Retaining Ring & J 29714-A
Courtesy of GENERAL MOTORS CORP.

3. Remove the servo cover retaining ring (29) and the J 29714-A . See Special Tools and Equipment .
