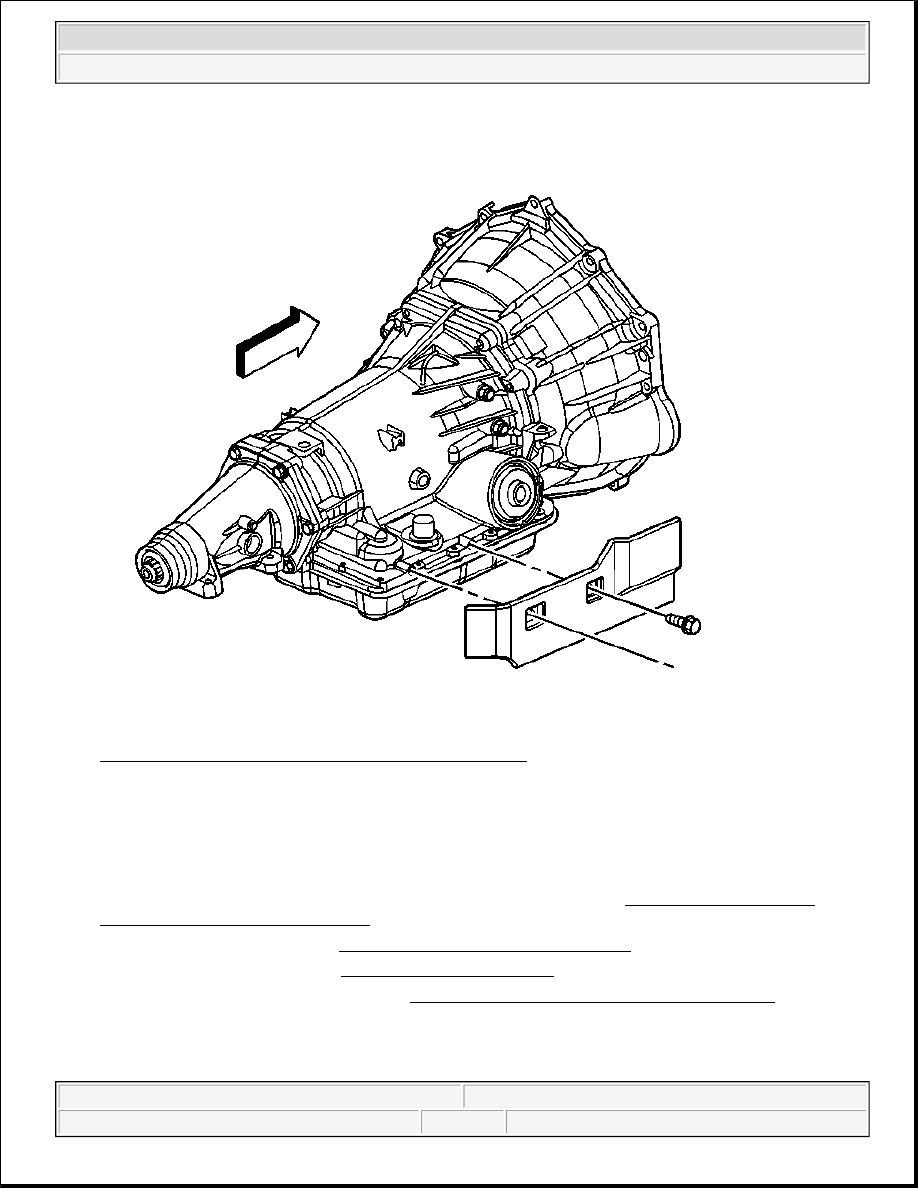

Fig. 182: Transmission Heat Shield Bolts & Heat Shield
Courtesy of GENERAL MOTORS CORP.

13. Install the two bolts securing the heat shield to the transmission.

Tighten: Tighten the bolt to 17 N.m (13 lb ft).

14. Install the shift cable to the shift lever ball stud and the bracket. Refer to Automatic Transmission

Range Selector Cable Replacement .

15. Install the transfer case. Refer to Transfer Case Assembly Replacement in Transfer Case - BW 4484.

16. Install the starter motor. Refer to Starter Motor Replacement in Engine Electrical.

17. Install the exhaust pipe assembly. Refer to Catalytic Converter Replacement (Right Hand) in Engine

Exhaust.

18. Flush the transmission oil cooler and cooling lines if necessary.

19. Lower the vehicle.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



20. Connect the battery.

21. Fill the transmission to the proper level with DEXRON(R) III transmission fluid. Refer to Transmission

Fluid Checking Procedure .

HOLDING FIXTURE INSTALLATION

Tools Required

J 8763-02 Holding Fixture and Base

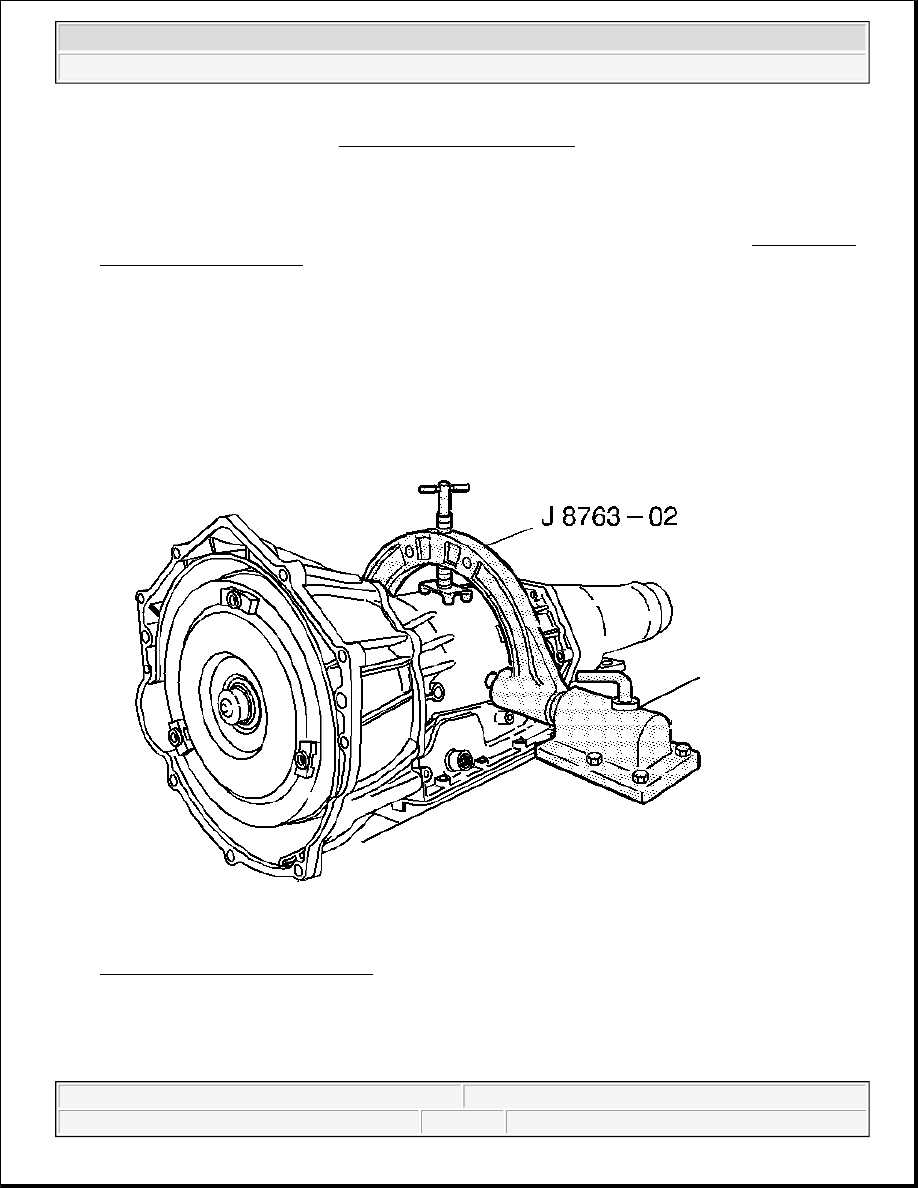

Fig. 183: J 8763-02 & Transmission
Courtesy of GENERAL MOTORS CORP.

1. Install the J 8763-02 onto the transmission.

2. Install the J 8763-02 into the base.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



TORQUE CONVERTER ASSEMBLY REMOVAL

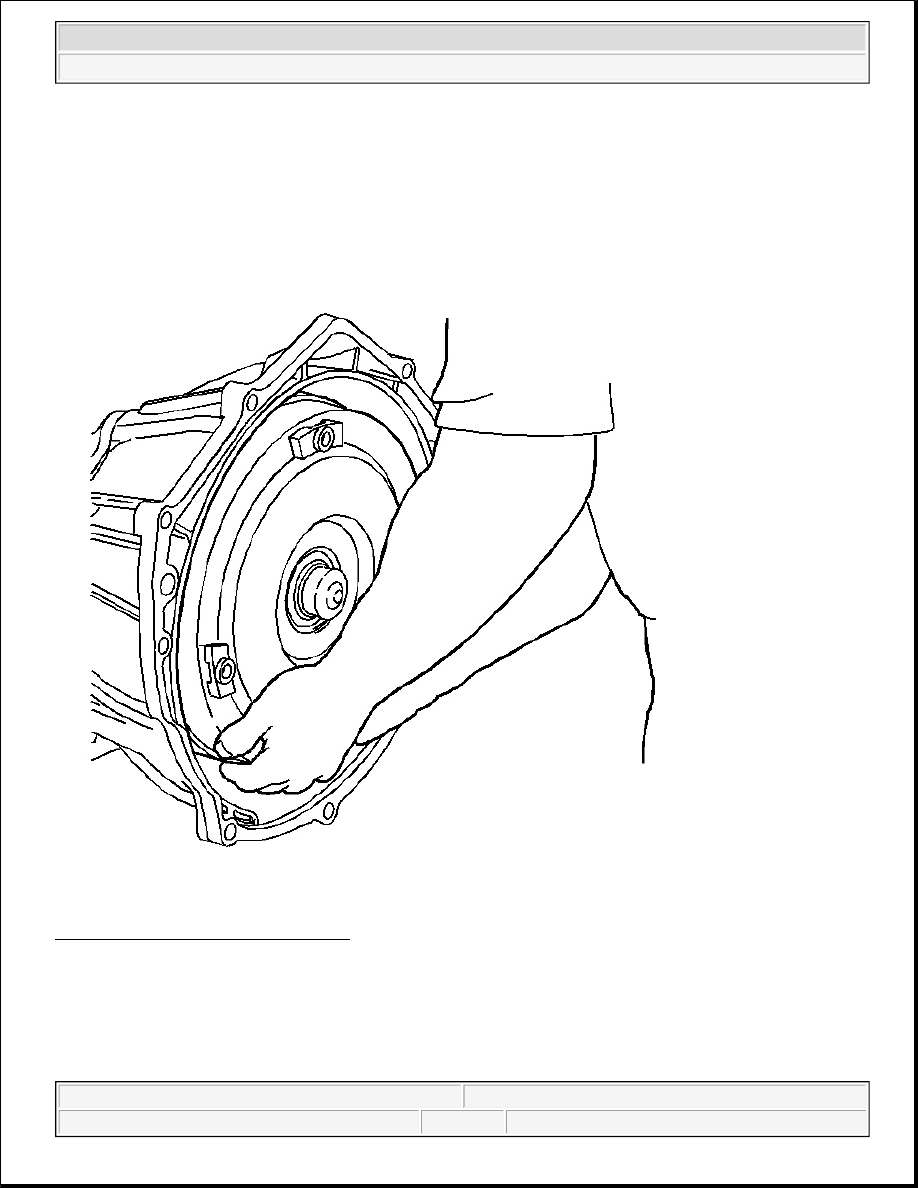

Fig. 184: Removing Torque Converter
Courtesy of GENERAL MOTORS CORP.

Remove the torque converter.

DRAIN OIL

CAUTION: The torque converter weighs approximately 65 lbs. Personal injury may

result if you lift the torque converter improperly.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



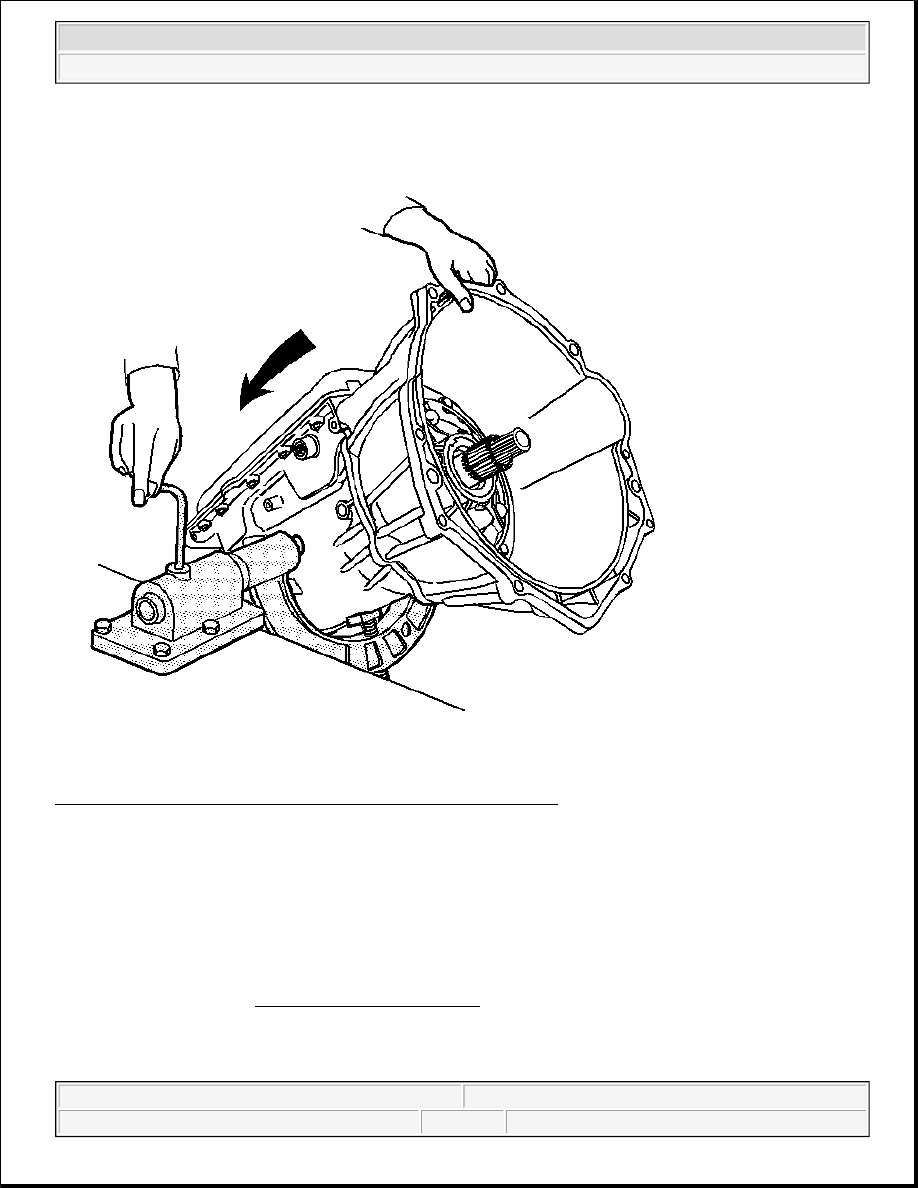

Fig. 185: Rotating Transmission So The Converter Housing Is Up
Courtesy of GENERAL MOTORS CORP.

Rotate the transmission so that the converter housing is up. Allow the transmission fluid to drain from the case
extension.

CONVERTER HOUSING REMOVAL

Tools Required

J 41510 T-50 Plus Bit. See Special Tools and Equipment .
