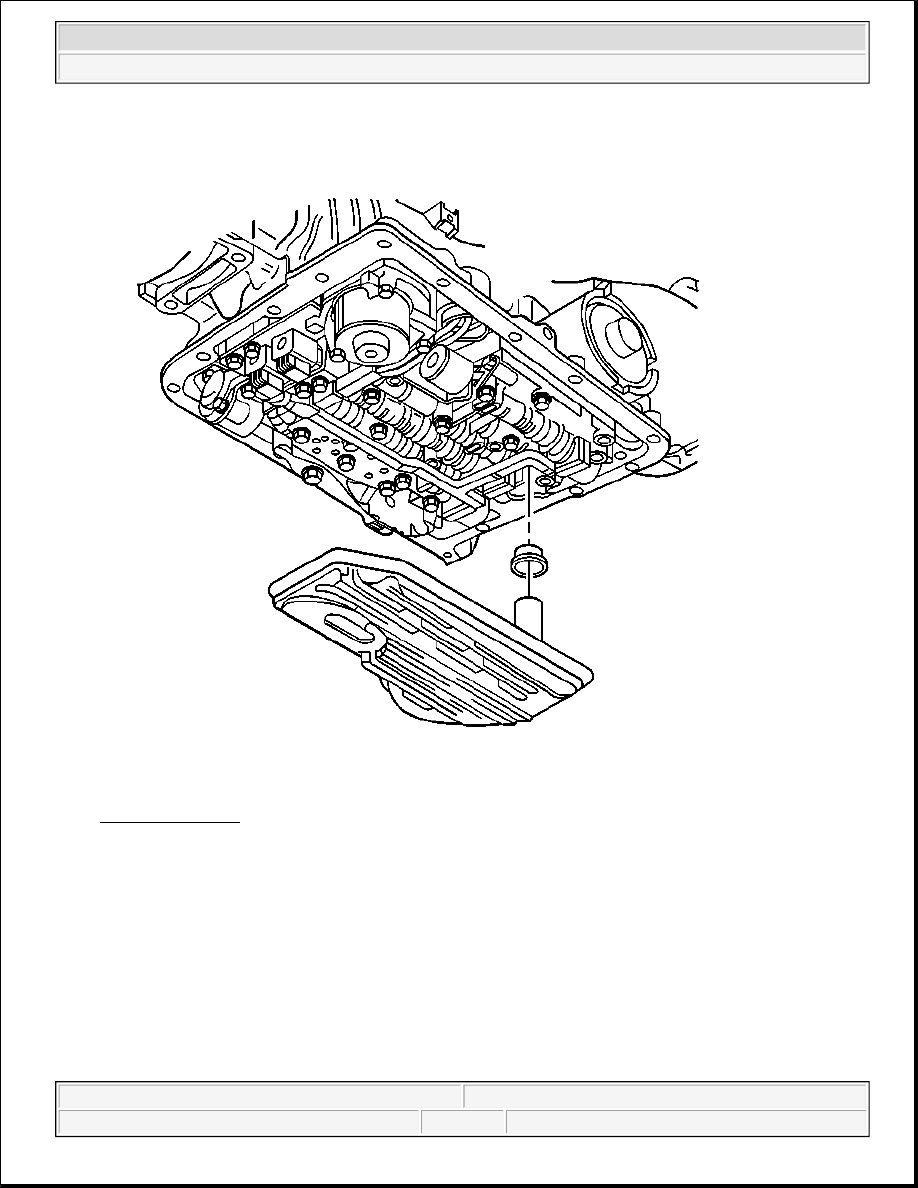

Fig. 56: A/T Filter
Courtesy of GENERAL MOTORS CORP.

10. Grasp firmly while pulling down with a twisting motion in order to remove the filter.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

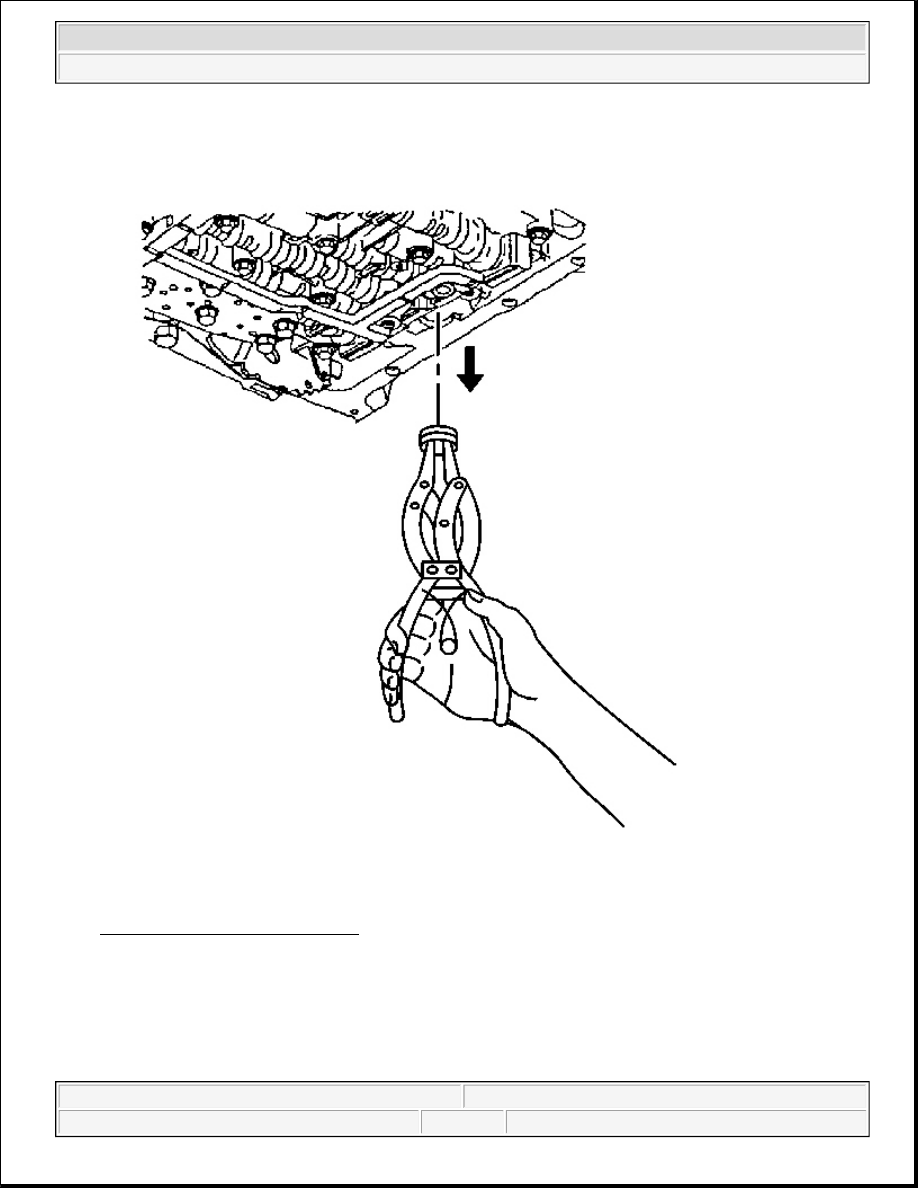

Fig. 57: Removing The Filter Seal
Courtesy of GENERAL MOTORS CORP.

11. Remove the filter seal. The filter seal may be stuck in the pump; if necessary, carefully use pliers or

another suitable tool to remove the seal.

12. Discard the seal.

13. Inspect the fluid color.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



14. Inspect the filter. Pry the metal crimping away from the top of the filter and pull apart. The filter may

contain the following evidence for root cause diagnosis:

z

Clutch material

z

Bronze slivers indicating bushing wear

z

Steel particles

15. Clean the transmission case and the oil pan gasket surfaces with solvent, and air dry. You must remove

all traces of the old gasket material.

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

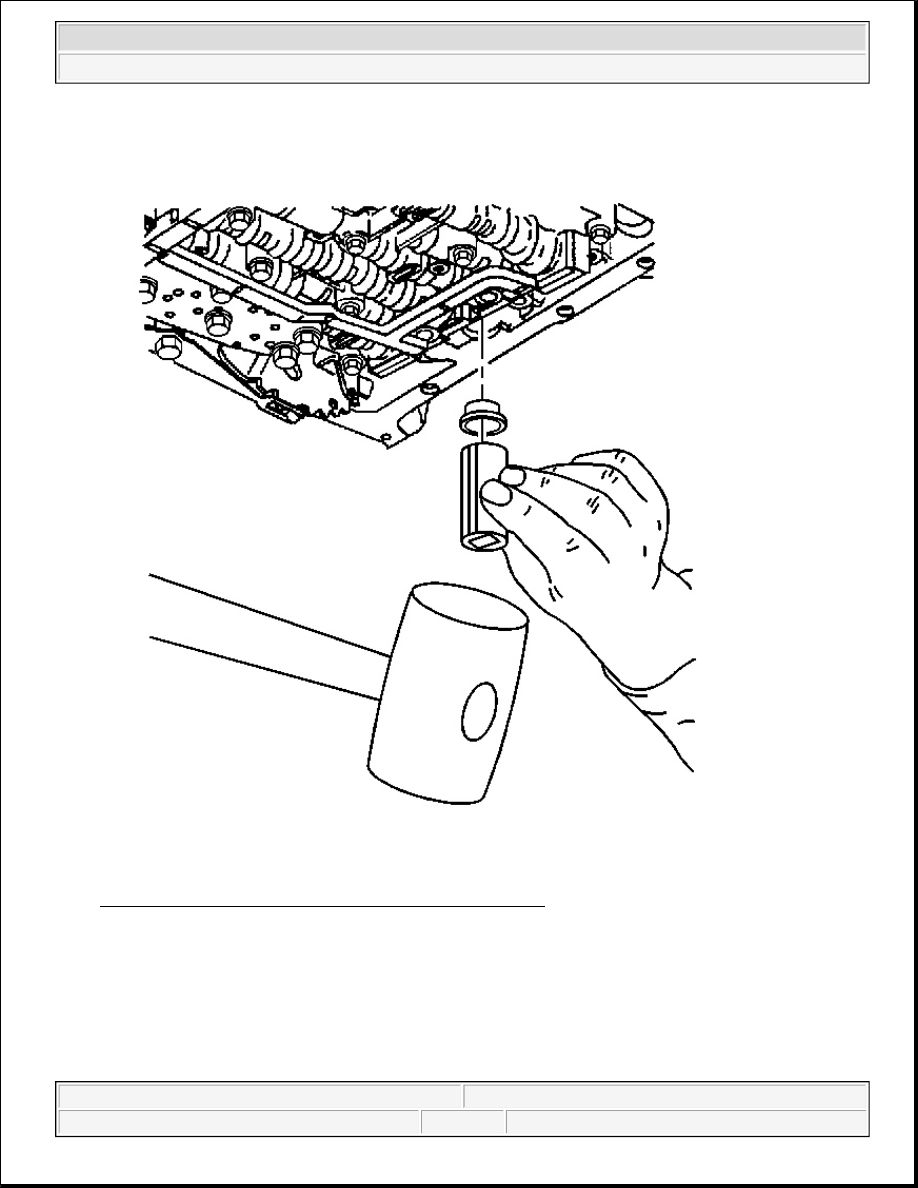

Fig. 58: Installing New Filter Seal Into Transmission Case
Courtesy of GENERAL MOTORS CORP.

1. Coat the new filter seal with automatic transmission fluid.

2. Install the new filter seal into the transmission case. Tap the seal into place using a suitable size socket.

3. Install the new filter into the case.
