3. Tighten the jam nut on the tie rod. See TORQUE SPECIFICATIONS .

4. Check the toe setting after tightening.

5. Readjust the toe setting if necessary.

SPECIFICATIONS

WHEEL ALIGNMENT SPECIFICATIONS

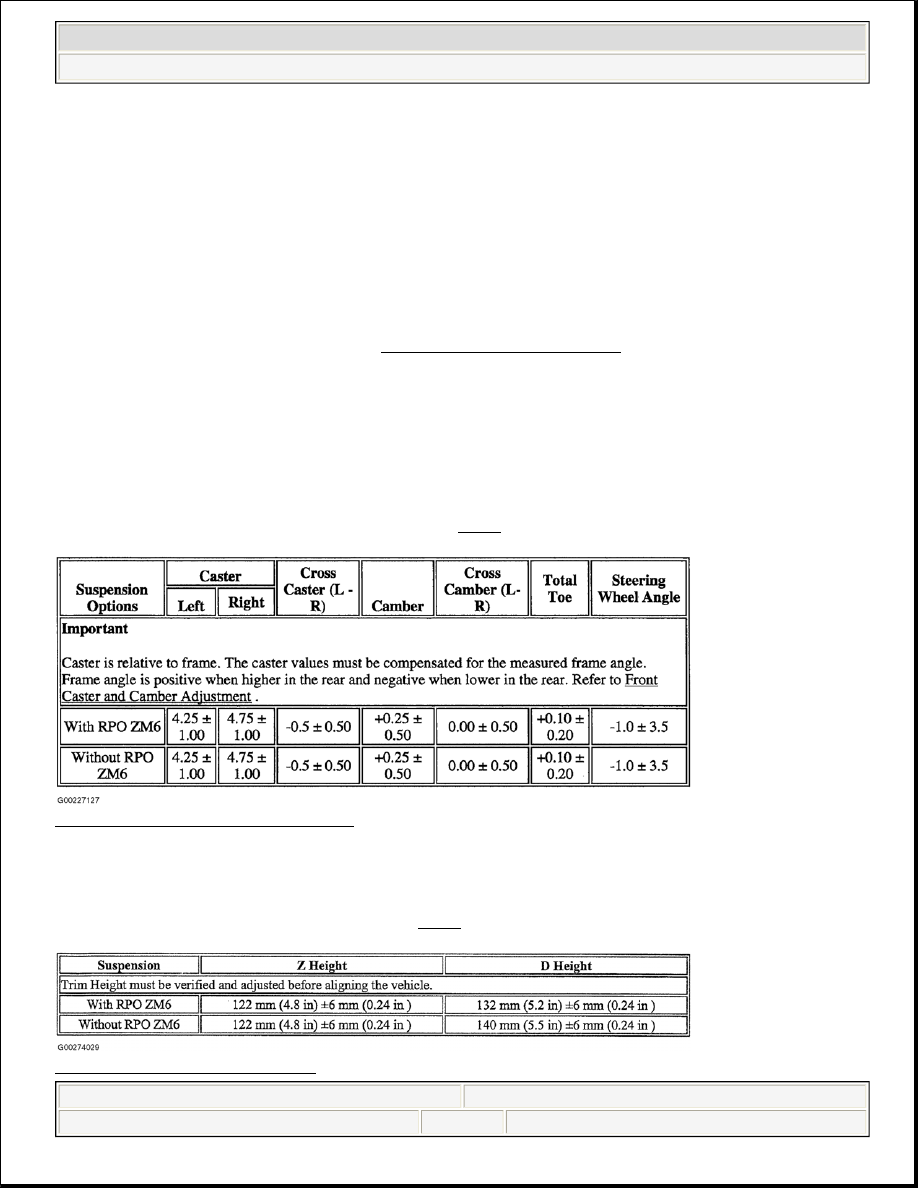

Use illustration for wheel alignment specifications. See Fig. 7 .

Fig. 7: Wheel Alignment Specifications
Courtesy of GENERAL MOTORS CORP.

TRIM HEIGHT SPECIFICATIONS

Use illustration for trim height specifications. See Fig. 8 .

Fig. 8: Trim Height Specifications

NOTE:

Use the correct fastener in the correct location. Replacement fasteners
must be the correct part number for that application. Fasteners requiring
replacement or fasteners requiring the use of thread locking compound or
sealant are identified in the service procedure. Do not use paints,
lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces
unless specified. These coatings affect fastener torque and joint clamping
force and may damage the fastener. Use the correct tightening sequence
and specifications when installing fasteners in order to avoid damage to
parts and systems.



2004 Hummer H2

2003-04 WHEEL ALIGNMENT Specifications & Procedures - Hummer - H2



Courtesy of GENERAL MOTORS CORP.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs (N.m)

Tie Rod Jam Nut

50 (68)

Upper/Lower Control Arm Cam Bolt Nuts

140 (190)



2004 Hummer H2

2003-04 WHEEL ALIGNMENT Specifications & Procedures - Hummer - H2
