3. Remove the mounting nuts (1).

4. Remove the mounting bolts (3).

5. Remove the isolators (2).

Installation Procedure

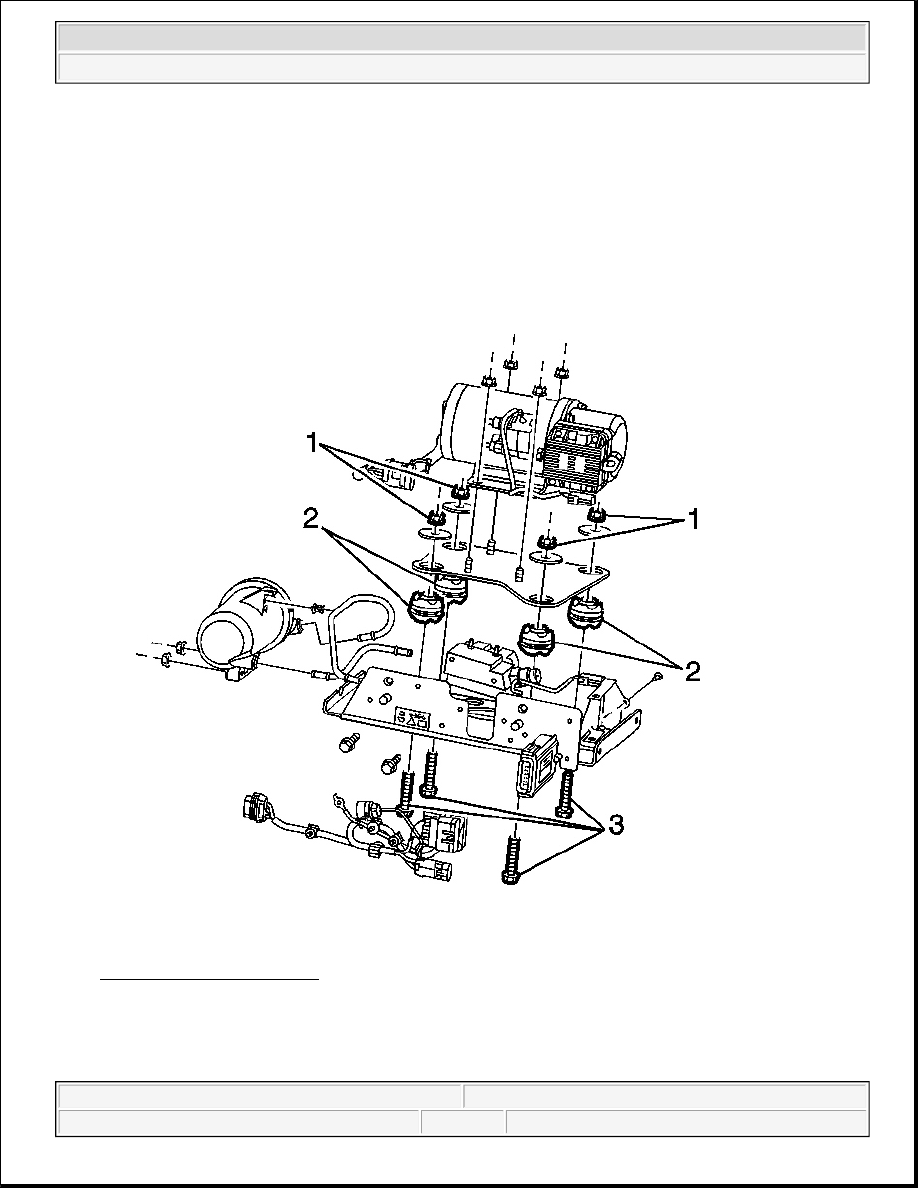

Fig. 25: Identifying Isolators
Courtesy of GENERAL MOTORS CORP.

1. Install the isolators (2).

2. Install the mounting bolts (3).



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



3. Install the mounting nuts (1).

Tighten: Tighten the nuts to 25 N.m (18 lb ft).

4. Install the compressor. Refer to Compressor Automatic Level Control Replacement

5. Install the compressor assembly to the vehicle. Refer to Compressor Assembly Automatic Level

Control Air Replacement .

COMPRESSOR ASSEMBLY AUTOMATIC LEVEL CONTROL AIR REPLACEMENT

Removal Procedure

1. Depressurize the air suspension system. Refer to Air Suspension Depressurization Procedure .

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

3. Support the compressor assembly with a suitable stand.

NOTE:

Refer to Fastener Notice in Cautions and Notices.

CAUTION: Do NOT remove an air supply pipe in an attempt to depressurize the air

suspension. Always follow the Air Suspension Depressurization
Procedure in Air Suspension. Failure to follow this procedure may cause
personal injury or damage to the vehicle.



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2

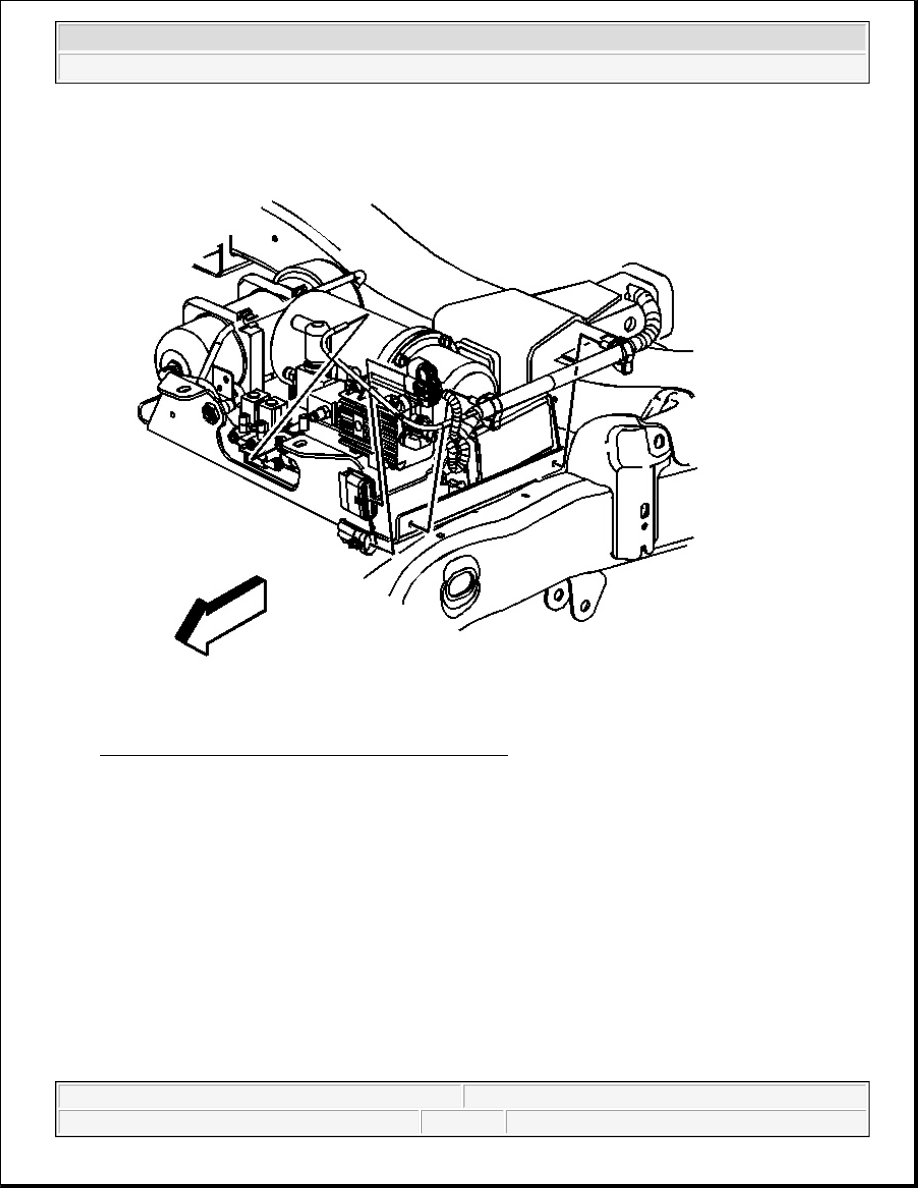

Fig. 26: Air Spring Compressor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the air inflator switch electrical connector.

5. Disconnect the compressor electrical connector.

6. Disconnect the ground strap.



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2

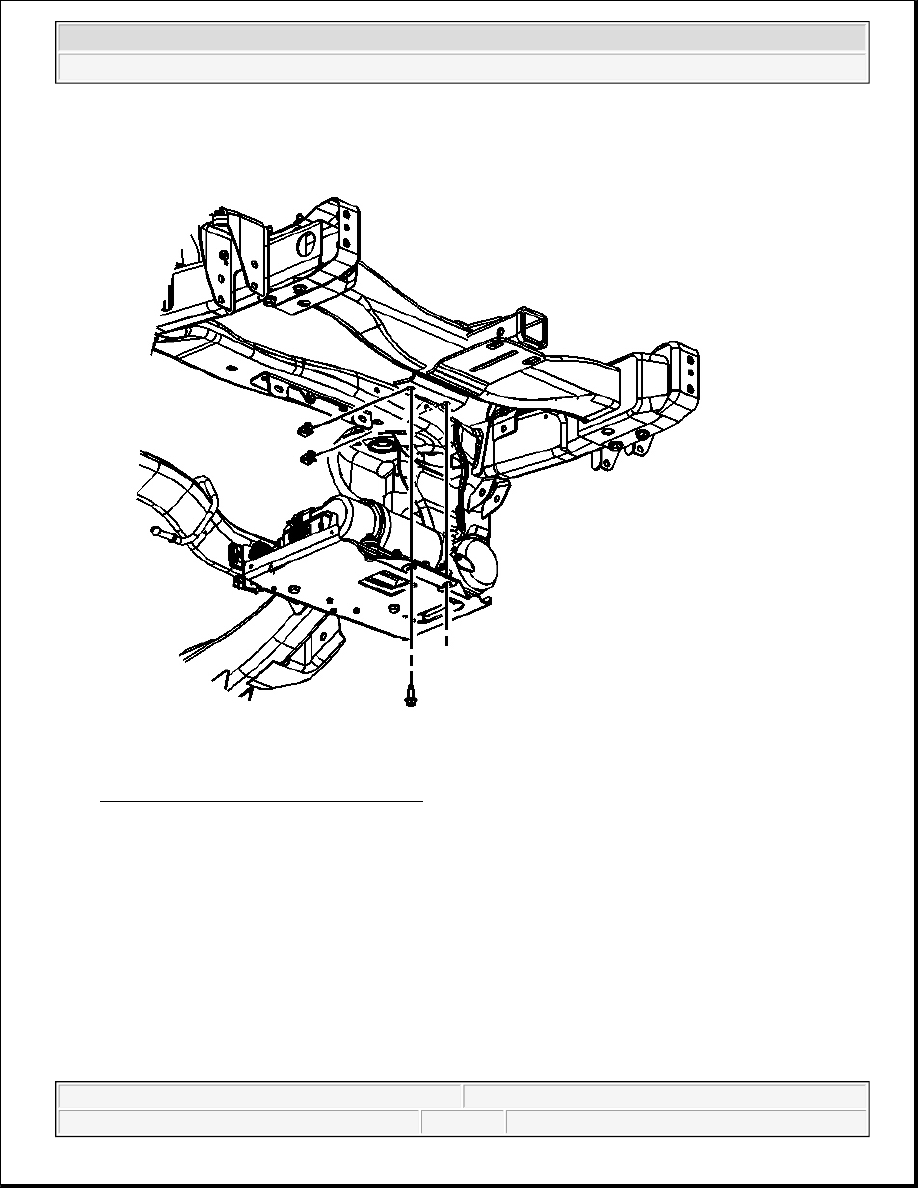

Fig. 27: Rear Compressor Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

7. Remove the rear compressor mounting bolts.
