3. Install the air lines. Refer to Air Suspension Air Line Replacement .

4. Install the compressor assembly to the vehicle. Refer to Compressor Assembly Automatic Level

Control Air Replacement .

MODULE ASSEMBLY ELECTRONIC SUSPENSION CONTROL REPLACEMENT

Removal Procedure

1. Remove the compressor assembly from the vehicle and place on a bench. Refer to Compressor

Assembly Automatic Level Control Air Replacement .

CAUTION: Do NOT remove an air supply pipe in an attempt to depressurize the air

suspension. Always follow the Air Suspension Depressurization
Procedure in Air Suspension. Failure to follow this procedure may cause
personal injury or damage to the vehicle.



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



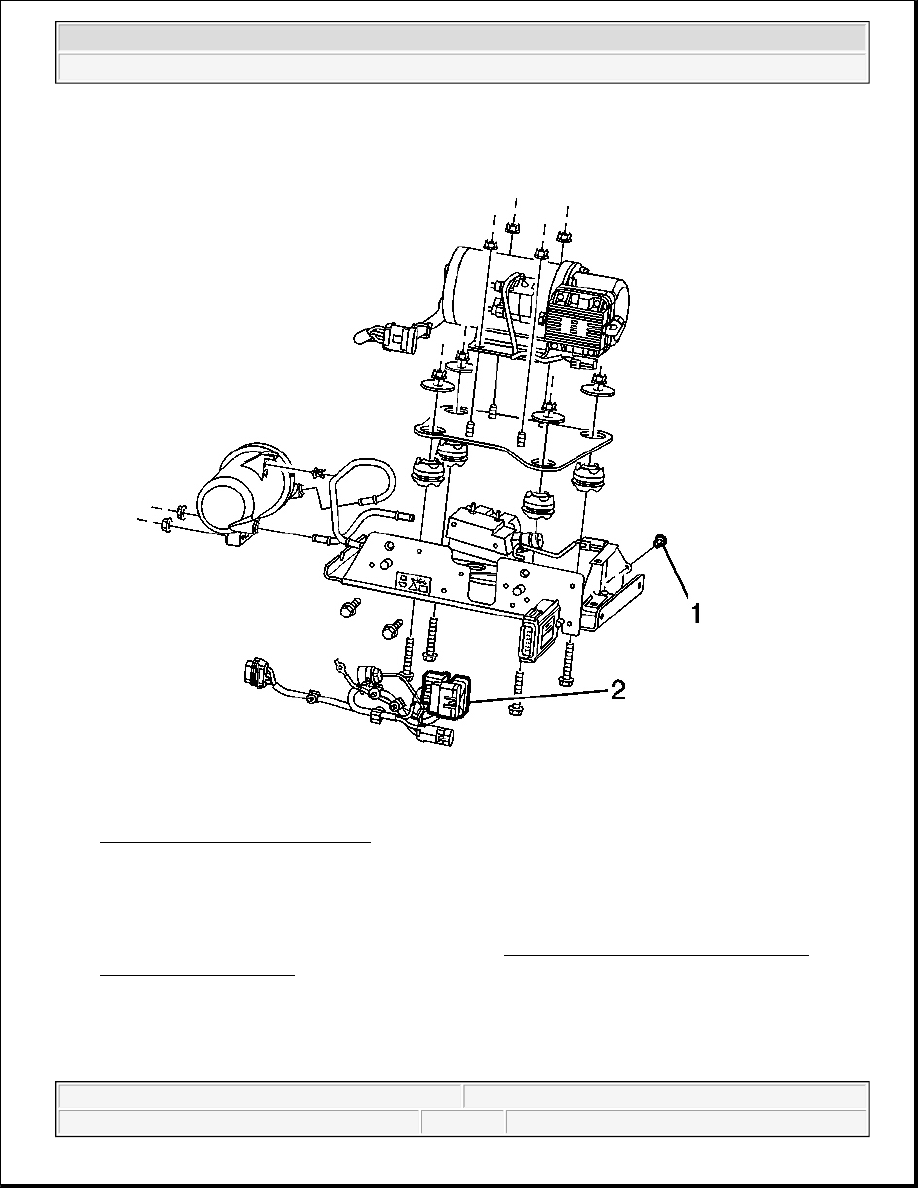

Fig. 22: Control Module & Bracket
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connection (2).

3. Remove the control module from the bracket.

Installation Procedure



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



Fig. 23: Control Module & Bracket
Courtesy of GENERAL MOTORS CORP.

1. Install the control module to the bracket.

2. Connect the electrical connection (2)

3. Install the compressor assembly to the vehicle. Refer to Compressor Assembly Automatic Level

Control Air Replacement .

ISOLATOR COMPRESSOR AUTOMATIC LEVEL CONTROL AIR REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



1. Remove the compressor assembly from the vehicle and place on a bench. Refer to Compressor

Assembly Automatic Level Control Air Replacement .

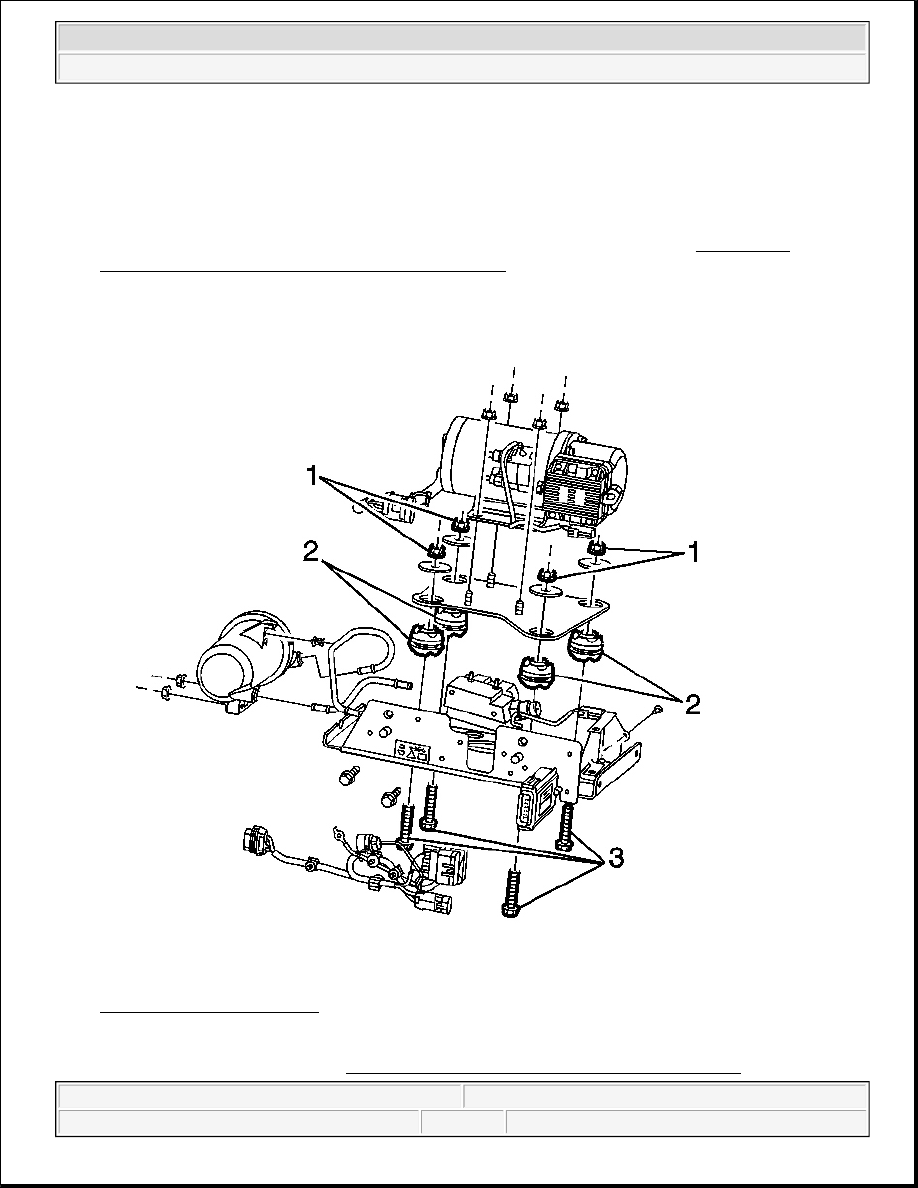

Fig. 24: Identifying Isolators
Courtesy of GENERAL MOTORS CORP.

2. Remove the compressor. Refer to Compressor Automatic Level Control Replacement

CAUTION: Do NOT remove an air supply pipe in an attempt to depressurize the air

suspension. Always follow the Air Suspension Depressurization
Procedure in Air Suspension. Failure to follow this procedure may cause
personal injury or damage to the vehicle.



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2
