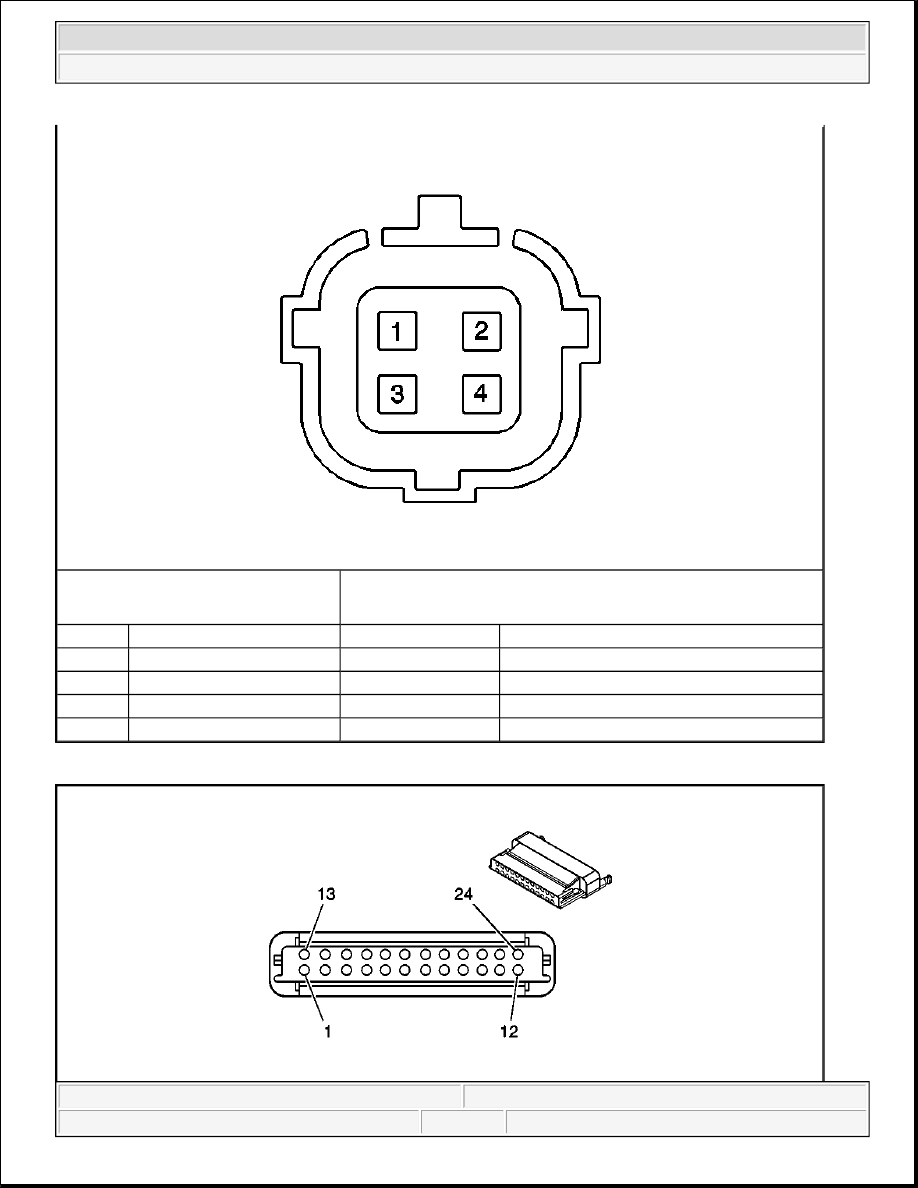

Air Suspension Terminal Identification Module (ZM6)

Connector Part Information

z

344270-1

z

4-Way F AMP 070 Series Sealed (BK)

Pin

Wire Color

Circuit No.

Function

1

YE

3S

Ground

2

YE

3N

Inlet Valve - LR Control

3

YE

3T

Ground

4

YE

3O

Inlet Valve - RR Control



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



Air Suspension Pressure Terminal Identification Sensor (ZM6)

Connector Part Information

z

12129225

z

24-Way F Micro-Pack 100 Series (GY)

Pin

Wire Color

Circuit No.

Function

1

YE

3P

Air Suspension Exhaust Valve Control

2

YE

3O

Air Suspension Inlet Valve - RR Control

3

YE

3A

5-Volt Reference

4

YE

3C

Air Suspension Sensor Signal - RR

5

YE

3B

Air Suspension Sensor Signal - LR

6

YE

3G

Ride Height Switch Signal

7

YE

2D

Low Reference

8

YE

2B

Ground

9

-

-

Not Used

10

YE

3J

SCM (Suspension) Class 2 Serial Data

11

YE

3K

Air Suspension Pressure Sensor Signal

12

YE

1B

Battery Positive Voltage

13

YE

3M

Air Suspension Relay Control

14

YE

3N

Air Suspension Inlet Valve - LR Control

15

YE

3E

Ride Height Active Indicator Control

16

YE

3D

Inflator Switch Indicator Control

17

YE

3H

Inflator Switch Signal

18

YE

3L

Over Temperature Signal

19

YE

2E

Low Reference

20

YE

2C

Inflator Switch Low Reference

21

YE

3F

Ignition 3 Voltage

22

-

-

Not Used

23

YE

3R

Ground

24

-

-

Not Used



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



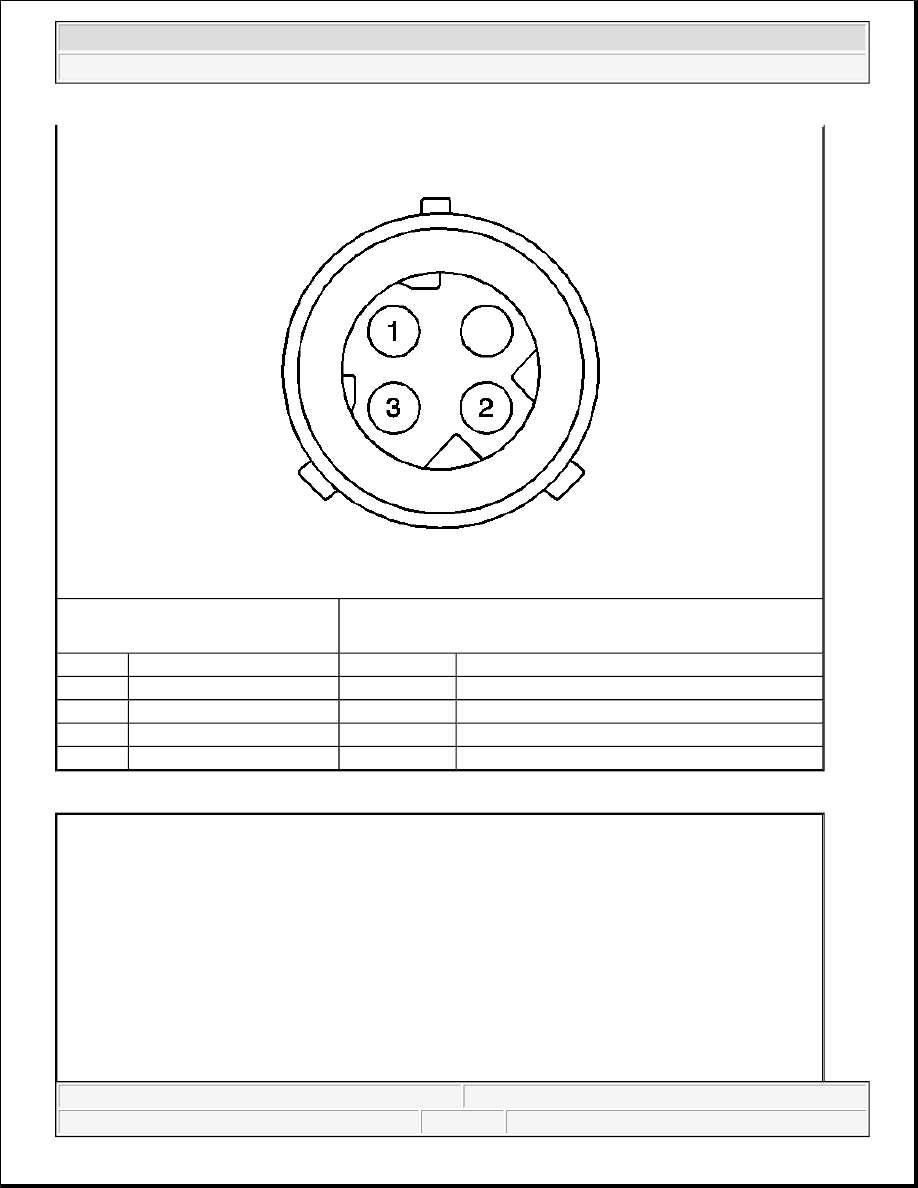

Air Suspension Terminal Identification Sensor - LR (ZM6)

Connector Part Information

z

9800426

z

4-Way F Schlemmer DIN Sealed (GN)

Pin

Wire Color

Circuit No.

Function

1

YE

3A

5-Volt Reference

2

YE

2E

Low Reference

3

YE

3K

Air Suspension Pressure Sensor Signal

4

-

-

Not Used



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



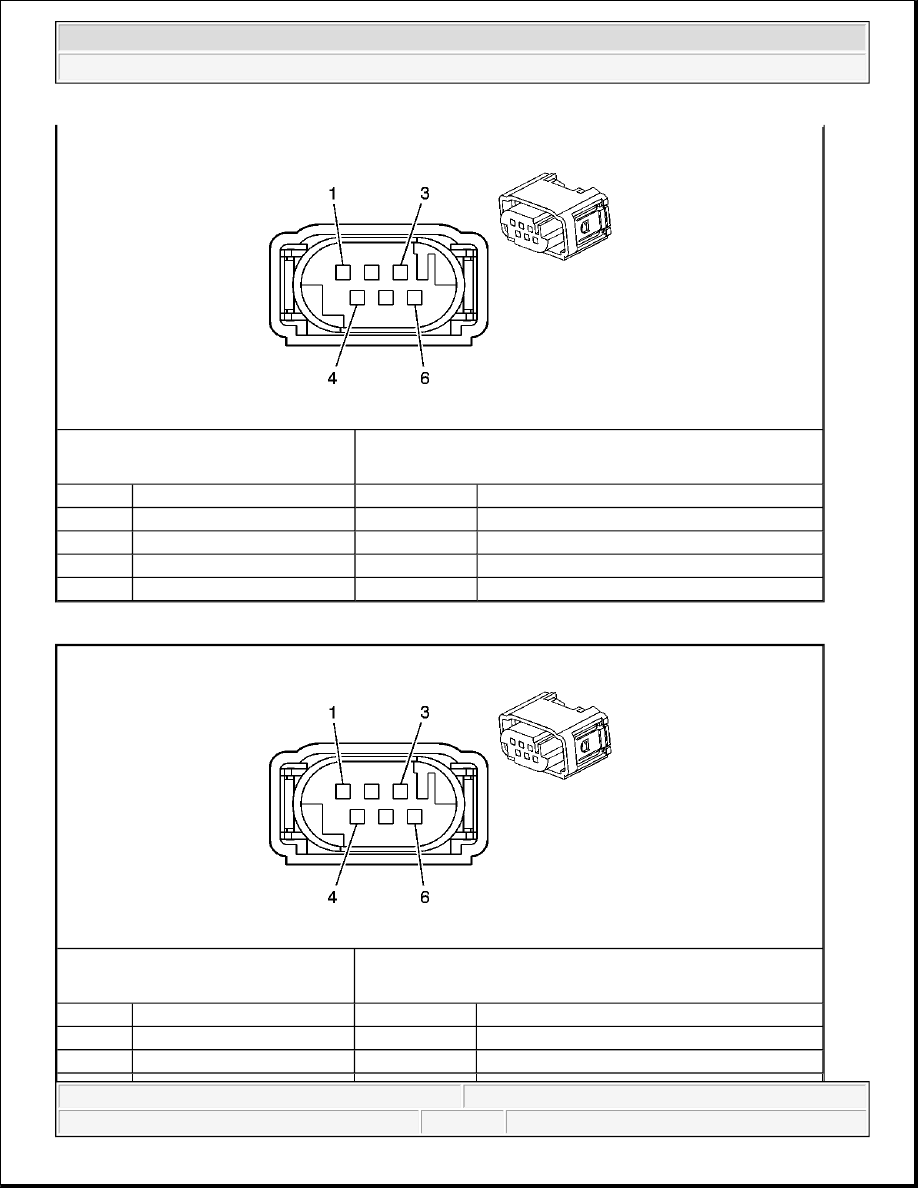

Air Suspension Terminal Identification Sensor - RR (ZM6)

Connector Part Information

z

15355474

z

6-Way F MQS SLD (BK)

Pin

Wire Color

Circuit No.

Function

1

GY

2165

5-Volt Reference

2

BN

2184

Air Suspension Sensor Signal - LR

3

PU

2185

Low Reference

4-6

-

-

Not Used

Connector Part Information

z

15355474

z

6-Way F MQS SLD (BK)

Pin

Wire Color

Circuit No.

Function

1

PU

2185

Low Reference

2

BN

2227

Air Suspension Sensor Signal - RR
