Hummer H2. Manual - part 2204

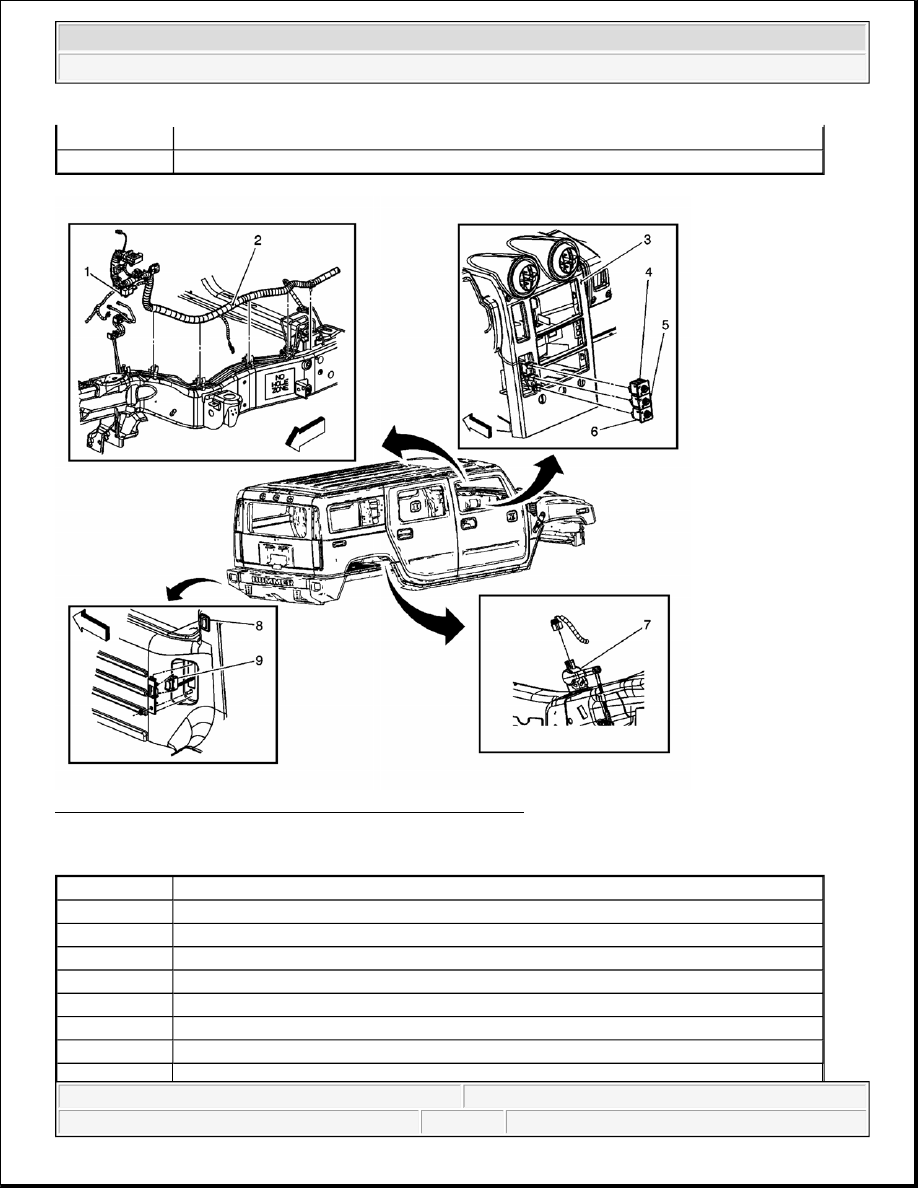

Fig. 5: Air Suspension Sub-System Component Views (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5

11

Air Suspension Pressure Sensor

12

Air Suspension Exhaust Valve

Callout

Component Name

1

Electronically Controlled Air Suspension Relay

2

Chassis Harness

3

I/P Compartment

4

Traction Control Switch

5

Tow/Haul Switch

6

Ride Height Switch

7

Air Suspension Sensor - LR



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



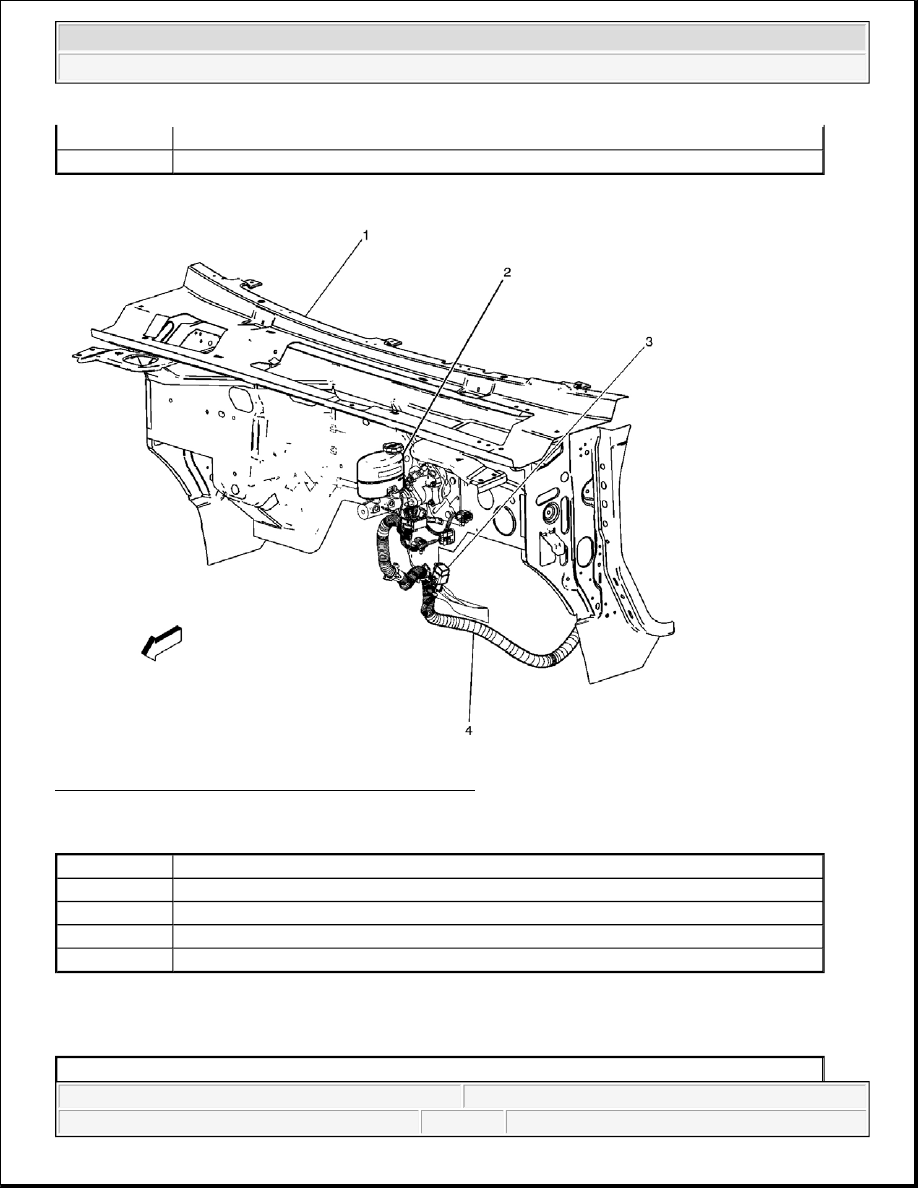

Fig. 6: LR Of Engine Compartment Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 6

SUSPENSION CONTROLS CONNECTOR END VIEWS

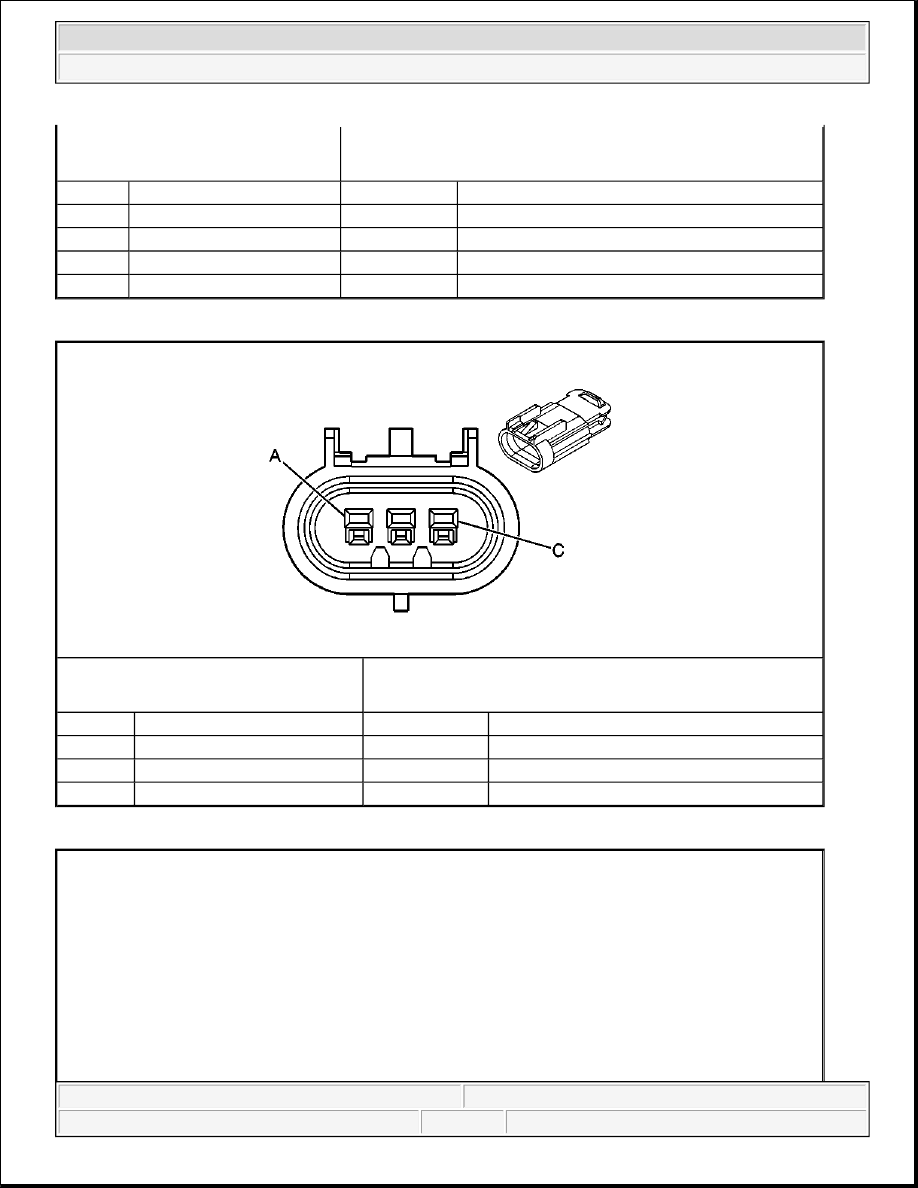

Air Suspension Terminal Identification Compressor (ZM6)

8

Door Lock Switch - Rear

9

Air Suspension Inflator Switch

Callout

Component Name

1

Dash - Upper Plenum

2

Master Cylinder

3

Electronically Controlled Air Suspension Relay

4

Chassis Harness



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



Air Suspension Exhaust Valve Terminal Identification (ZM6)

Connector Part Information

z

12124685

z

3-Way F Metri-Pack 680 Series Sealed (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

1A

Compressor Battery Positive Voltage

B

BK

2A

Ground

C

YE

3L

Over Temperature Signal



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2



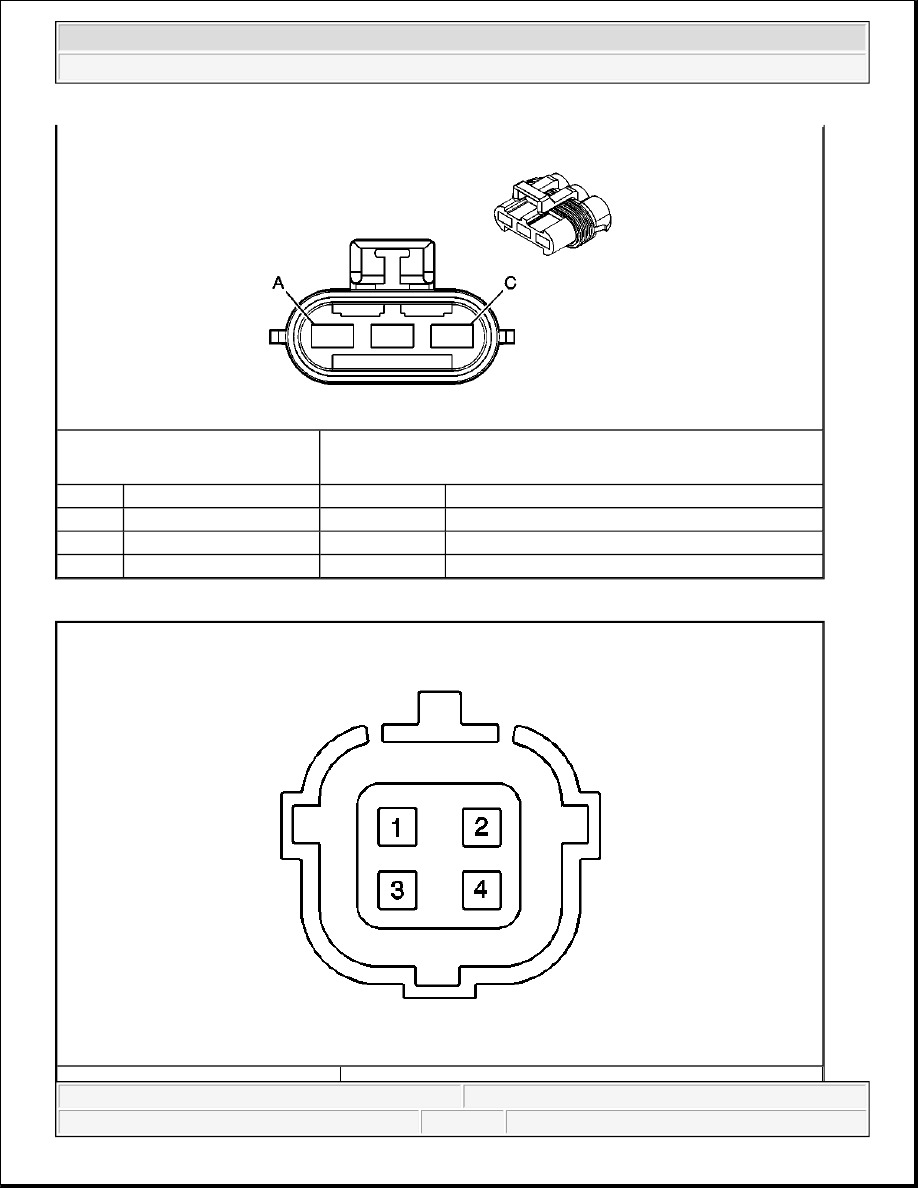

Air Suspension Inflator Terminal Identification Switch (ZM6)

Air Suspension Inlet Valve Terminal Identification - LR/RR (ZM6)

Connector Part Information

z

344270-3

z

4-Way F AMP 070 Series Sealed (BU)

Pin

Wire Color

Circuit No.

Function

1

-

-

Not Used

2

YE

3P

Air Suspension Exhaust Valve Control

3

YE

3U

Ground

4

-

-

Not Used

Connector Part Information

z

15326813

z

3-Way M 150 Sealed (BK)

Pin

Wire Color

Circuit No.

Function

A

PU

5523

Inflator Switch Signal

B

L-GN

5522

Inflator Switch Low Reference

C

OR

5524

Inflator Switch Indicator Control



2004 Hummer H2

2004 SUSPENSION Air Suspension - Hummer H2
