Fig. 6: Preparing Shock Absorber For Disposal
Courtesy of GENERAL MOTORS CORP.

COIL SPRING REPLACEMENT

Removal

1. Raise and support the vehicle.

2. Support the rear axle.

3. Remove the stabilizer shaft link retaining nut from the frame.

4. Remove the lower shock absorber nut and bolt from the rear axle.

5. Lower the rear axle until the springs are fully unloaded.



2004 Hummer H2

2003-04 SUSPENSION Rear - H2



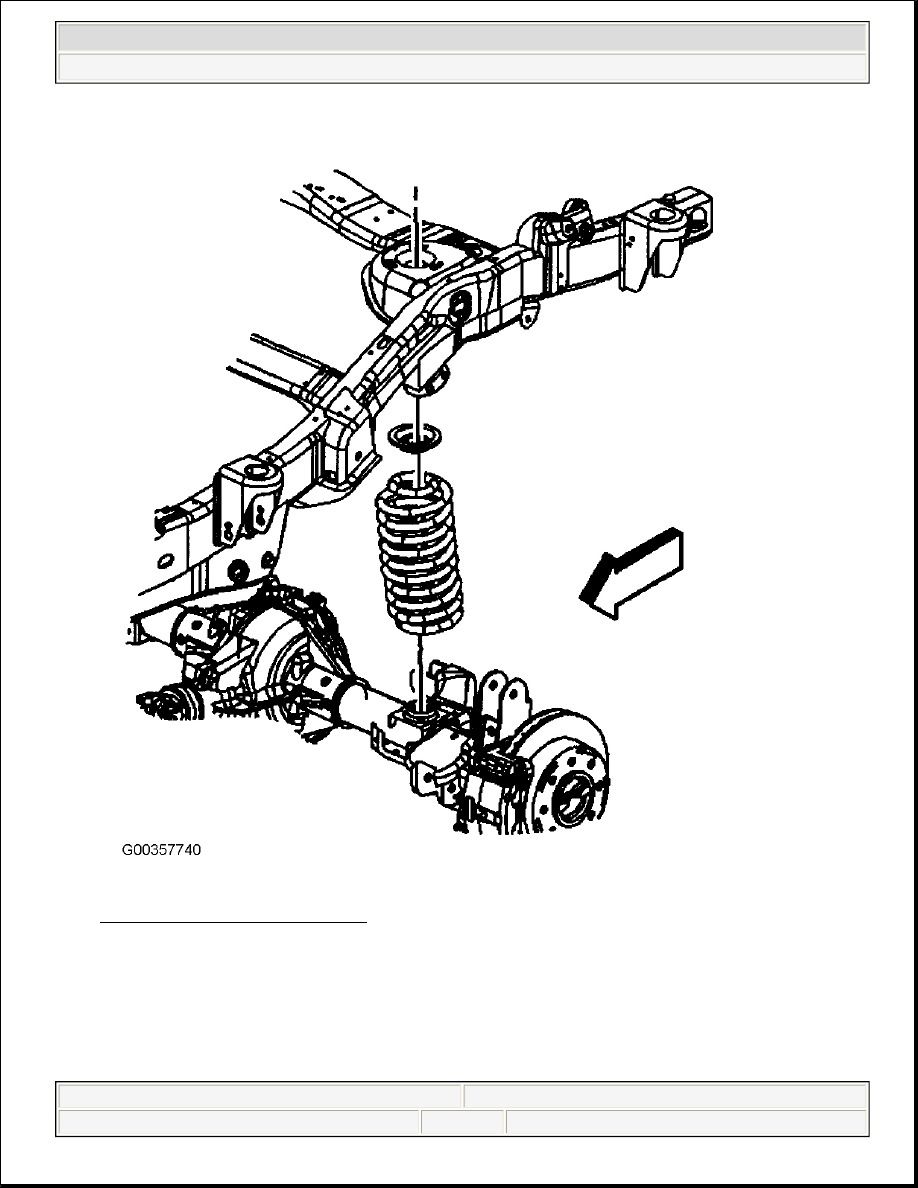

Fig. 7: Removing Rear Coil Spring
Courtesy of GENERAL MOTORS CORP.

6. Remove the coil spring and the insulators.

Installation

NOTE:

Note the position of the coil springs, as the left coil spring and the right coil



2004 Hummer H2

2003-04 SUSPENSION Rear - H2



1. Install the coil spring and the insulators.

2. Raise the rear axle.

3. Install the lower shock absorber retaining nut and bolt to the rear axle. Tighten the lower shock absorber

retaining nut and bolt to 105 N.m (77 lb ft).

4. Install the stabilizer shaft link to the frame.

5. Install the stabilizer shaft link retaining nut. Tighten the stabilizer shaft link retaining nut to 72 N.m (53 lb

ft).

6. Remove the rear axle support.

7. Lower the vehicle.

SPRING BUMPER REPLACEMENT

Removal

1. Raise and support the vehicle.

2. Remove the spring bumper (snap fit).

spring are different.



2004 Hummer H2

2003-04 SUSPENSION Rear - H2

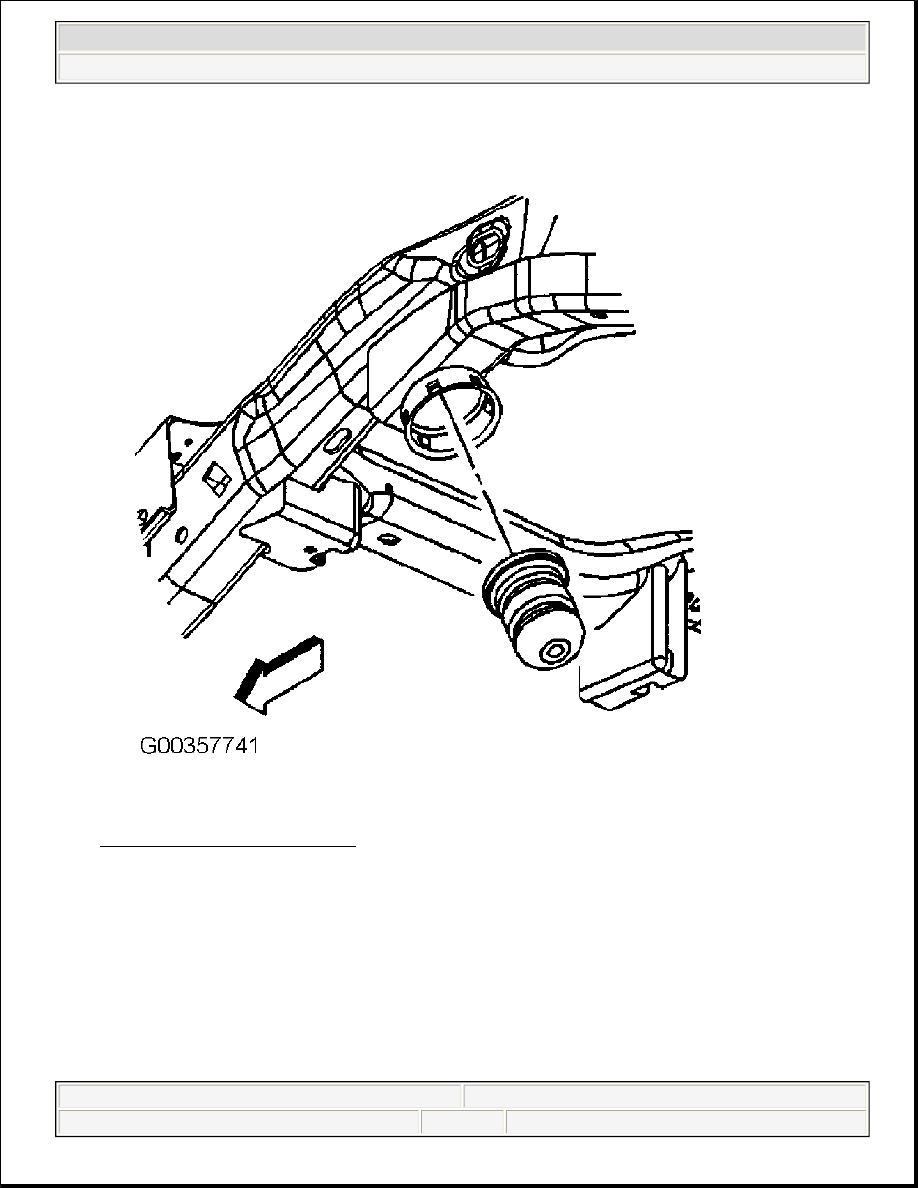

Fig. 8: Removing Spring Bumper
Courtesy of GENERAL MOTORS CORP.

Installation

1. Install the spring bumper (snap fit).

2. Lower the vehicle.

TRACK BAR REPLACEMENT

Removal
