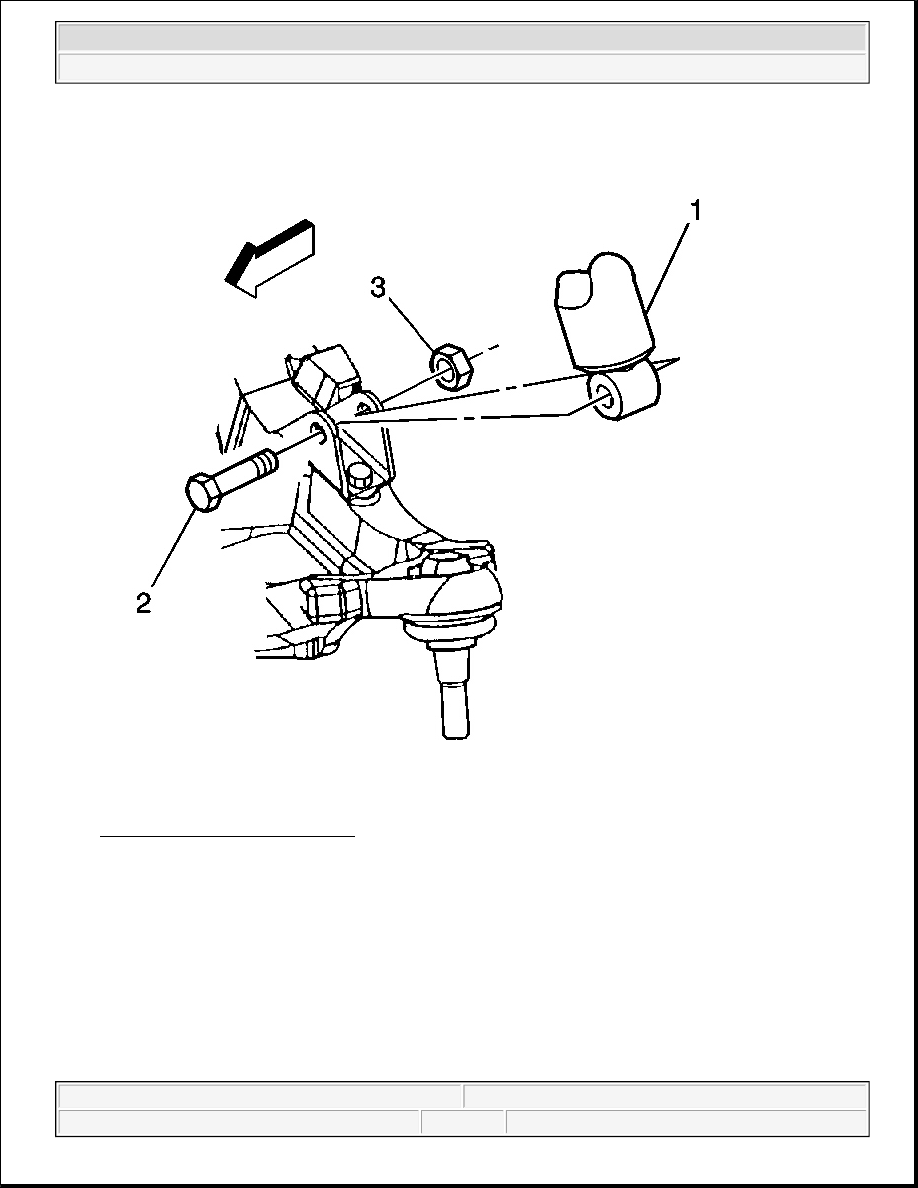

Fig. 33: View Of Shock Absorber
Courtesy of GENERAL MOTORS CORP.

5. Remove the shock absorber mounting bolt (2) and nut (3).

6. Remove the shock absorber.

Installation Procedure



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2

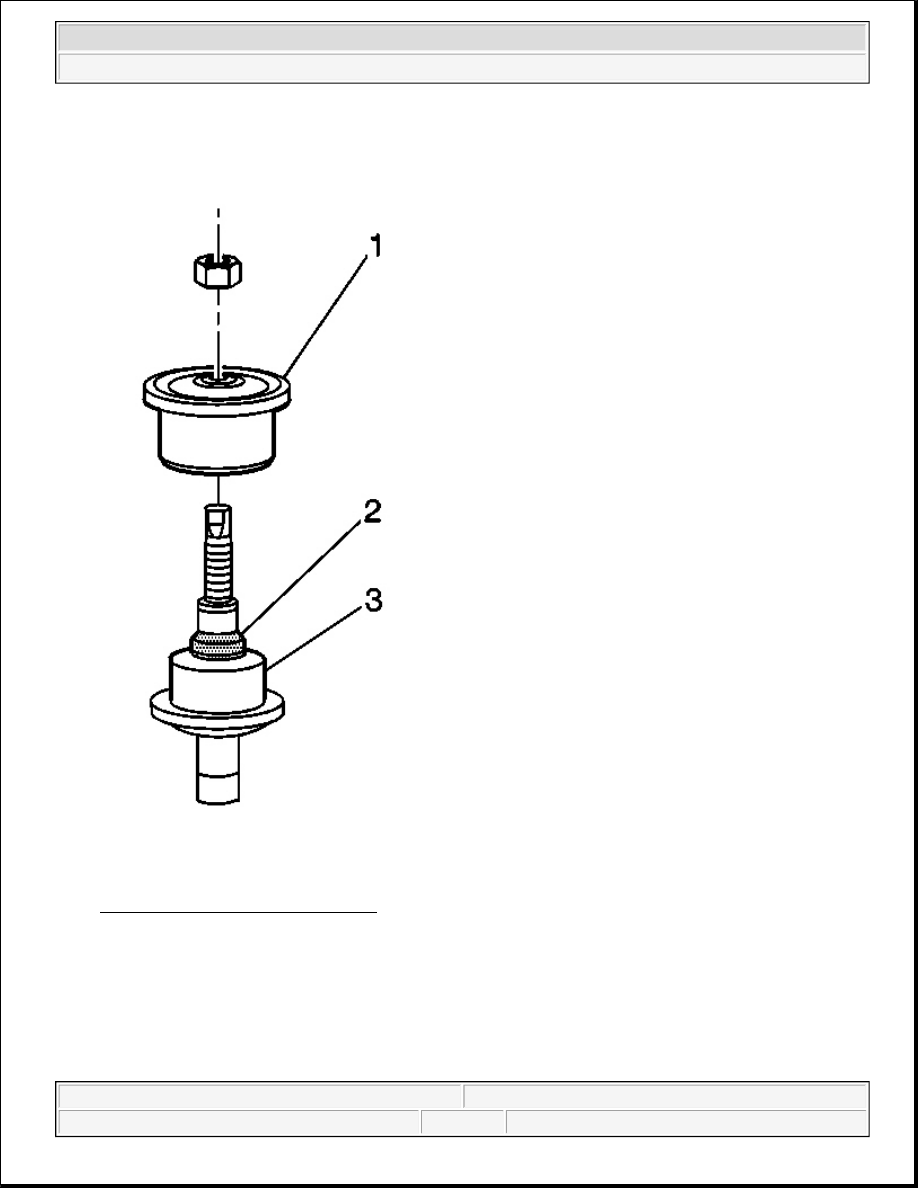

Fig. 34: Shock Absorber & Tennon End
Courtesy of GENERAL MOTORS CORP.

1. Install the shock absorber. Insert the tennon through the hole in the shock bracket on the frame.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2

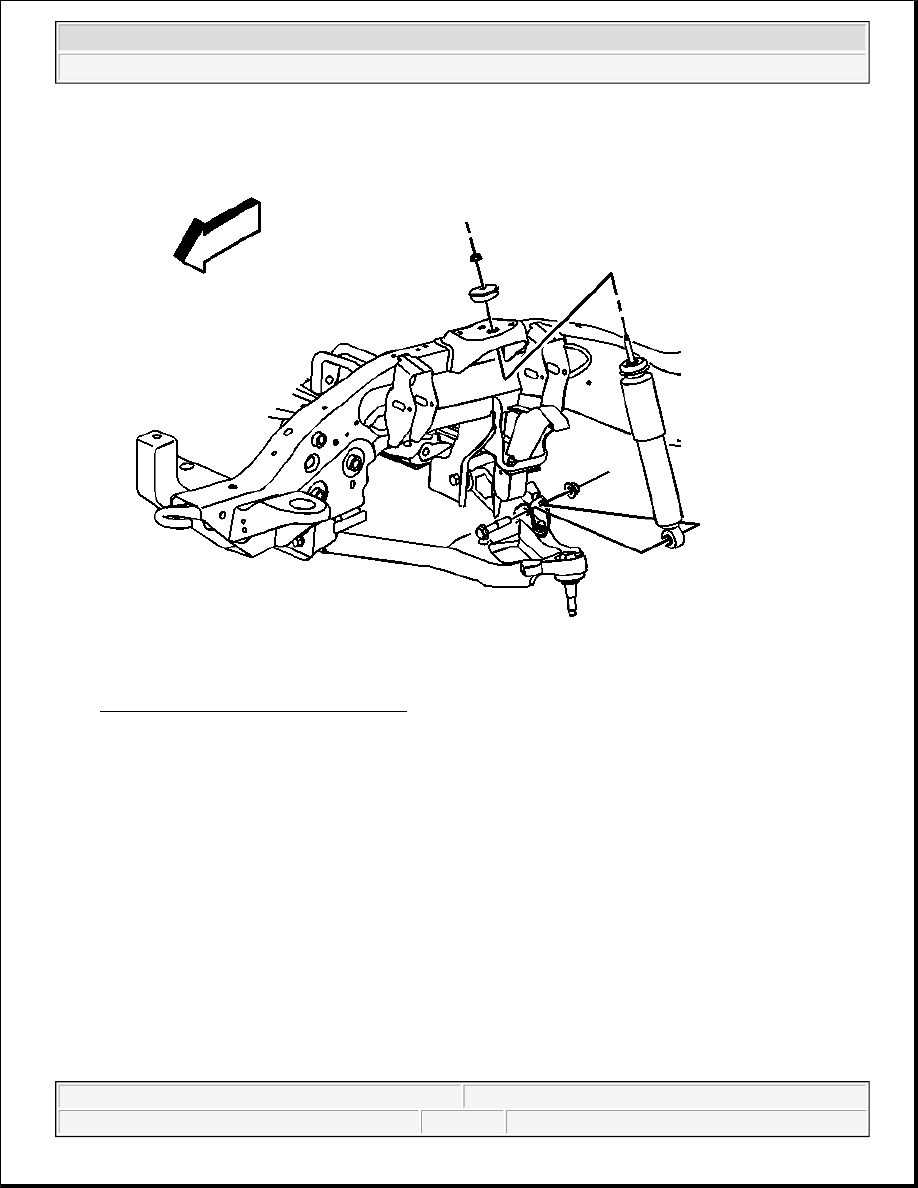

Fig. 35: View Of Shock Absorber
Courtesy of GENERAL MOTORS CORP.

2. Align the shock absorber with the mounting holes in the lower control arm.

3. Install the shock absorber bolt (2) and nut (3).

Tighten: Tighten the nut to 80 N.m (59 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2



Fig. 36: Identifying Upper Insulator
Courtesy of GENERAL MOTORS CORP.

4. Install the upper insulator to the shock absorber.

IMPORTANT: The upper insulators are substantially larger that the lower insulators. The

upper insulator (1) must be installed above the shock mounting bracket
on the frame. The plastic pilot ring (2) will assist the alignment of the
insulator.
