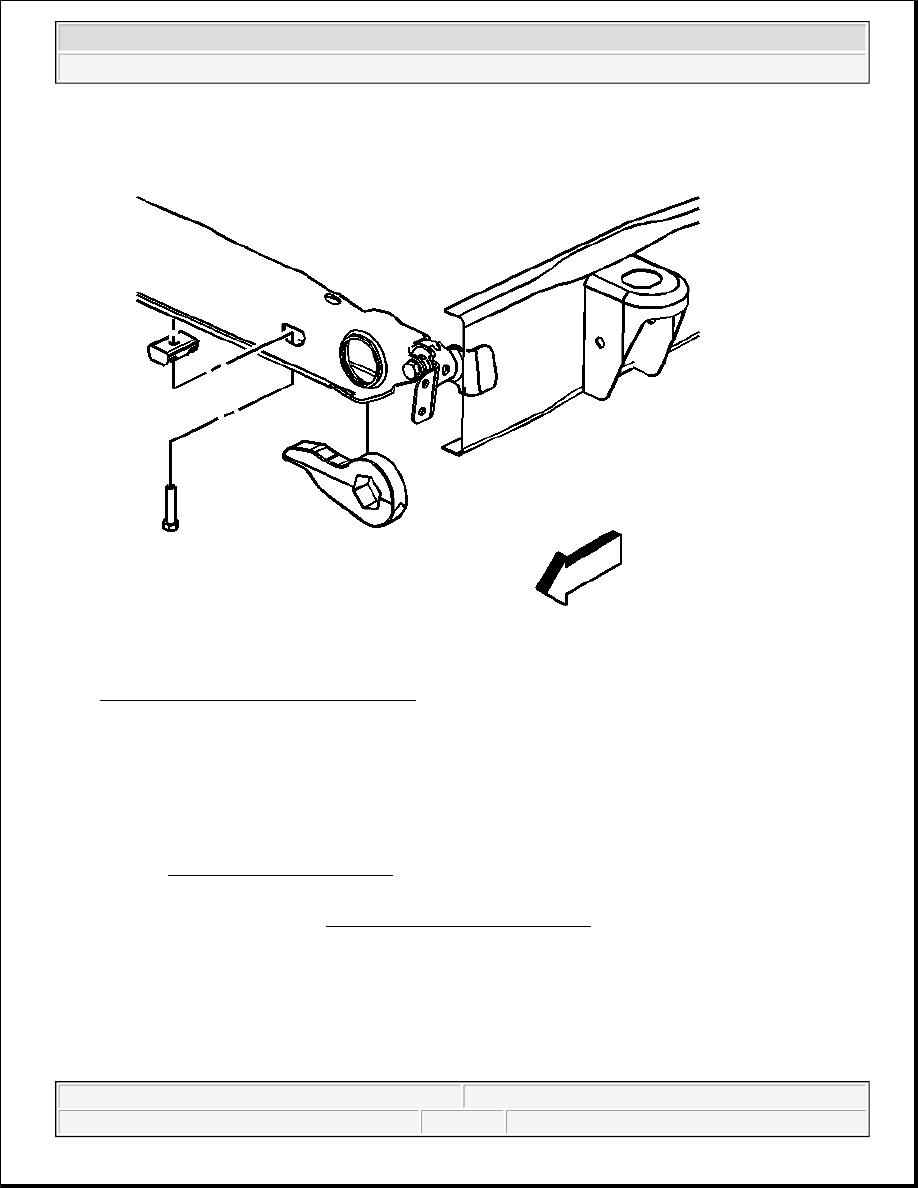

Fig. 29: Adjustment Bolt & Adjuster Nut
Courtesy of GENERAL MOTORS CORP.

7. Install the adjustment bolt and the adjuster nut.

8. Remove the J 36202 releasing the tension on the torsion bar until the load is taken up by the adjustment

bolt. See Special Tools and Equipment .

9. Lower the vehicle.

10. Measure the Z height. Refer to Trim Height Inspection Procedure in Suspension General Diagnosis.

IMPORTANT: Install the adjustment bolt the same amount of turns that were required to

remove the bolt during removal.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2



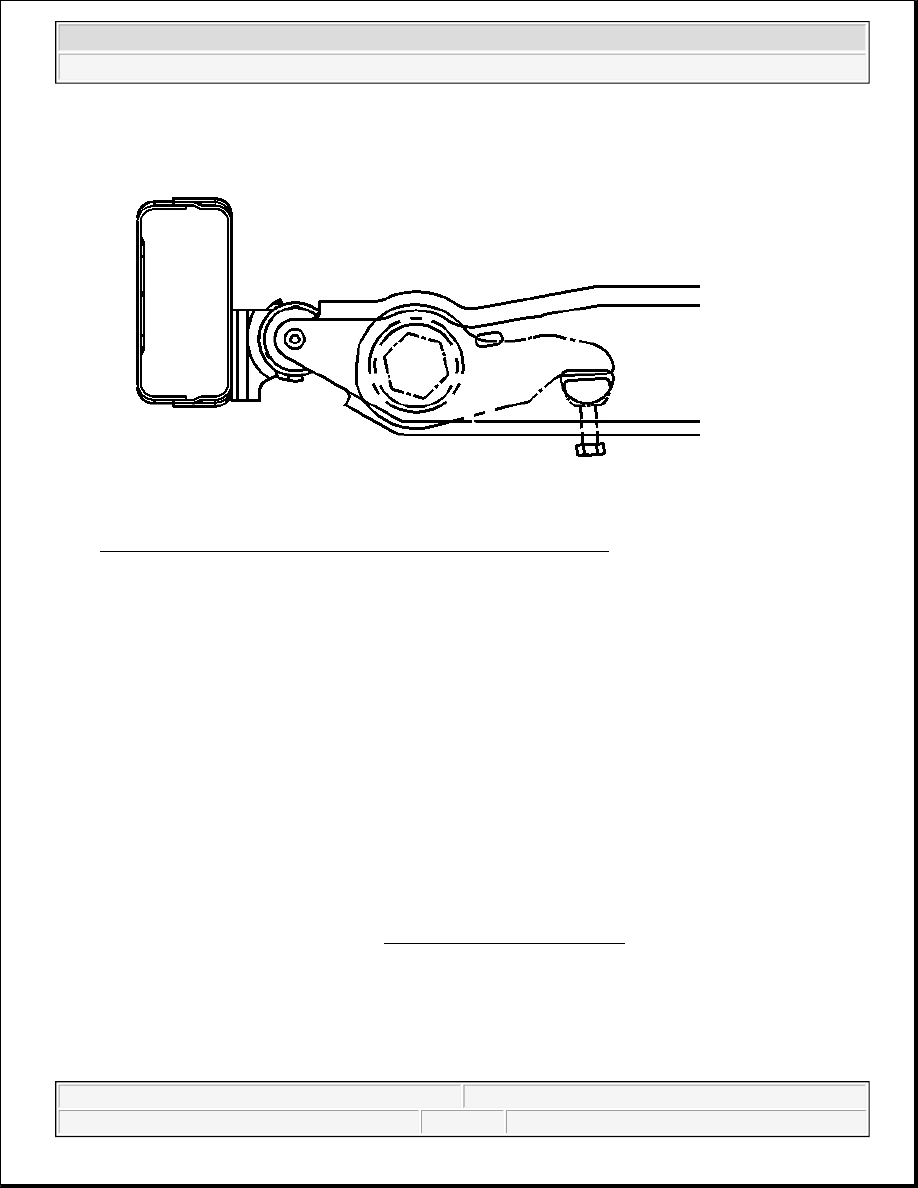

Fig. 30: Turning Adjustment Bolt Clockwise Or Counterclockwise
Courtesy of GENERAL MOTORS CORP.

11. Turn the adjustment bolt clockwise to increase the Z height and counterclockwise to decrease the Z

height.

SHOCK ABSORBER REPLACEMENT

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

NOTE:

The front shock absorbers of the vehicle are multifunctional. In addition to
contributing to a smooth ride they also provide the only stop to the front
suspension when fully extended. Therefore, when servicing the shock absorber,
service replacement shock absorbers must be equivalent to original shock
absorbers in both extended length and strength. Use of shocks not complying
to original equipment or strength could result in suspension over-travel or
shock breakage. Suspension over-travel may result in suspension component
breakage.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2



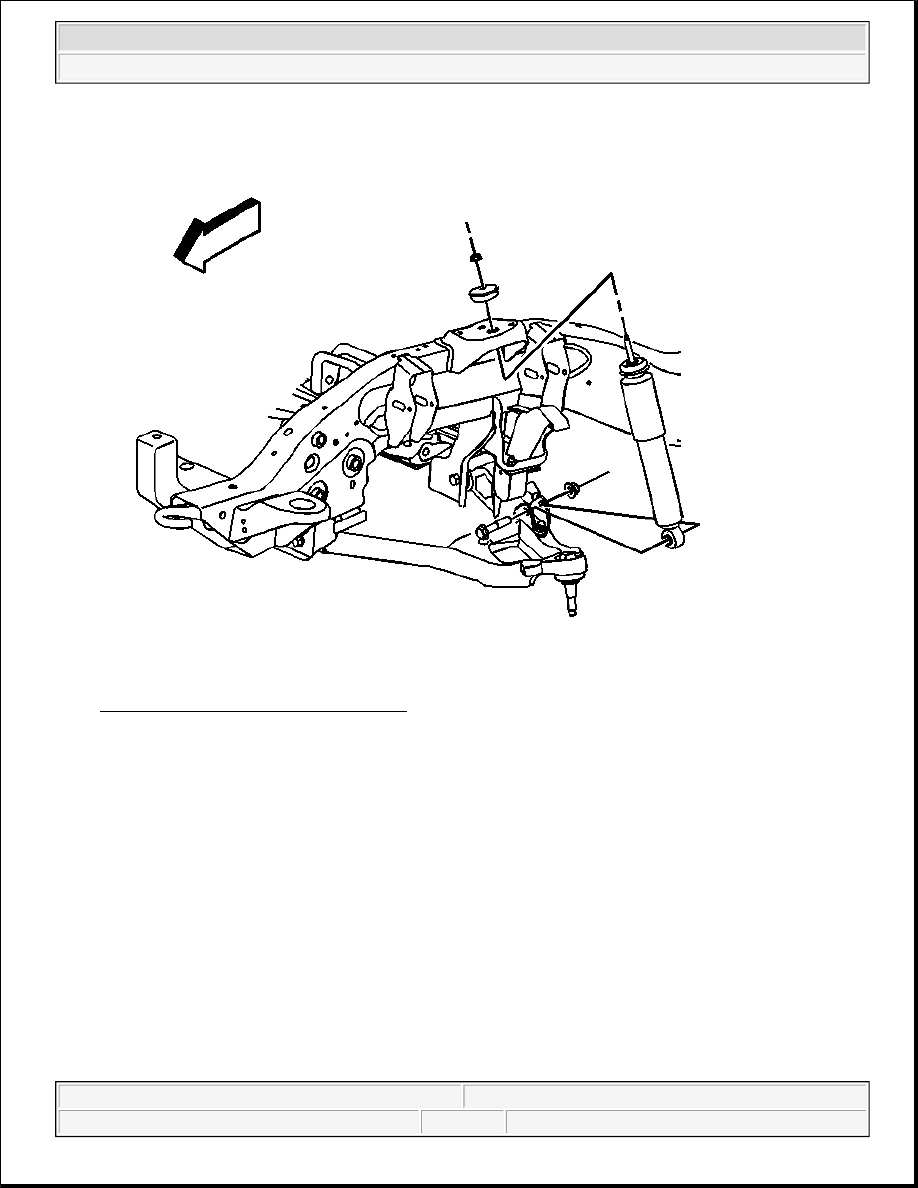

Fig. 31: Shock Absorber & Tennon End
Courtesy of GENERAL MOTORS CORP.

2. Hold the tennon end with a wrench while removing the nut.

3. Remove the nut.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2

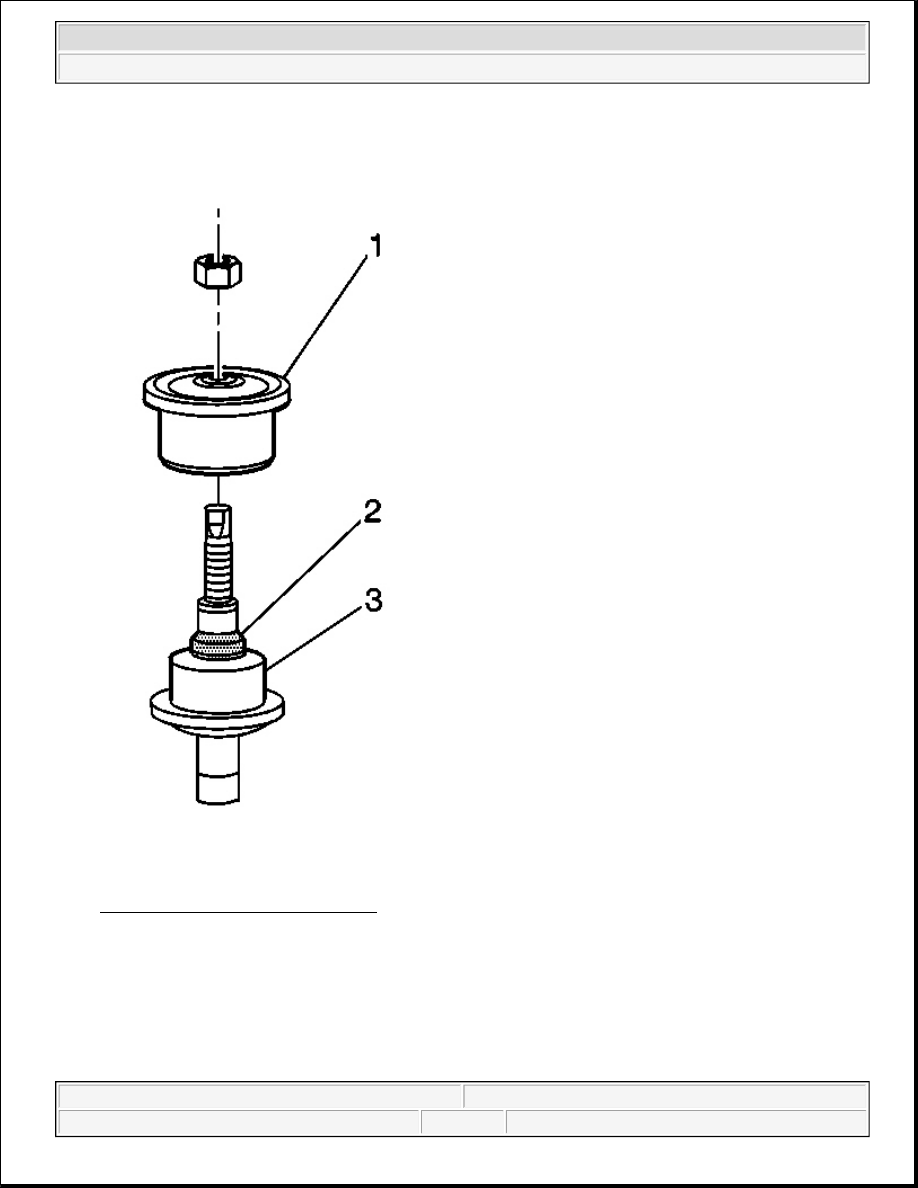

Fig. 32: Identifying Upper Insulator
Courtesy of GENERAL MOTORS CORP.

4. Remove the upper insulator (1). Do not discard the plastic pilot ring (2).



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2
