Hummer H2. Manual - part 2160

Fig. 68: Connector & Electric Park Lock
Courtesy of GENERAL MOTORS CORP.

1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .

3. Remove the connector (2) from the lock (1).

CAUTION: Refer to SIR Caution in Cautions and Notices.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

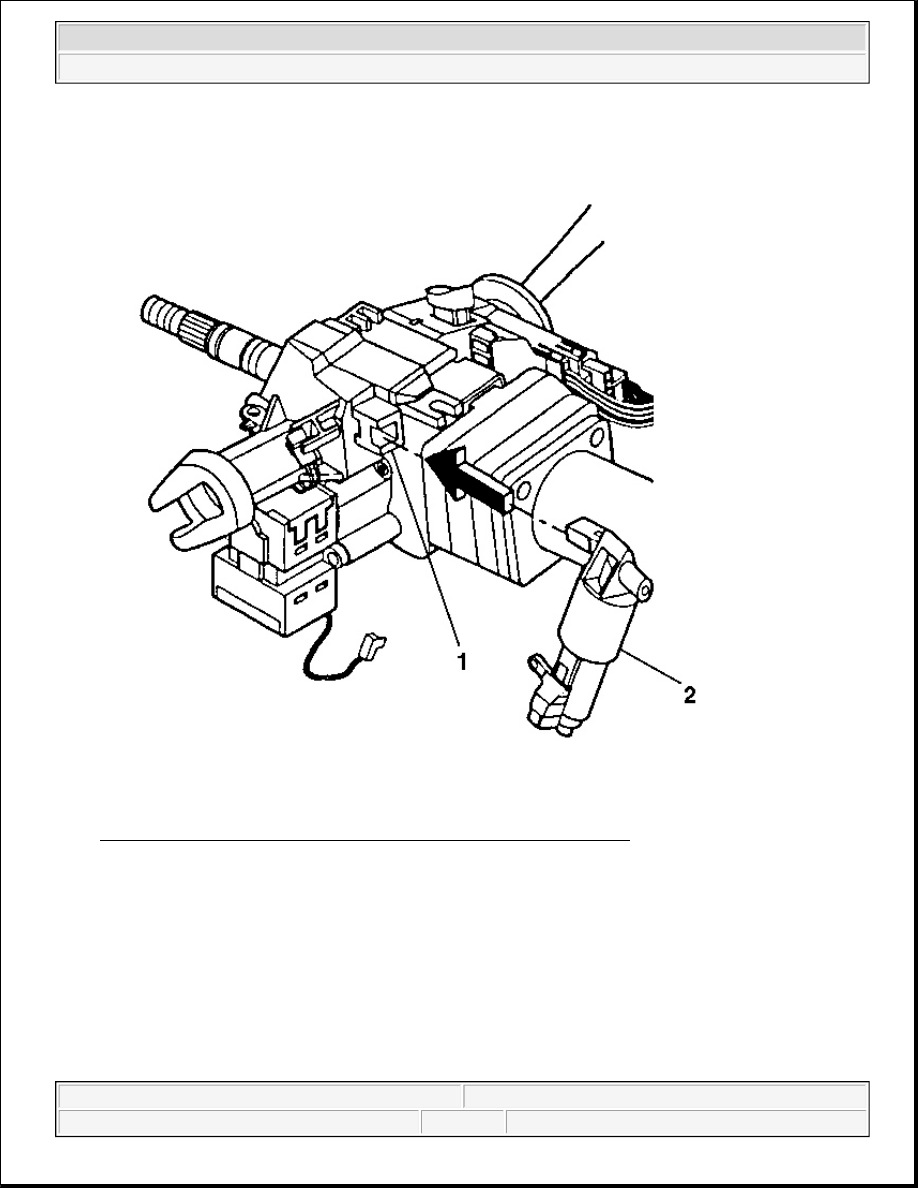

Fig. 69: Electric Park Lock & Ignition Lock Cylinder Case Assembly
Courtesy of GENERAL MOTORS CORP.

4. Pry the electric park lock (2) off of the ignition lock cylinder case assembly (1).

Installation Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Fig. 70: Electric Park Lock & Ignition Lock Cylinder Case Assembly
Courtesy of GENERAL MOTORS CORP.

1. Snap the electric park lock (2) onto the ignition lock cylinder case assembly (1).



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

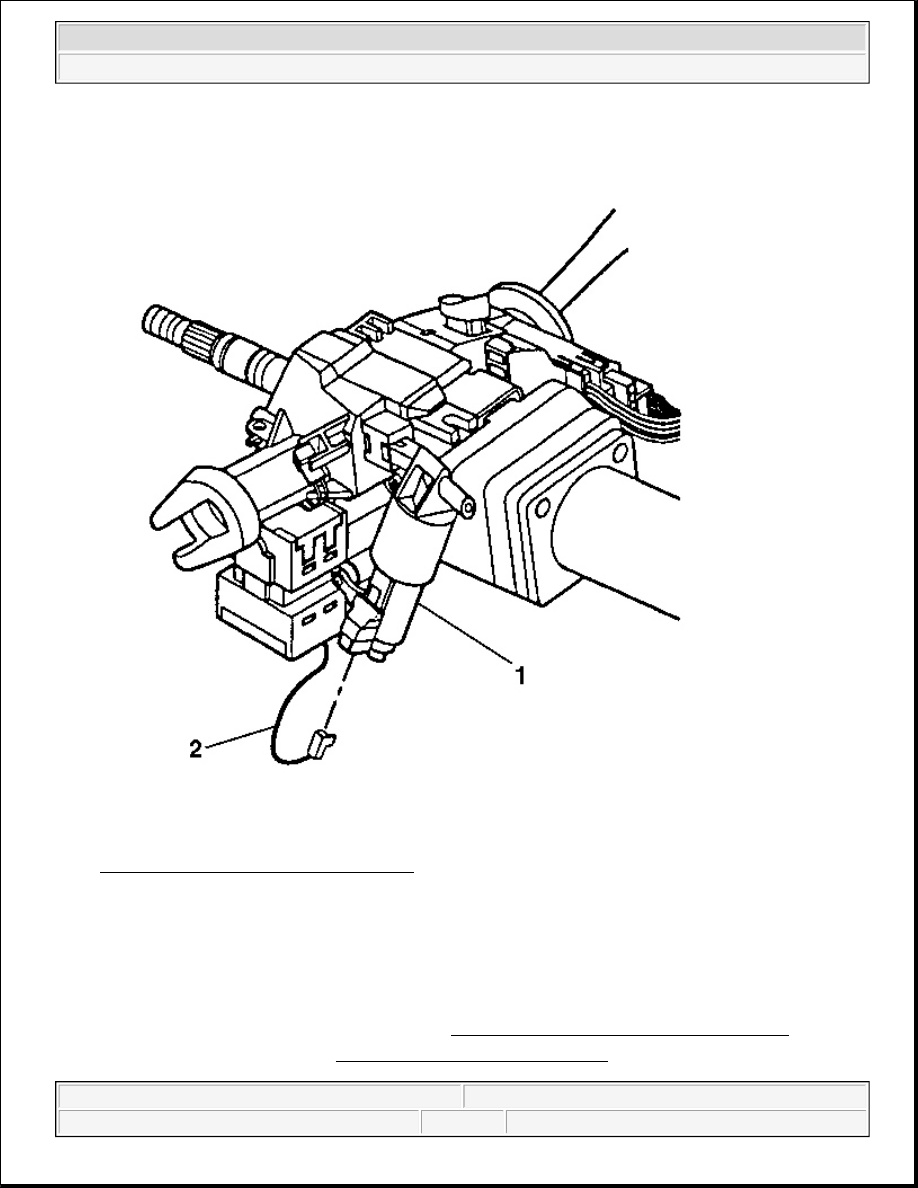

Fig. 71: Connector & Electric Park Lock
Courtesy of GENERAL MOTORS CORP.

2. Reconnect the connector (2) to the electric park lock (1).

3. Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .

4. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

CAUTION: Refer to SIR Inflator Module Coil Caution in Cautions and Notices.
