Fig. 60: Steering Wheel Control Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the steering wheel control switch electrical connector.

6. Remove the steering wheel control switch from the steering wheel.

Installation Procedure

IMPORTANT: The bulbs in the steering wheel control switches are not serviceable. The

switches should be replaced only as an assembly.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

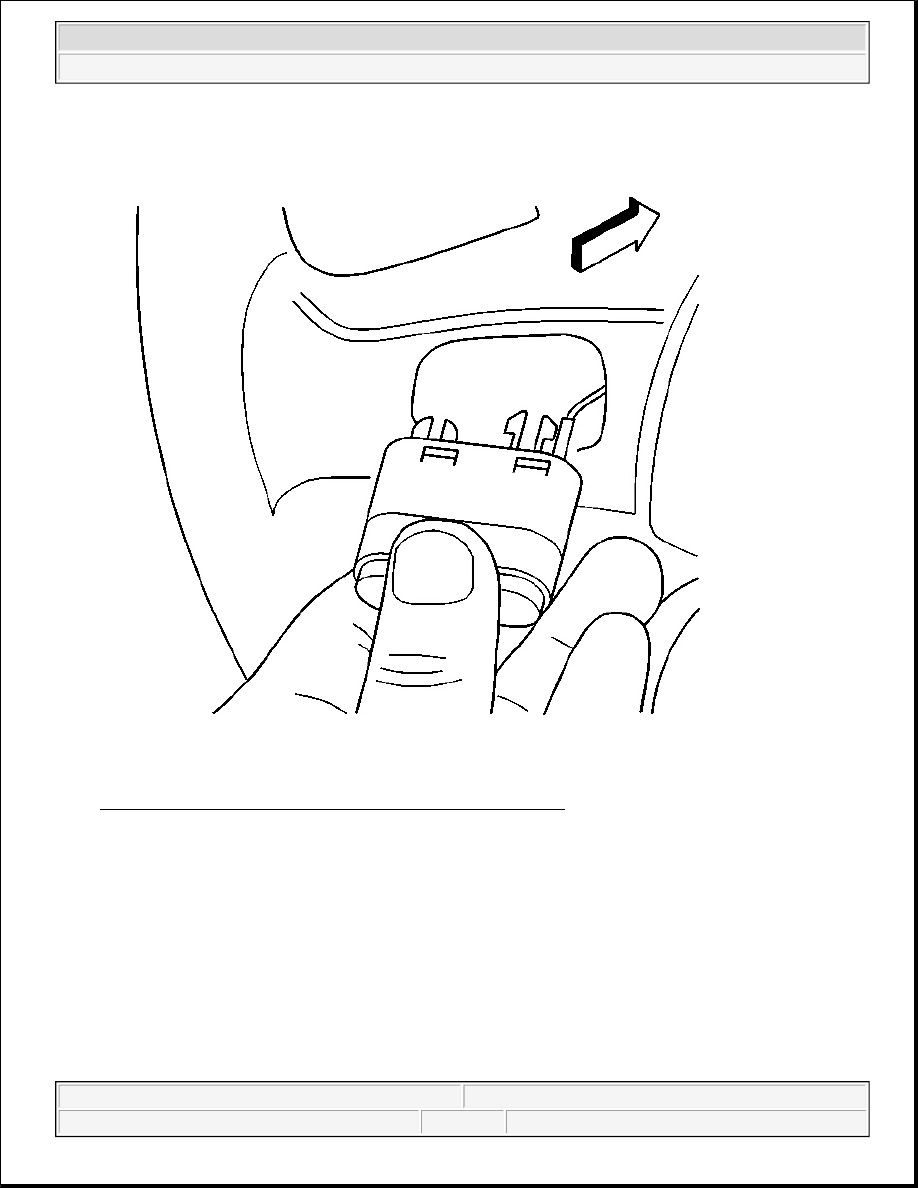

Fig. 61: Steering Wheel Control Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.

1. Position the steering wheel control switch to the steering wheel.

2. Connect the electrical connector to the steering wheel control switch.

3. Install the steering wheel control switch into the steering wheel, ensuring the retaining tabs are fully

seated.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

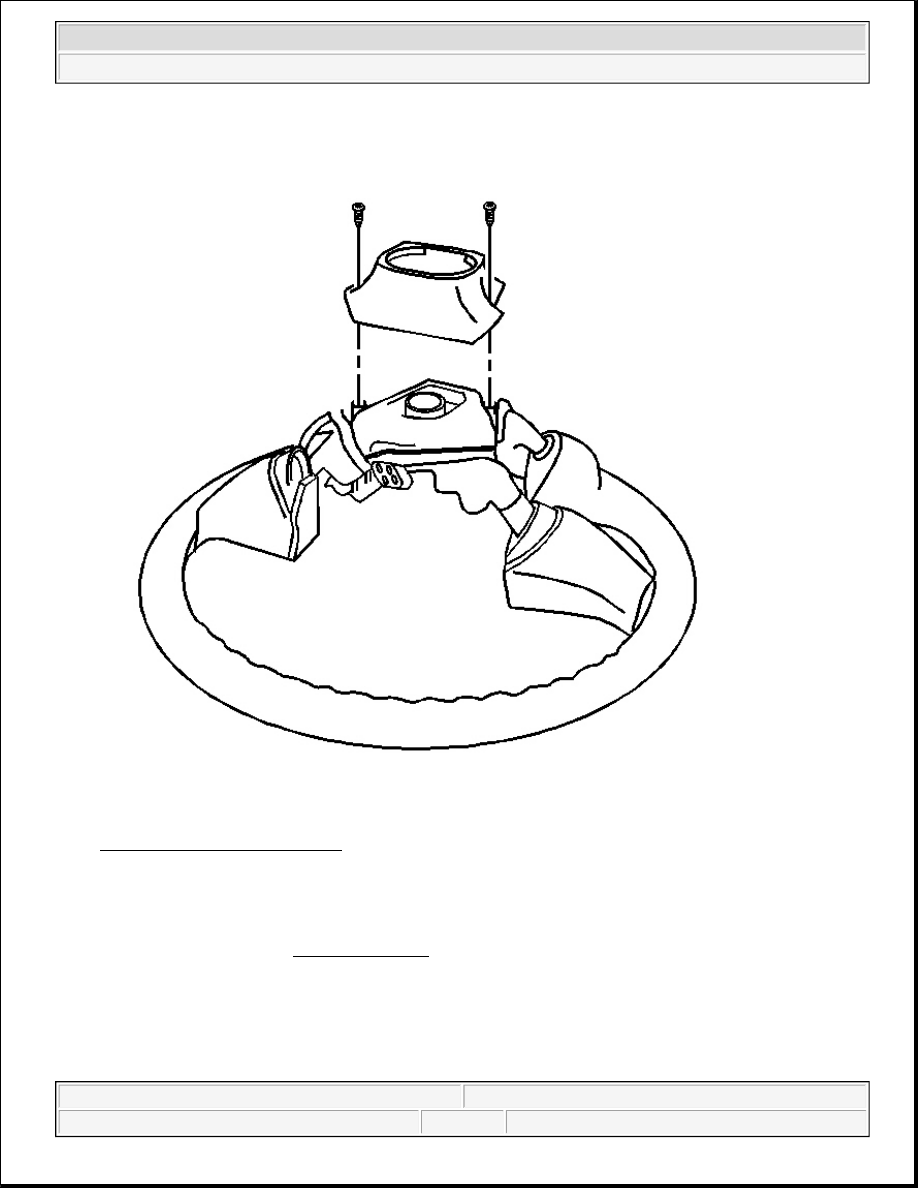

Fig. 62: Steering Wheel Shroud
Courtesy of GENERAL MOTORS CORP.

4. Install the shroud to the steering wheel.

5. Install the shroud retaining screws to the steering wheel.

Tighten: Tighten the screws to 2 N.m (18 lb in).

6. Install the steering wheel. Refer to Steering Wheel Replacement .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



STEERING WHEEL REPLACEMENT

Tools Required

z

J 1859-A Steering Wheel Puller. See Special Tools and Equipment .

z

J-36541-A Steering Wheel Puller Adapter. See Special Tools and Equipment .

z

J 42578 Steering Wheel Puller Legs. See Special Tools and Equipment .

Removal Procedure

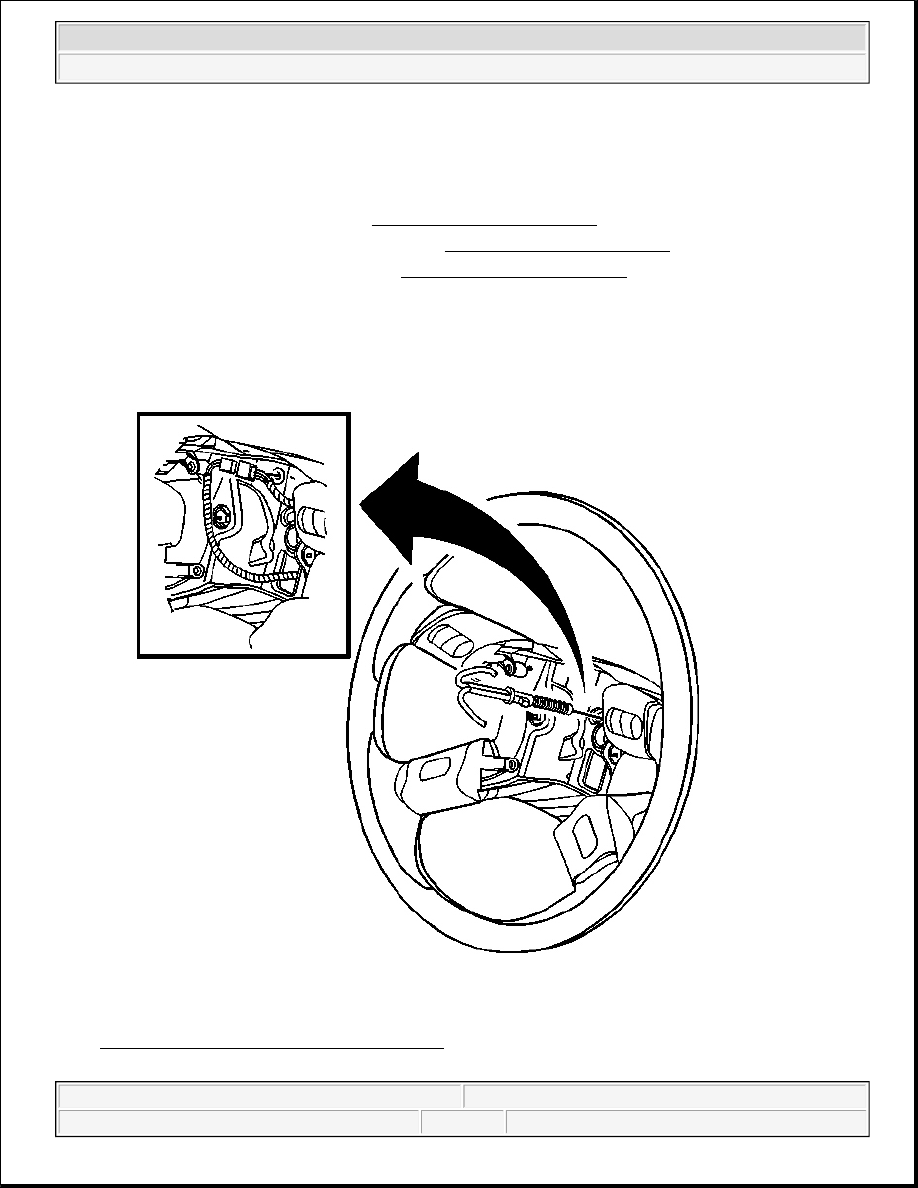

Fig. 63: Steering Wheel Electrical Connector
Courtesy of GENERAL MOTORS CORP.
