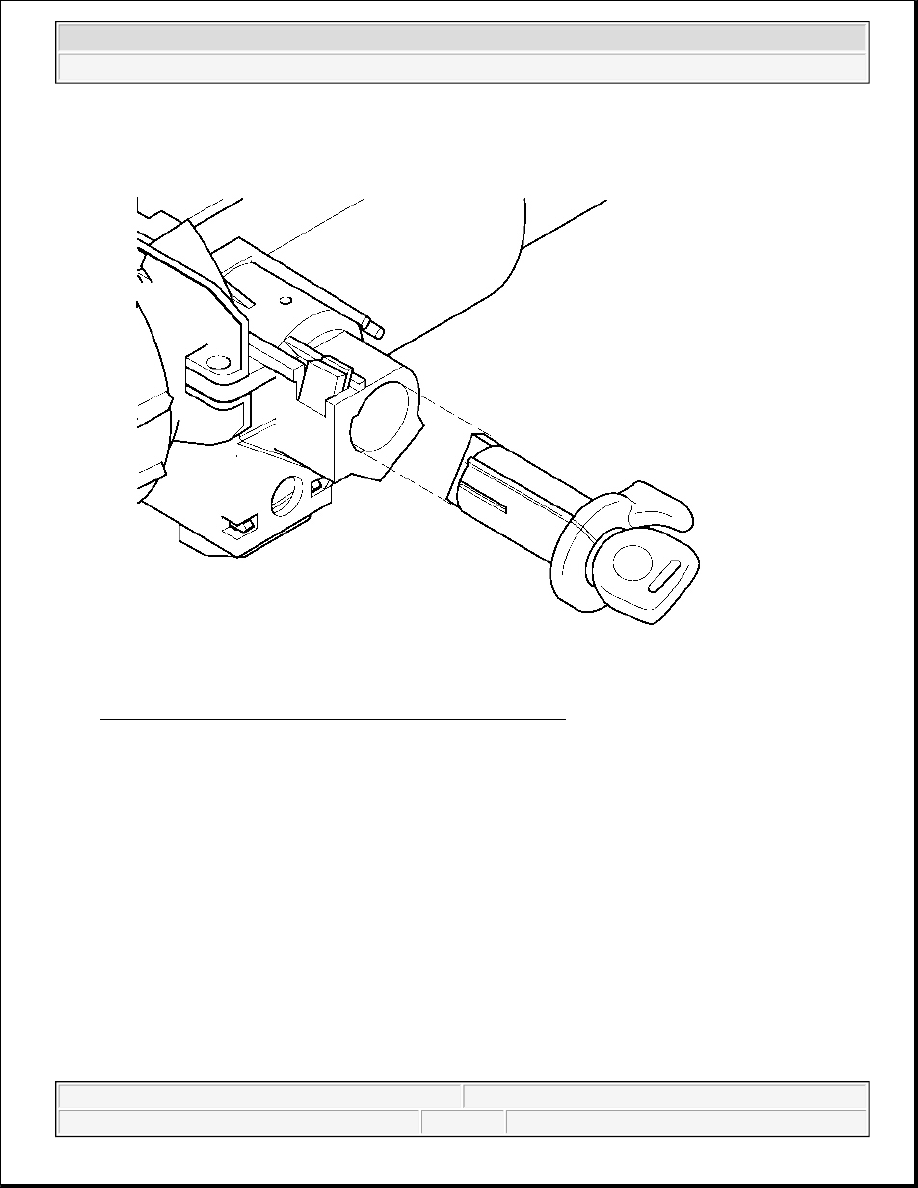

Fig. 32: Aligning Lock Cylinder Into Lock Cylinder Housing
Courtesy of GENERAL MOTORS CORP.

8. Slide the lock cylinder out of the lock cylinder housing.

9. Disconnect the passlock and key buzzer from the lock cylinder housing.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

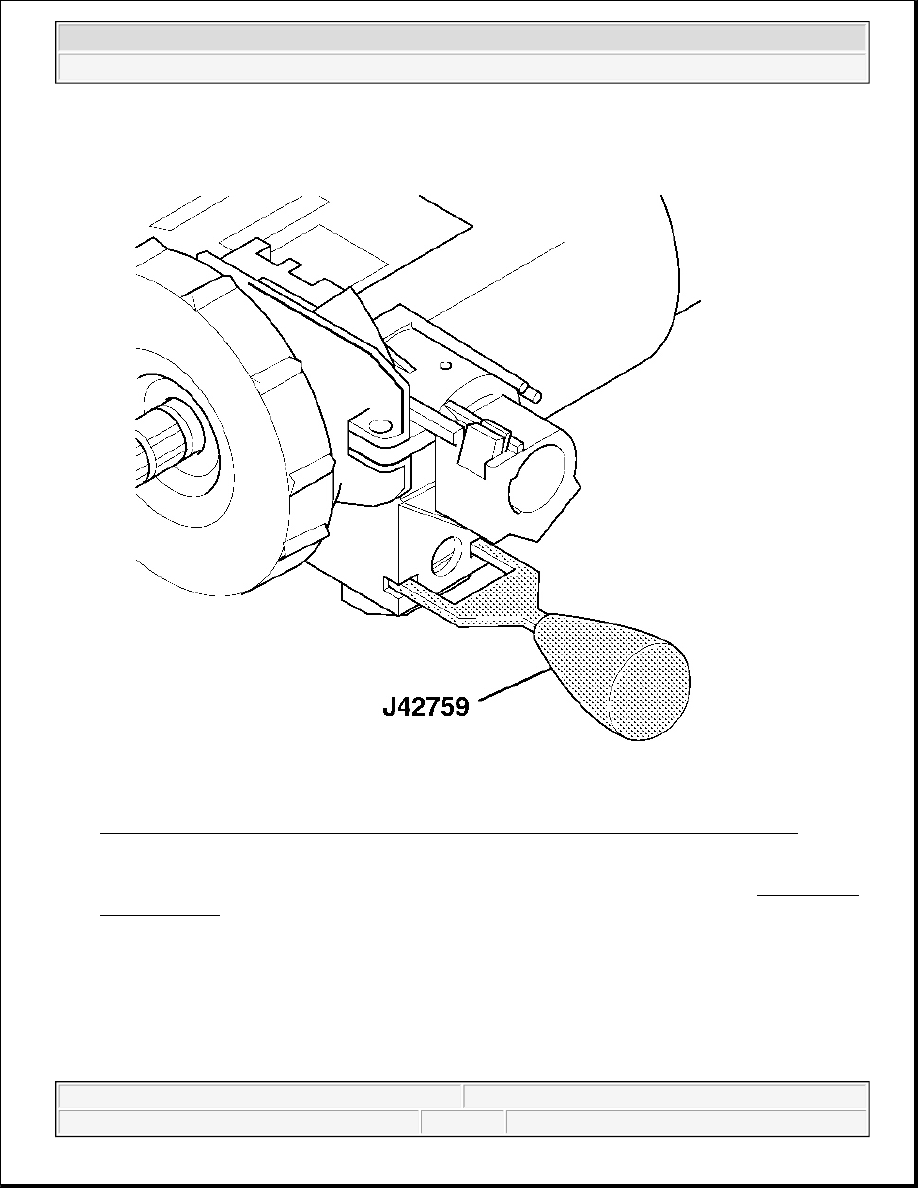

Fig. 33: Inserting J 42759 Into Lock Cylinder Housing To Release Tabs On Ignition Switch
Courtesy of GENERAL MOTORS CORP.

10. Insert J 42759 into the lock cylinder housing to release the tabs on the ignition switch. See Special Tools

and Equipment .

11. Pull the ignition switch out of the lock cylinder housing.

12. Disconnect the connector from the ignition switch.

Installation Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

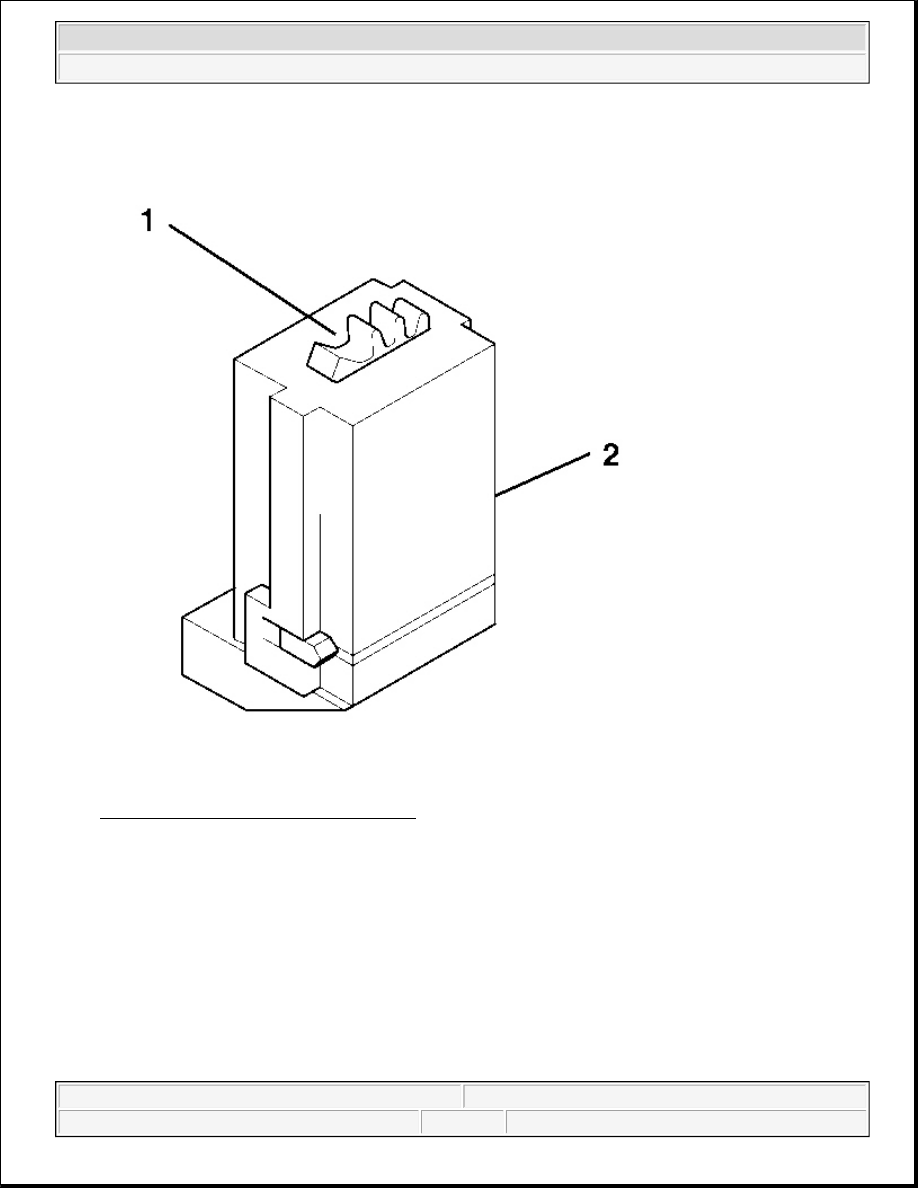

Fig. 34: Aligning Gear In Ignition Switch
Courtesy of GENERAL MOTORS CORP.

1. Verify the alignment of the gear (1) in the ignition switch (2). If gear (1) is not in position shown, turn

gear in ignition switch (2) until you reach the correct position.

IMPORTANT: The gears between the ignition switch and the lock cylinder housing must

be in the correct position. Failure to do so will cause a misalignment of
the gears in the ignition switch and the lock cylinder housing, which may
result in a NO START or BATTERY DRAIN.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

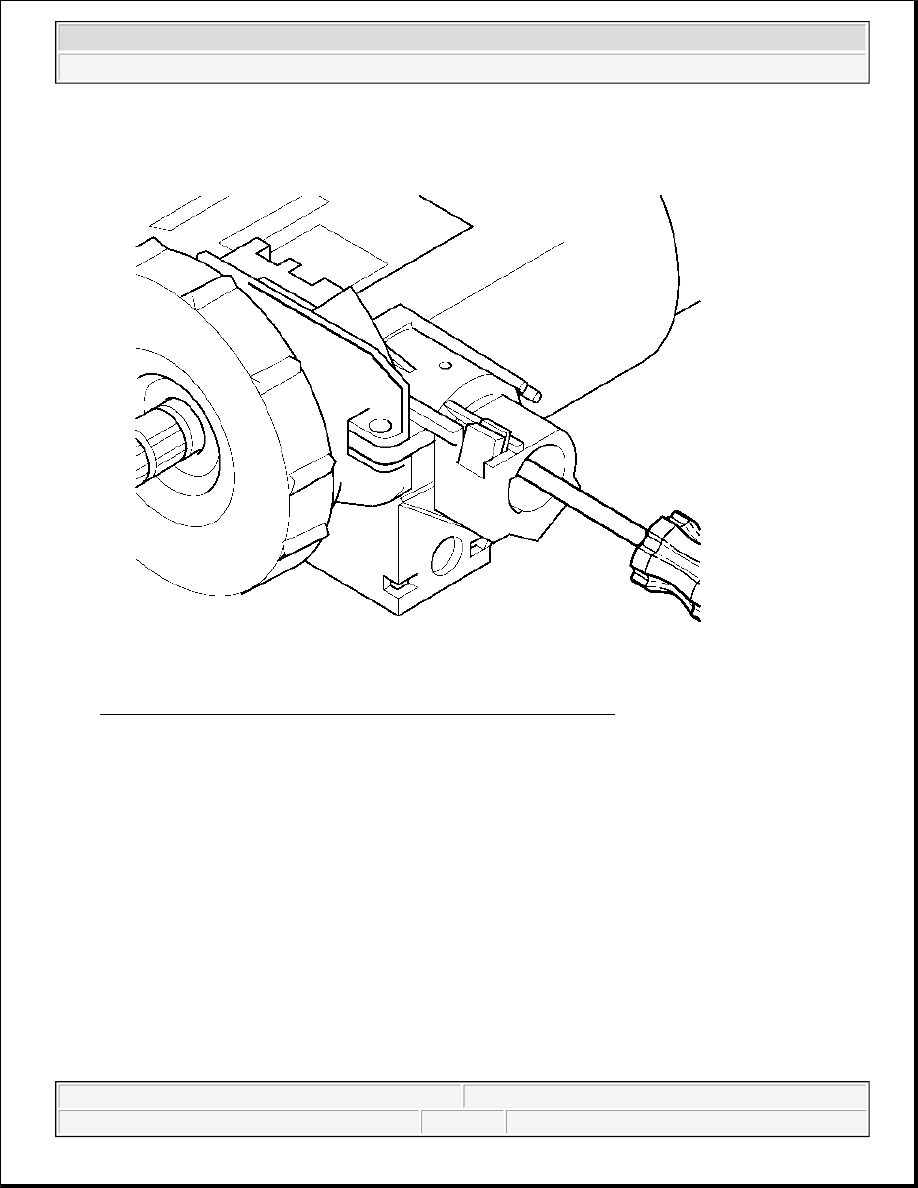

Fig. 35: Using Screwdriver To Rotate Lock Cylinder Housing Gear
Courtesy of GENERAL MOTORS CORP.

2. Use a screwdriver to rotate the lock cylinder housing gear counterclockwise until it hits a stop.

3. Connect the connector to the ignition switch.
