disengage the remaining 4 snaps.

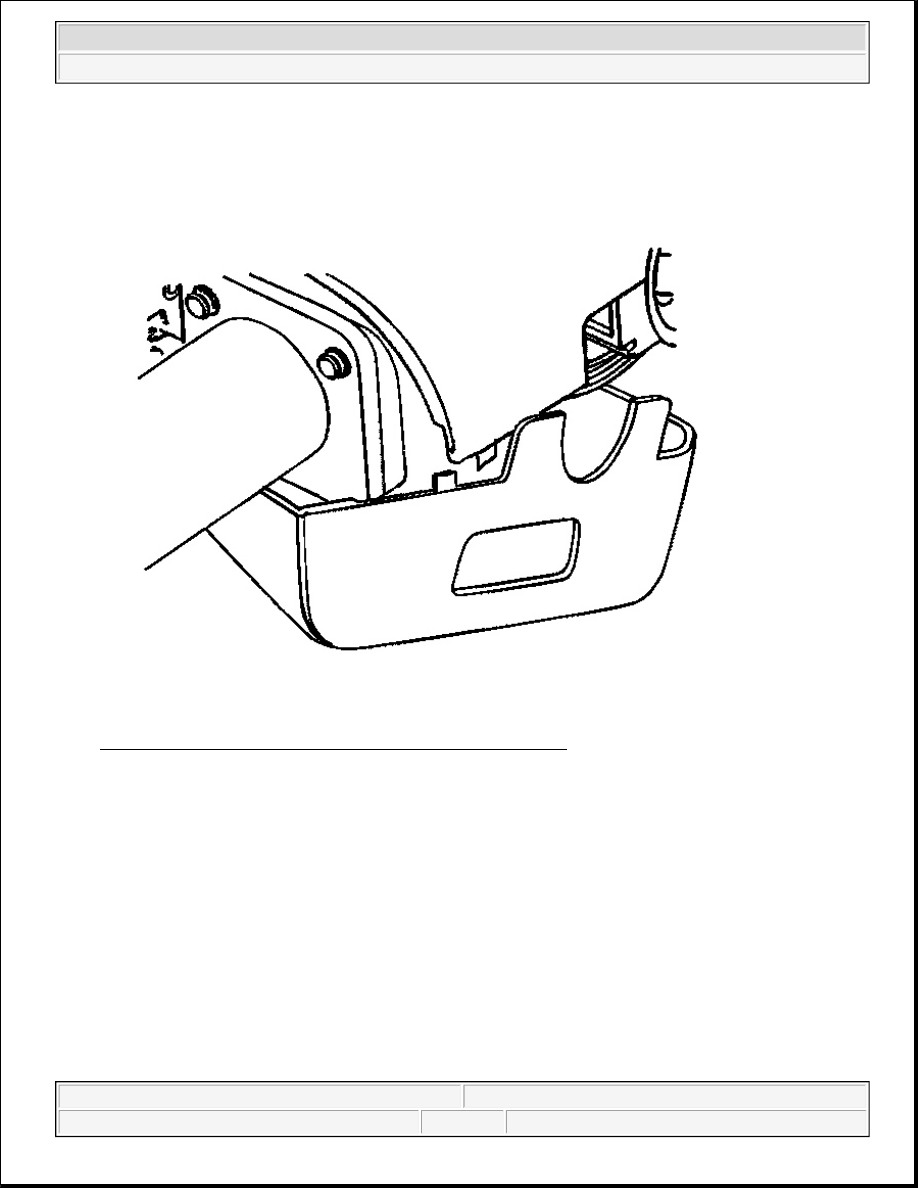

Fig. 24: Lower Steering Column Cover
Courtesy of GENERAL MOTORS CORP.

5. If necessary, remove the 2 pan head tapping screws (2) from the lower trim cover (1). Remove the lower

trim cover (1).

IMPORTANT: You must inspect for 2 pan head tapping screws (2) in the lower trim

cover (1) before removal.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



6. If no screws are present in the lower trim cover, proceed to the next step.

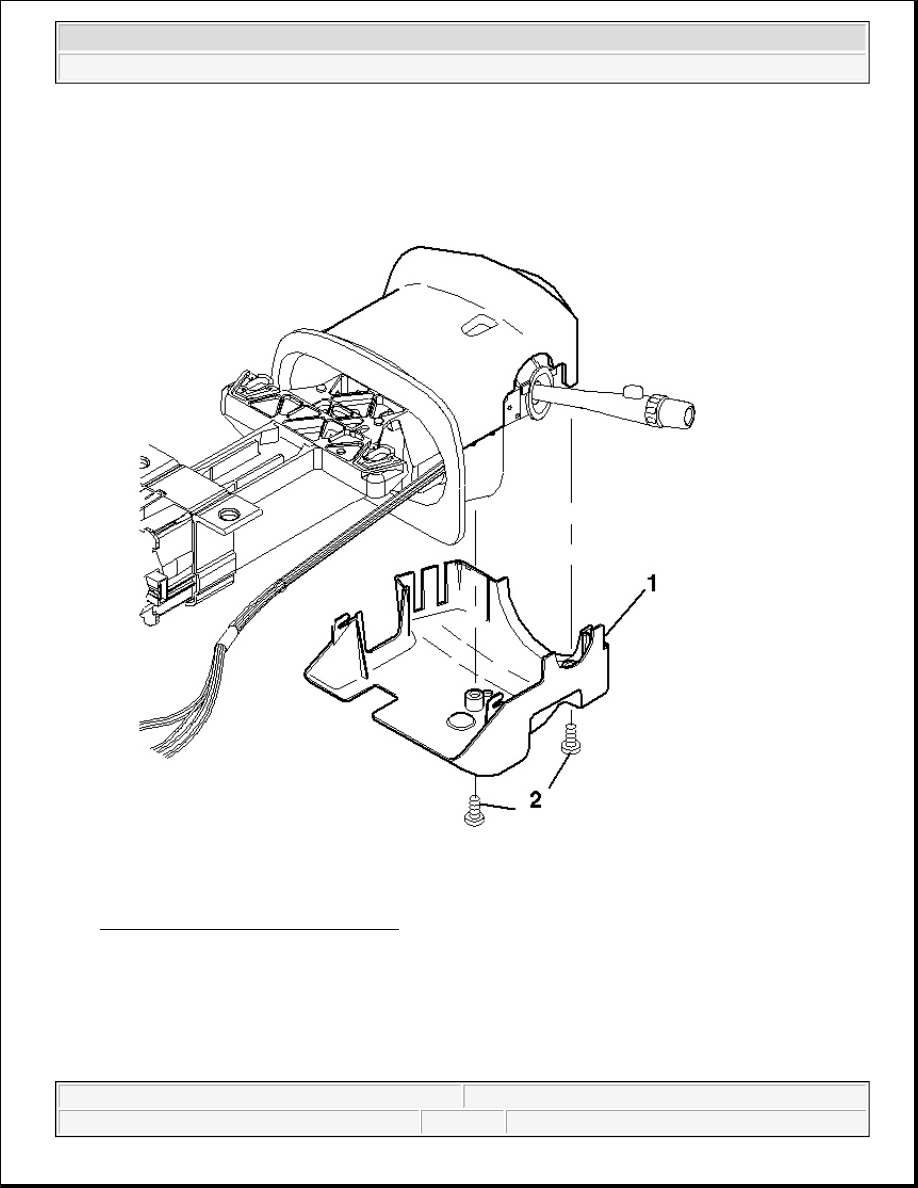

Fig. 25: Identifying Lower Trim Cover & Upper Trim Cover
Courtesy of GENERAL MOTORS CORP.

7. Gently unsnap the lower trim cover from the upper trim cover.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

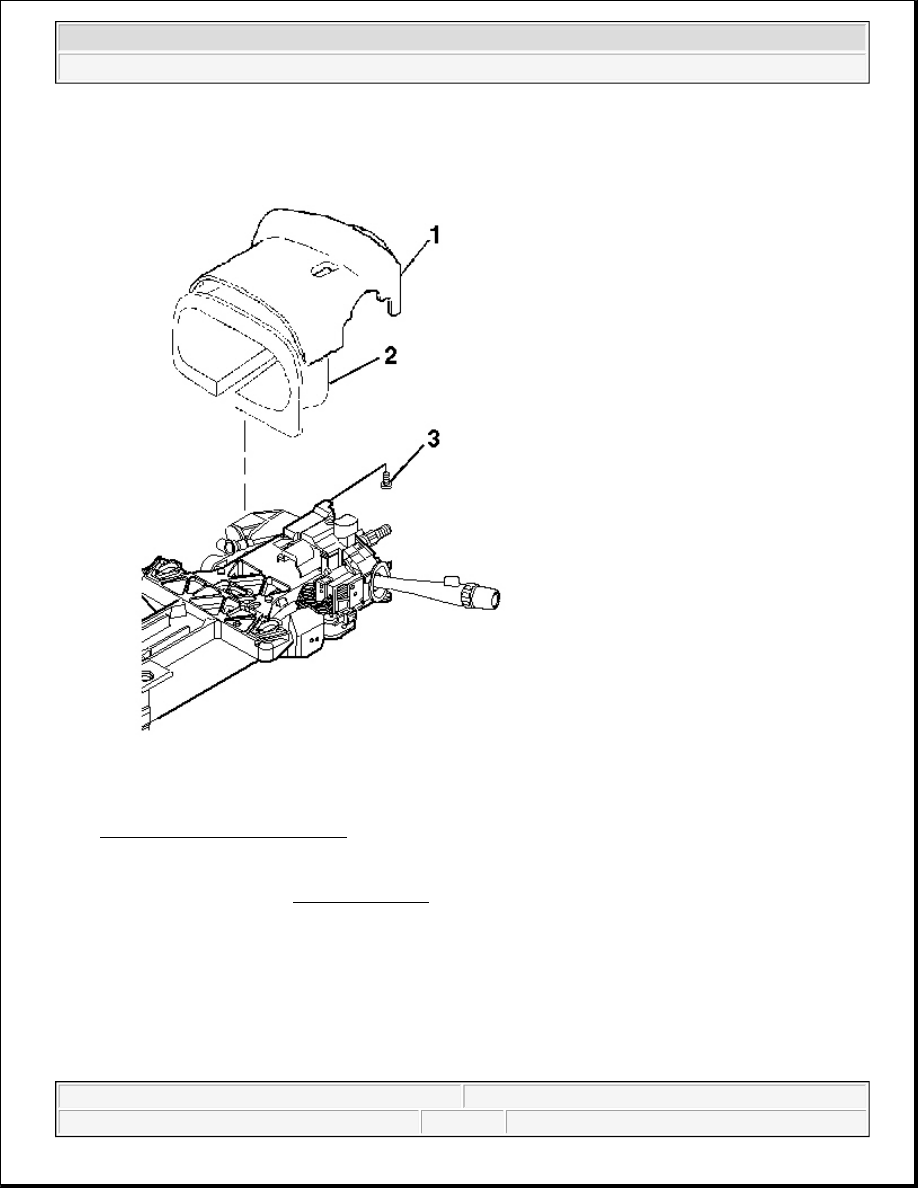

Fig. 26: Upper Steering Column
Courtesy of GENERAL MOTORS CORP.

8. If necessary, remove 1 TORX(R) head screw (3) from the upper trim cover (1) and the closeout trim

cover (2) for removal.

9. If no screw is present, remove the upper trim cover (1) with the closeout trim cover (2).

Installation Procedure

IMPORTANT: You must inspect for 1 TORX(R) head screw (3) in the upper trim cover (1)

before removal.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Fig. 27: Upper Steering Column
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: If the snap on/off feature on the trim covers was damaged during the

removal procedure, you must use screws for the installation procedure. If
screws were present in the trim covers before the removal procedure, you
must use the screws during the installation procedure.
If there was not any damage done to the trim covers during the removal
procedure and no screws were present, proceed to step 6.
