1. Route the hose in the same position the hose occupied prior to removal.

2. Install the brake booster inlet hose to the brake booster.

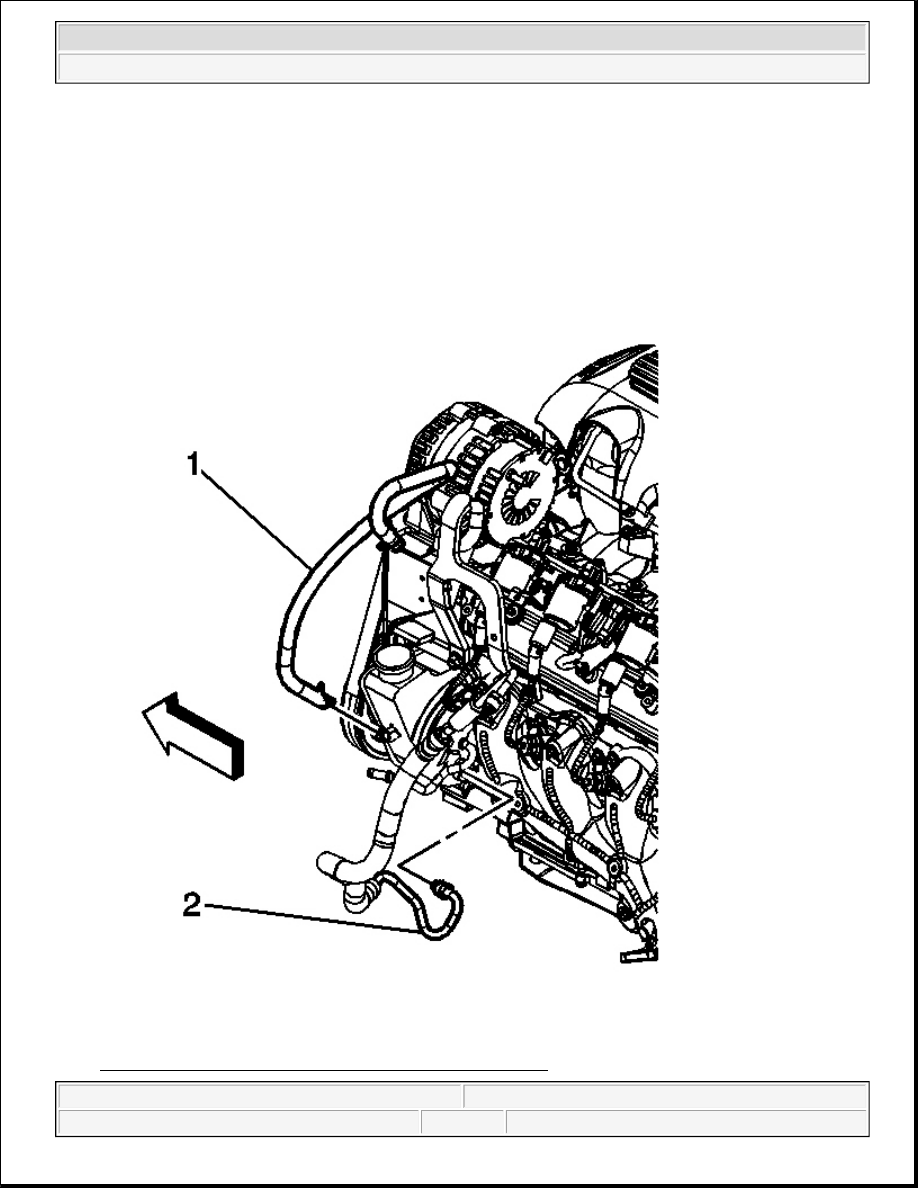

Fig. 38: Brake Booster Inlet Hose & Power Steering Pump

NOTE:

Refer to Installing Hoses Without Twists or Bends Notice in Cautions and
Notices.



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2



Courtesy of GENERAL MOTORS CORP.

3. Install the brake booster inlet hose (1) to the power steering pump.

Tighten: Tighten the brake booster inlet hose fittings to 28 N.m (21 lb ft).

4. Remove the drain pan from under the vehicle.

5. Bleed the power steering system. Refer to Bleeding the Power Steering System .

POWER BRAKE BOOSTER OUTLET HOSE REPLACEMENT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.

NOTE:

Refer to Power Steering Hose Disconnected Notice in Cautions and
Notices.



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2

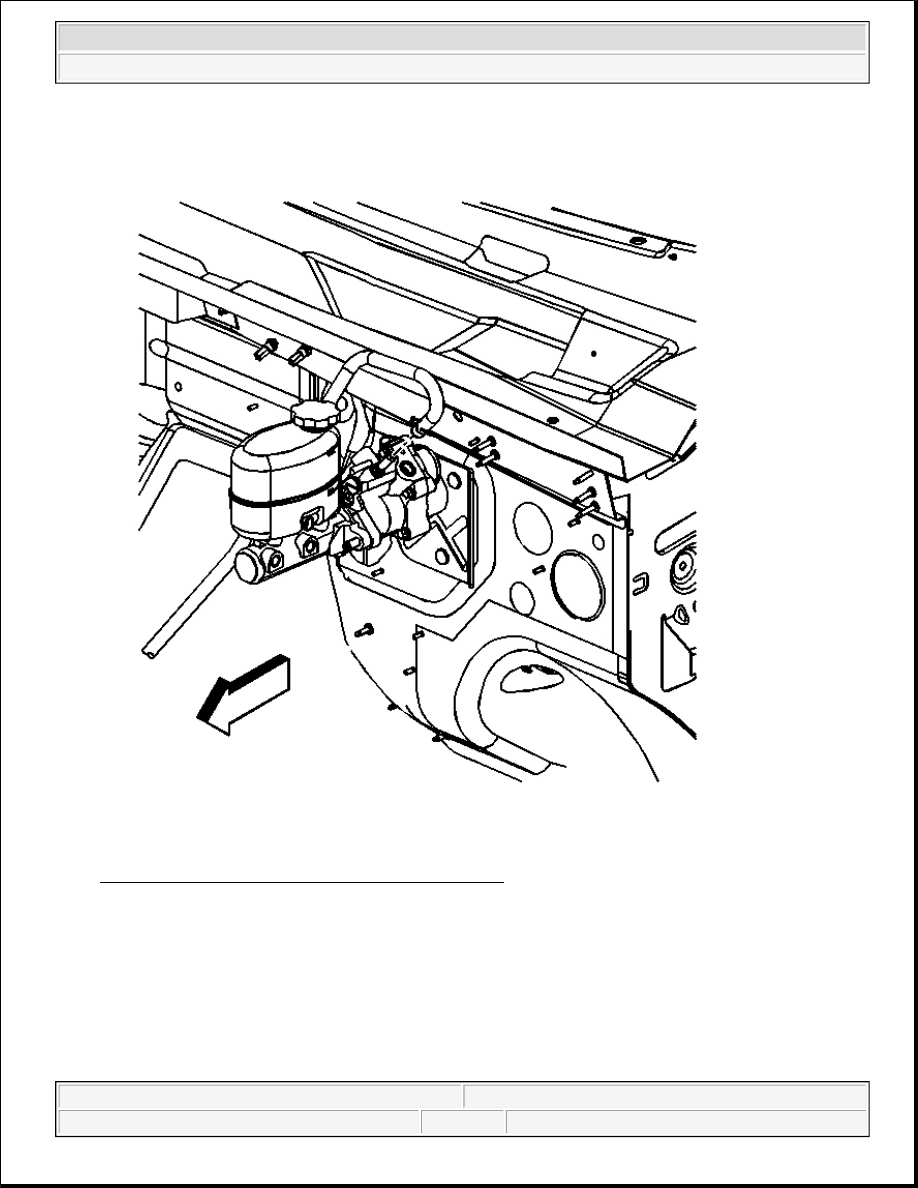

Fig. 39: Brake Booster Outlet Hose & Brake Booster
Courtesy of GENERAL MOTORS CORP.

1. Install a drain pan under the vehicle.

2. Remove the brake booster outlet hose from the brake booster.



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2

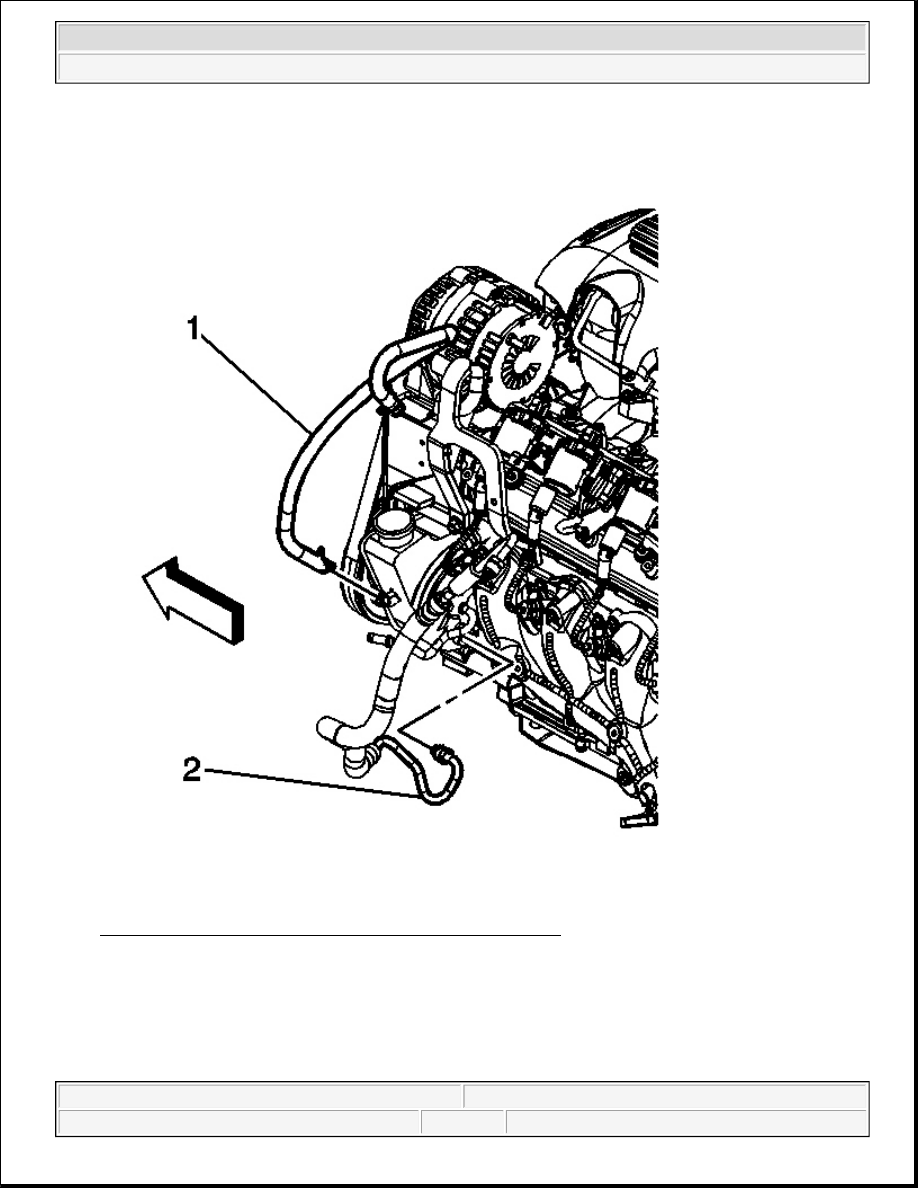

Fig. 40: Brake Booster Outlet Hose & Power Steering Pump
Courtesy of GENERAL MOTORS CORP.

3. Remove the clamp retaining the brake booster outlet hose (1) to the power steering pump.

4. Remove the brake booster outlet hose from the vehicle.

Installation Procedure
