1. Route the hose in the same position the hose occupied prior to removal.

2. Install the power steering gear inlet hose to the brake booster.

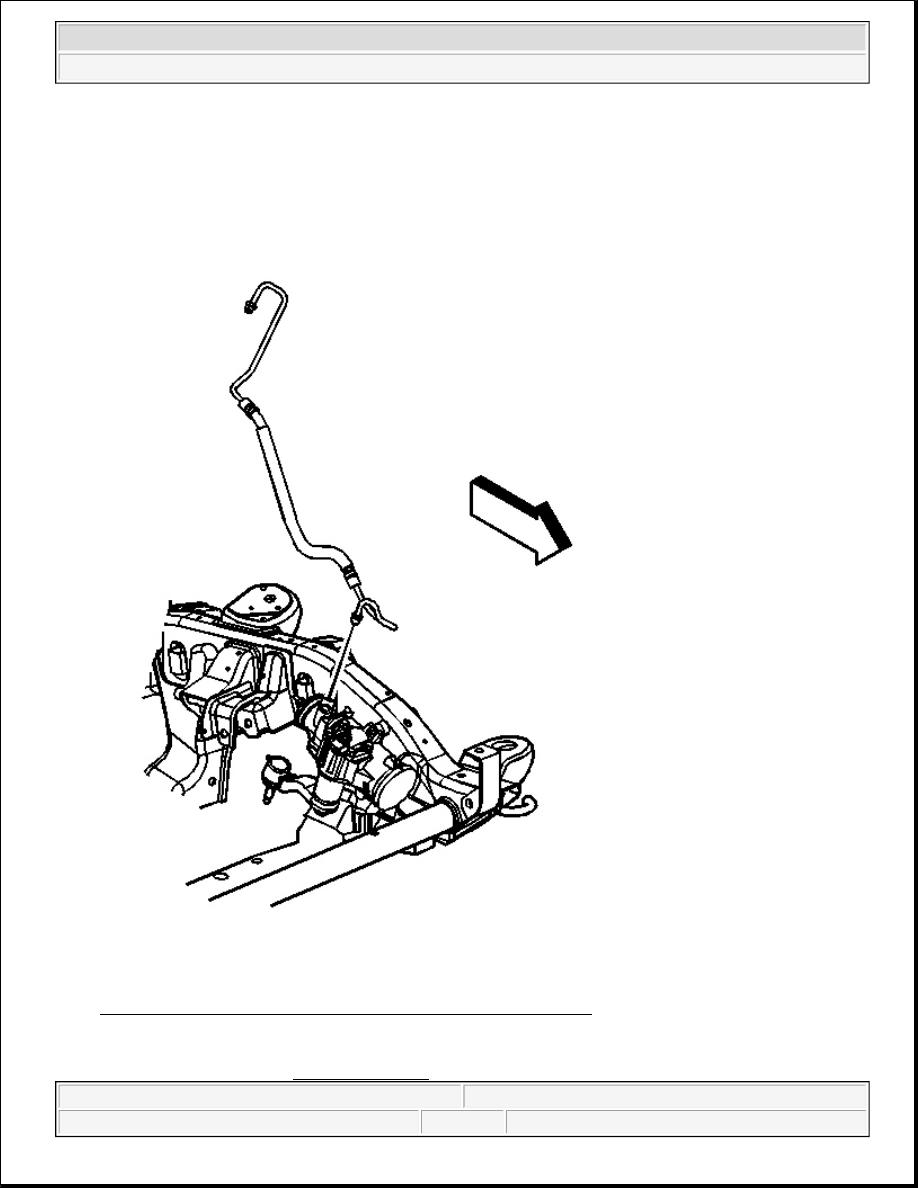

Fig. 34: Power Steering Gear Inlet Hose & Power Steering Gear
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2



3. Install the power steering gear inlet hose to the power steering gear.

Tighten: Tighten the power steering gear inlet hose fittings to 28 N.m (21 lb ft).

4. Remove the drain pan from under the vehicle.

5. Bleed the power steering system. Refer to Bleeding the Power Steering System .

POWER BRAKE BOOSTER INLET HOSE REPLACEMENT

Removal Procedure

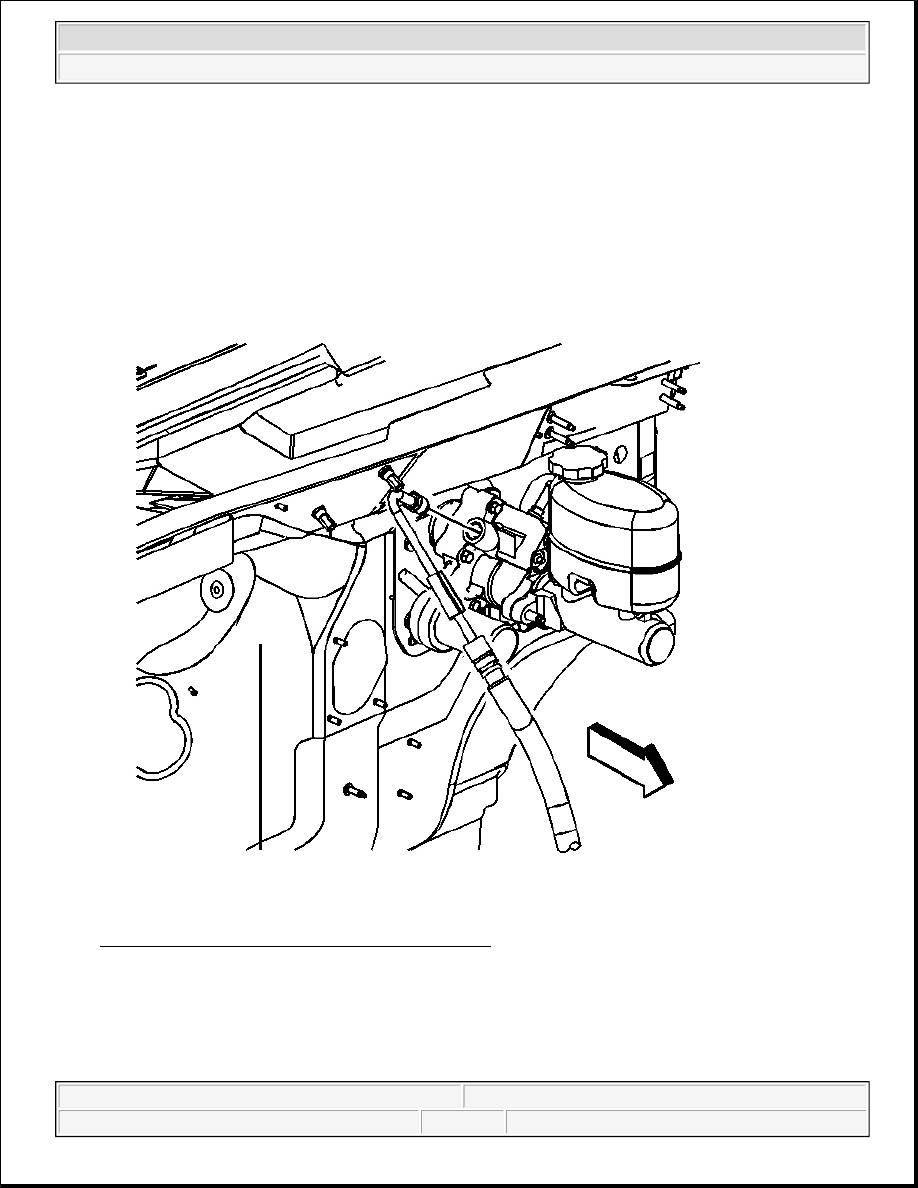

Fig. 35: Brake Booster Inlet Hose & Brake Booster
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2



1. Install a drain pan under the vehicle.

2. Remove the brake booster inlet hose from the brake booster.

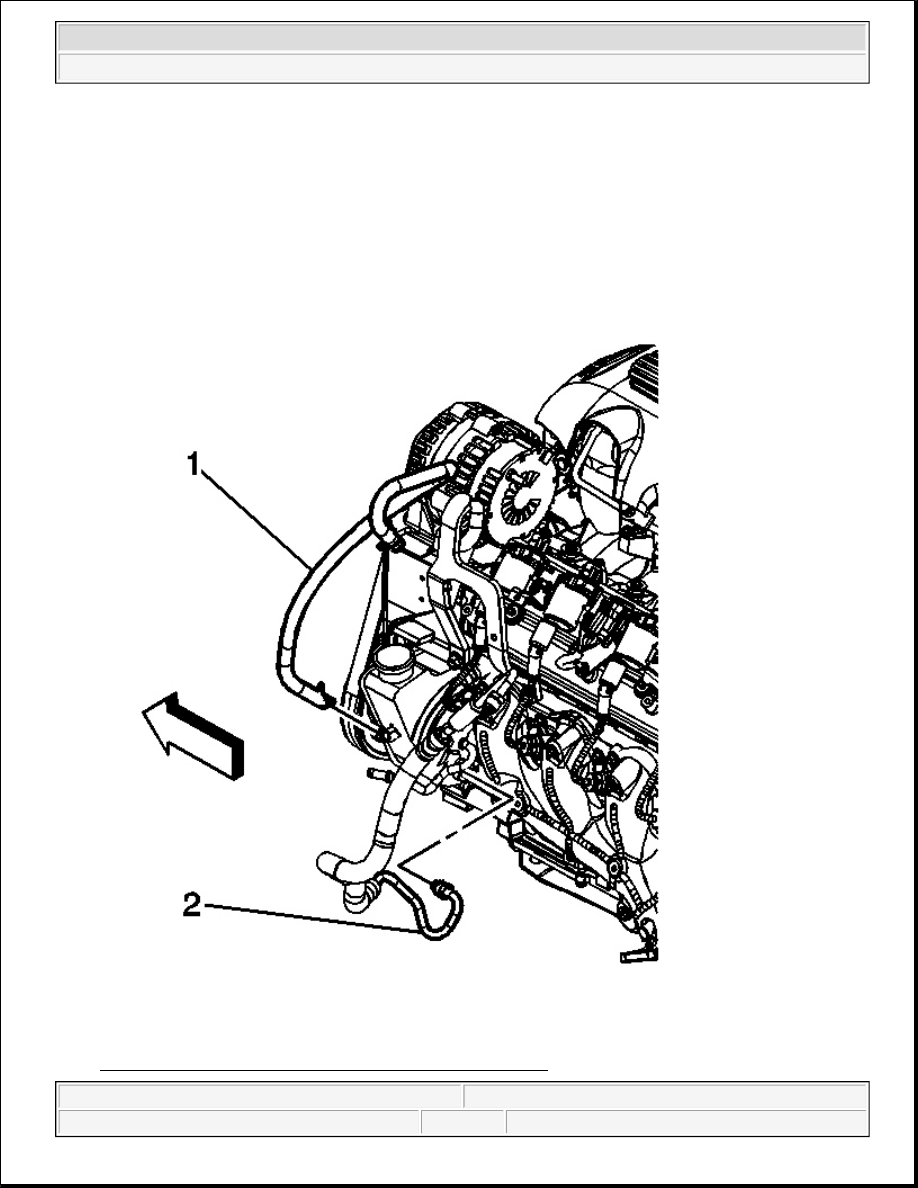

Fig. 36: Brake Booster Inlet Hose & Power Steering Pump

NOTE:

Refer to Power Steering Hose Disconnected Notice in Cautions and
Notices.



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2



Courtesy of GENERAL MOTORS CORP.

3. Remove the brake booster inlet hose (1) from the power steering pump.

4. Remove the brake booster inlet hose from the vehicle.

Installation Procedure

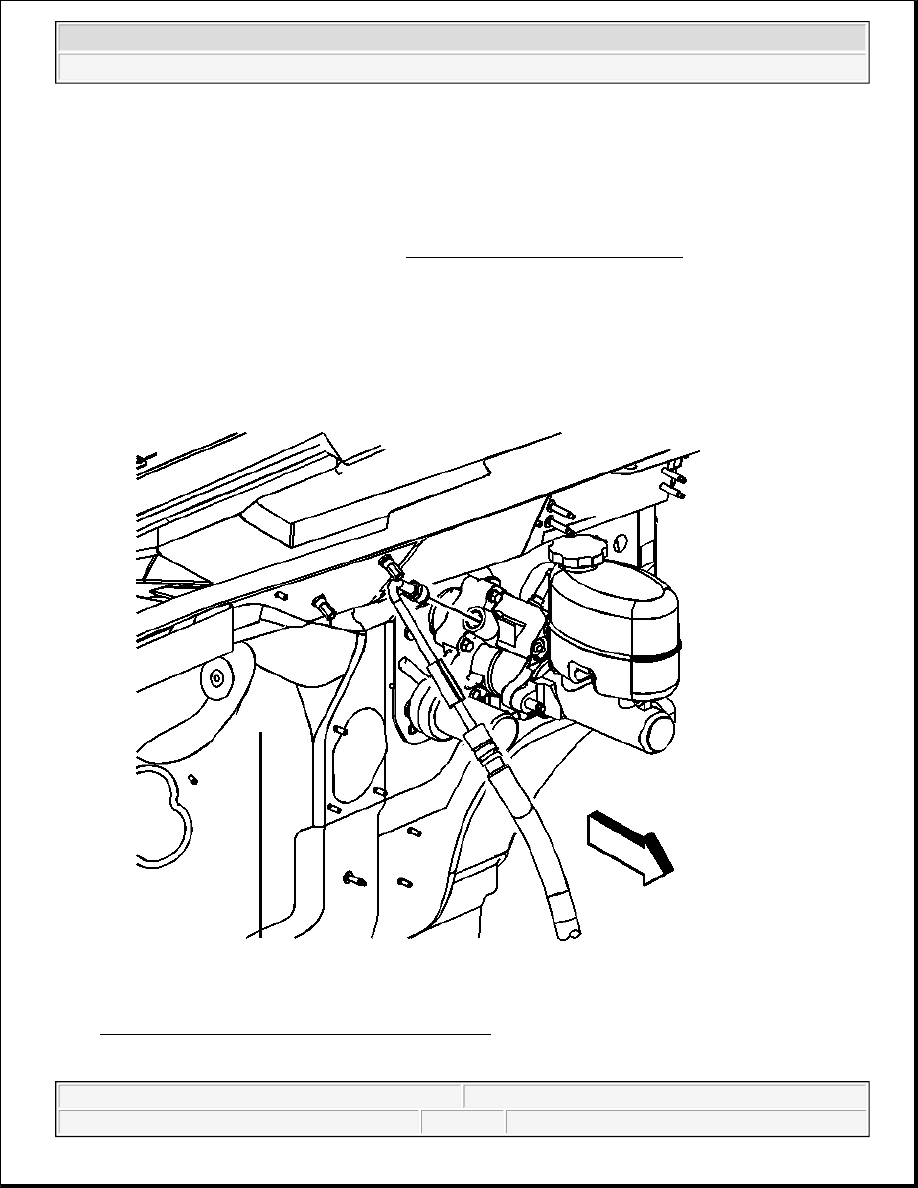

Fig. 37: Brake Booster Inlet Hose & Brake Booster
Courtesy of GENERAL MOTORS CORP.

NOTE:

The inlet and outlet hoses must not be twisted during installation. Do not
bend or distort the inlet or outlet hoses to make installation easier. Failure
to follow these procedures could result in component damage.



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2
