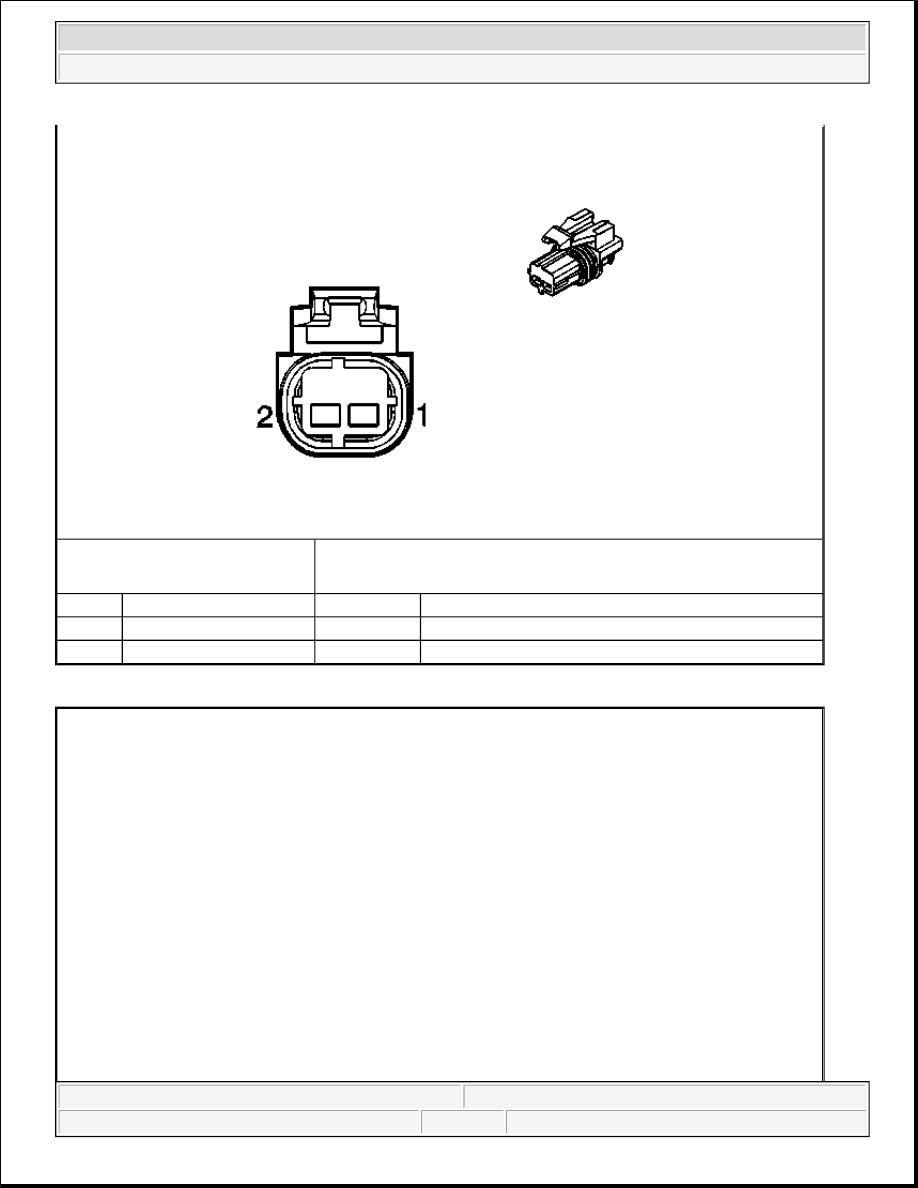

Inflatable Restraint I/P Module Disable Switch Terminal Identification

Connector Part Information

z

15356718

z

2-Way F GT 150 Sealed 4.0 (YE)

Pin

Wire Color

Circuit No.

Function

1

WH/BK

2611

Discriminating Sensor - Right - Signal

2

PU

2612

Discriminating Sensor - Right - Low Reference



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Inflatable Restraint I/P Module Terminal Identification

Connector Part Information

z

15305286

z

6-Way F Metri-Pack 150 Series (YE)

Pin

Wire Color

Circuit No.

Function

A

TN/BK

371

I/P Module Disable Switch - Signal

B

YE

1139

Ignition 1 Voltage

C

BN

2409

Interior Park Lamps Supply Voltage

D

BN/WH

230

Instrument Panel Lamps Dimming Control

E

PK

353

I/P Module Suppression Indicator Control

F

BK

1050

Ground



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



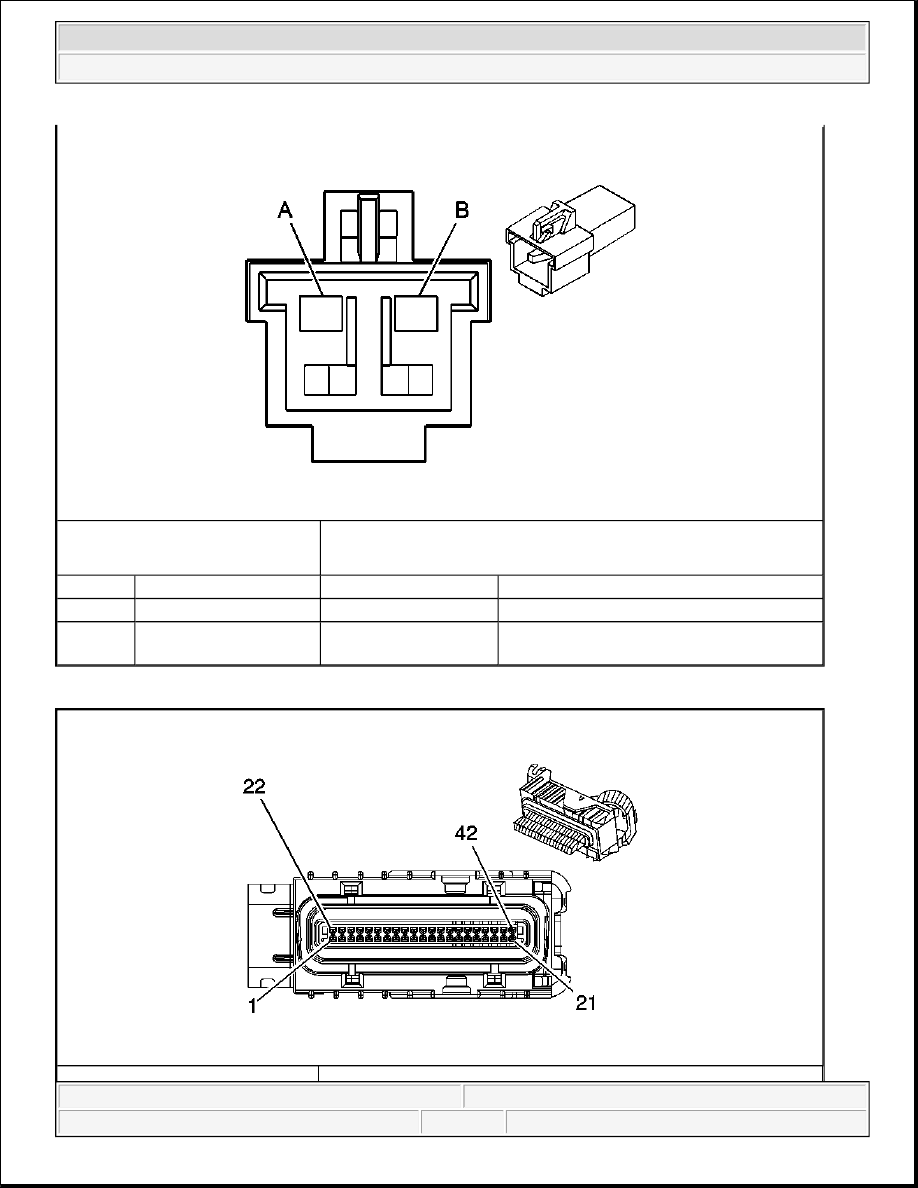

Inflatable Restraint Sensing and Diagnostic Module (SDM) Terminal Identification

Connector Part Information

z

12186989

z

2-Way M Metri-Pack 280 Pull To Seat (YE)

Pin

Wire Color

Circuit No.

Function

A

WH/BK

1403

I/P Module - High Control

B

D-GN/

WH

1404

I/P Module - Low Control



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



Inflatable Restraint Steering Wheel Module Terminal Identification

Connector Part Information

z

15356922

z

42-Way F Micro-Pack 100 W (YE)

Pin

Wire Color

Circuit No.

Function

1

YE

1139

Ignition 1 Voltage

2

TN/BK

371

I/P Module Disable Switch - Signal

3

BK/WH

238

Seat Belt Switch - Left

4

PK

353

I/P Module Suppression Indicator Control

5

GY

349

Discriminating Sensor - Left - Signal

6

WH/BK

2611

Discriminating Sensor - Right - Signal

7-8

-

-

Not Used

9

WH/BK

1403

I/P Module - High Control

10

D-GN/

WH

1404

I/P Module - Low Control

11

D-BU

1363

Seat Belt Switch - Left-Low Reference

12

D-GN

348

Steering Wheel Module - Low Control

13

WH

347

Steering Wheel Module - High Control

14-21

-

-

Not Used

22

D-BU

1128

SDM Class 2 Serial Data

23-25

-

-

Not Used

26

YE

354

Discriminating Sensor - Left-Low Reference

27

PU

2612

Discriminating Sensor - Right-Low Reference

28-31

-

-

Not Used

32

BK

2351

Ground

33-42

-

-

Not Used
