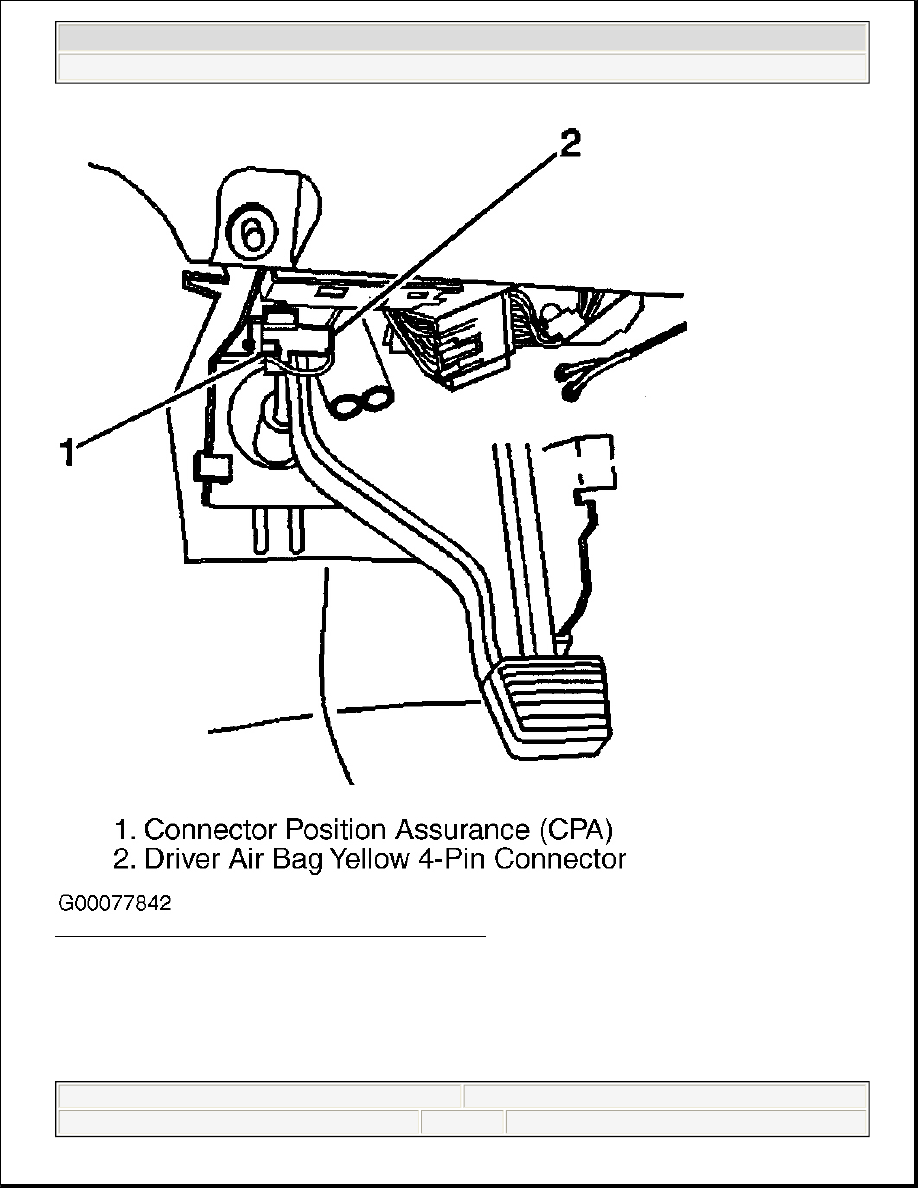

Fig. 2: Locating Driver Air Bag Yellow 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

GENERAL INFORMATION Air Bag Deactivation Procedures - Hummer

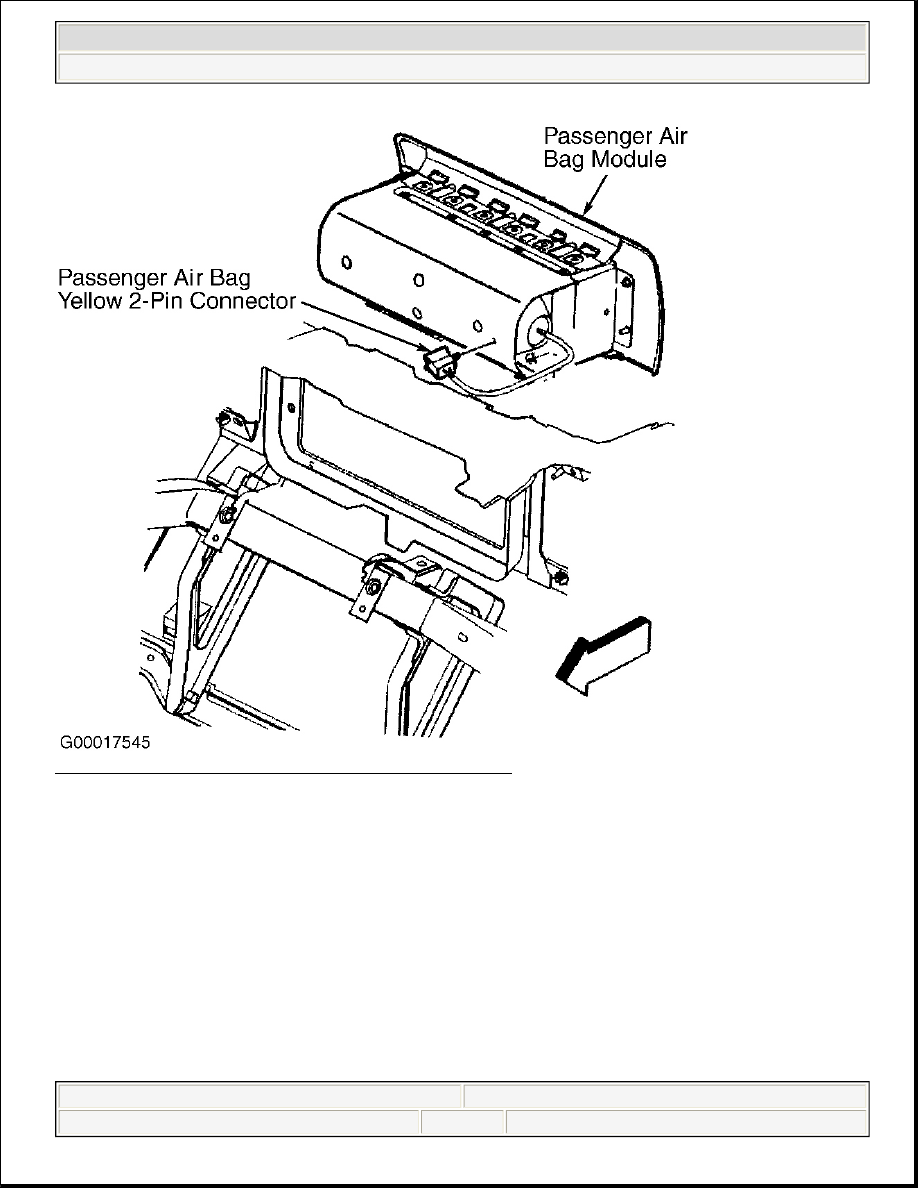

Fig. 3: Locating Passenger Air Bag Yellow 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.

Activating System

Remove key from ignition switch. Ensure SDM fuse is still removed from fuse block. In reverse order, connect
SIR component Yellow SIR connectors to vehicle harness and install CPA clips. Install SIR fuse in fuse block.
Staying away from air bags, turn ignition switch to ON position. Ensure AIR BAG warning light flashes 7
times, and then turns off. To complete installation, reverse removal procedures.



2004 Hummer H2

GENERAL INFORMATION Air Bag Deactivation Procedures - Hummer



2004 RESTRAINTS

SIR - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

SIR SCHEMATIC ICONS

SIR Schematic Icons

Application

Specification

Metric

English

Inflatable Restraint Front End Sensor

10 N.m

89 lb in

Inflatable Restraint Instrument Panel Module

10 N.m

89 lb in

Inflatable Restraint (SD) Module

10 N.m

89 lb in

Icon

Icon Definition

CAUTION:

When performing service on or near the SIR components or the SIR
wiring, the SIR system must be disabled. Refer to SIR Disabling and
Enabling Zones. Failure to observe the correct procedure could cause
deployment of the SIR components, personal injury, or unnecessary
SIR system repairs.

IMPORTANT:

In order to prevent accidental deployment, the shorting bars close in
order to short the connectors when the connectors are separated.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2





2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



SIR SCHEMATICS

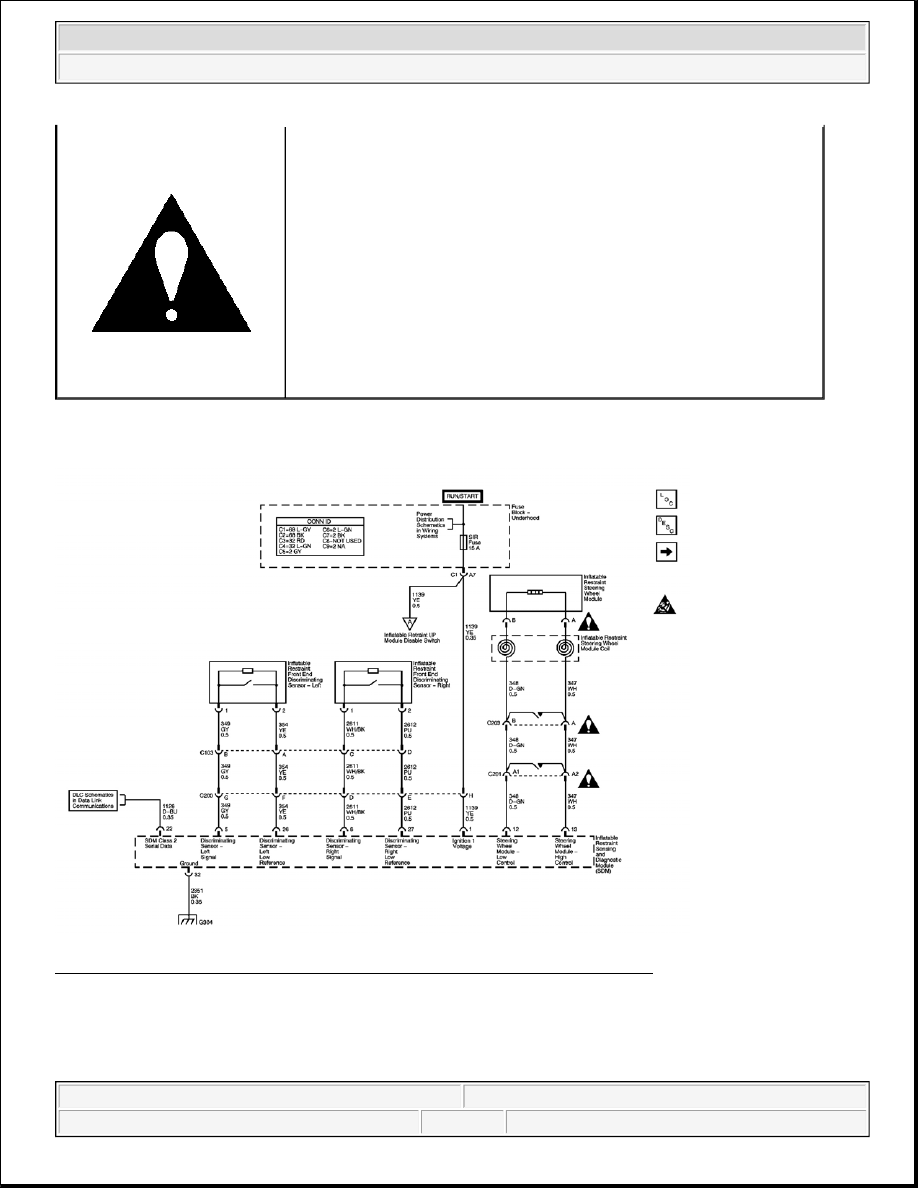

Fig. 1: SDM Power, Grounding, DLC, Sensors, and Driver Air Bag Schematic
Courtesy of GENERAL MOTORS CORP.
