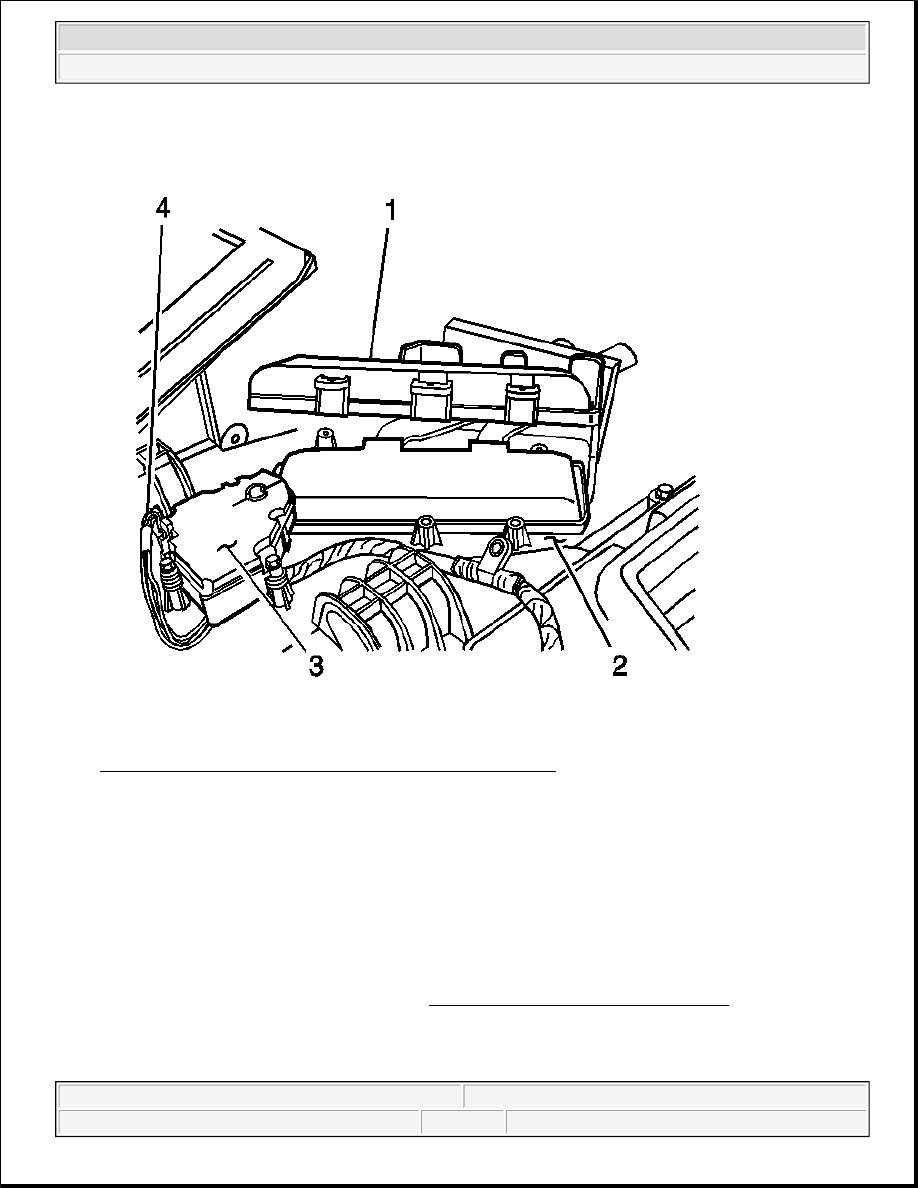

Fig. 152: Heater Core Cover And HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.

3. Install the heater core cover (1) to the HVAC module assembly (2).

4. Install the screws to the heater core cover (1).

Tighten: Tighten the screws to 2 N.m (18 lb in).

5. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .

SPECIAL TOOLS AND EQUIPMENT

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



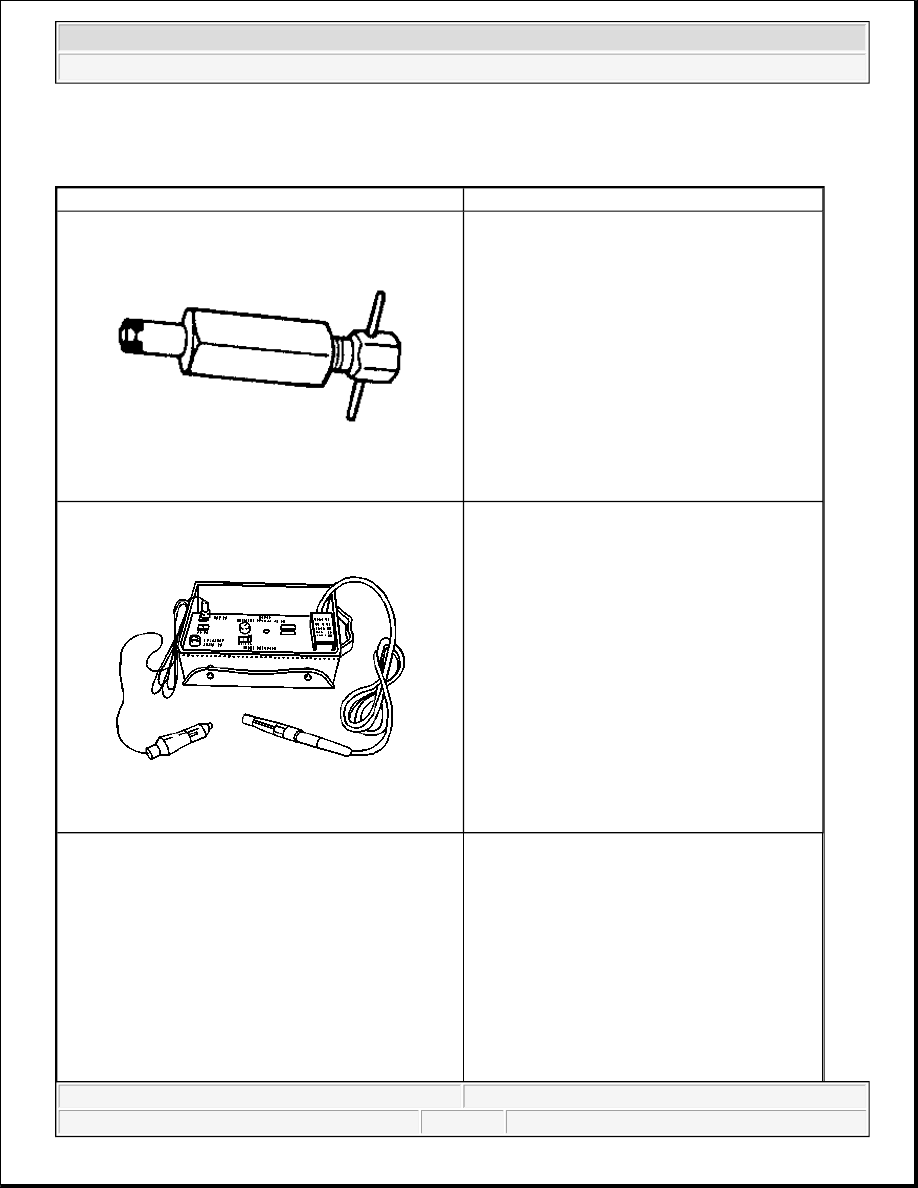

SPECIAL TOOLS

Special Tools

Illustration

Tool Number/Description

J 26549-E

Orifice Tube Remover

J 39400-A

Halogen Leak Detector

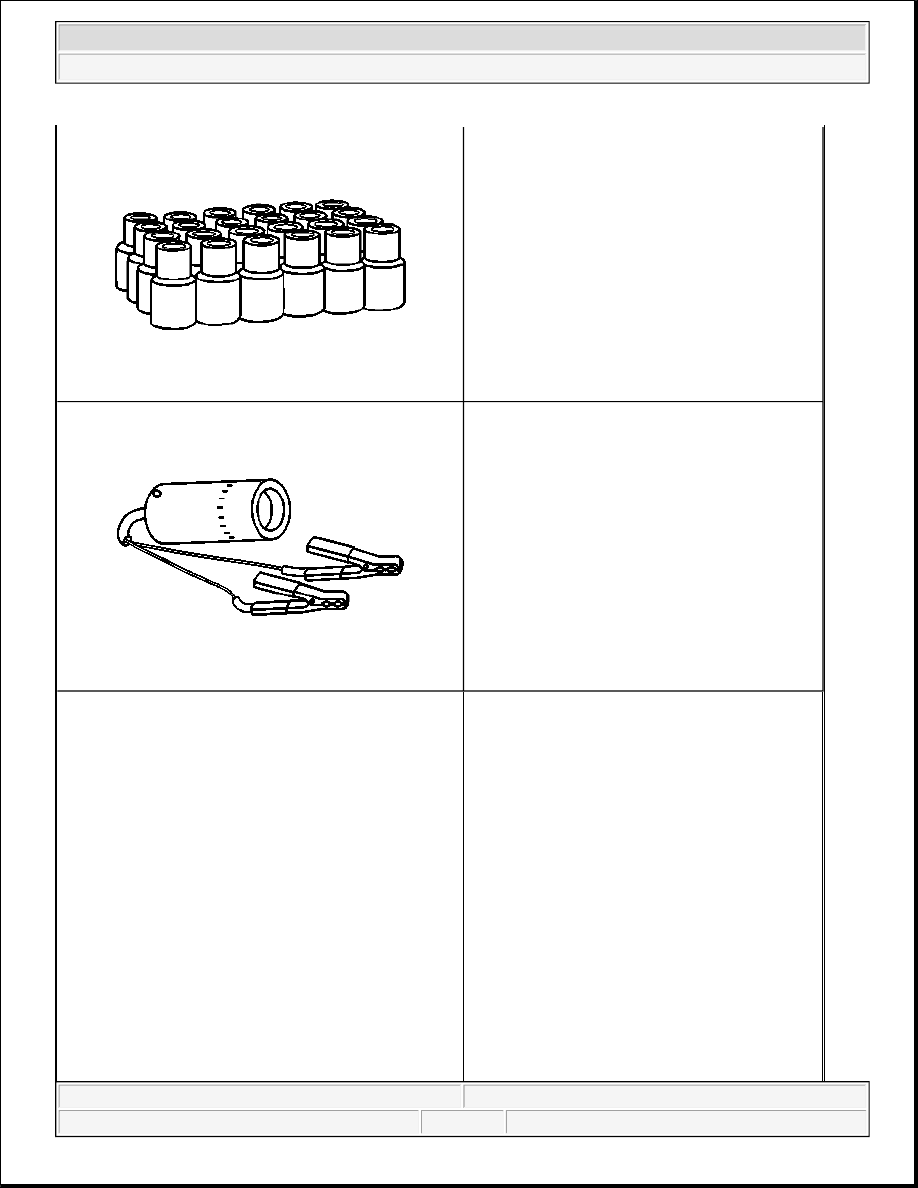

J 41447

Fluorescent Tracer Dye- box of 24



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



J 42220

Universal 12V Leak Detection Lamp

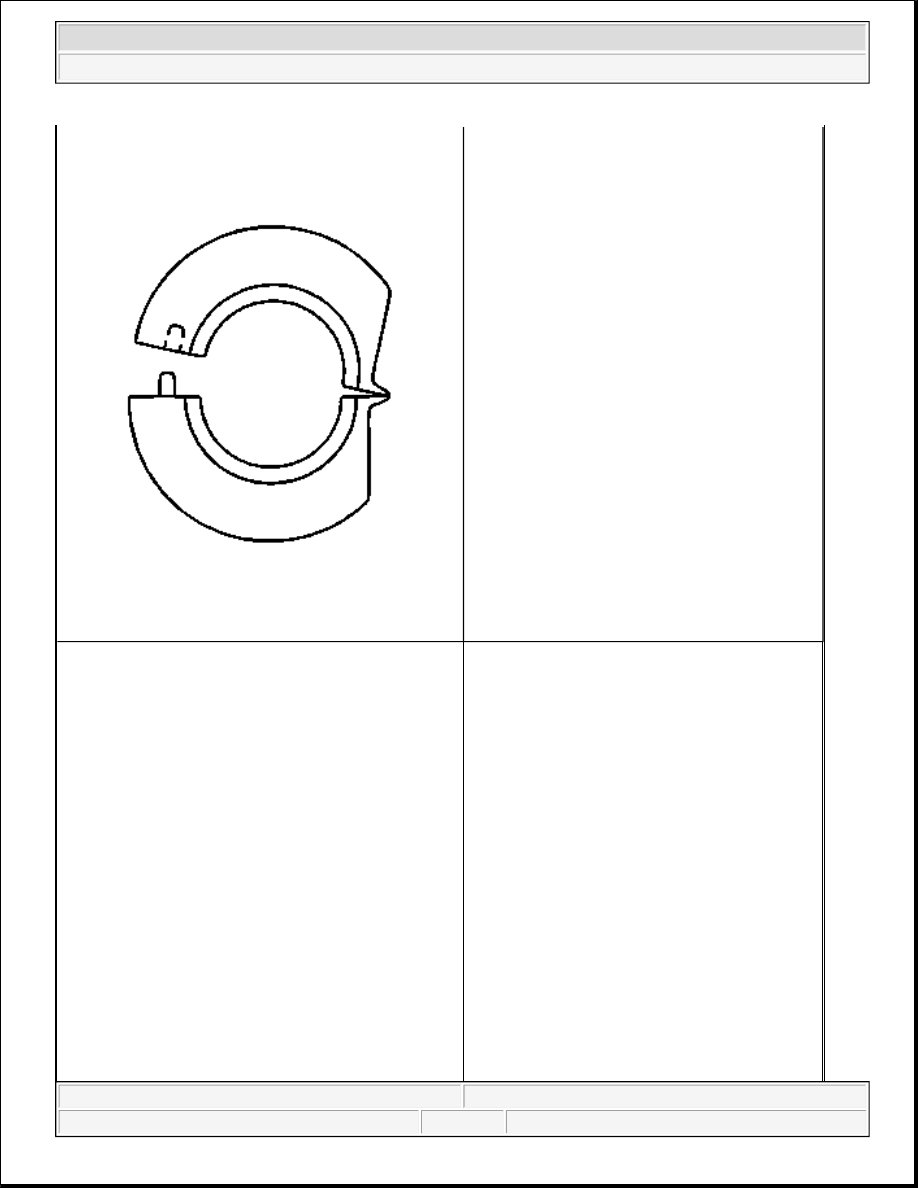

J 43181

Quick Connect Connector Removal Tool



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



J 43600

ACR 2000 Air Conditioning Service Center
