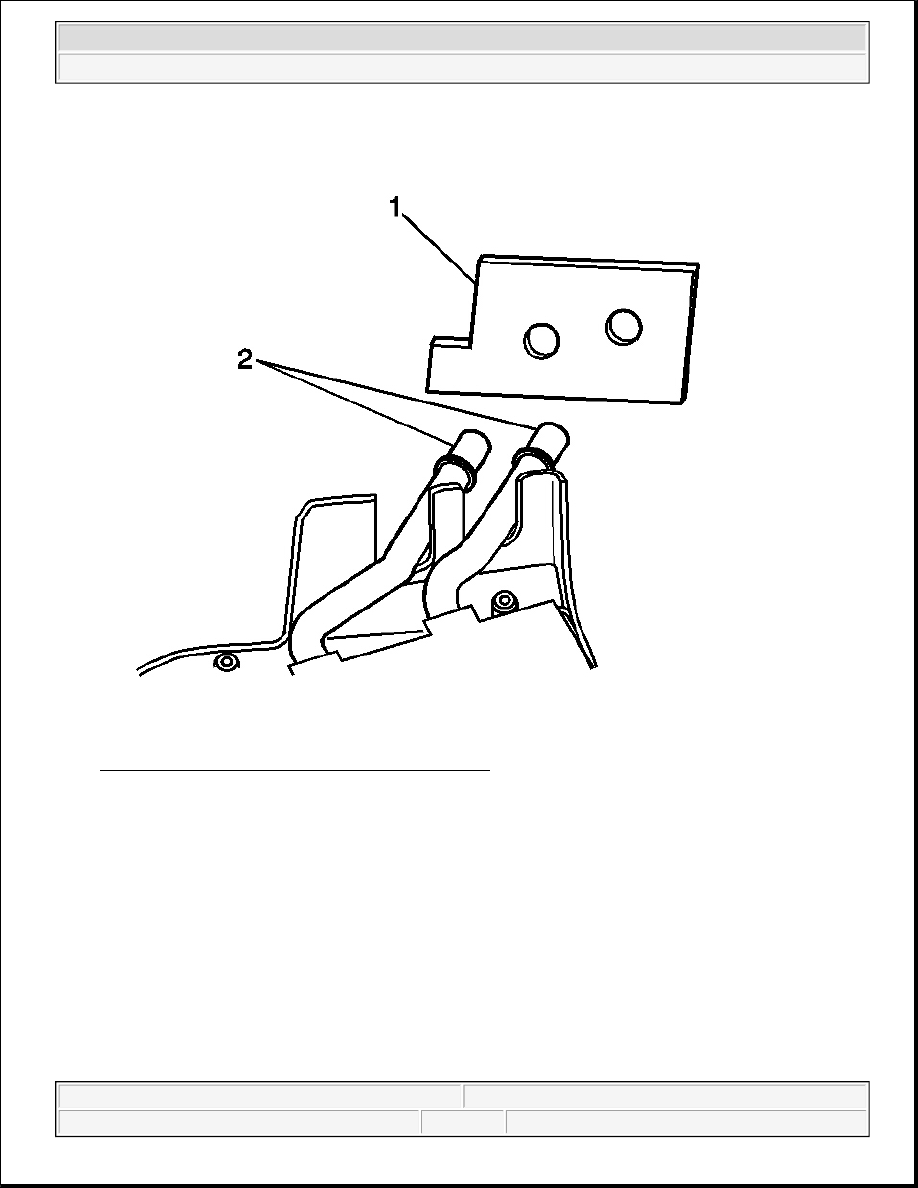

Fig. 148: Heater Core Cowl Gasket & Heater Core
Courtesy of GENERAL MOTORS CORP.

4. Remove the heater core cowl gasket (1) from the heater core (2).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



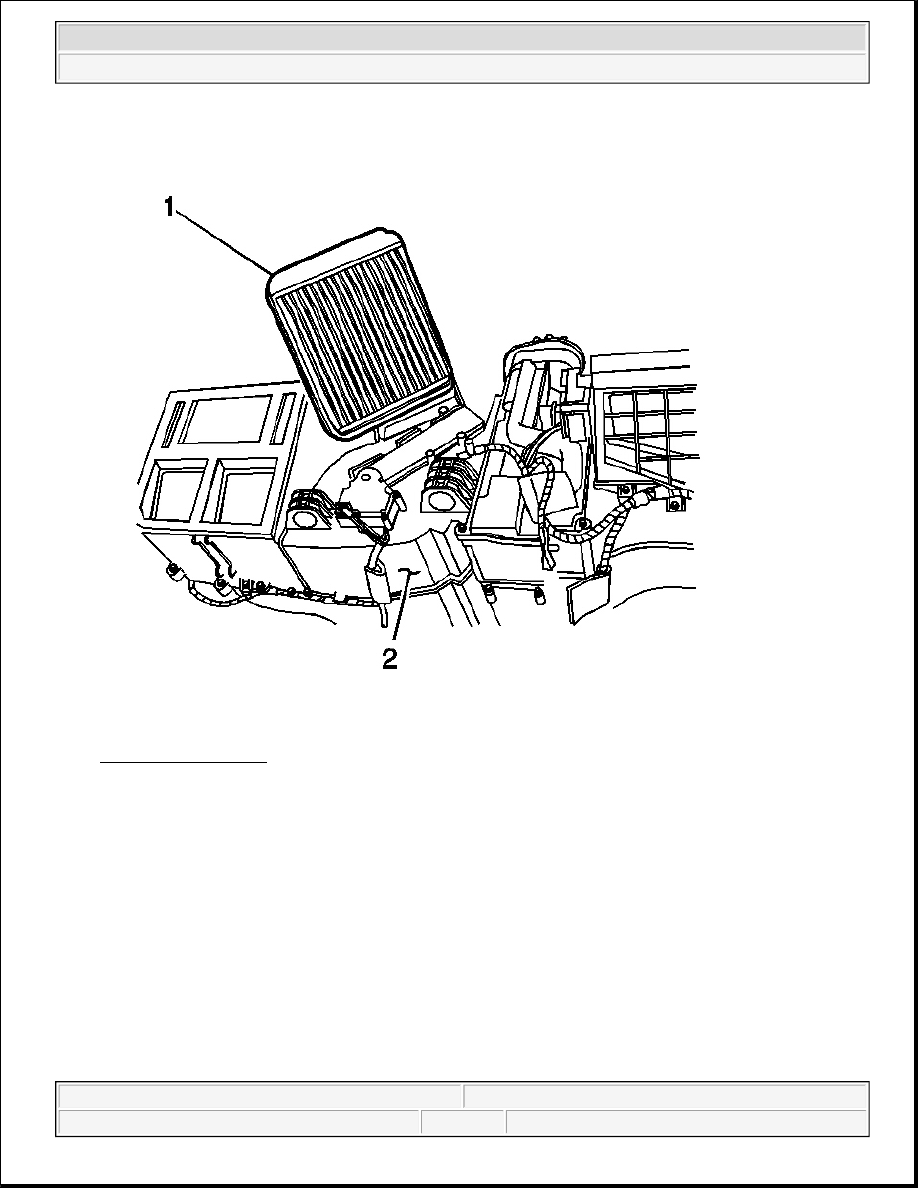

Fig. 149: Heater Core
Courtesy of GENERAL MOTORS CORP.

5. Remove the heater core (1) from the HVAC module assembly (2).

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Fig. 150: Heater Core
Courtesy of GENERAL MOTORS CORP.

1. Install the heater core (1) to the HVAC module assembly (2).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Fig. 151: Heater Core Cowl Gasket & Heater Core
Courtesy of GENERAL MOTORS CORP.

2. Install the heater core cowl gasket (1) to the HVAC module assembly (2).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2
