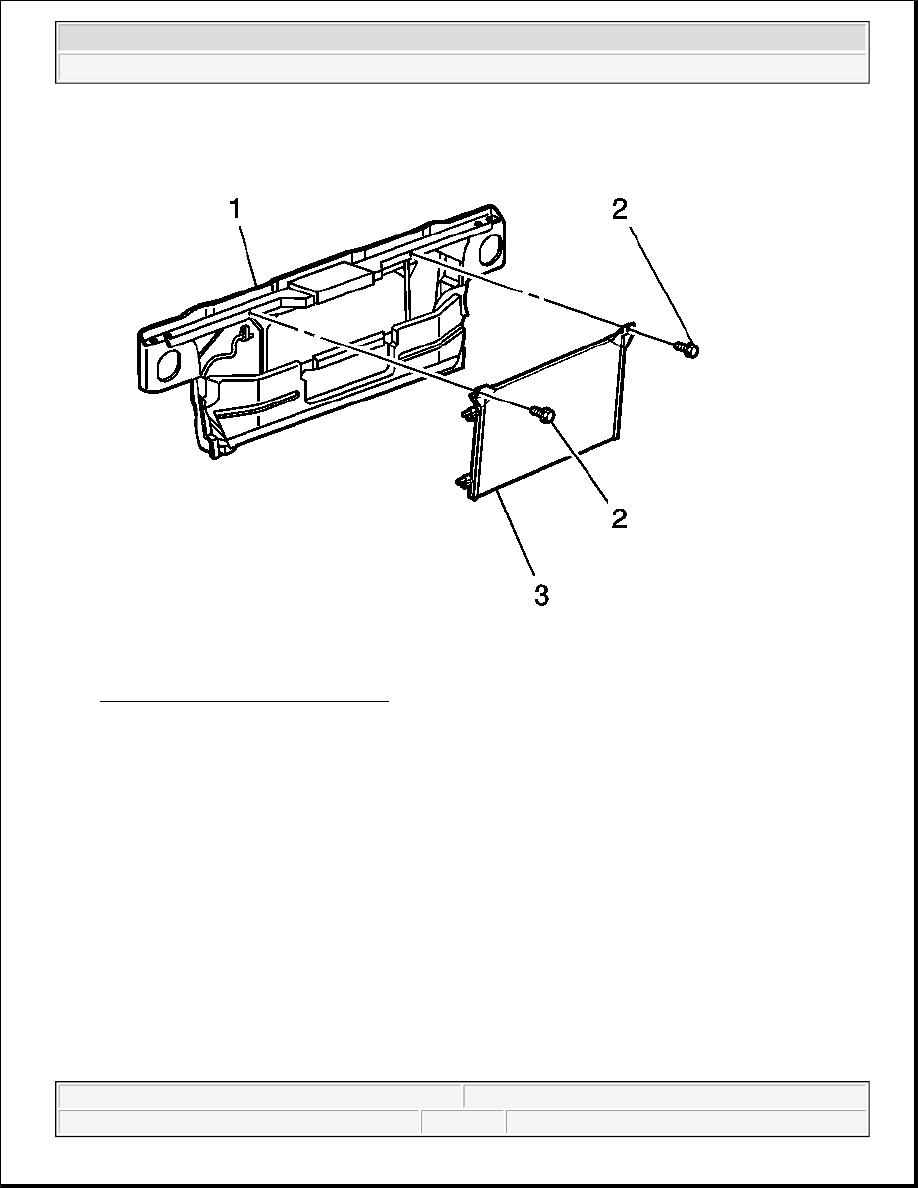

Fig. 51: Condenser & Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

11. Remove the condenser (3) from the vehicle.

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



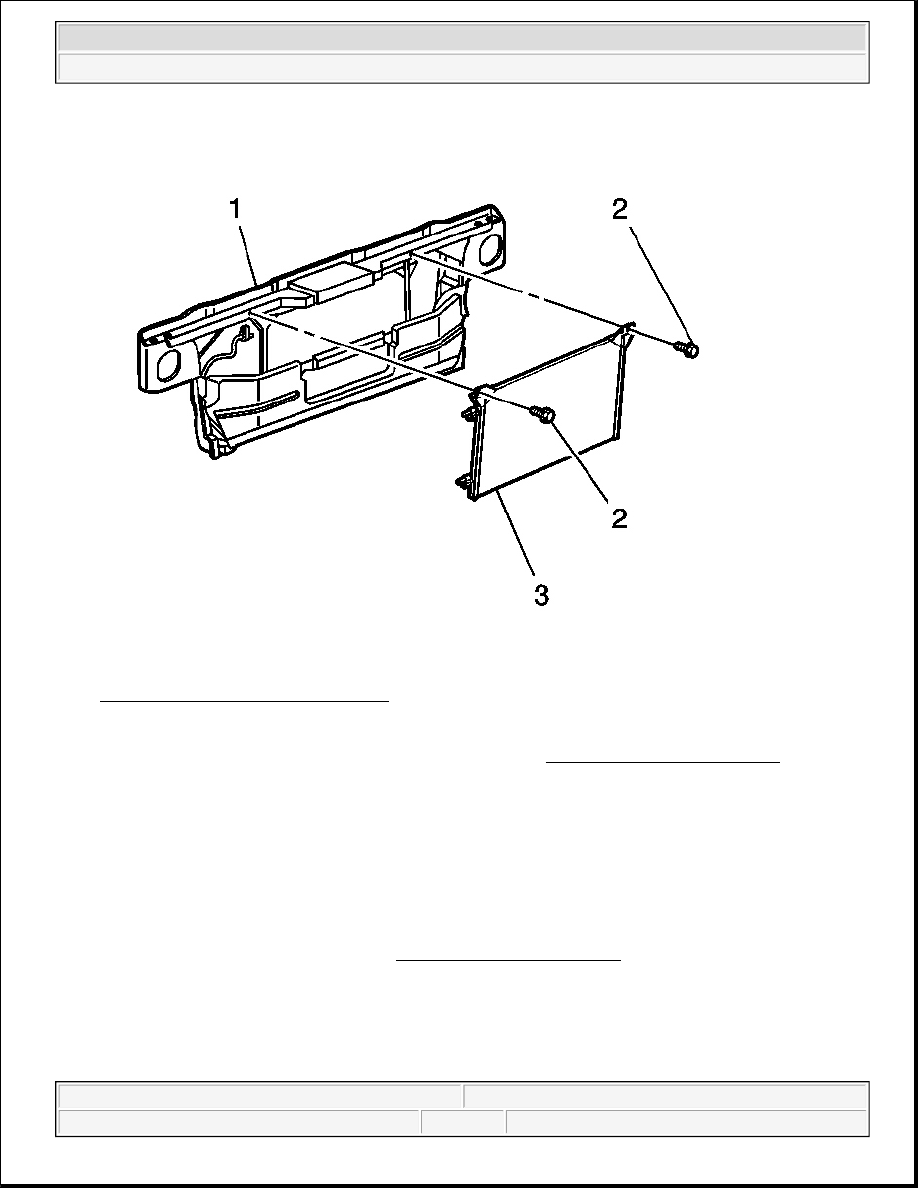

Fig. 52: Condenser & Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

1. Add the proper amount of PAG oil to the condenser. Refer to Refrigerant System Capacities .

2. Install the condenser (3) to the vehicle.

3. Install the bolts (2) to the condenser (3).

Tighten: Tighten the bolts to 9 N.m (80 lb in).

4. Install the new sealing washers. Refer to Sealing Washer Replacement .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



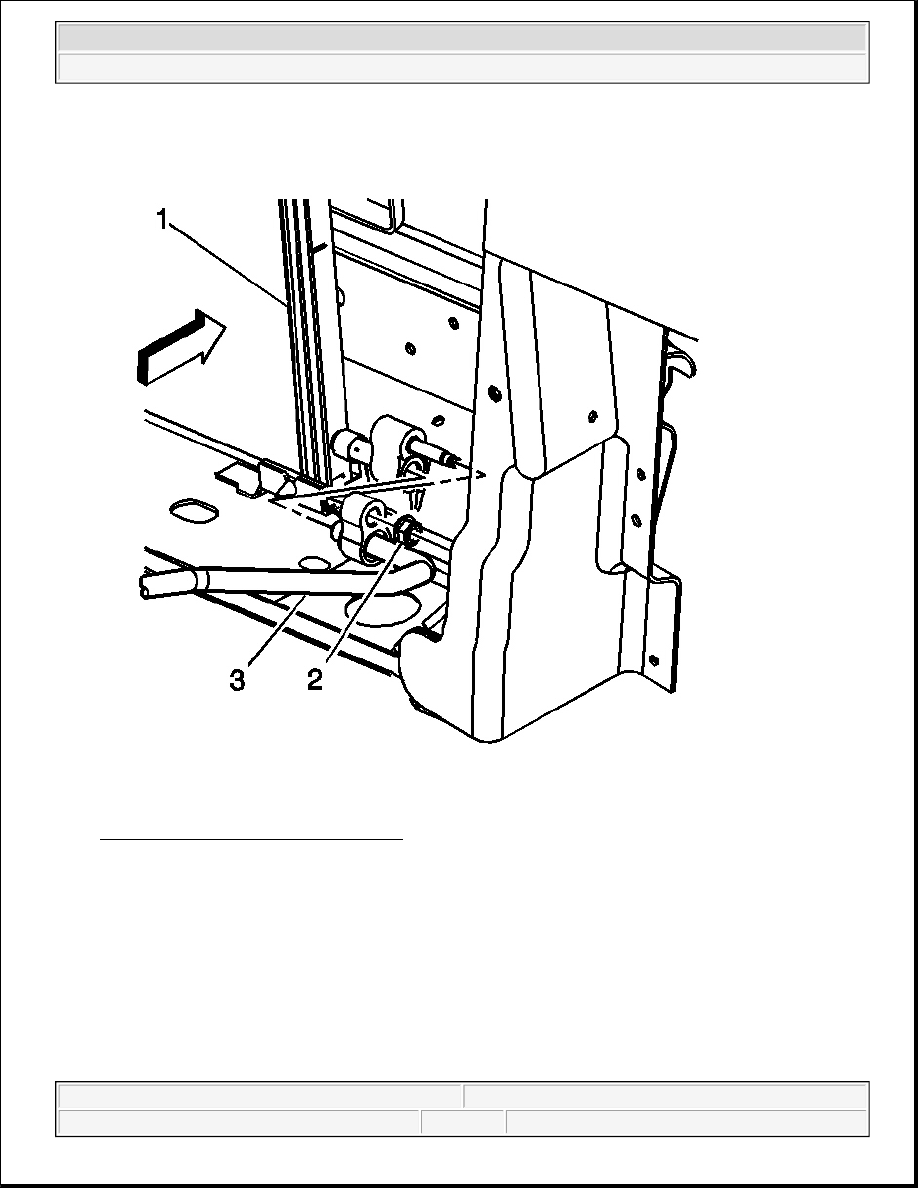

Fig. 53: Evaporator Tube & Condenser
Courtesy of GENERAL MOTORS CORP.

5. Install the evaporator tube (3) to the condenser (1).

6. Install the evaporator tube nut (2) to the condenser (1).

Tighten: Tighten the nut to 16 N.m (12 lb ft).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



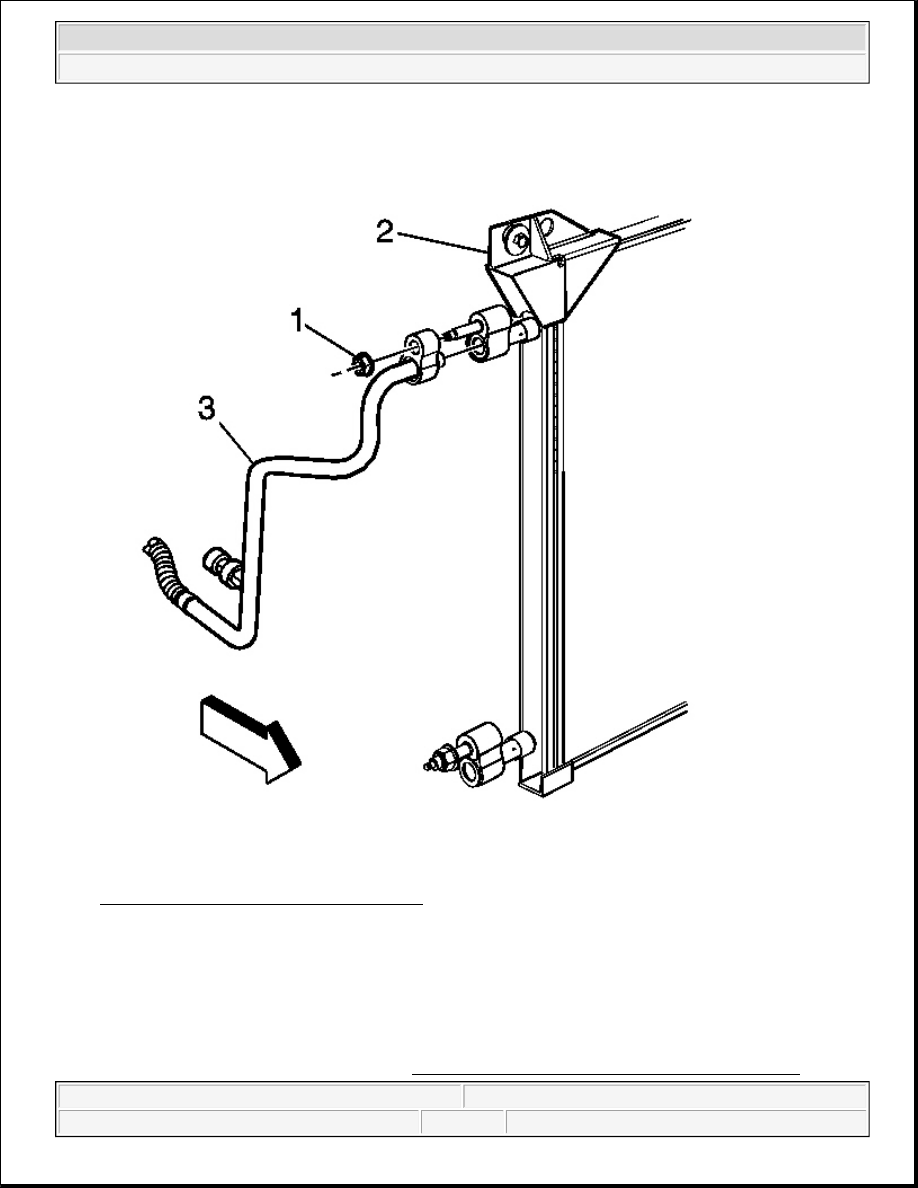

Fig. 54: Discharge Hose Nut & Condenser
Courtesy of GENERAL MOTORS CORP.

7. Install the compressor discharge hose (3) to the condenser (2).

8. Install the compressor discharge hose nut (1) to the condenser (2).

Tighten: Tighten the nut to 16 N.m (12 lb ft).

9. Install the transmission oil cooler. Refer to Transmission Fluid Auxiliary Cooler Replacement in
