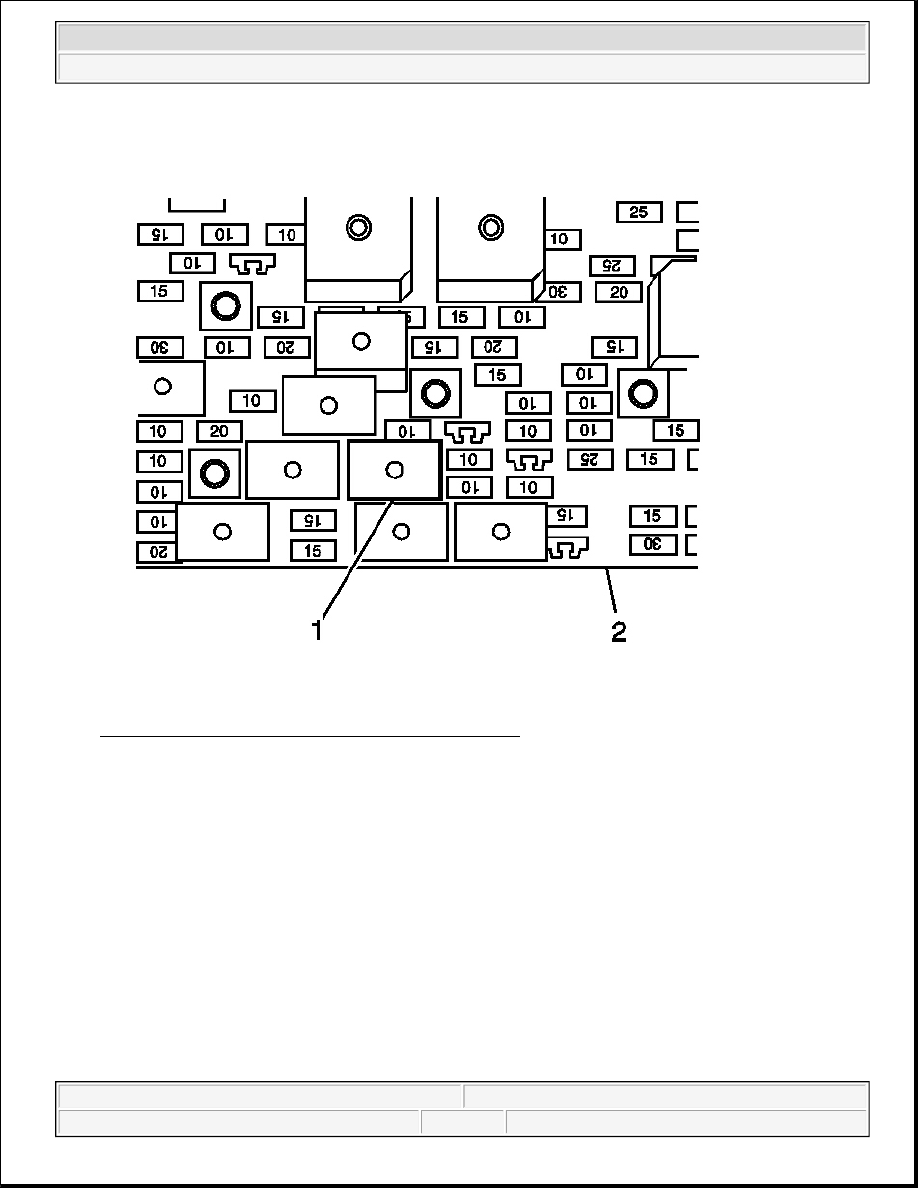

Fig. 44: A/C Compressor Relay & Convenience Center
Courtesy of GENERAL MOTORS CORP.

1. Install the A/C compressor relay (1) to the convenience center (2).

2. Install the cover to the underhood convenience center (1).

AIR CONDITIONING (A/C) LOW PRESSURE SWITCH REPLACEMENT

Removal Procedure

1. Disconnect the electrical connector from the A/C low pressure switch.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



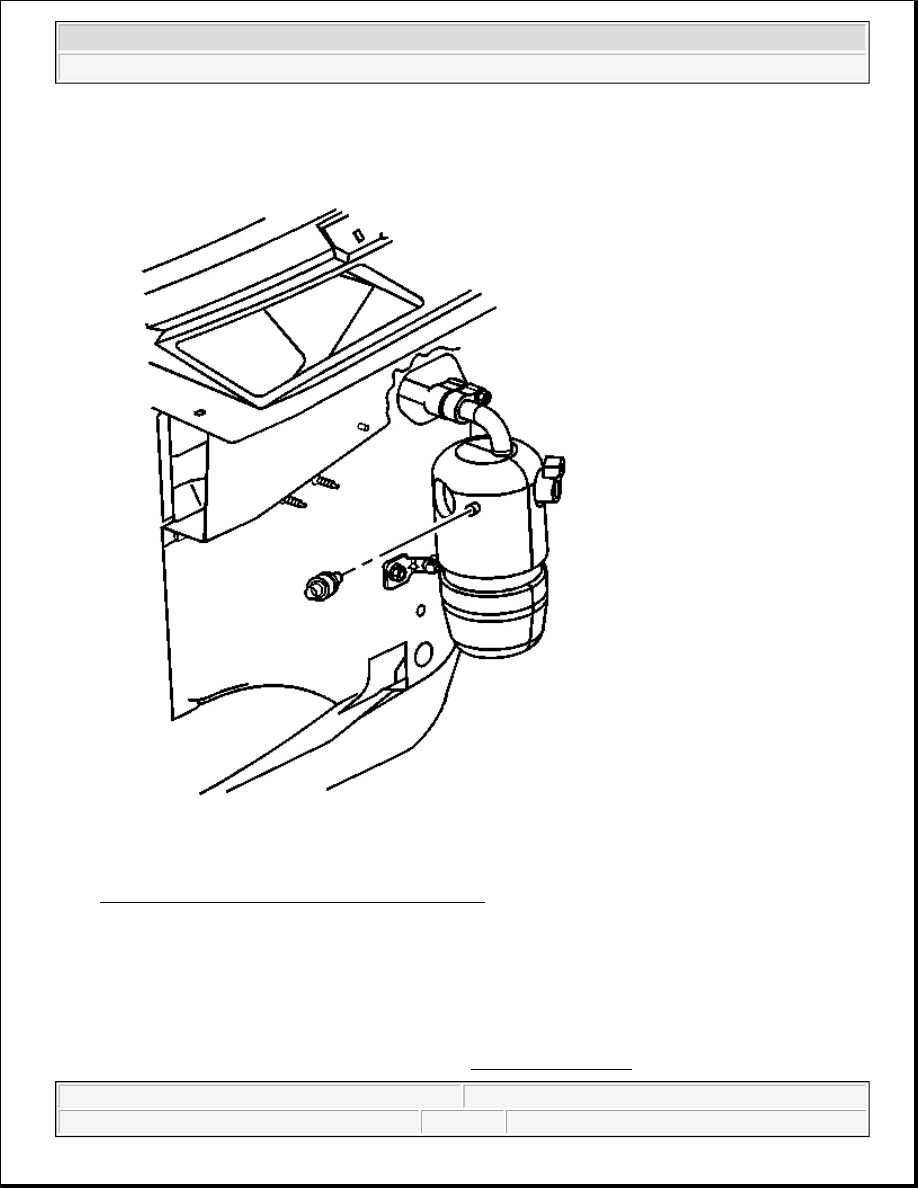

Fig. 45: A/C Low Pressure Switch & Accumulator
Courtesy of GENERAL MOTORS CORP.

2. Remove the A/C low pressure switch from the accumulator.

3. Remove the O-ring and discard.

Installation Procedure

1. Install the NEW O-ring seal to the switch. Refer to O-Ring Replacement .



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Fig. 46: A/C Low Pressure Switch & Accumulator
Courtesy of GENERAL MOTORS CORP.

2. Install the A/C low pressure switch to the accumulator.

Tighten: Tighten the switch to 6 N.m (53 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



3. Connect the electrical connector to the A/C low pressure switch.

AIR CONDITIONING (A/C) REFRIGERANT PRESSURE SENSOR REPLACEMENT

Removal Procedure

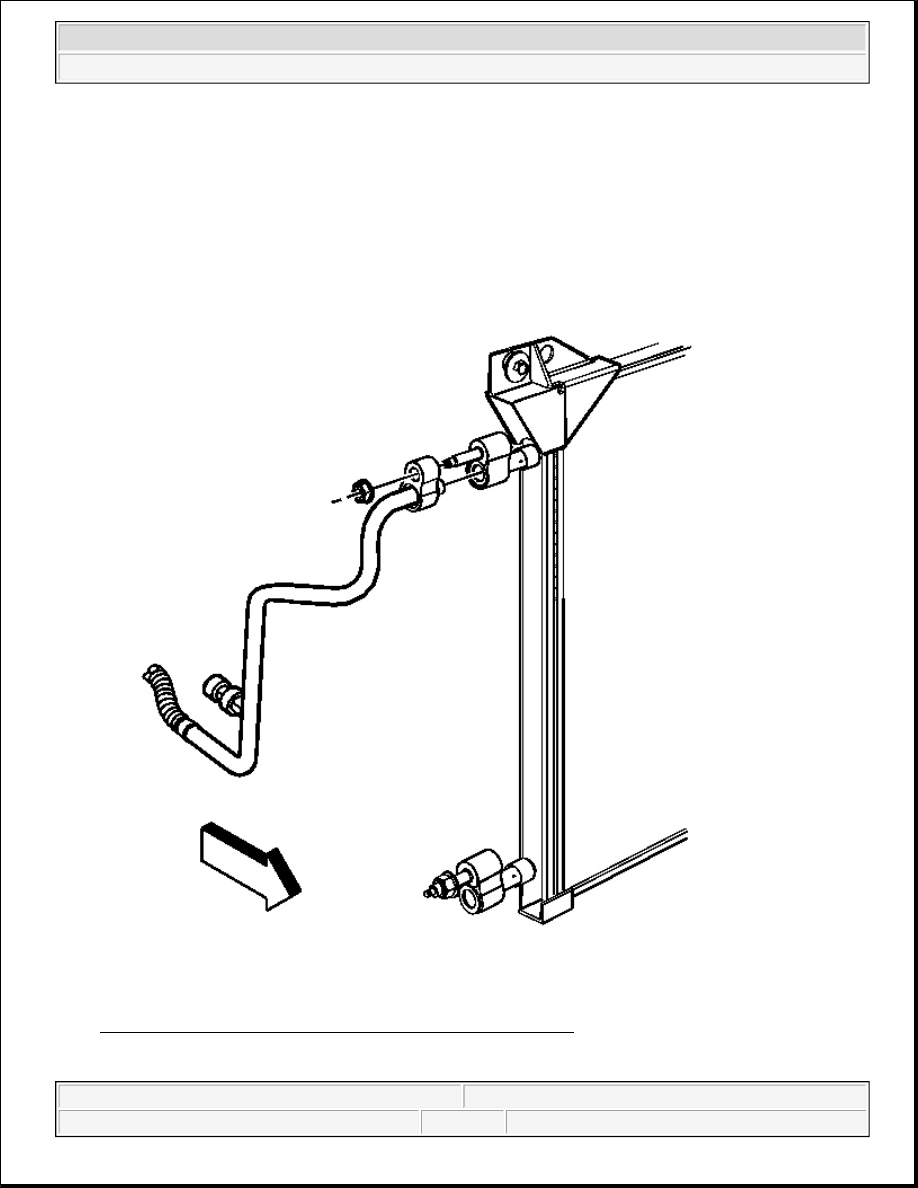

Fig. 47: A/C Refrigerant Pressure Sensor & Evaporator Tube
Courtesy of GENERAL MOTORS CORP.
