Hummer H2. Manual - part 1933

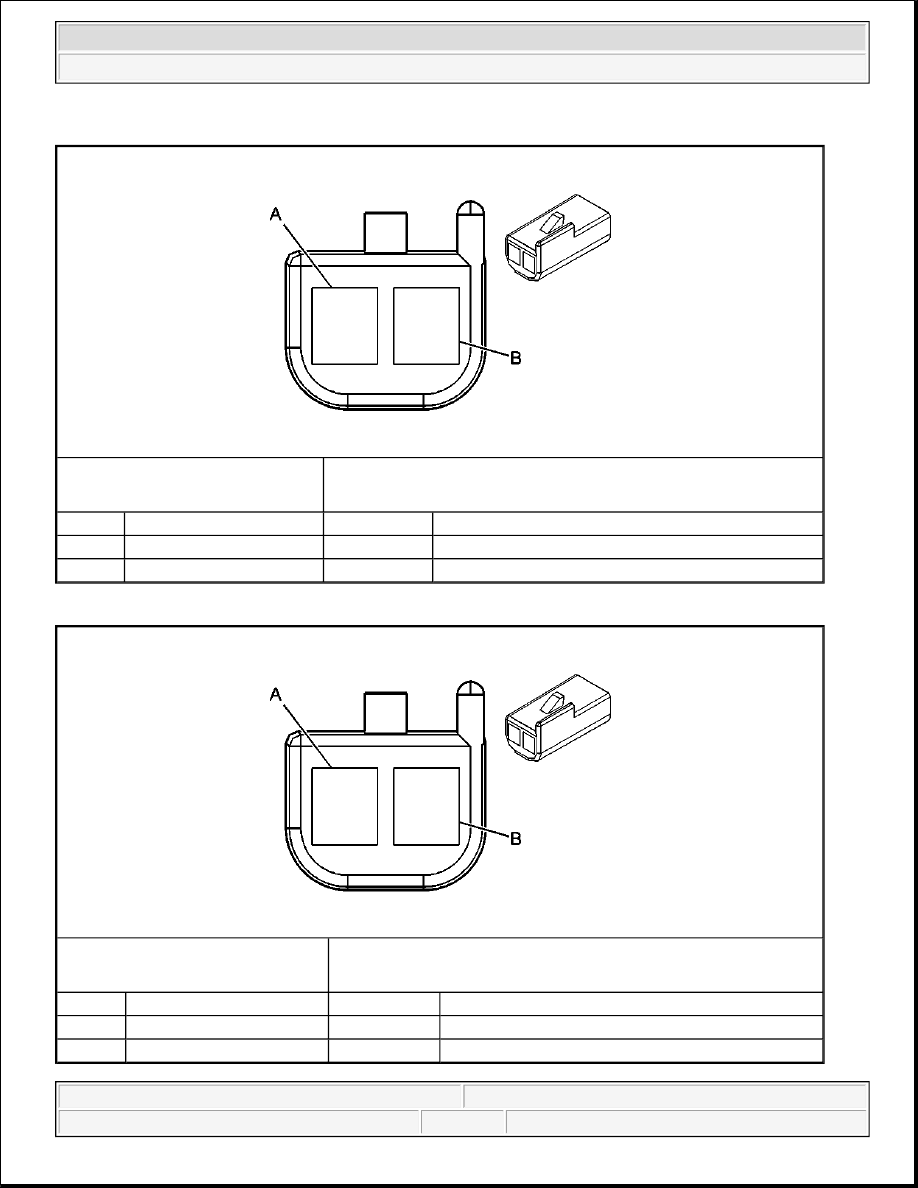

Air Temperature Sensor Terminal Identification - Lower Right

Air Temperature Sensor Terminal Identification - Upper Left

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

718

Low Reference

B

GY/BK

2337

Lower Right Air Temperature Sensor Signal

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

718

Low Reference

B

WH

2338

Upper Left Air Temperature Sensor Signal



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



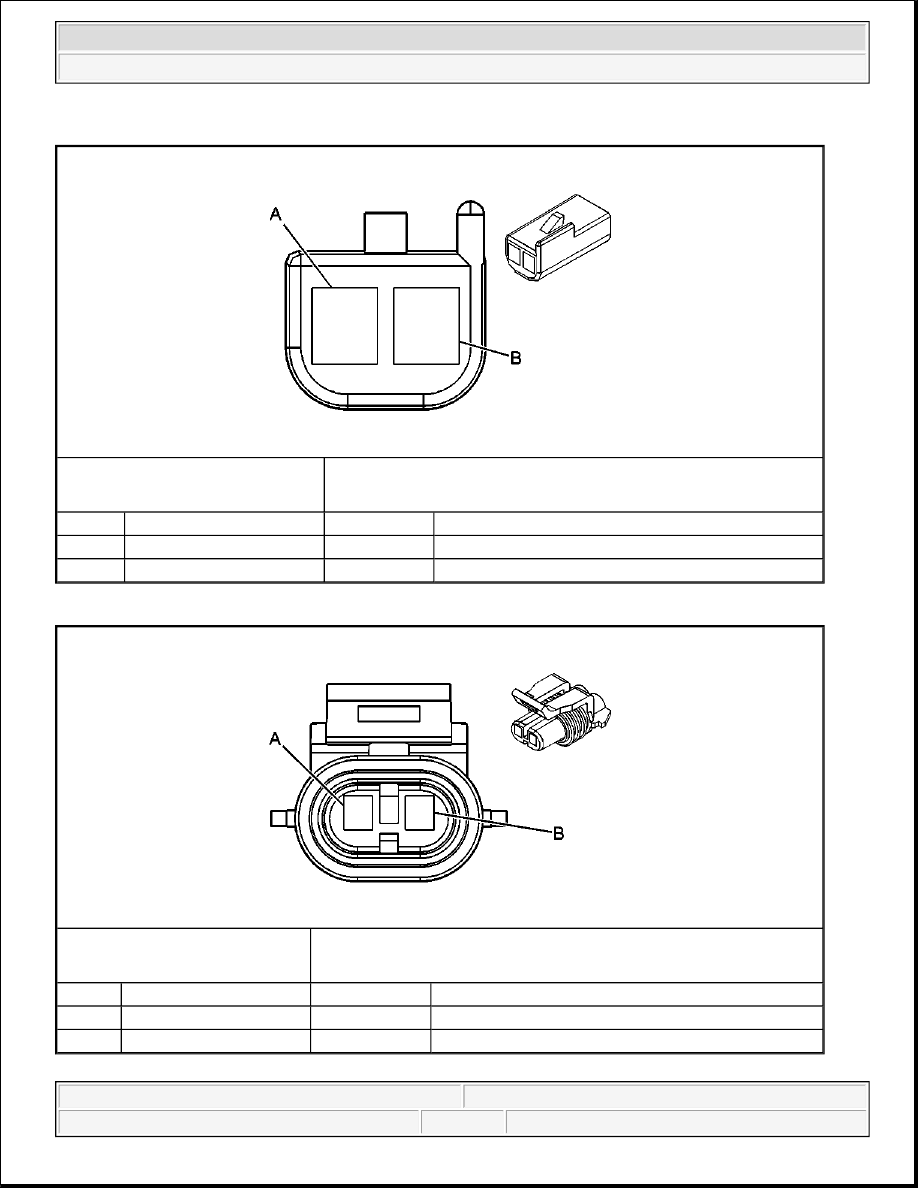

Air Temperature Sensor Terminal Identification - Upper Right

Ambient Air Temperature Sensor Terminal Identification - HVAC

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

718

Low Reference

B

GY

2336

Upper Right Air Temperature Sensor Signal

Connector Part Information

z

12052642

z

2-Way F Metri-Pack 150 Series Sealed (L- GN)

Pin

Wire Color

Circuit No.

Function

A

BN

718

Low Reference

B

L-GN/BK

735

Ambient Air Temperature Sensor Signal



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



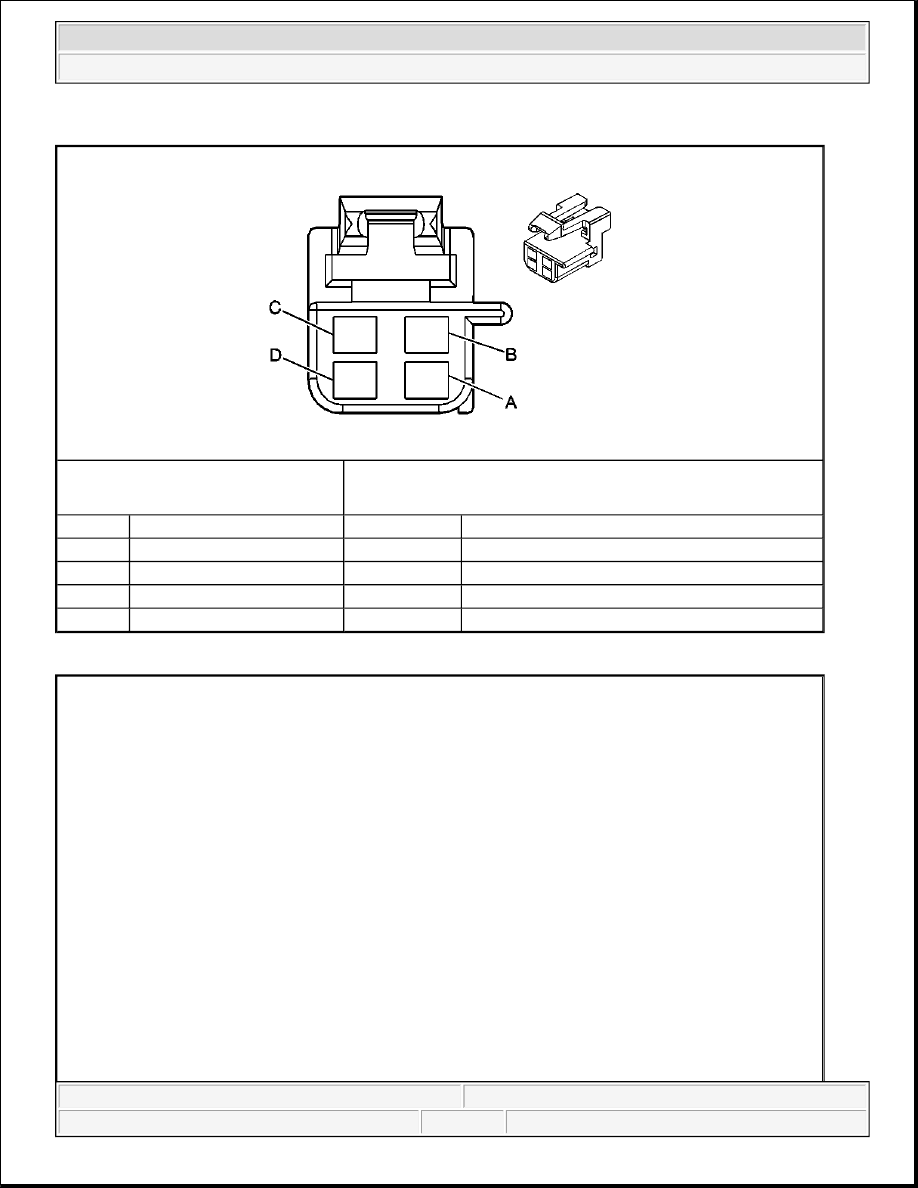

Ambient Light/Sunload Sensor Assembly Terminal Identification

Blower Motor Terminal Identification

Connector Part Information

z

12064760

z

4-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

L-BU/BK

590

Driver Sunload Sensor Signal

B

GY

1548

Passenger Sunload Sensor Signal

C

BK

279

Ambient Light Sensor Low Reference

D

WH

278

Ambient Light Sensor Signal



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



Blower Motor Control Processor Terminal Identification

Connector Part Information

z

12064749

z

2-Way F Metri-Pack 150 Series Sealed (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

-

Blower Motor Supply Voltage

B

BK

-

Ground



2004 Hummer H2
