1. Apply a 5 mm (0.2 in) wide band of threadlock GM P/N 12345493 (Canadian P/N 10953488) or

equivalent to the threads of the exhaust manifold bolts. Refer to Sealers, Adhesives, and Lubricants .

2. Install the exhaust manifold and NEW exhaust manifold gasket.

3. Install the exhaust manifold bolts.

Tighten:

1. Tighten the exhaust manifold bolts a first pass to 15 N.m (11 lb ft). Tighten the exhaust manifold

bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside
bolts.

2. Tighten the exhaust manifold bolts a final pass to 25 N.m (18 lb ft). Tighten the exhaust manifold

bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside
bolts.

4. Using a flat punch, bend over the exposed edge of the exhaust manifold gasket at the rear of the left

cylinder head.

and free of debris or threadlocking material.

IMPORTANT: Do not apply sealant to the first three threads of the bolt.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

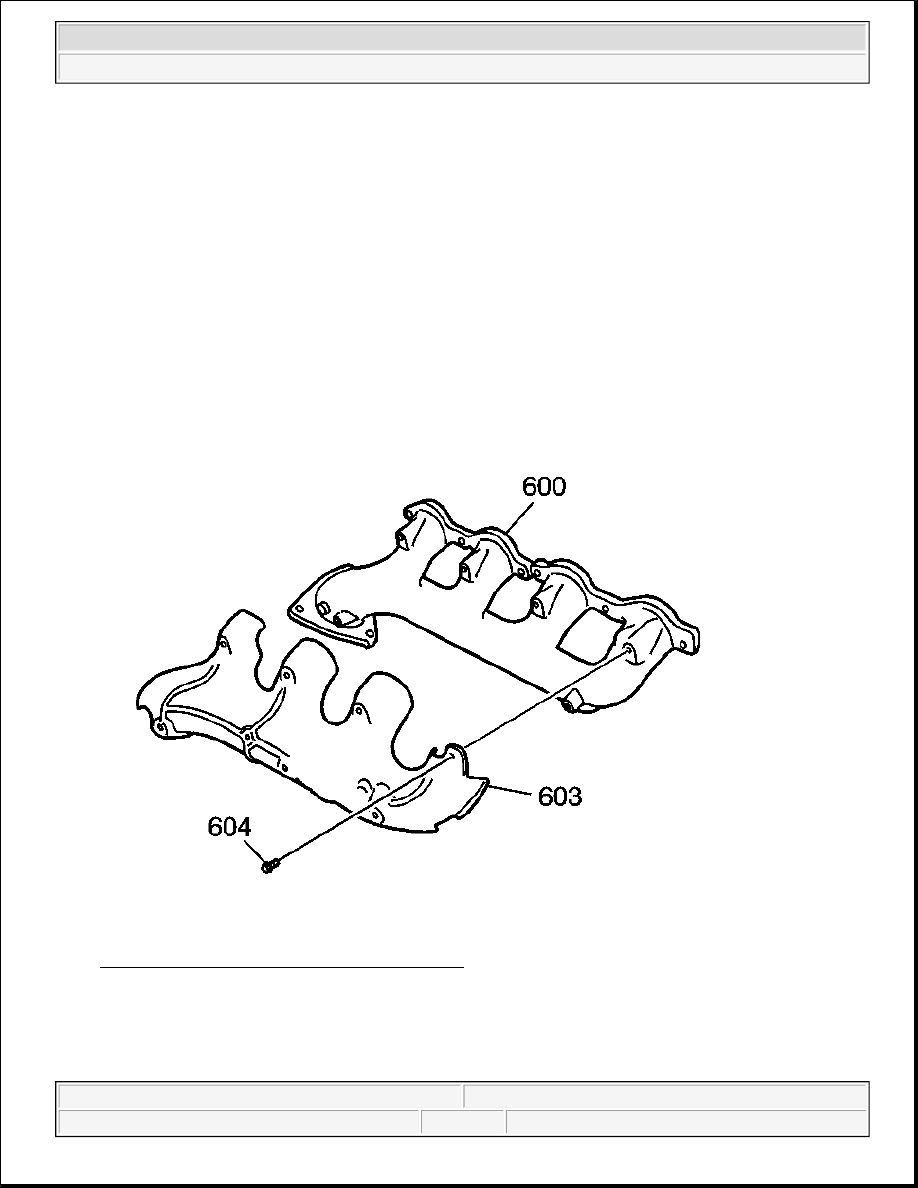

Fig. 683: Exhaust Manifold & Heat Shield
Courtesy of GENERAL MOTORS CORP.

5. Install the heat shield (603) and bolts (604).

Tighten: Tighten the heat shield bolts to 9 N.m (80 lb in).

EXHAUST MANIFOLD INSTALLATION - RIGHT



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

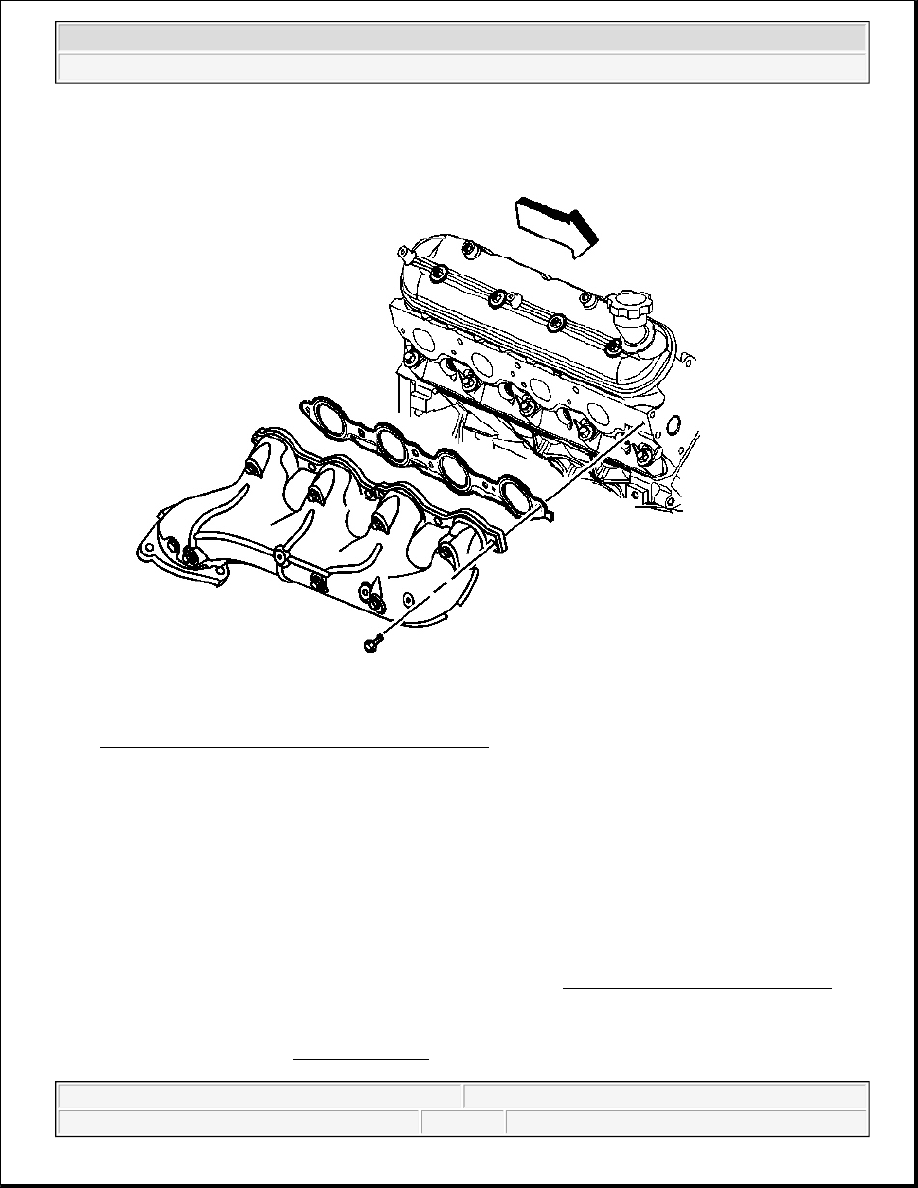

Fig. 684: Exhaust Manifold, Gasket & Bolt (Right)
Courtesy of GENERAL MOTORS CORP.

1. Apply a 5 mm (0.2 in) wide band of threadlock GM P/N 12345493 (Canadian P/N 10953488) or

equivalent to the threads of the exhaust manifold bolts. Refer to Sealers, Adhesives, and Lubricants .

2. Install the exhaust manifold gasket and exhaust manifold.

IMPORTANT:

z

Tighten the exhaust manifold bolts as specified in the service
procedure. Improperly installed and/or leaking exhaust manifold
gaskets may affect vehicle emissions and/or On-Board Diagnostic
(OBD) II system performance.

z

The cylinder head exhaust manifold bolt hole threads must be clean
and free of debris or threadlocking material.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



3. Install the exhaust manifold bolts.

Tighten:

1. Tighten the exhaust manifold bolts first pass to 15 N.m (11 lb ft). Tighten the exhaust manifold

bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside
bolts.

2. Tighten the exhaust manifold bolts final pass to 25 N.m (18 lb ft). Tighten the exhaust manifold

bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside
bolts.

4. Using a flat punch, bend over the exposed edge of the exhaust manifold gasket at the front of the right

cylinder head.

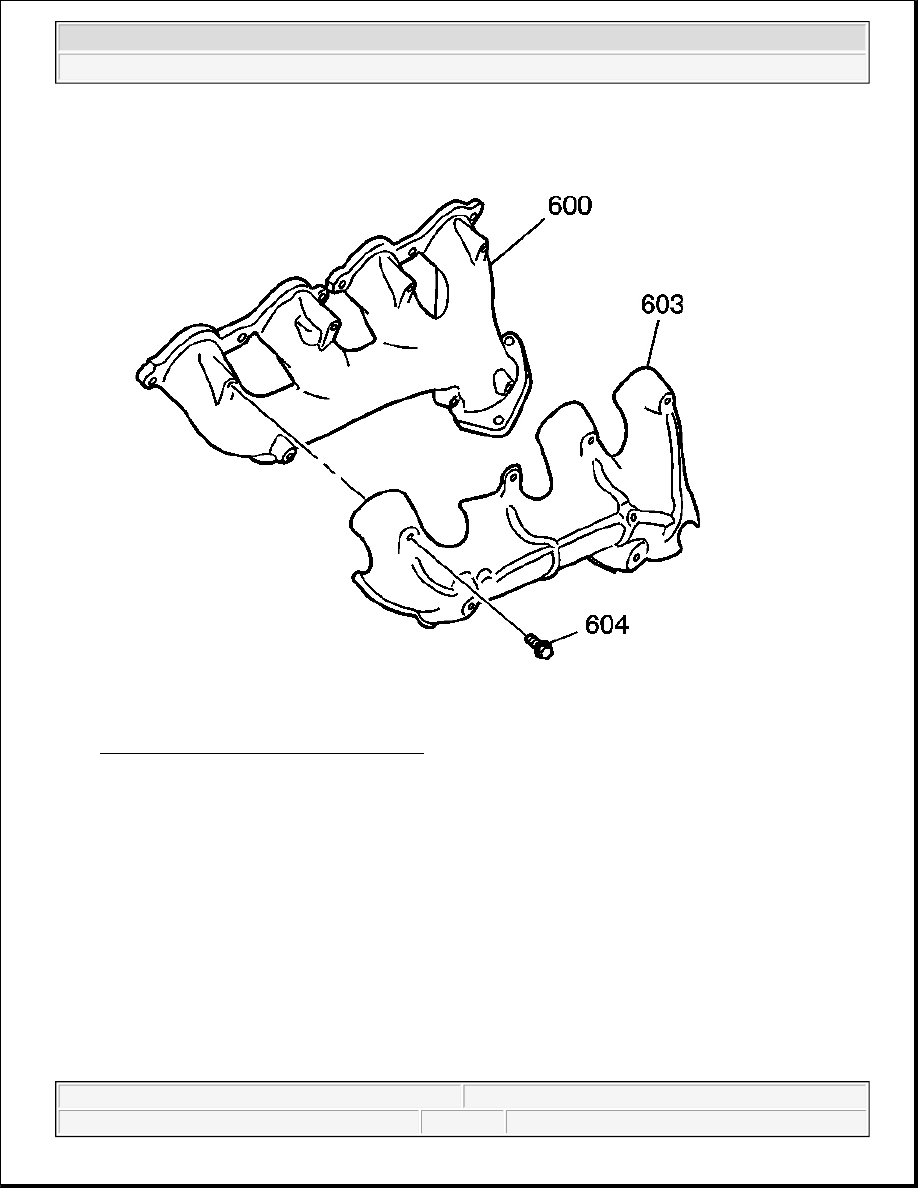

Fig. 685: Manifold, Heat Shield & Bolts (Right)
Courtesy of GENERAL MOTORS CORP.

5. Install the heat shield (603) and bolts (604).

Tighten: Tighten the heat shield bolts to 9 N.m (80 lb in).
