Hummer H2. Manual - part 1881

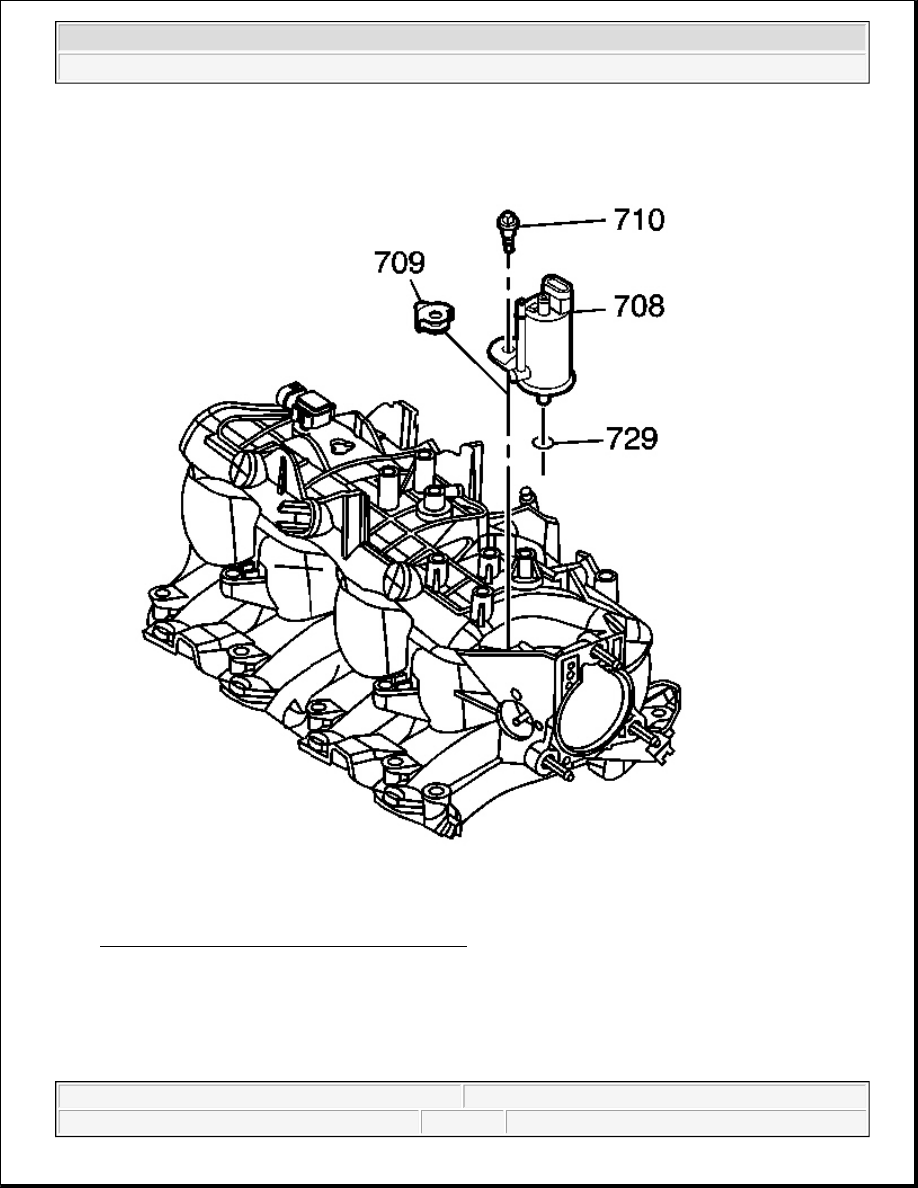

Fig. 676: EVAP Purge Solenoid, Bolt & Isolator
Courtesy of GENERAL MOTORS CORP.

8. Install the evaporative emission (EVAP) purge solenoid (708), bolt (710), and isolator (709).

Tighten: Tighten the solenoid bolt to 10 N.m (89 lb in).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



FUEL RAIL AND INJECTORS INSTALLATION

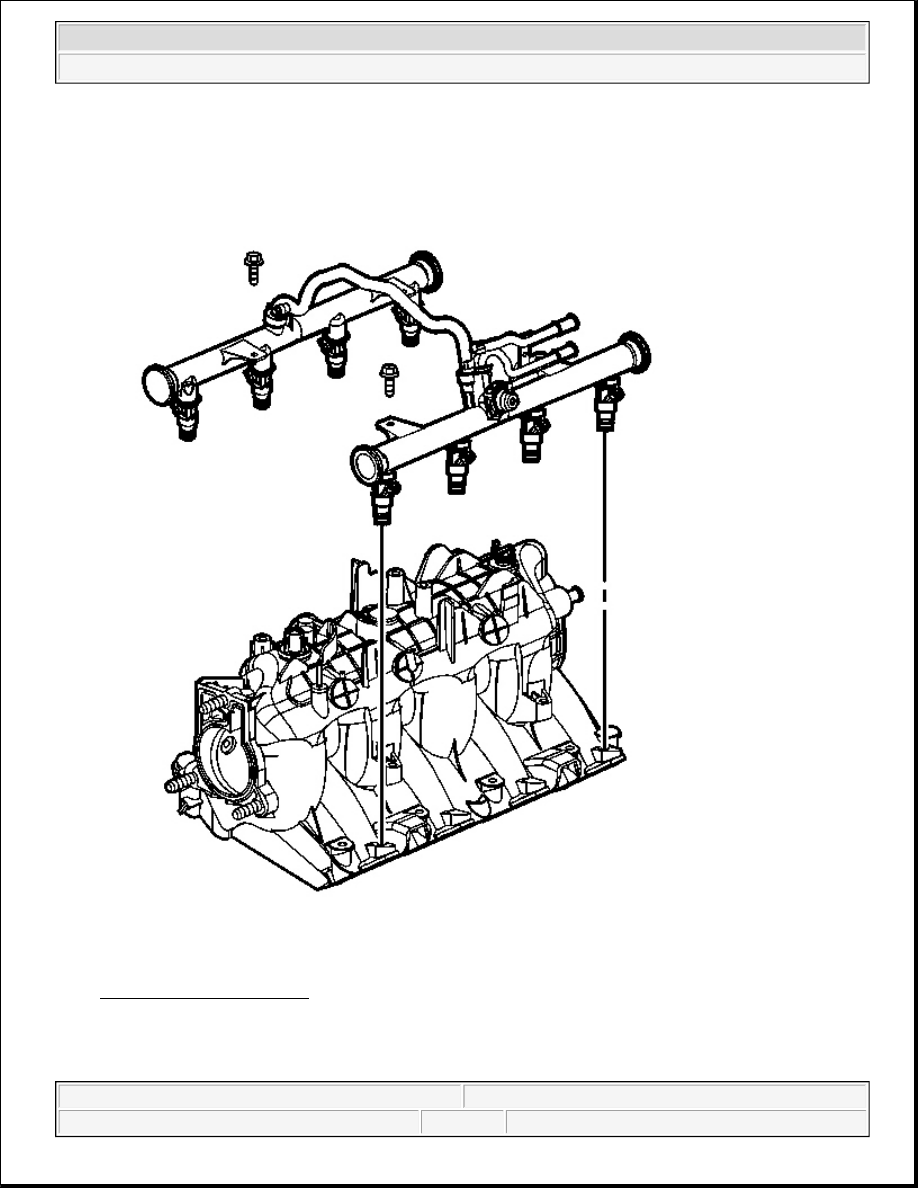

Fig. 677: Fuel Injector Rail
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fuel Rail Stop Bracket Installation Caution in Cautions and



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



1. Lubricate the NEW fuel injector O-ring seals with clean engine oil.

2. Install the O-ring seals onto the fuel injectors.

3. Install a new O-ring seal to the right side of the crossover tube.

4. Assemble the crossover tube and bolt to the right fuel rail.

5. Install the fuel rail, with fuel injectors, into the intake manifold.

Press evenly on both sides of the fuel rail until all of the injectors are seated in their bores.

6. Apply a 5 mm (0.2 in) band of threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to

the threads of the fuel rail bolts. Refer to Sealers, Adhesives, and Lubricants .

7. Install the fuel rail bolts.

Tighten:

1. Tighten the fuel rail bolts to 10 N.m (89 lb in).

2. Tighten the crossover tube right side retaining bolt to 3.8 N.m (34 lb in).

Notices.

IMPORTANT: DO NOT use the fuel injector O-ring seals again. Install NEW fuel injector

O-ring seals during assembly.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

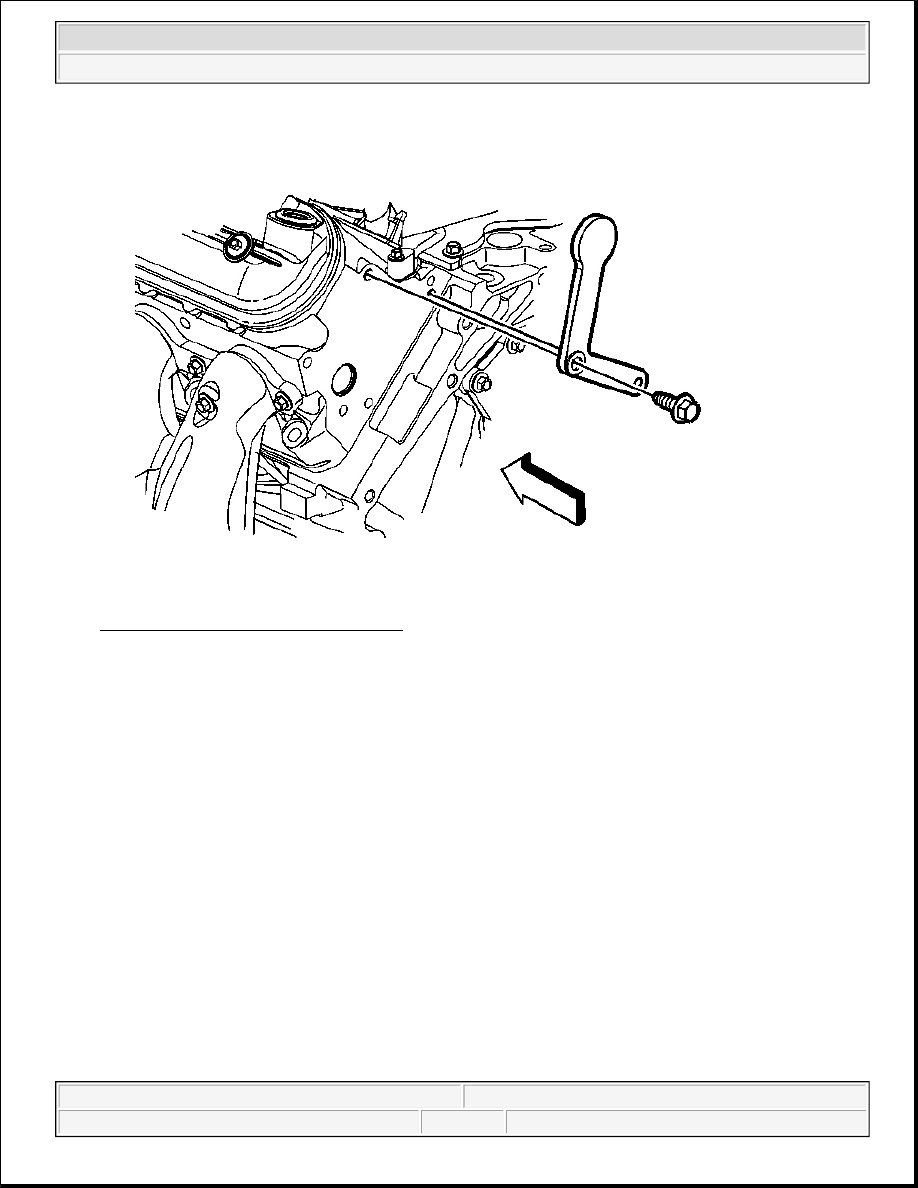

Fig. 678: Fuel Rail Stop Bracket & Bolt
Courtesy of GENERAL MOTORS CORP.

8. Install the fuel rail stop bracket and bolt.

Tighten: Tighten the fuel rail stop bracket bolt to 50 N.m (37 lb ft).

THROTTLE BODY INSTALLATION



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2
