If the valve lifter shows wear, inspect the engine block lifter bores for wear or damage.

z

Flat spots on the roller (4)

z

Loose or damaged pin (5)

z

Plugged oil hole (6)

z

Worn or damaged roller bearing

The roller should rotate freely with no binding or roughness.

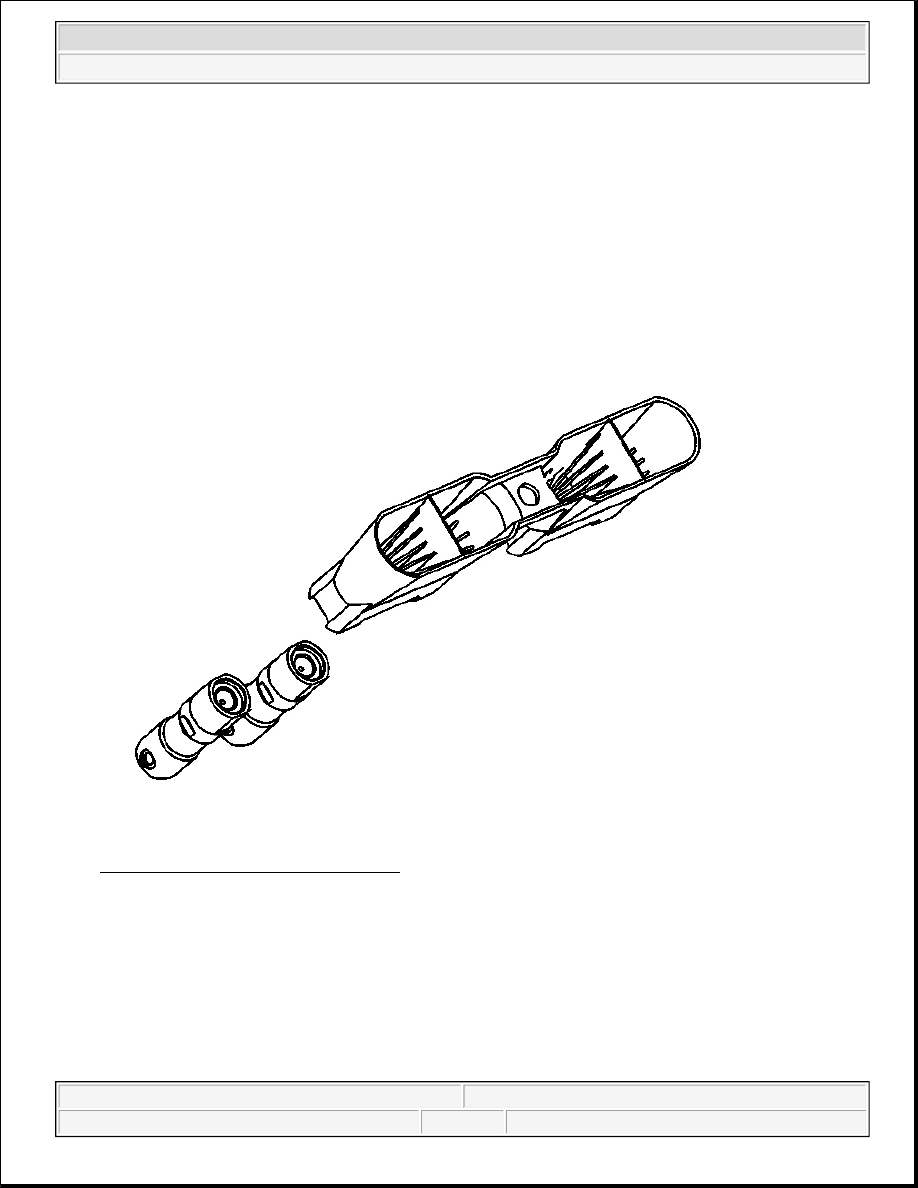

Fig. 469: Valve Lifters & Lifter Guides
Courtesy of GENERAL MOTORS CORP.

5. Inspect the valve lifter guides for the following conditions:

z

For cracks or damage

z

Excessive wear in the lifter mounting bores

CYLINDER HEAD DISASSEMBLE

Tools Required



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



J 8062 Valve Spring Compressor - Head Off. See Special Tools and Equipment .



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



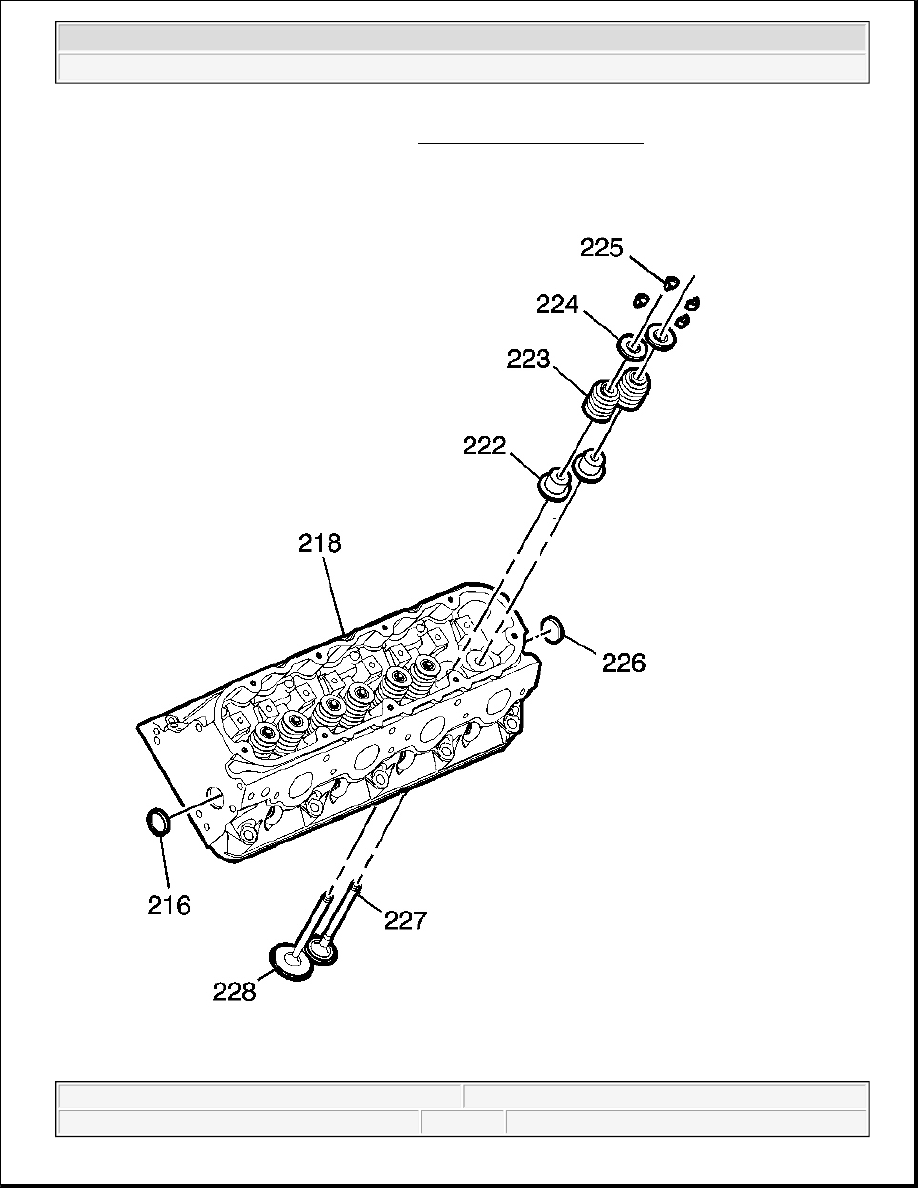

Fig. 470: Cylinder Head Components
Courtesy of GENERAL MOTORS CORP.

1. Remove the spark plugs from the cylinder heads.

IMPORTANT:

z

Remove the spark plugs from the cylinder head with the components
at room temperature.

z

Mark, organize, or sort the cylinder head components for assembly.
Return the components to their original location during assembly.

z

Do not remove the cylinder head expansion plugs (226) unless
service is required.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



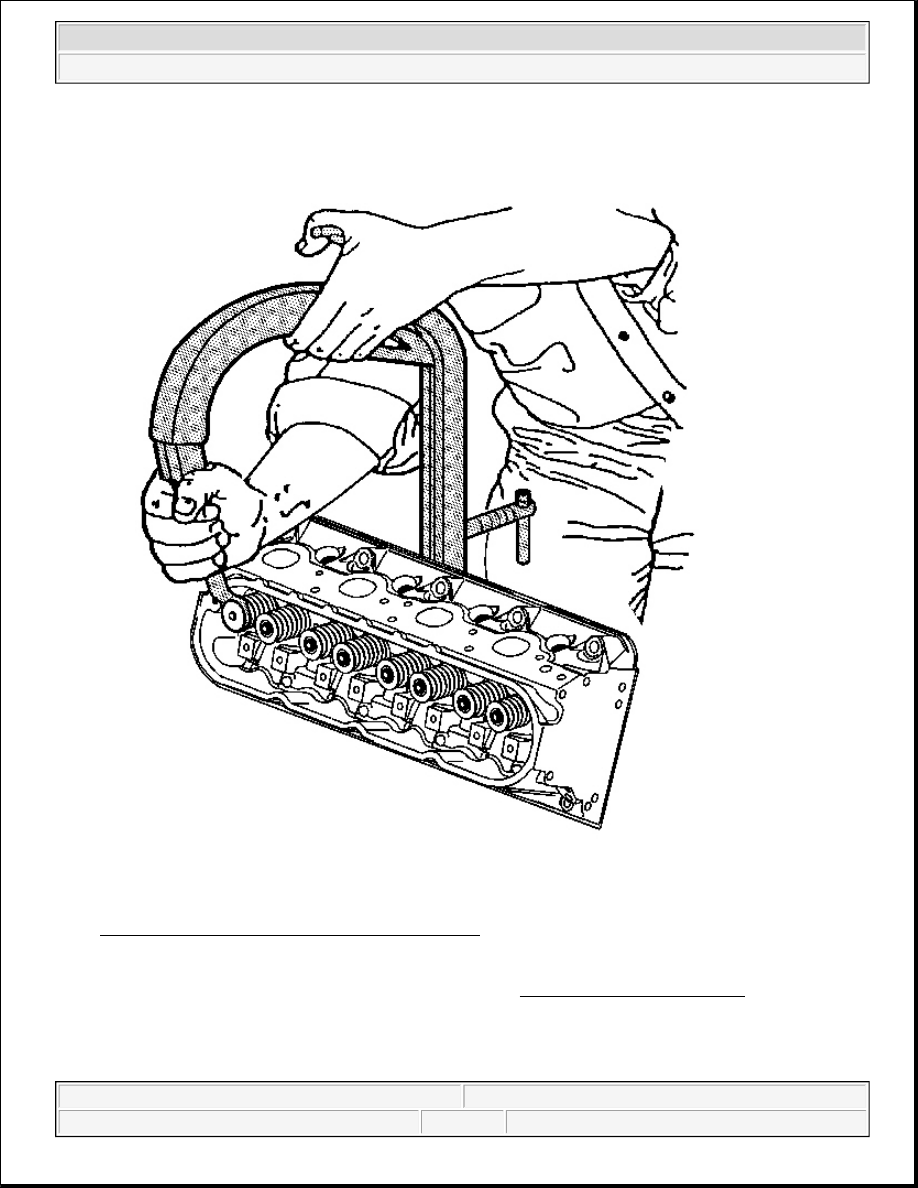

Fig. 471: Compressing Valve Spring Using J 8062
Courtesy of GENERAL MOTORS CORP.

2. Use the J 8062 in order to compress the valve spring. See Special Tools and Equipment .
