1. Clean the components with cleaning solvent.

2. Dry the components with compressed air.

CAUTION: Refer to Safety Glasses Caution in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

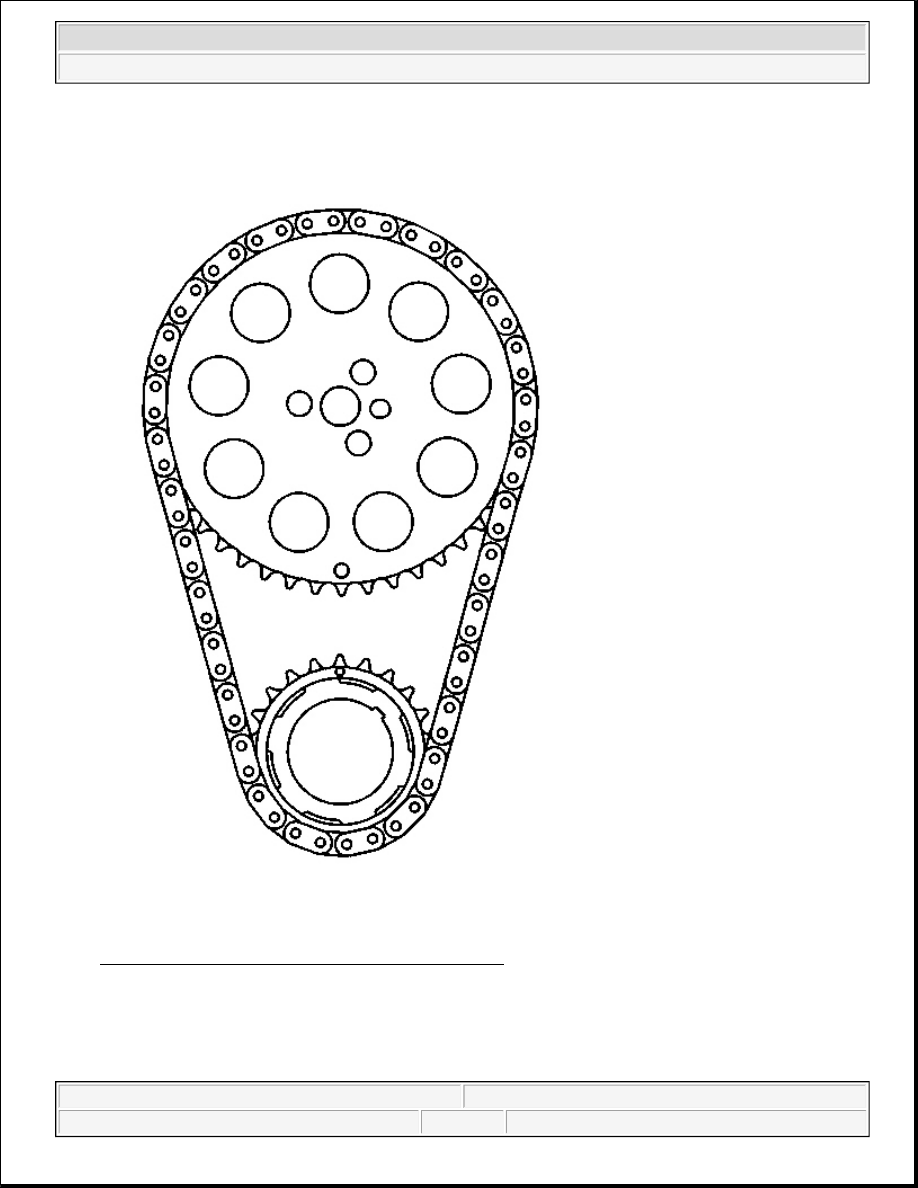

Fig. 462: Camshaft & Crankshaft Sprockets Aligned
Courtesy of GENERAL MOTORS CORP.

3. Inspect the timing chain for binding or wear.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

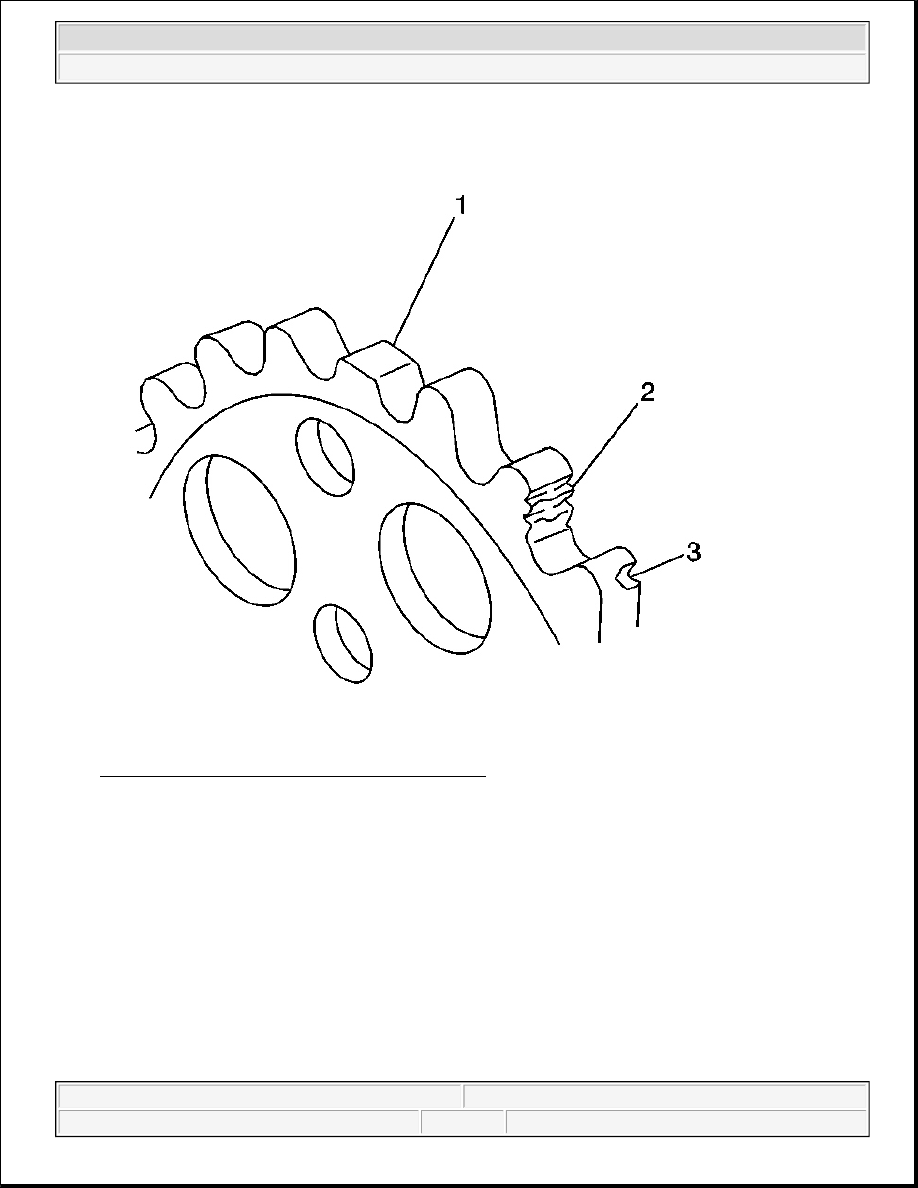

Fig. 463: Inspecting Timing Chain Sprocket Teeth
Courtesy of GENERAL MOTORS CORP.

4. Inspect the camshaft and crankshaft sprockets for:

z

Worn teeth (1)

z

Damaged teeth (2)

z

Chipped teeth (3)

z

Worn valleys between the sprocket teeth



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

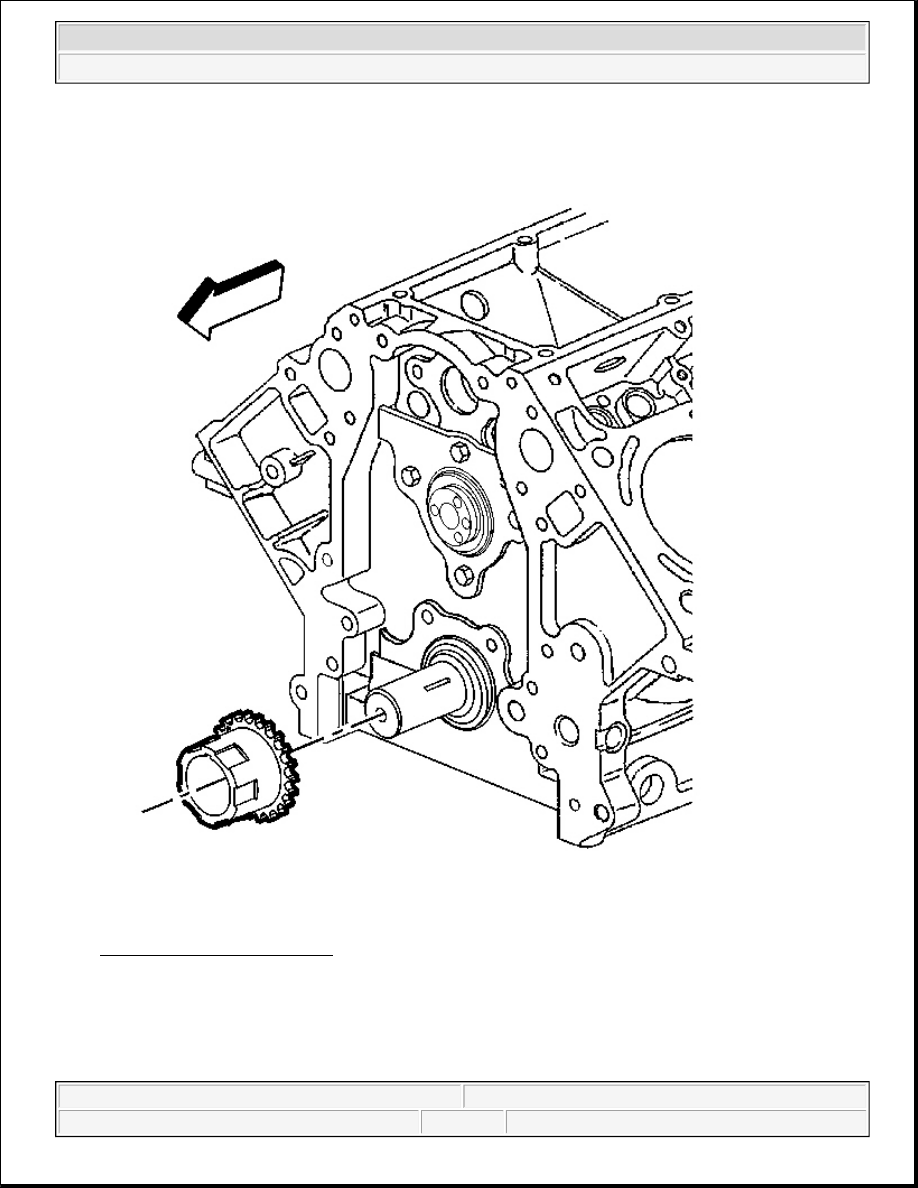

Fig. 464: Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.

5. Inspect the crankshaft sprocket keyway for wear.

6. Inspect the crankshaft sprocket oil pump drive splines for wear.
