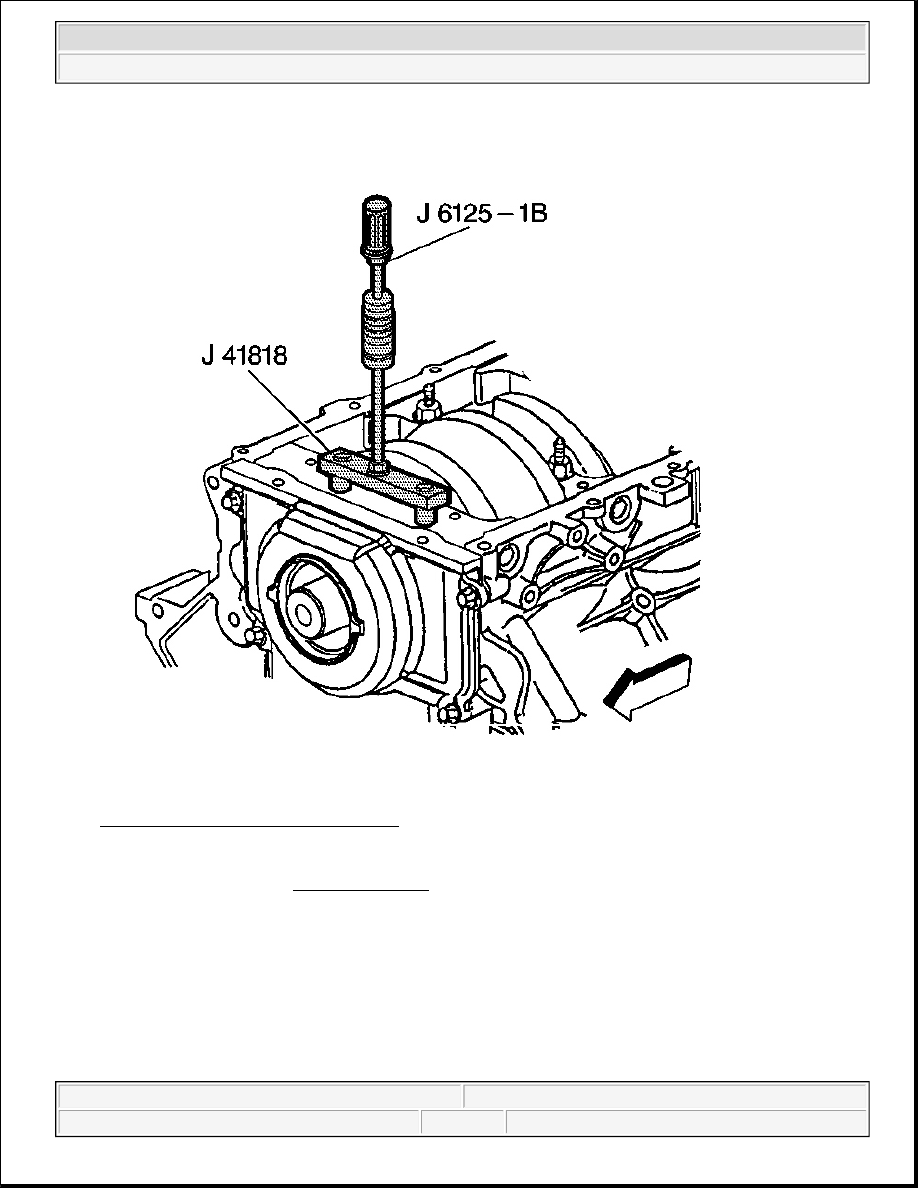

Fig. 355: View Of J 6125-1B & J 41818
Courtesy of GENERAL MOTORS CORP.

5. Install the J 41818 .

Tighten: Tighten the J 41818 bolts to 11 N.m (100 lb in).

6. Install the J 6125-1B to the J 41818 in order to remove the crankshaft bearing caps.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

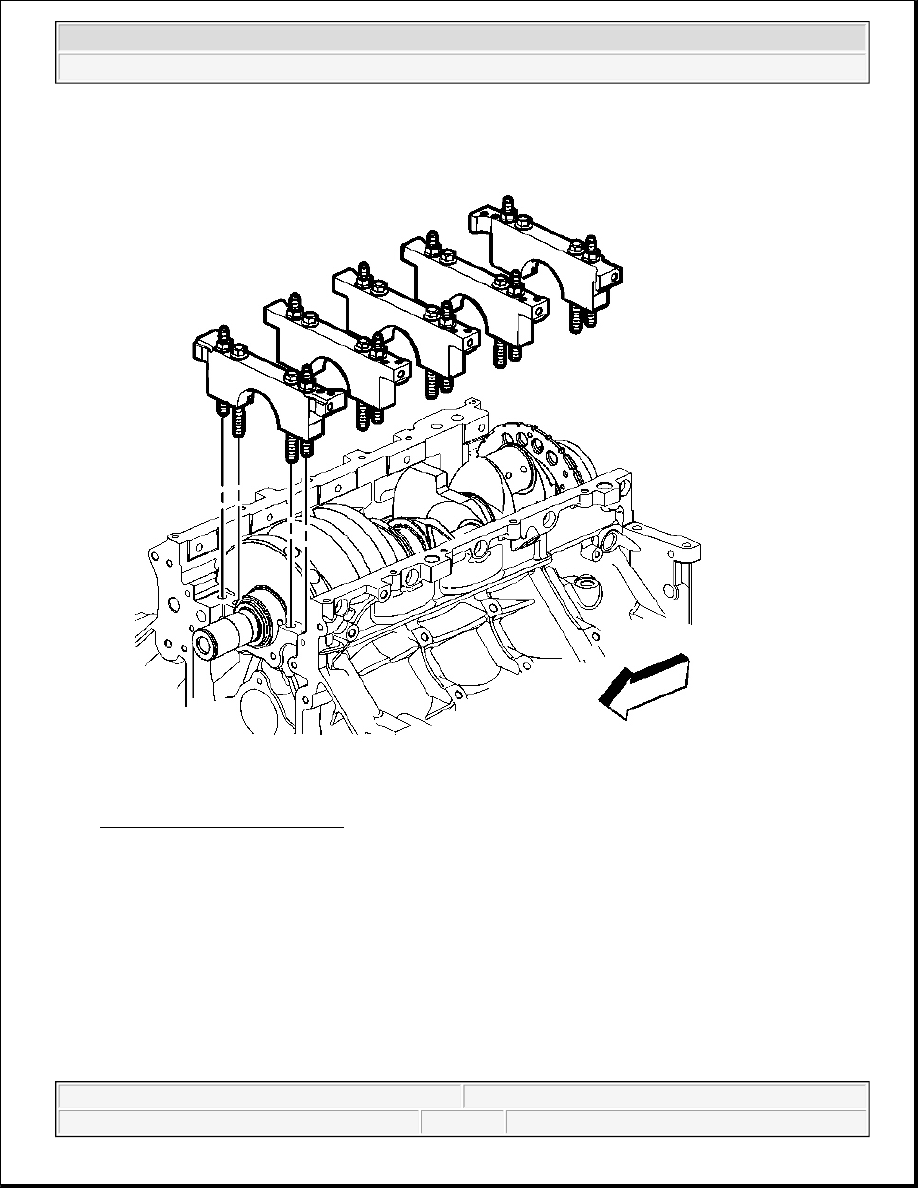

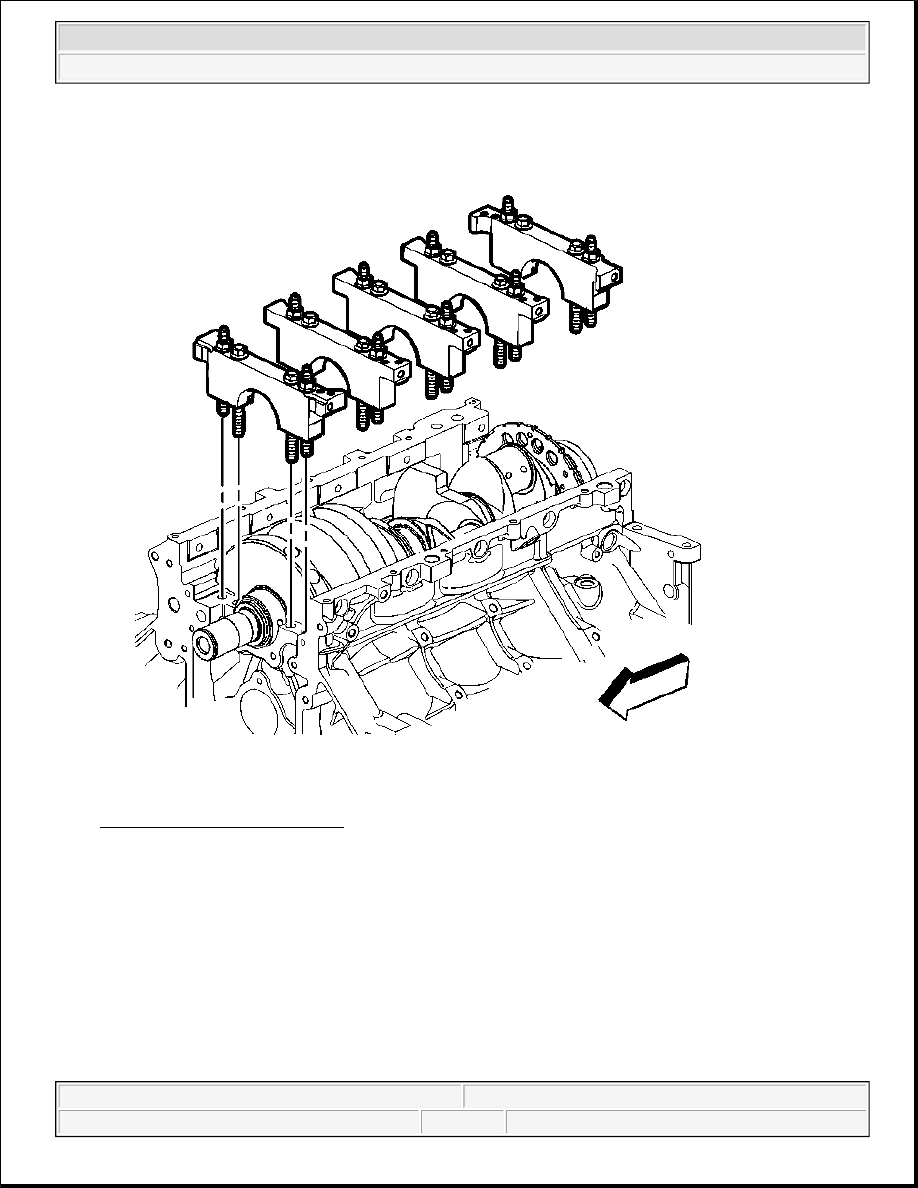

Fig. 356: View Of Bearing Caps
Courtesy of GENERAL MOTORS CORP.

7. Remove the bearing caps.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

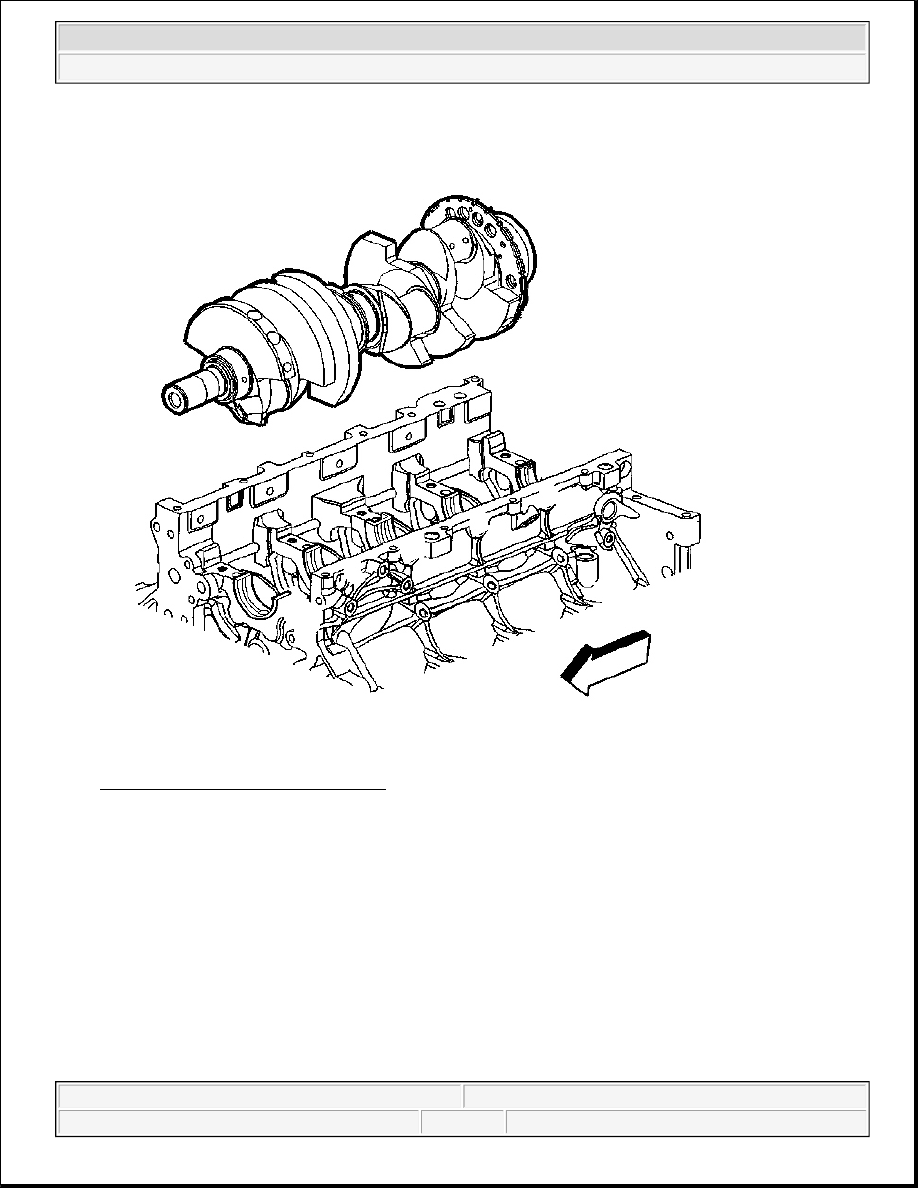

Fig. 357: Crankshaft & Engine Block
Courtesy of GENERAL MOTORS CORP.

8. Remove the crankshaft.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

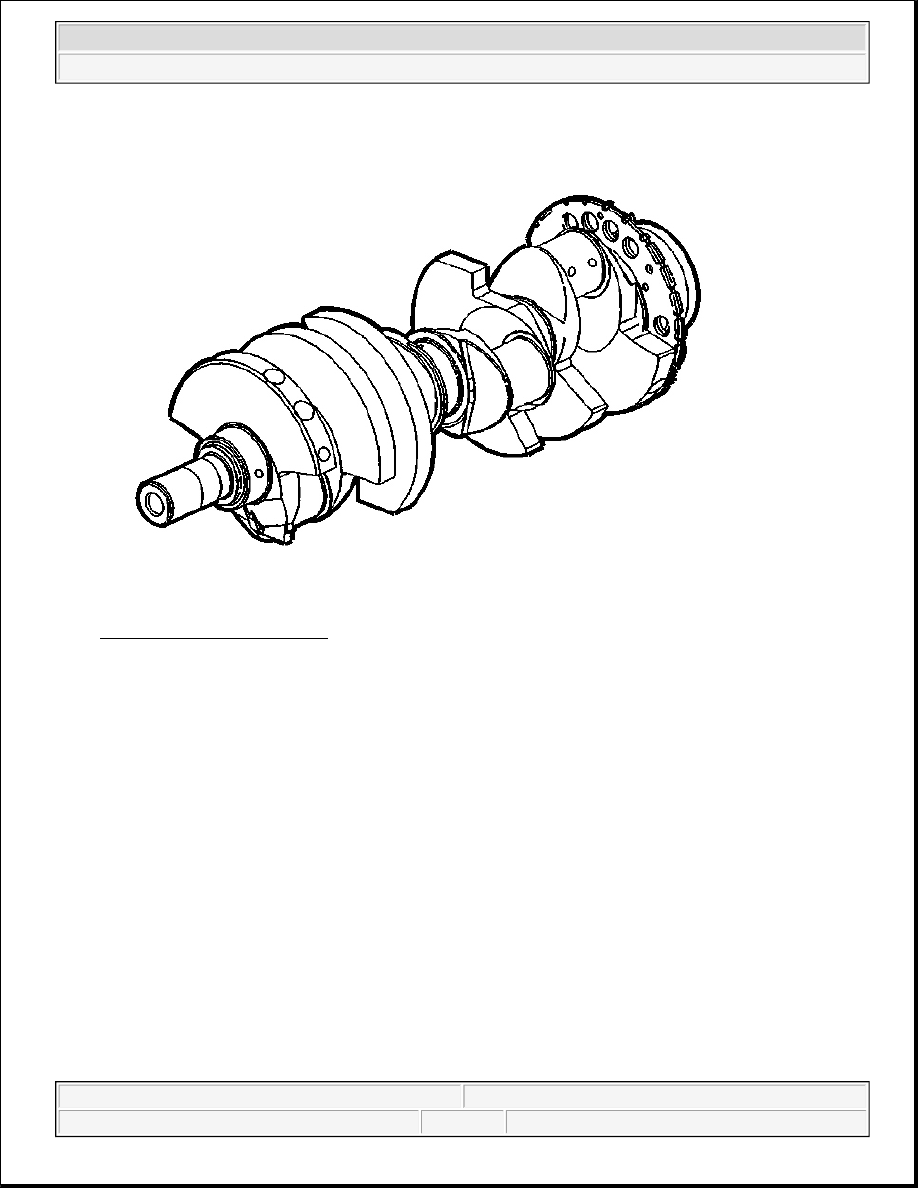

Fig. 358: View Of Crankshaft
Courtesy of GENERAL MOTORS CORP.

9. Lay the crankshaft onto 2 wooden V blocks or other protective surface.

IMPORTANT: Use care when handling the crankshaft. Avoid damage to the CKP sensor

reluctor ring teeth. Nicks, burrs or other damage to the teeth may effect
On-Board Diagnostics (OBD) II system performance.
