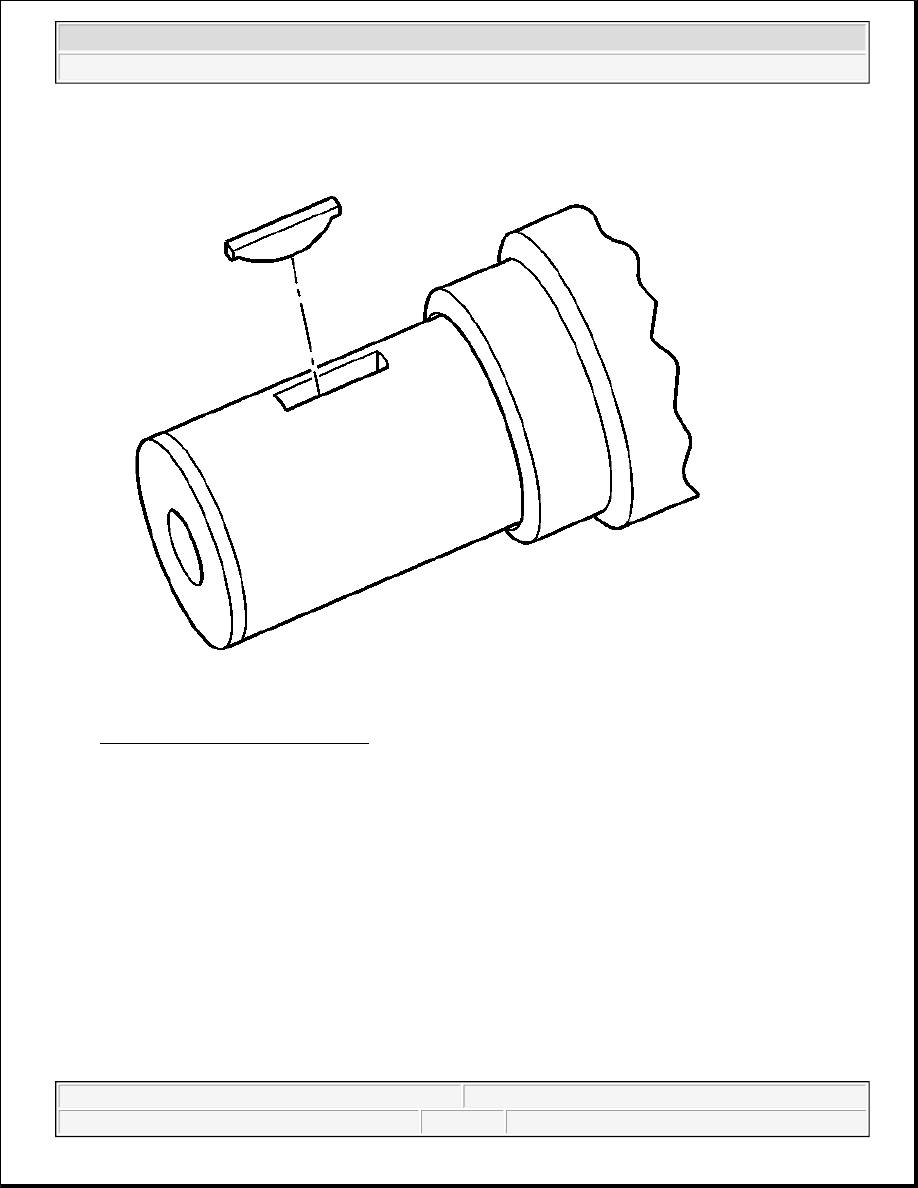

Fig. 344: Crankshaft Sprocket Key
Courtesy of GENERAL MOTORS CORP.

5. Remove the crankshaft sprocket key, if required.

CAMSHAFT REMOVAL



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



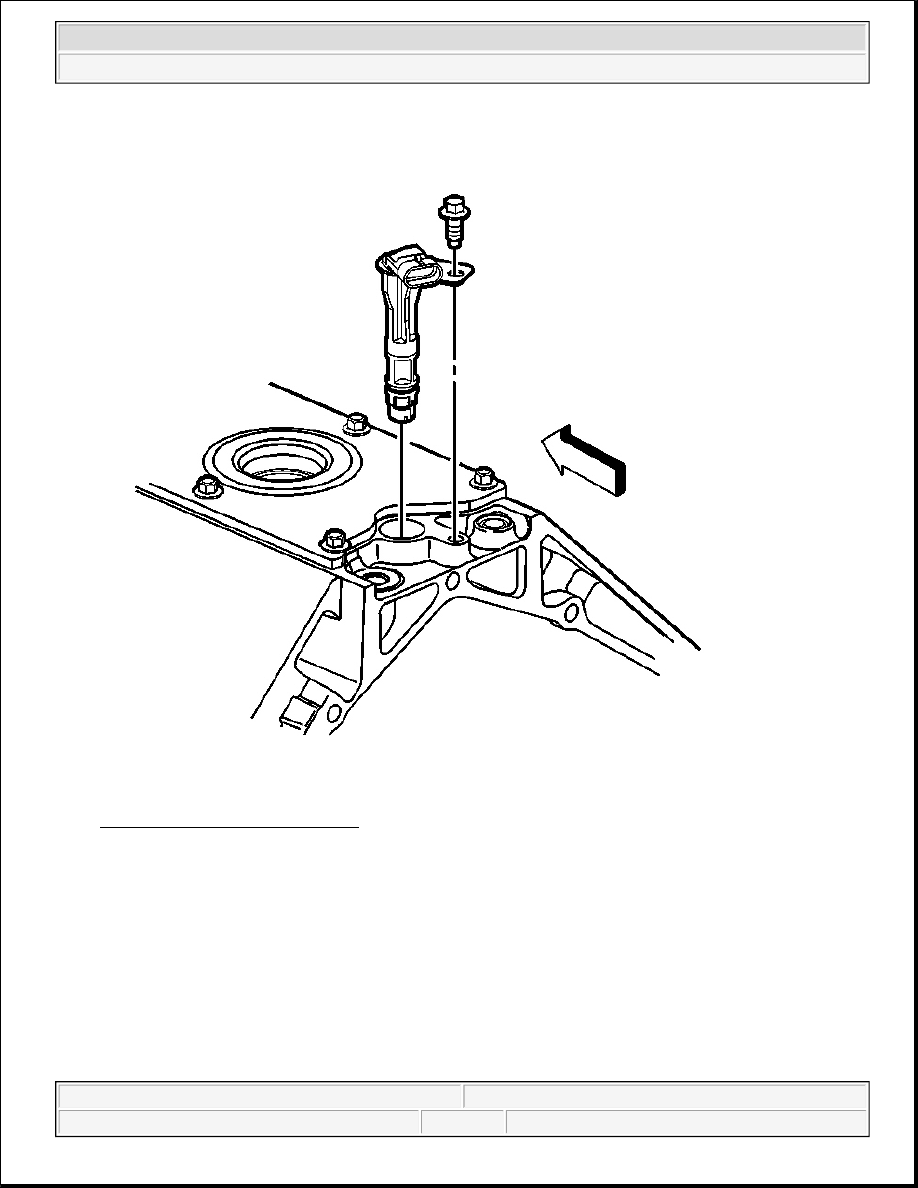

Fig. 345: Camshaft Sensor & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Remove the camshaft position (CMP) sensor bolt and the sensor.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



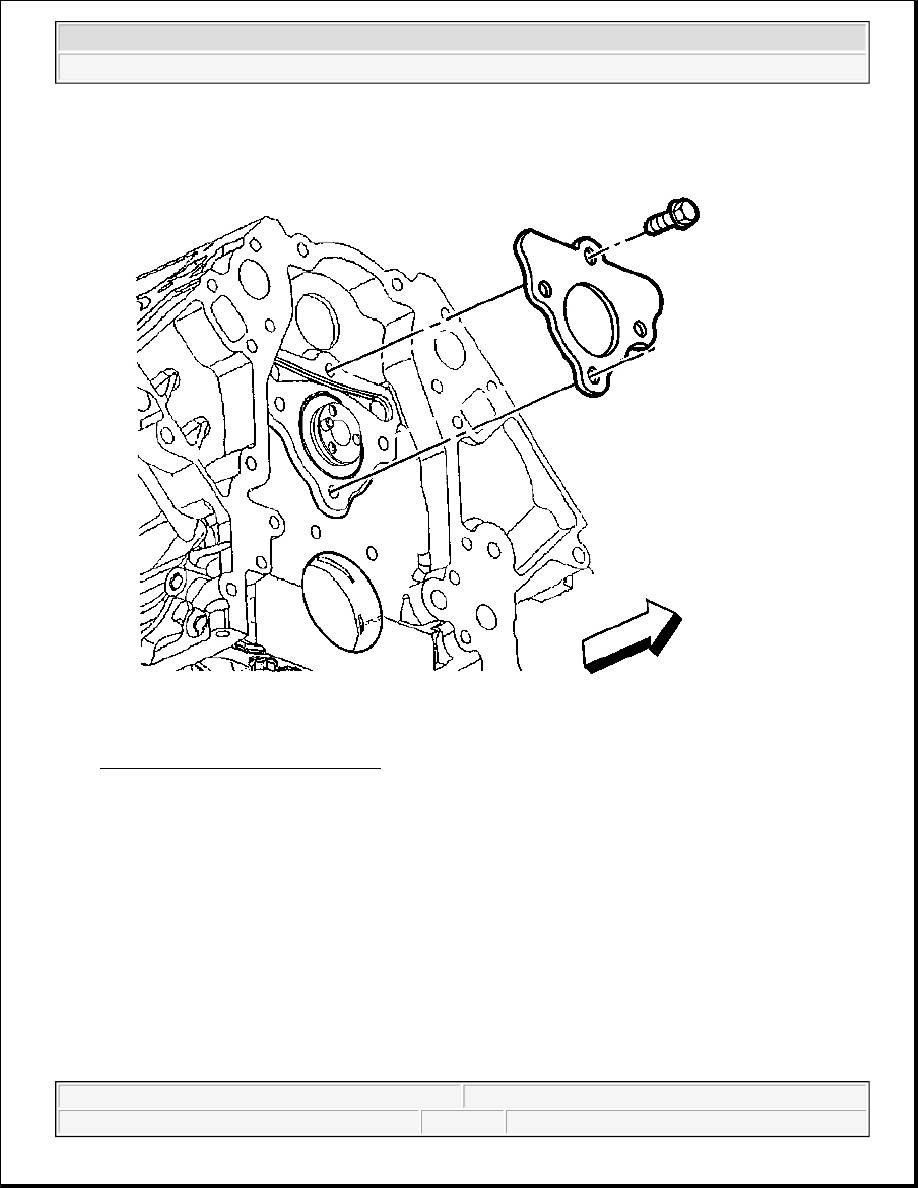

Fig. 346: Camshaft Retainer & Bolts
Courtesy of GENERAL MOTORS CORP.

2. Remove the camshaft retainer bolts and the retainer.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



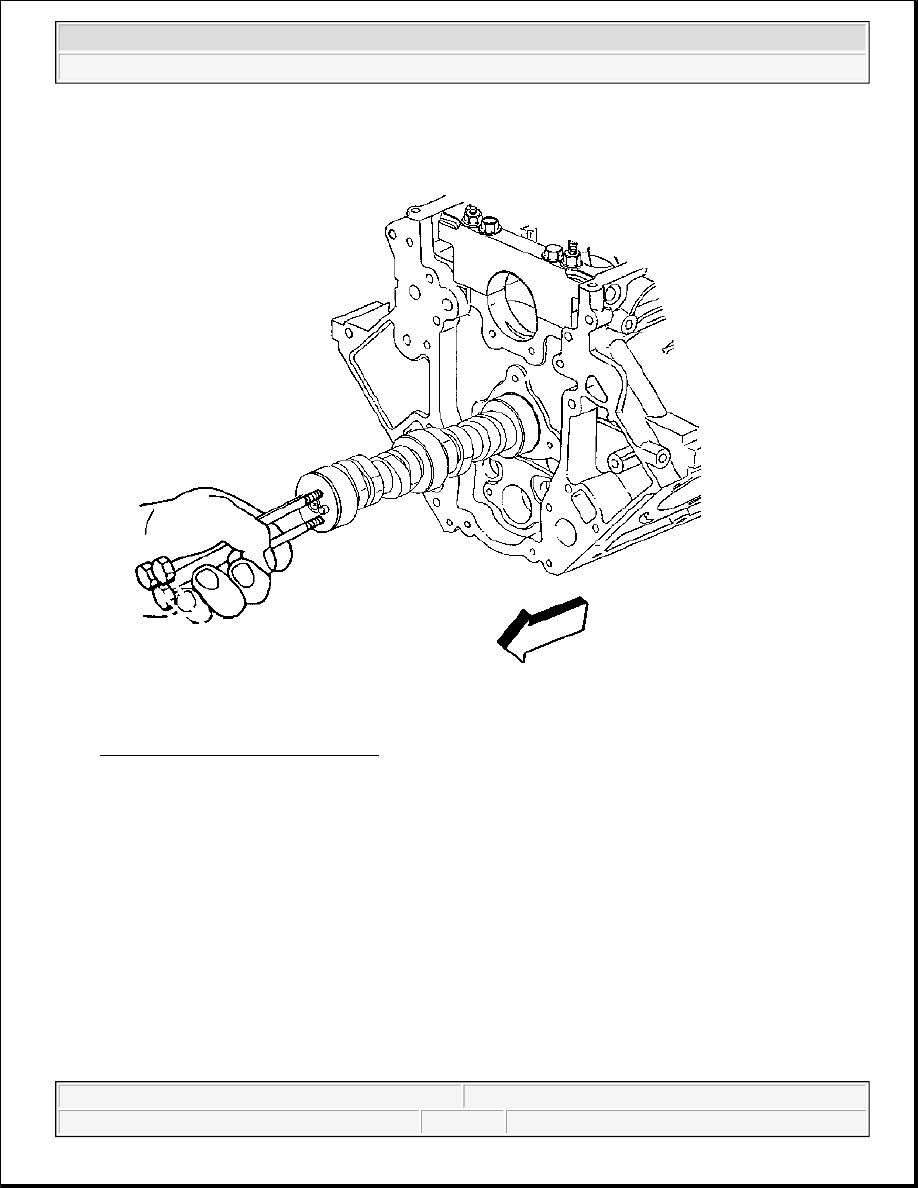

Fig. 347: Camshaft Front Bolt Holes
Courtesy of GENERAL MOTORS CORP.

3. Remove the camshaft.

1. Install the 3 M8 - 1.25 x 100 mm bolts in the camshaft front bolt holes.

2. Using the bolts as a handle, carefully rotate and pull the camshaft out of the engine block.

3. Remove the bolts from the front of the camshaft.

PISTON, CONNECTING ROD, AND BEARING REMOVAL

Tools Required

NOTE:

All camshaft journals are the same diameter, so care must be used in
removing or installing the camshaft to avoid damage to the camshaft
bearings.
