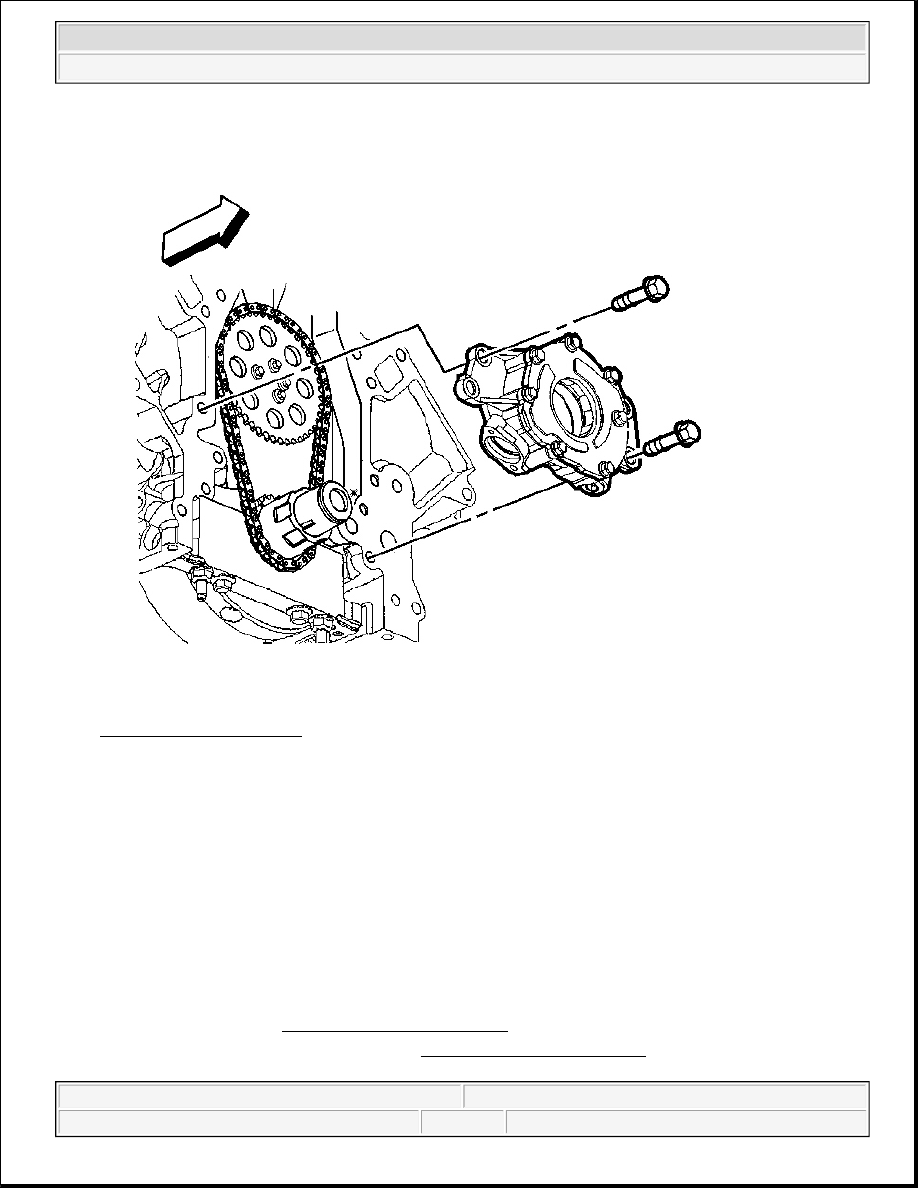

Fig. 340: Oil Pump & Bolt
Courtesy of GENERAL MOTORS CORP.

7. Remove the oil pump bolts.

8. Remove the oil pump.

TIMING CHAIN AND SPROCKETS REMOVAL

Tools Required

z

J 8433-1 Puller Bar. See Special Tools and Equipment .

z

J 41558 Crankshaft Sprocket Remover. See Special Tools and Equipment .

z

J 41816-2 Crankshaft End Protector

IMPORTANT: Do not allow dirt or debris to enter the oil pump assembly, cap ends as

necessary.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



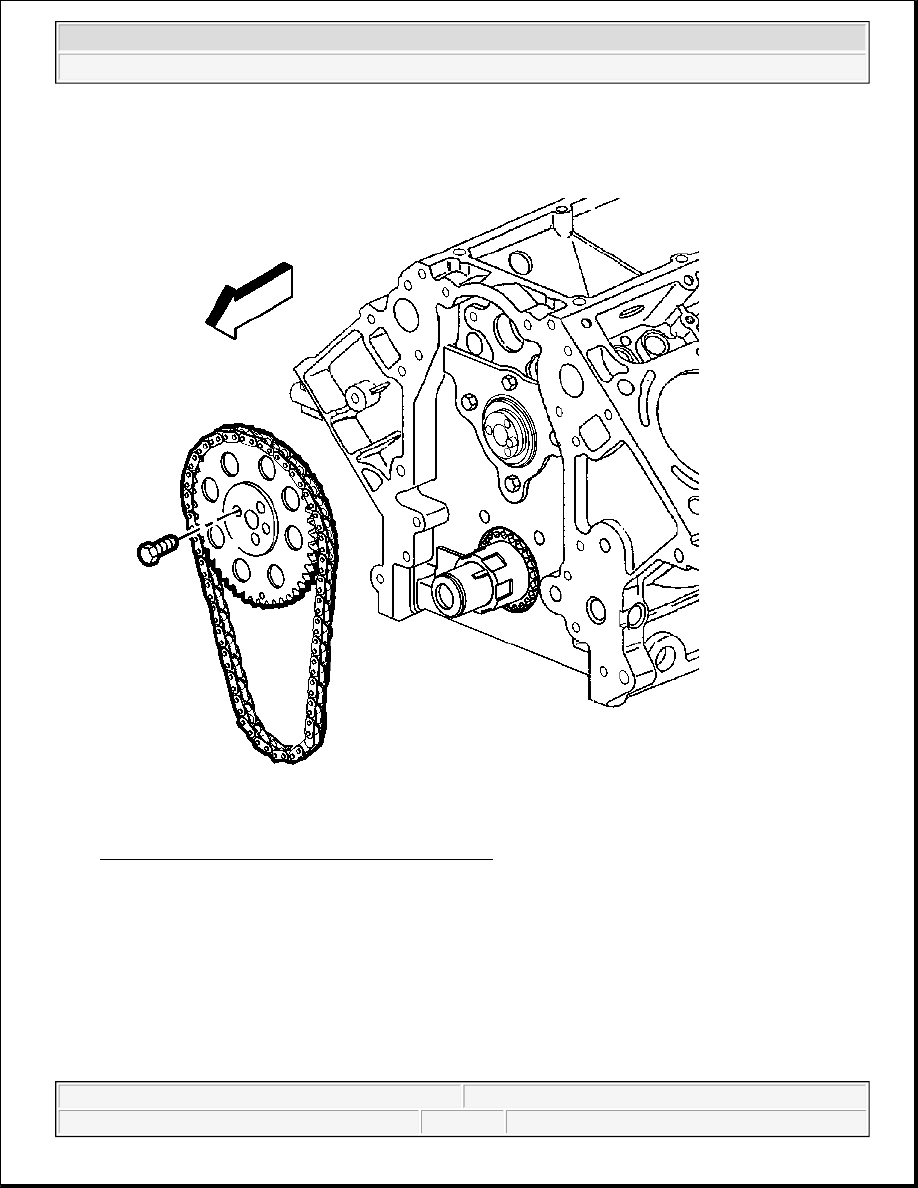

Fig. 341: Camshaft Sprocket, Bolt & Timing Chain
Courtesy of GENERAL MOTORS CORP.

1. Remove the camshaft sprocket bolts.

2. Remove the camshaft sprocket and timing chain.

NOTE:

Do not turn the crankshaft assembly after the timing chain has been
removed in order to prevent damage to the piston assemblies or the
valves.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 342: View Of J 8433-1, J 41816-2 & J 41558
Courtesy of GENERAL MOTORS CORP.

3. Use the J 8433-1 , the J 41816-2 , and the J 41558 in order to remove the crankshaft sprocket. See

Special Tools and Equipment .



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



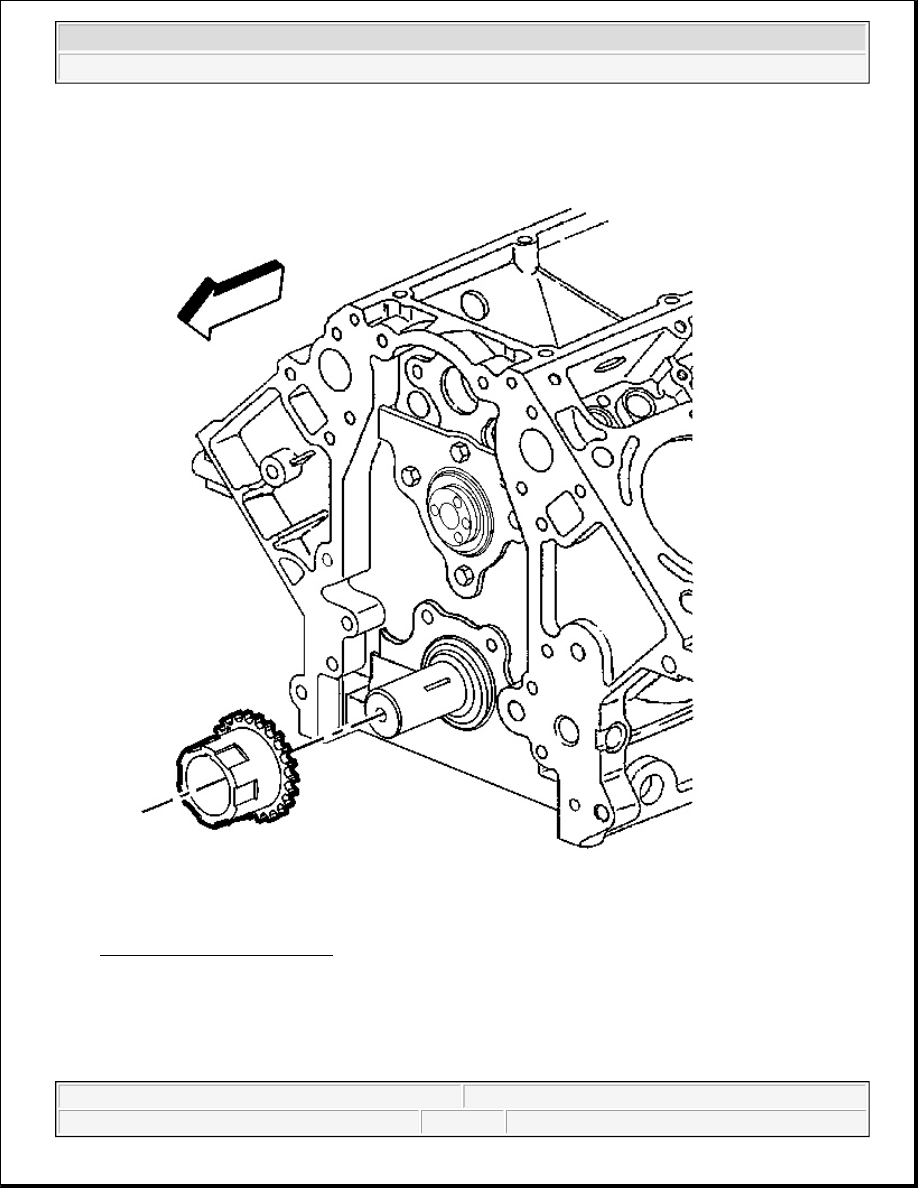

Fig. 343: Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.

4. Remove the crankshaft sprocket.
