7. Reposition the radiator outlet hose clamp at the water pump.

8. Remove the radiator outlet hose from the water pump.

9. Remove the heater hoses. Refer to Heater Hose Replacement - Inlet and Heater Hose Replacement -

Outlet in Heating, Ventilation, and Air Conditioning.

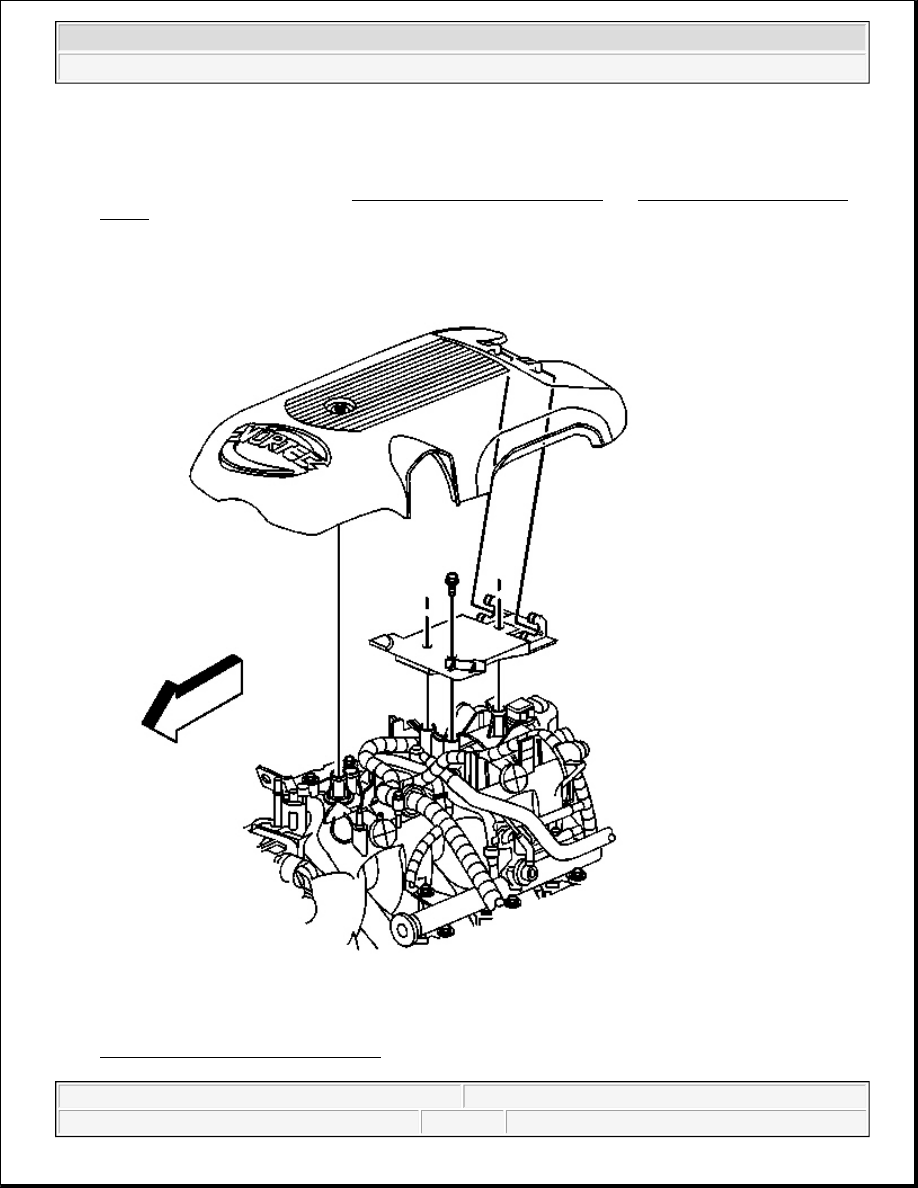

Fig. 216: View Of Top Engine Cover
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



10. Loosen the intake manifold sight shield bolt.

11. Remove the sight shield from the retainer.

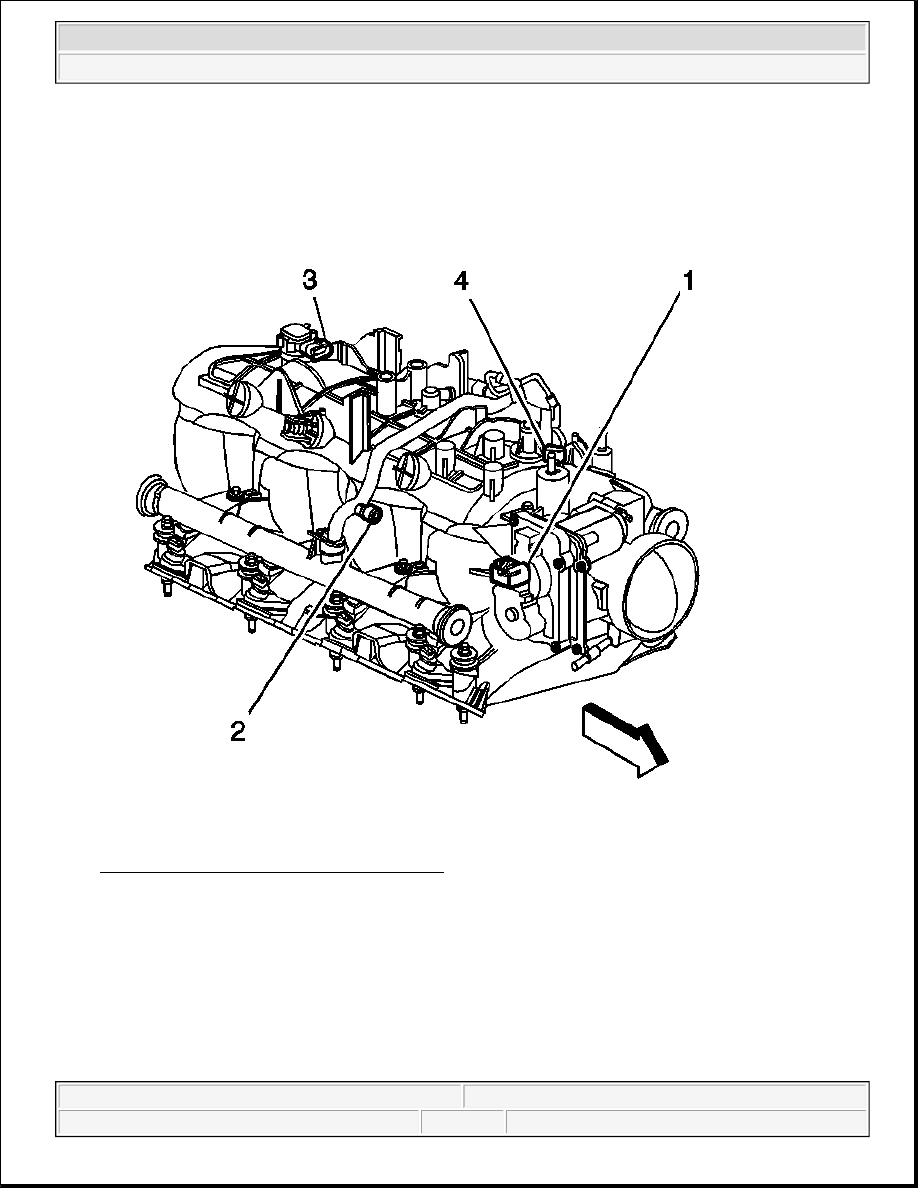

Fig. 217: Throttle Body Electrical Connector
Courtesy of GENERAL MOTORS CORP.

12. Disconnect the throttle body electrical connector (1).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

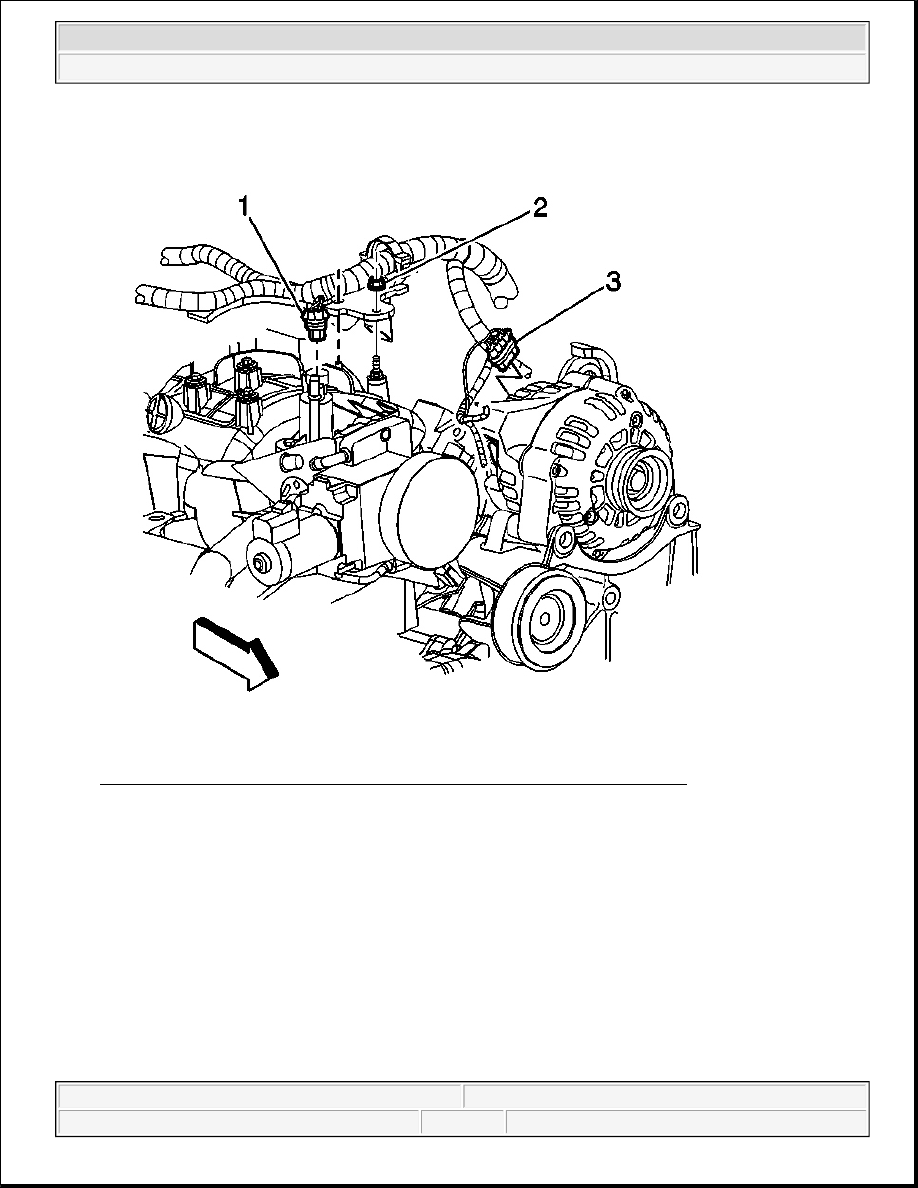

Fig. 218: EVAP Canister Purge Solenoid & Generator Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

13. Disconnect the following electrical connectors:

z

Evaporative emissions (EVAP) canister purge solenoid (1)

z

Generator (3)

14. Remove the harness bracket nut (2) in order to remove the engine harness from the intake manifold.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

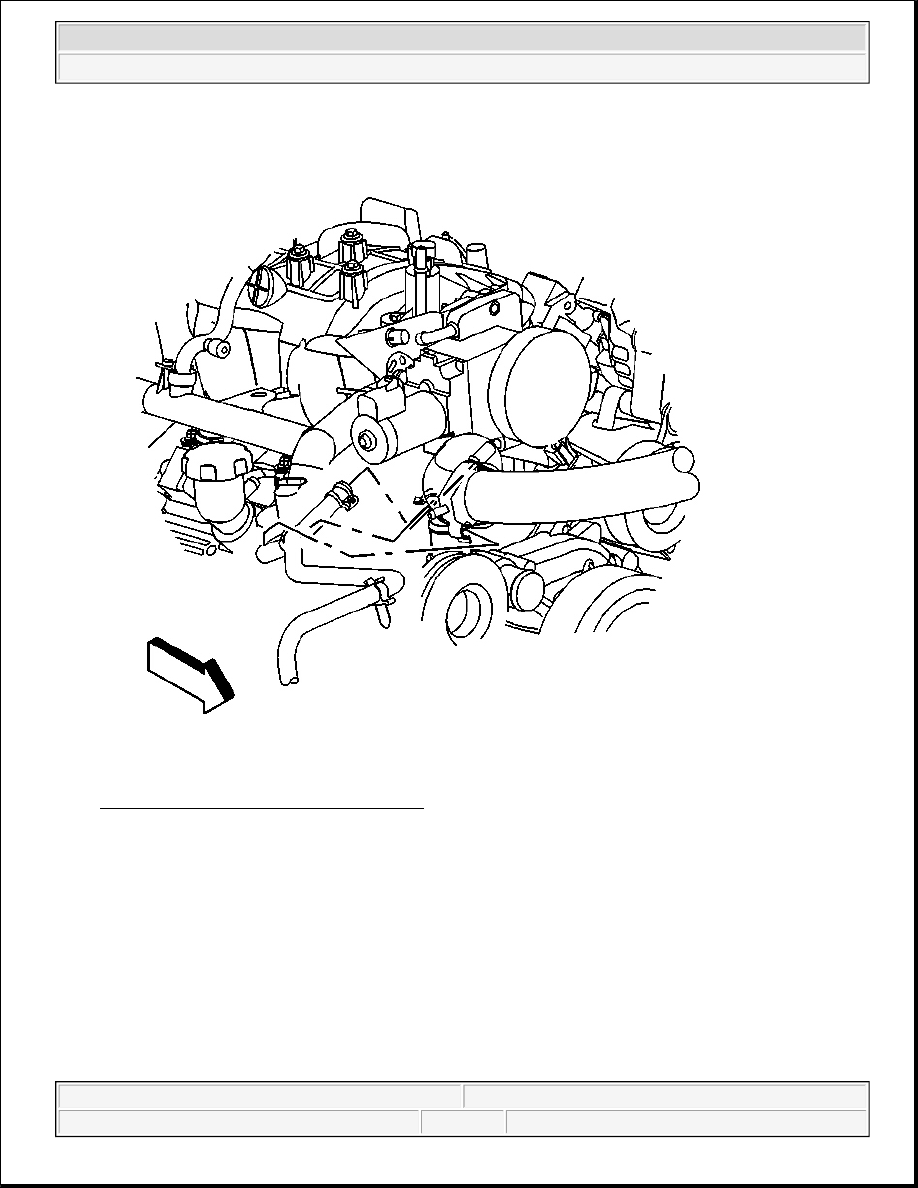

Fig. 219: Vent Inlet Hose & Throttle Body
Courtesy of GENERAL MOTORS CORP.

15. Remove the radiator vent inlet hose from the throttle body.
