3. Remove the automatic transmission engine flywheel.

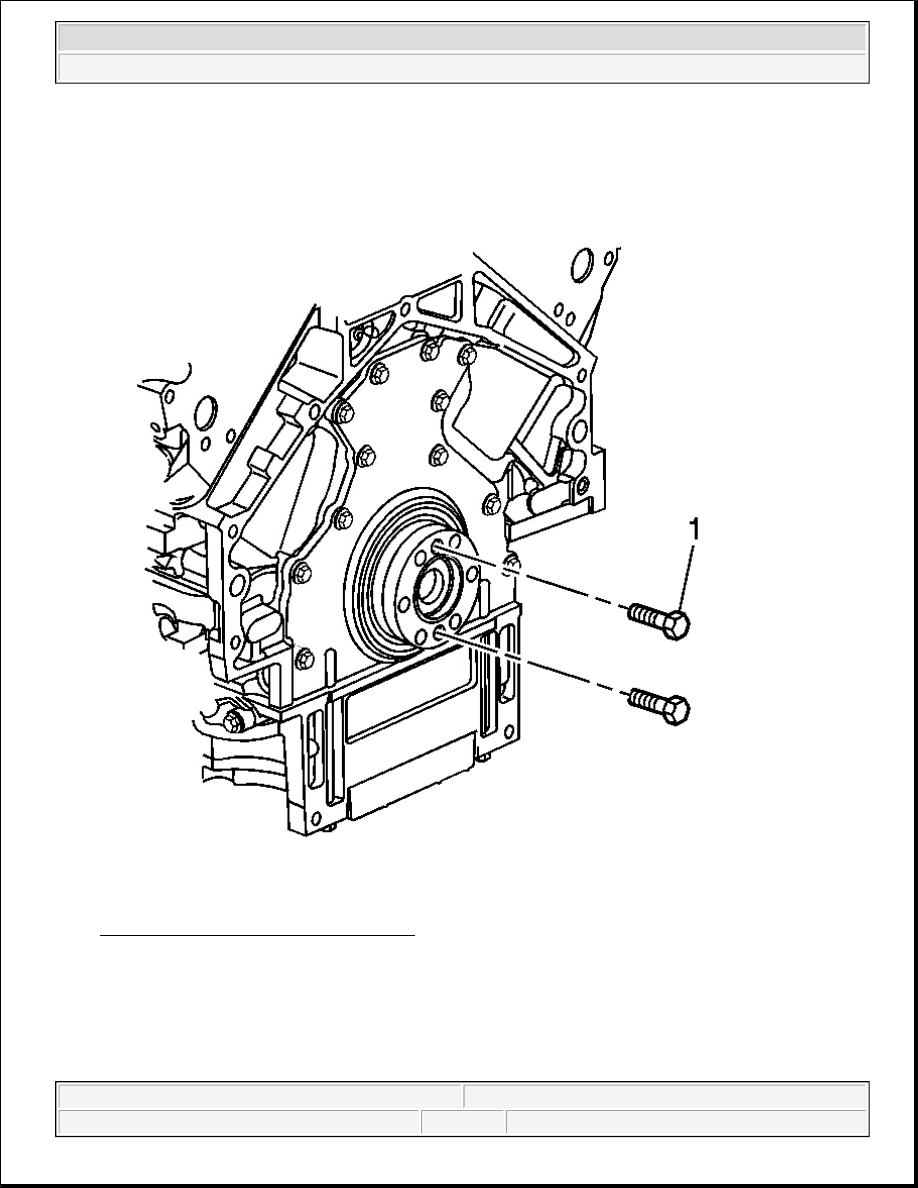

Fig. 208: Bolts & Spacer Threaded Holes
Courtesy of GENERAL MOTORS CORP.

4. Install two M11x1.5 mm bolts (1) to the threaded holes of the spacer, if applicable.

5. Rotate the bolts clockwise to remove the spacer.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

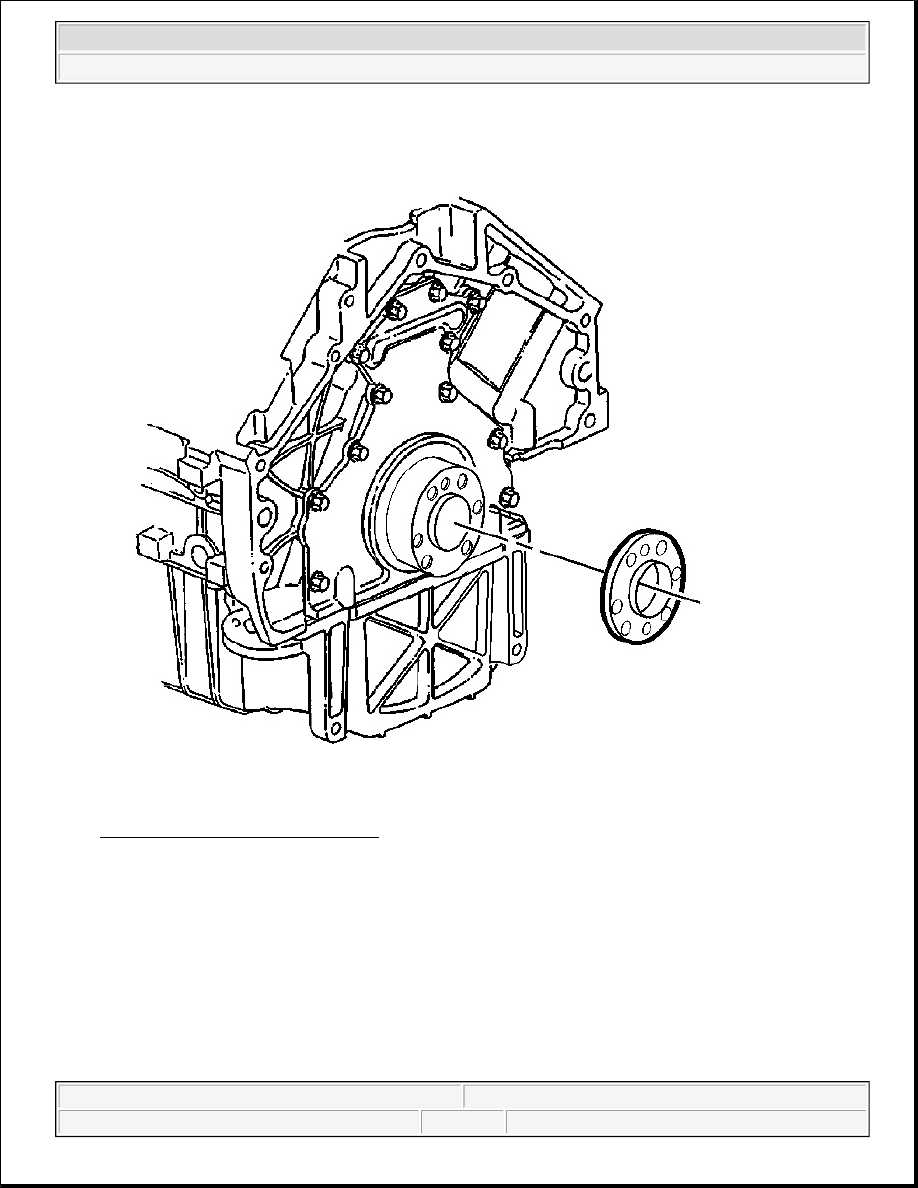

Fig. 209: Spacer & Crankshaft Rear
Courtesy of GENERAL MOTORS CORP.

6. Remove the spacer from the rear of the crankshaft, if applicable.

Installation Procedure

IMPORTANT:

z

The flywheel does not use a locating pin for alignment and will not initially
seat against the crankshaft flange or spacer (if applicable), but will be
pulled onto the crankshaft by the engine flywheel bolts. This procedure
requires a three stage tightening process.

z

Certain applications (6.0L) require a spacer and longer bolts for proper



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

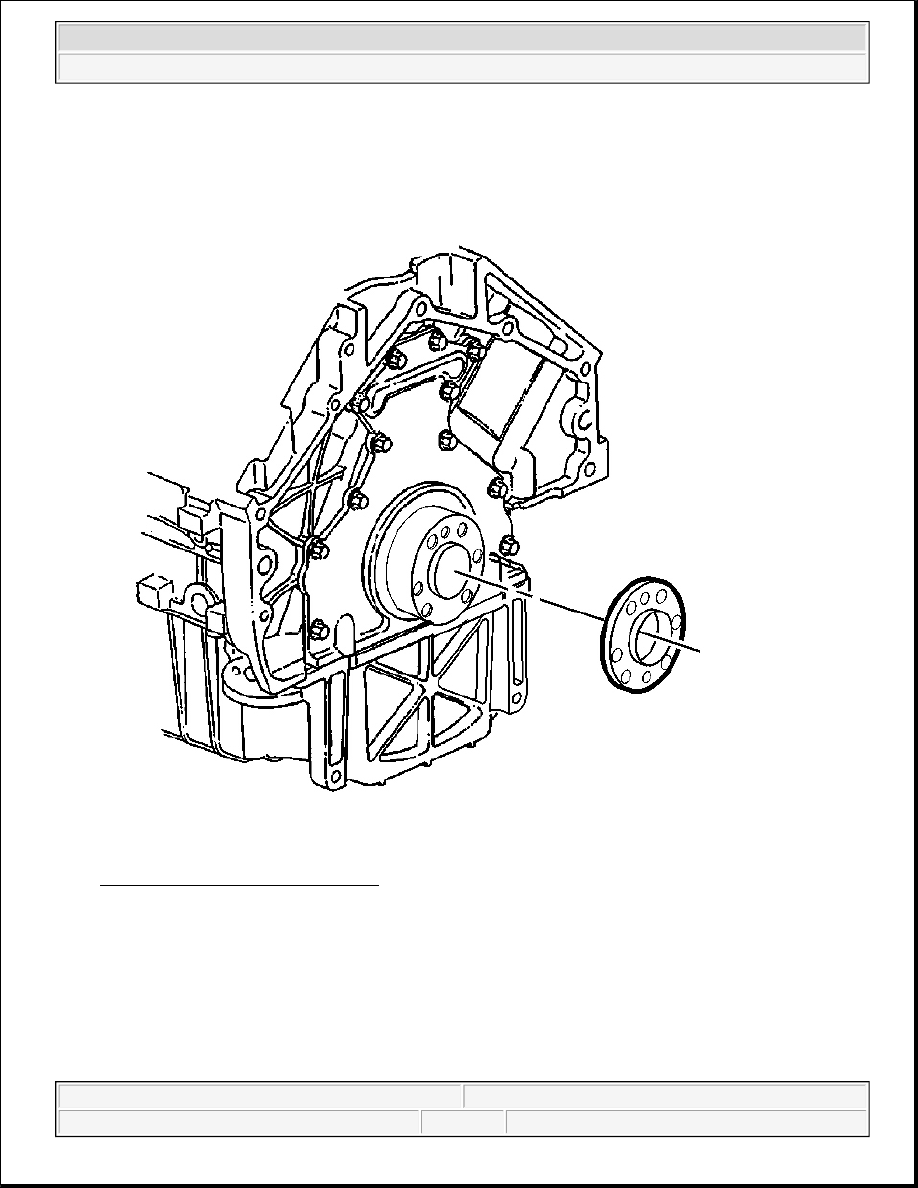

Fig. 210: Spacer & Crankshaft Rear
Courtesy of GENERAL MOTORS CORP.

1. Install the spacer (if applicable) onto the rear of the crankshaft.

flywheel position.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

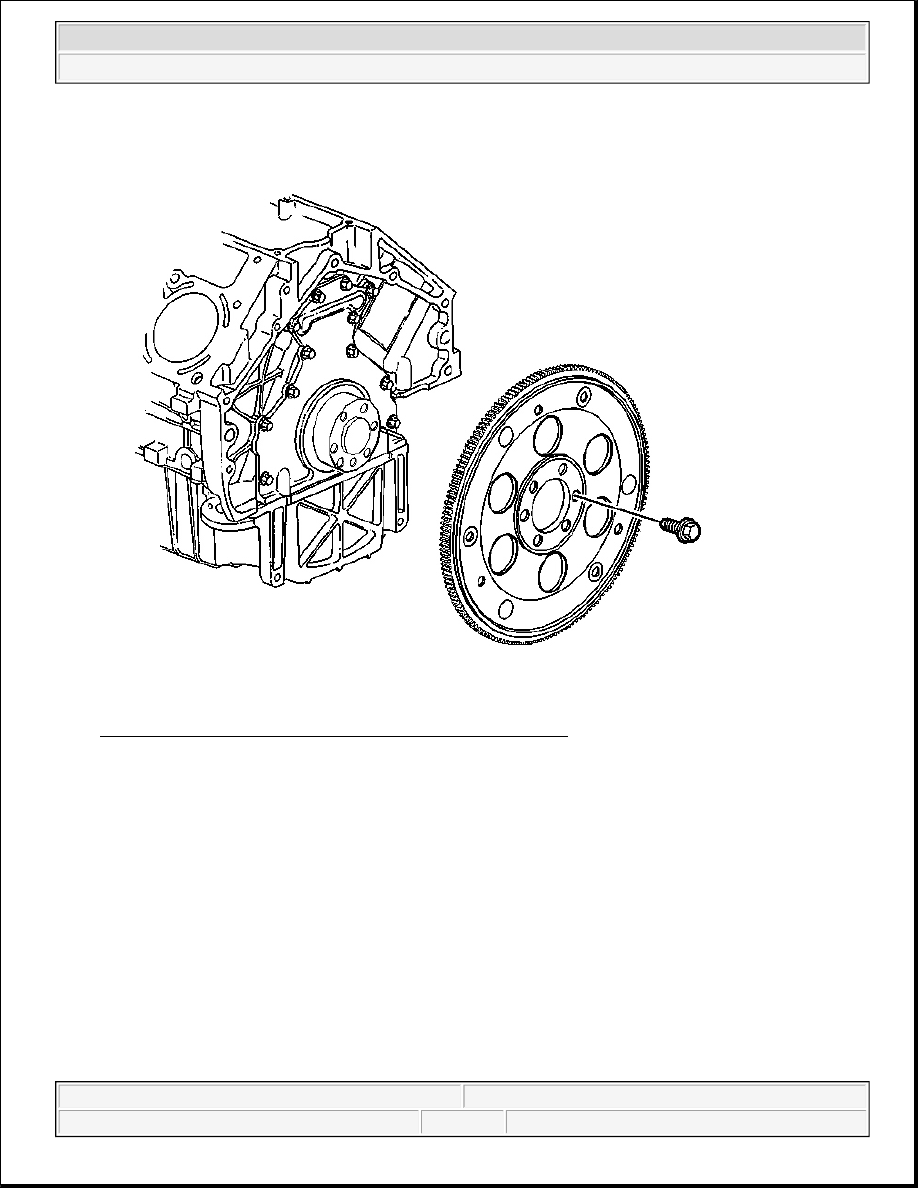

Fig. 211: Engine Flywheel & Bolts (Automatic Transmission)
Courtesy of GENERAL MOTORS CORP.

2. Install the automatic transmission engine flywheel to the crankshaft.

3. Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the

flywheel bolts.

IMPORTANT: Longer flywheel bolts must be used on applications using a flywheel

spacer.
