7. Re-install the drain plug and oil filter until snug.

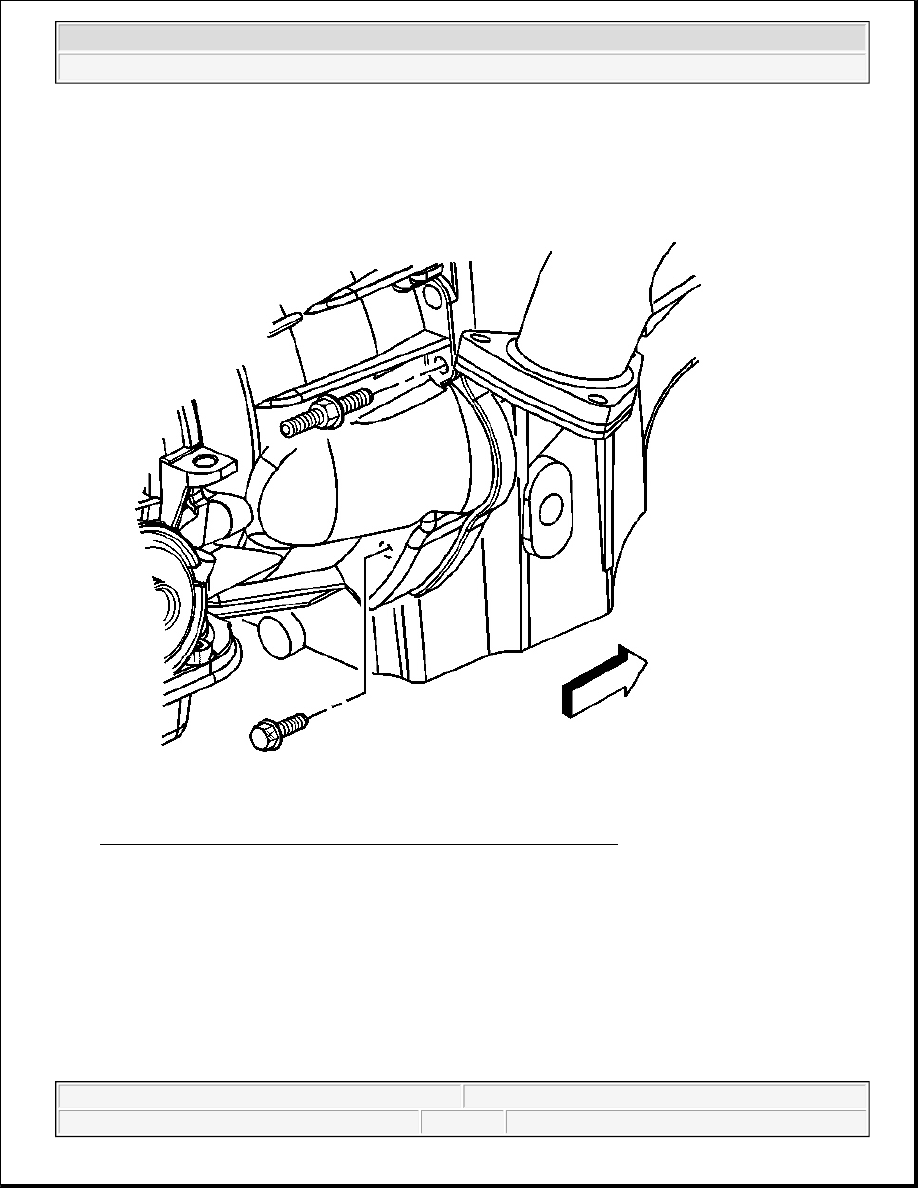

Fig. 158: Identifying Stud & Bolt Securing Transmission To Engine
Courtesy of GENERAL MOTORS CORP.

8. Remove the transmission bolt and stud on the right side.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



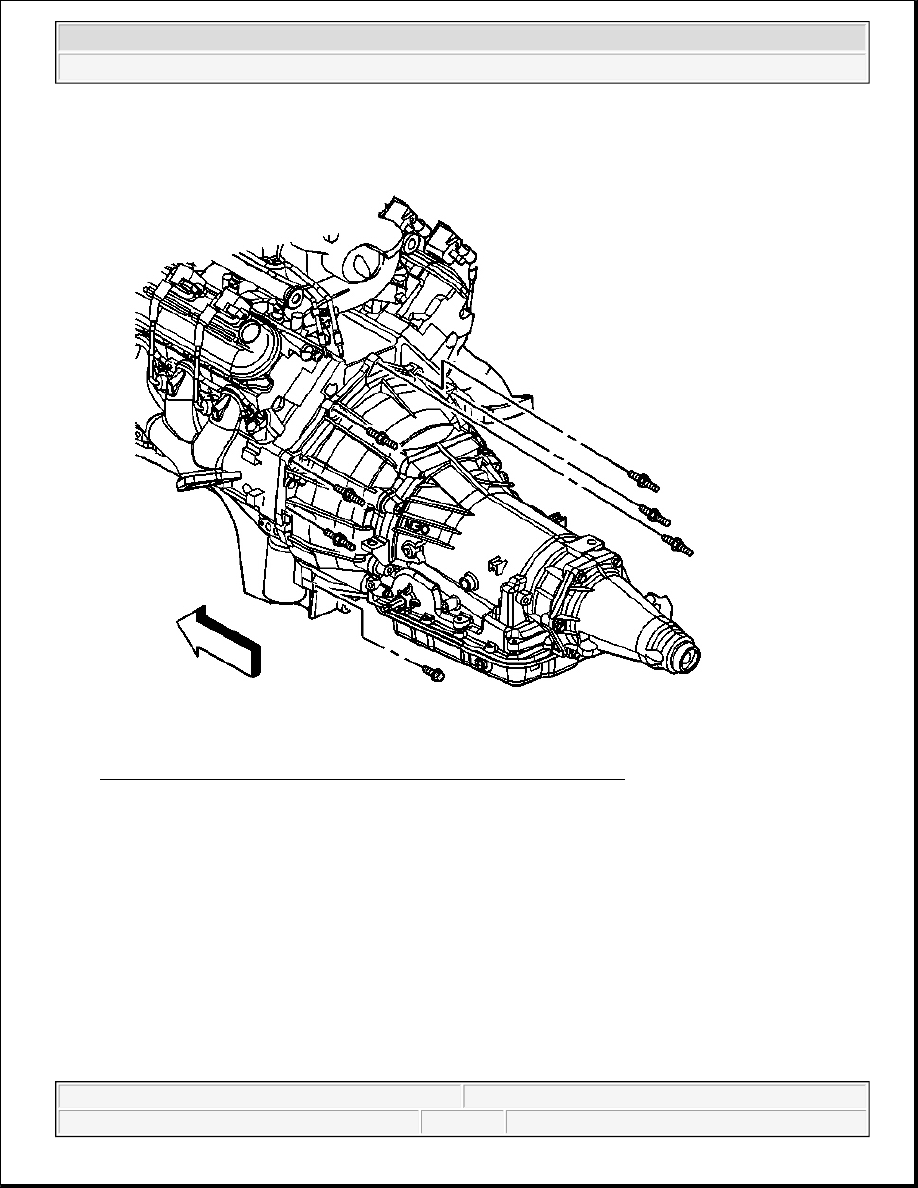

Fig. 159: Identifying Studs & Bolt Securing Transmission To Engine
Courtesy of GENERAL MOTORS CORP.

9. Remove the bottom bolt on the left side.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



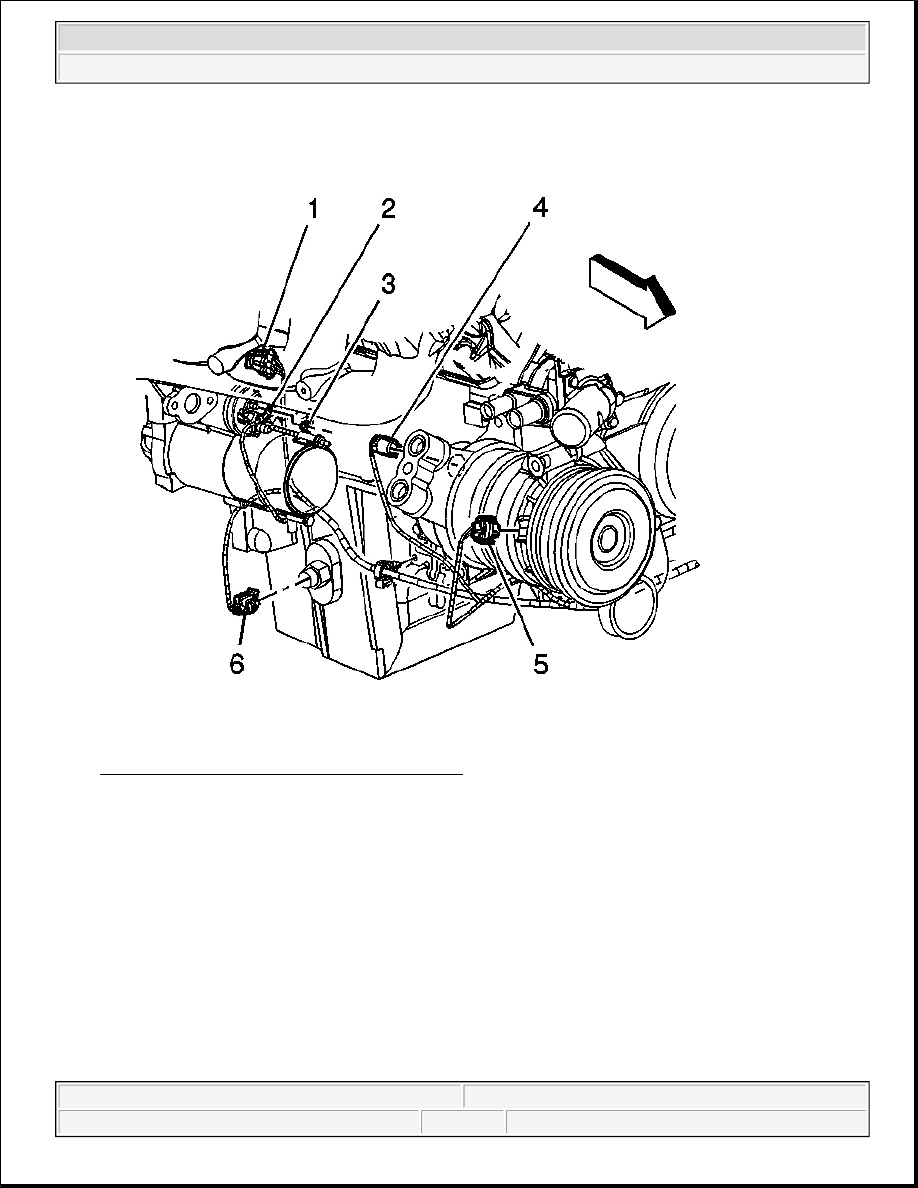

Fig. 160: Oil Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

10. Disconnect the oil level sensor electrical connector (6).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



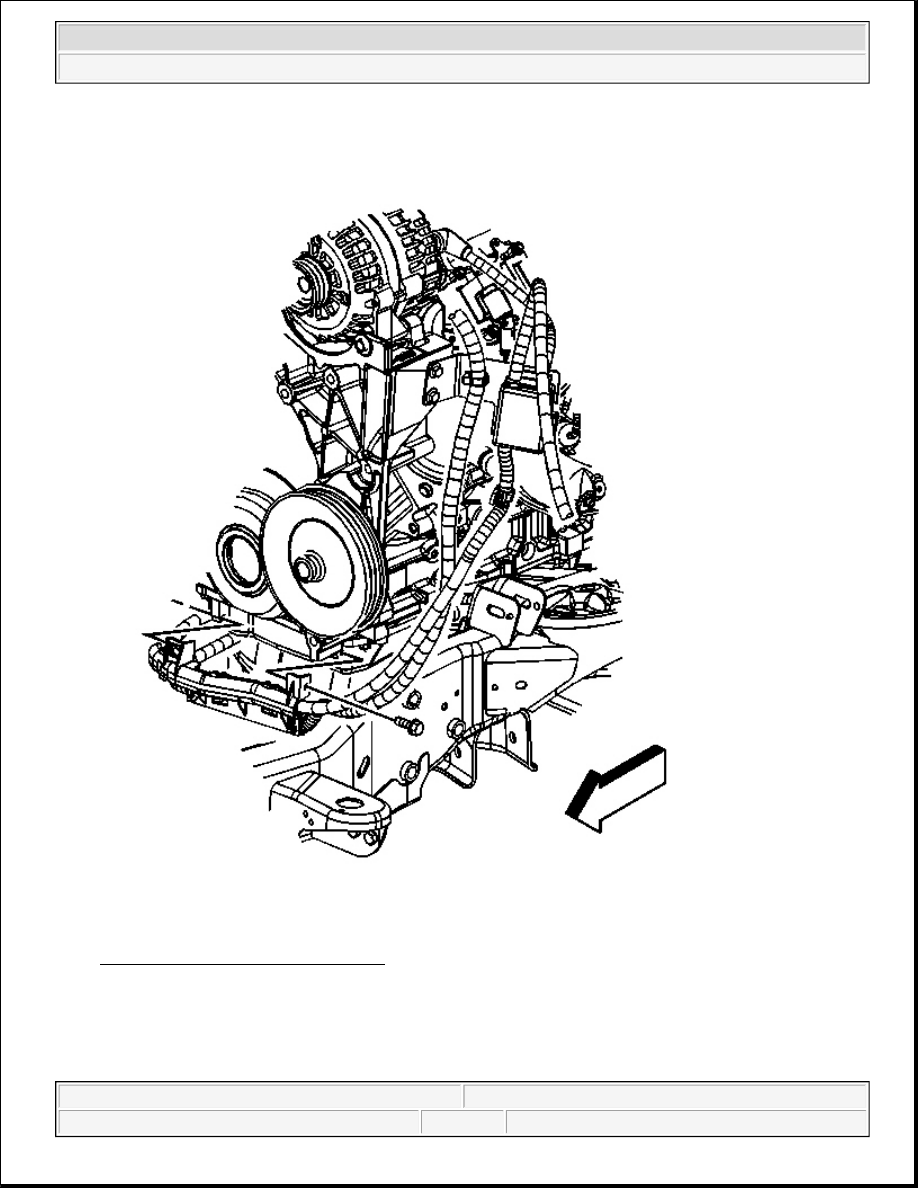

Fig. 161: Battery Cable Channel Bolt
Courtesy of GENERAL MOTORS CORP.

11. Remove the battery cable channel bolt.

12. Slide the channel pin out of the oil pan tab.
