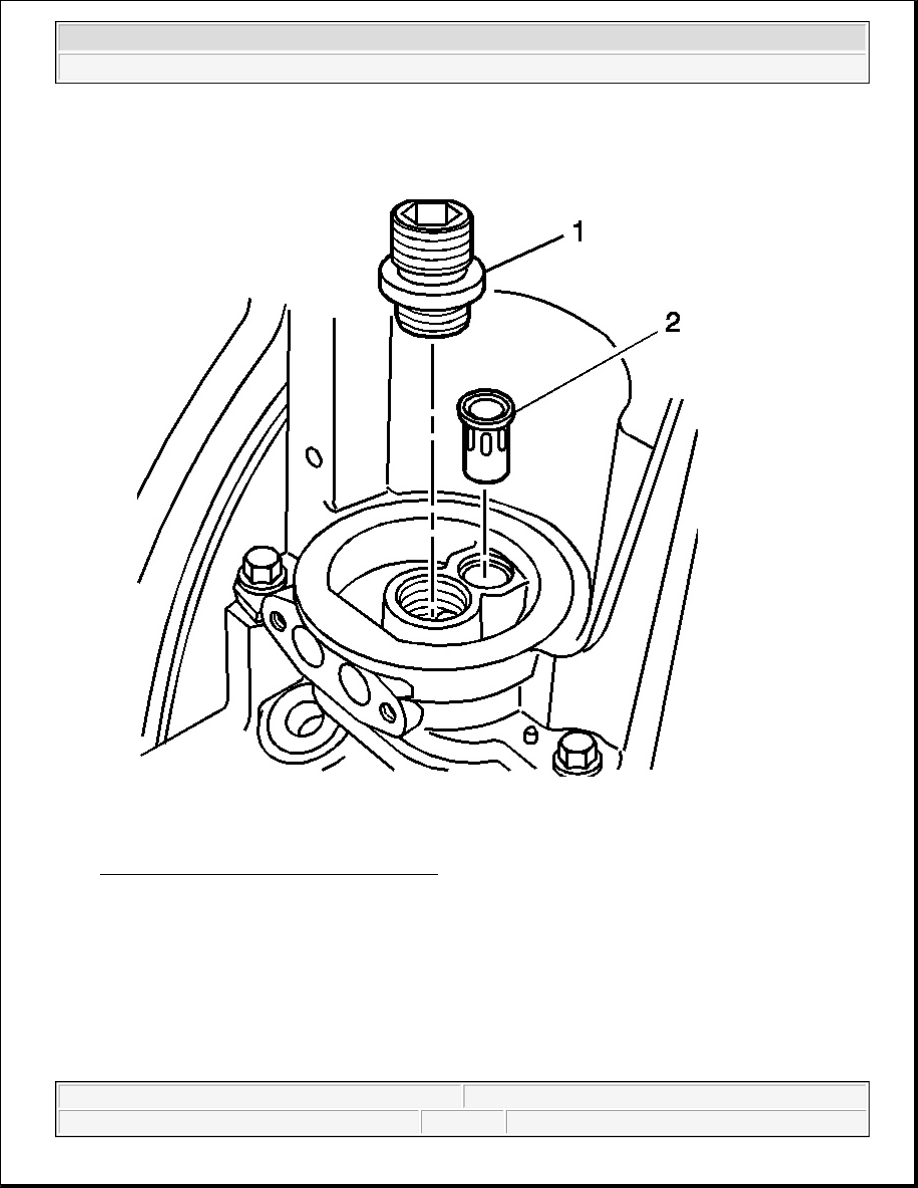

Fig. 154: Oil Filter Adapter & Bypass Valve
Courtesy of GENERAL MOTORS CORP.

1. Install the oil filter bypass valve (2).

2. Install the oil filter adapter (1).

Tighten: Tighten the oil filter adapter to 55 N.m (40 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



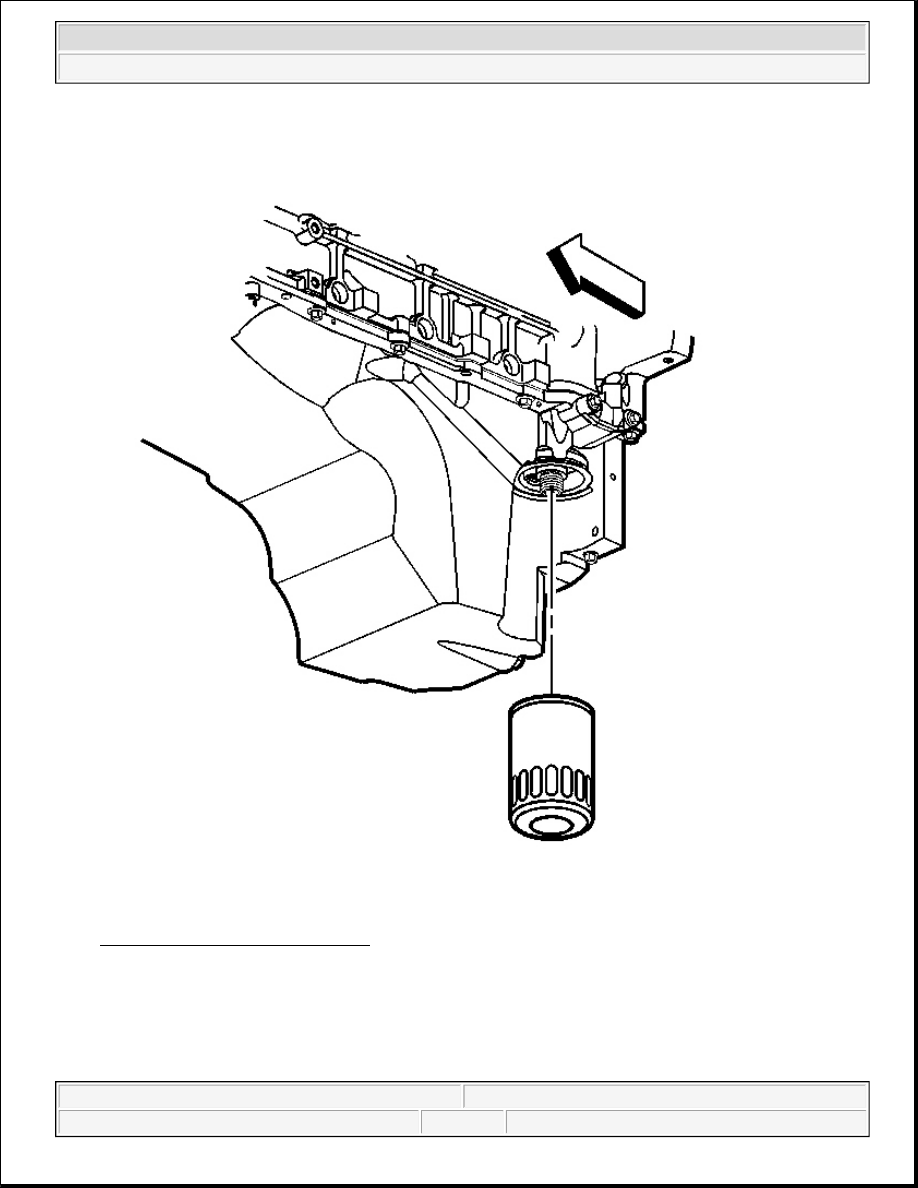

Fig. 155: View Of Engine Oil Filter
Courtesy of GENERAL MOTORS CORP.

3. Install the oil filter.

Tighten: Tighten the oil filter to 30 N.m (22 lb ft).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



4. Refill the engine oil. Refer to Capacities - Approximate Fluid and/or Fluid and Lubricant

Recommendations in Maintenance and Lubrication.

OIL PAN REPLACEMENT

Removal Procedure

1. Remove the front differential. Refer to Differential Carrier Assembly Replacement in Driveline/Axle.

2. Remove the starter motor. Refer to Starter Motor Replacement in Engine Electrical.

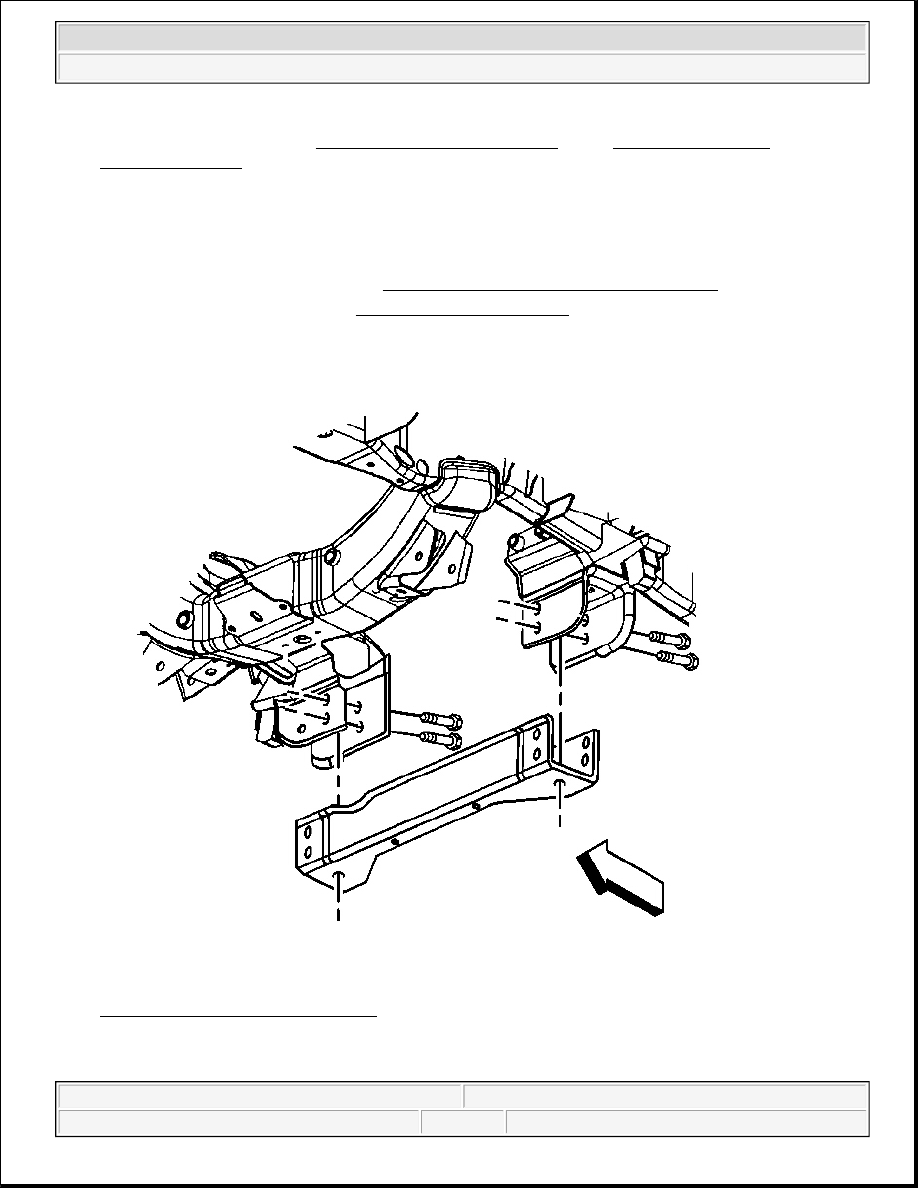

Fig. 156: Crossbar & Engine (2WD)
Courtesy of GENERAL MOTORS CORP.

3. Remove the crossbar bolts.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



4. Remove the crossbar.

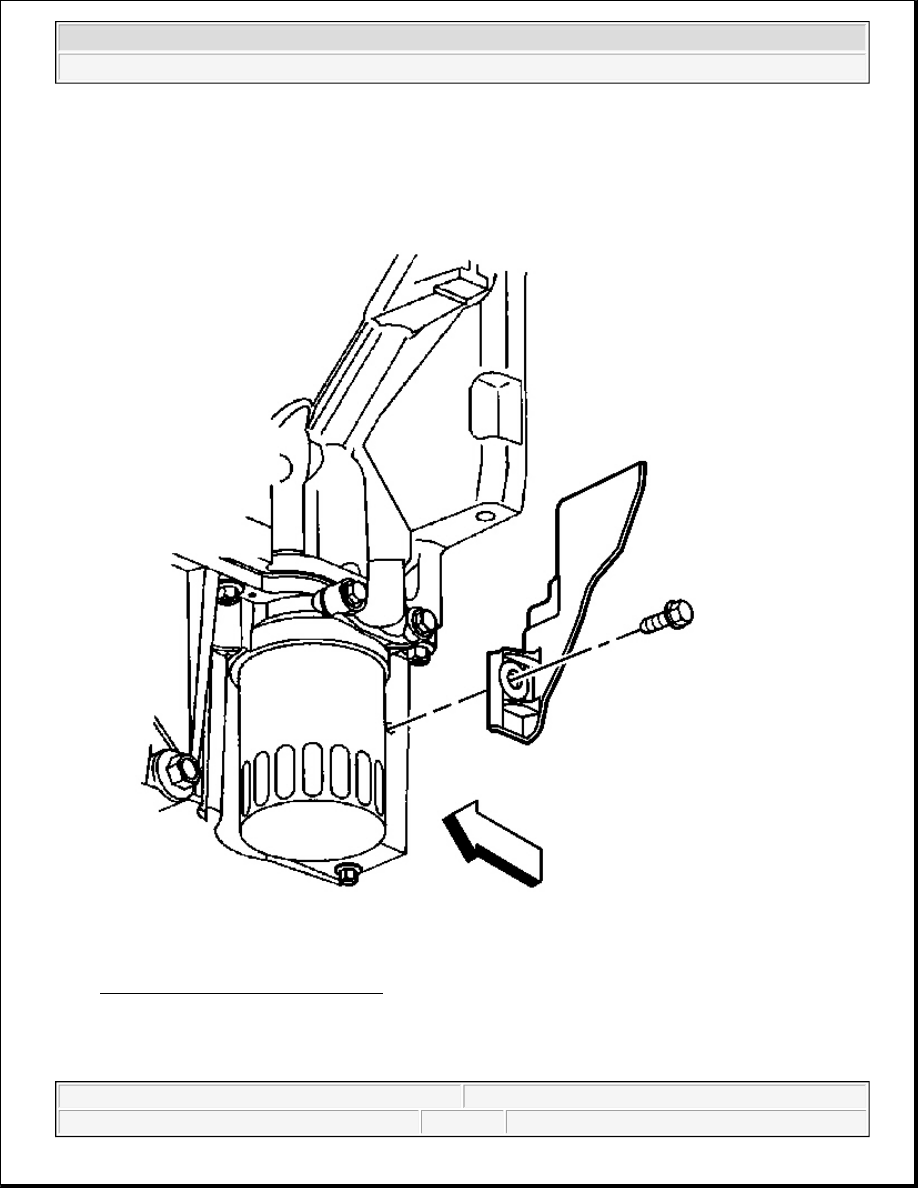

Fig. 157: Left Closeout Cover & Bolt
Courtesy of GENERAL MOTORS CORP.

5. Remove the transmission cover bolt and cover.

6. Drain the engine oil and remove the engine oil filter.
