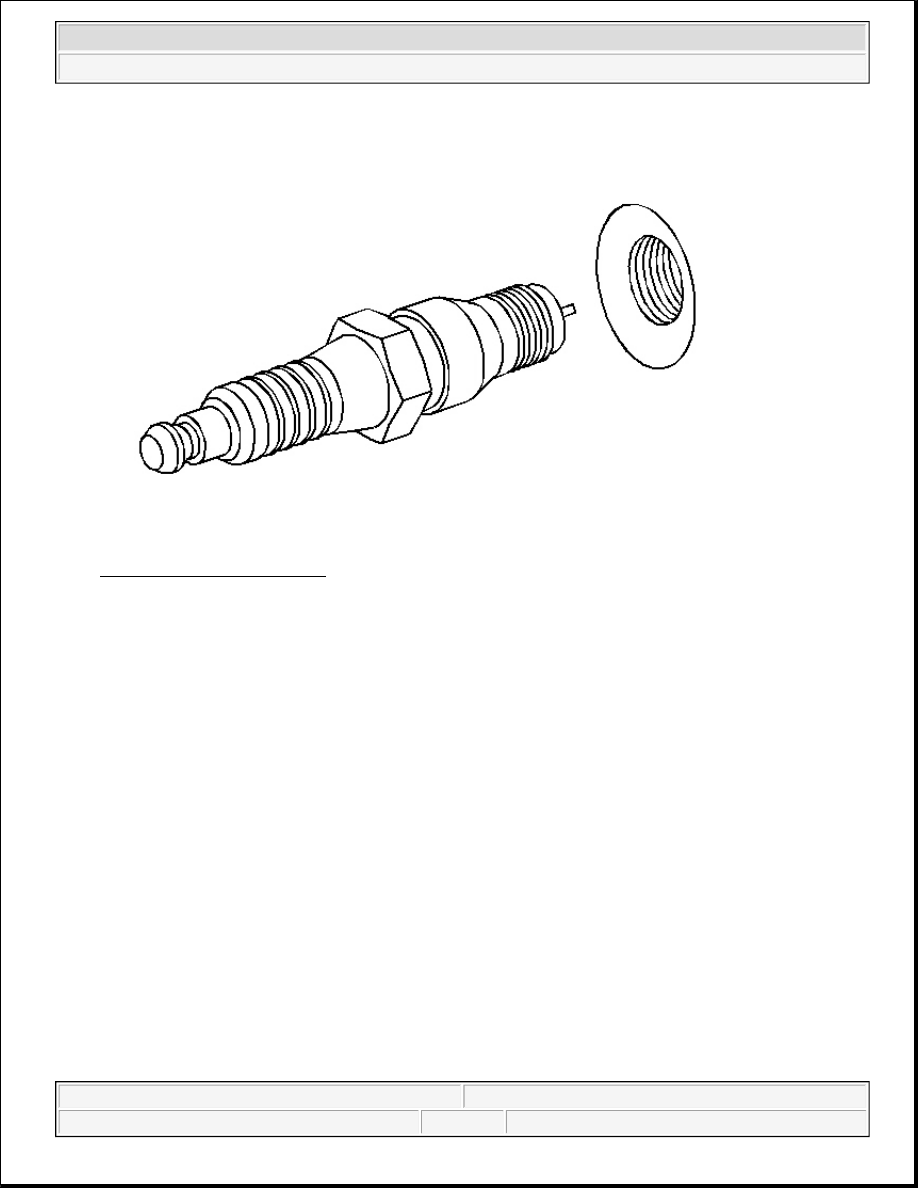

Fig. 102: View Of Spark Plug
Courtesy of GENERAL MOTORS CORP.

3. Loosen the spark plug 1 or 2 turns.

4. Brush or air blast away any dirt or debris from around the spark plug.

5. Remove the spark plug.

IMPORTANT: Remove the spark plugs from the cylinder head with the engine at room

temperature.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



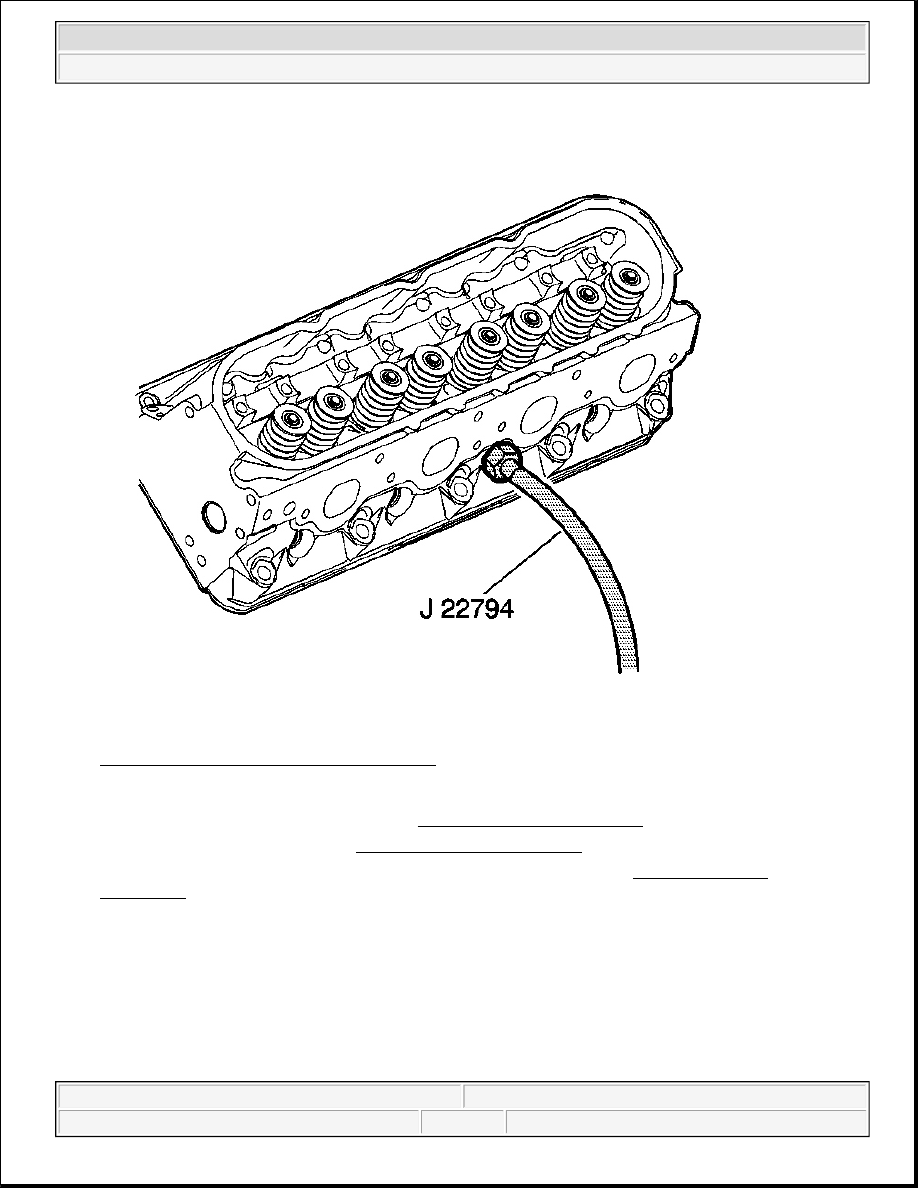

Fig. 103: Installing J 22794 Into Spark Hole
Courtesy of GENERAL MOTORS CORP.

6. InstallJ 22794 into the spark plug hole. See Special Tools and Equipment .

7. Attach an air hose to J 22794 . See Special Tools and Equipment .

8. Apply compressed air to J 22794 in order to hold the valves in place. See Special Tools and

Equipment .



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



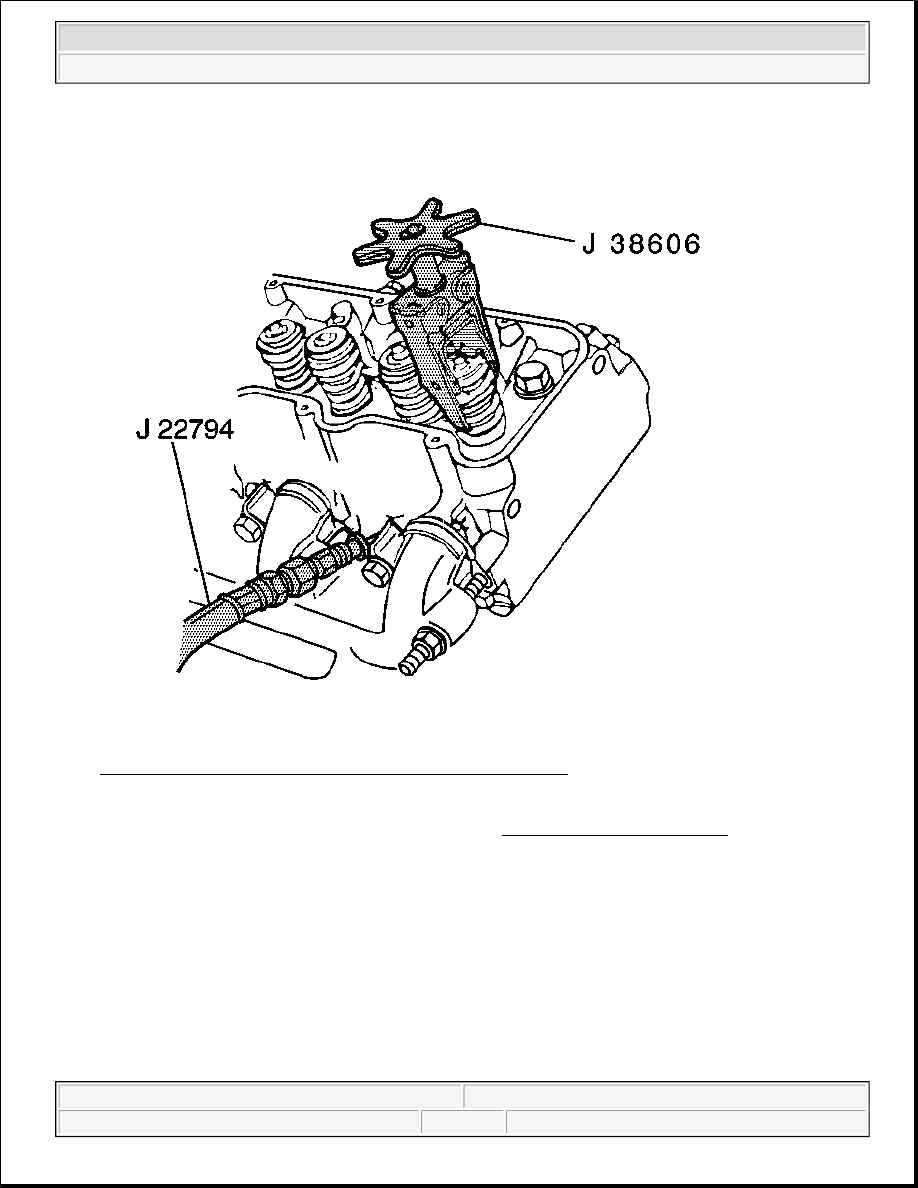

Fig. 104: Using J 38606 & J 5892-D To Remove Valve Spring
Courtesy of GENERAL MOTORS CORP.

9. Use J 38606 in order to compress the valve spring. See Special Tools and Equipment .



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



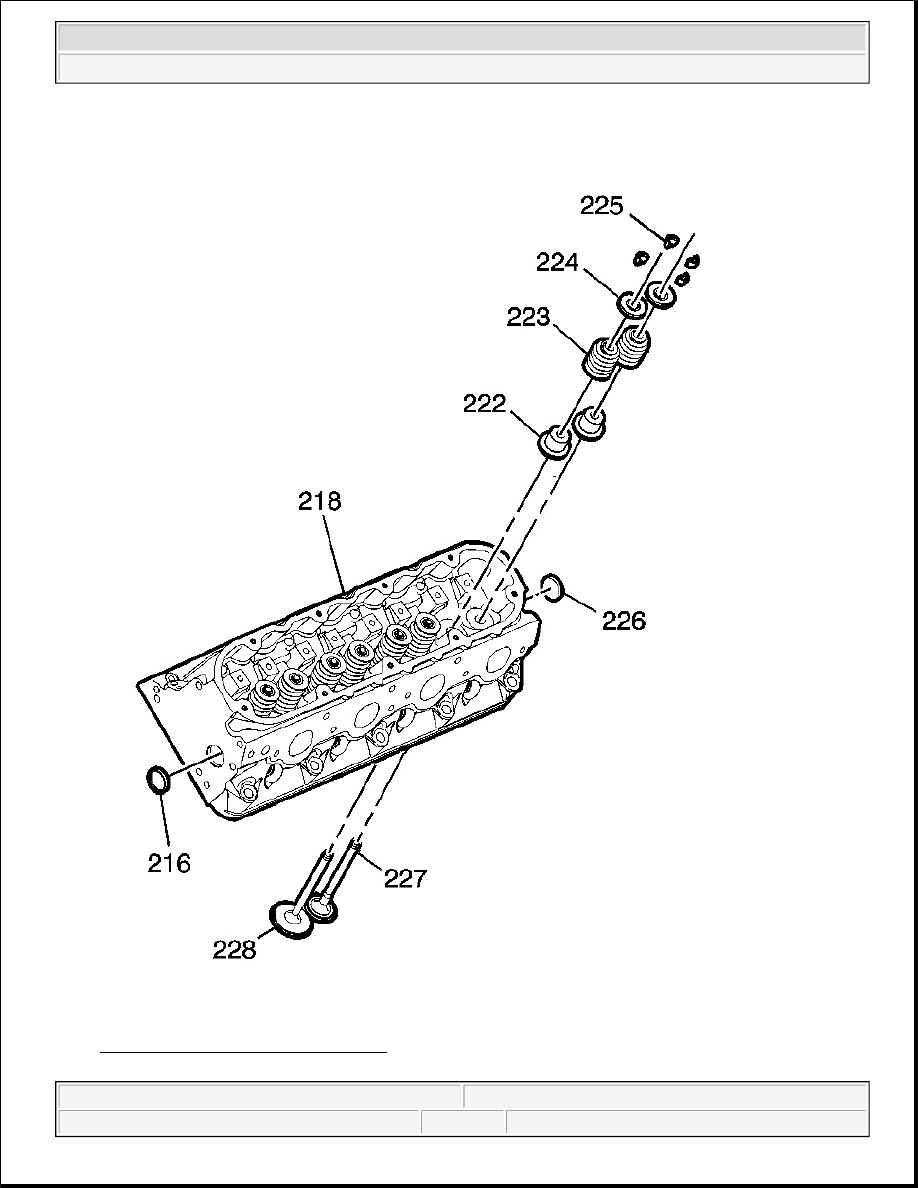

Fig. 105: Cylinder Head Components
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2
