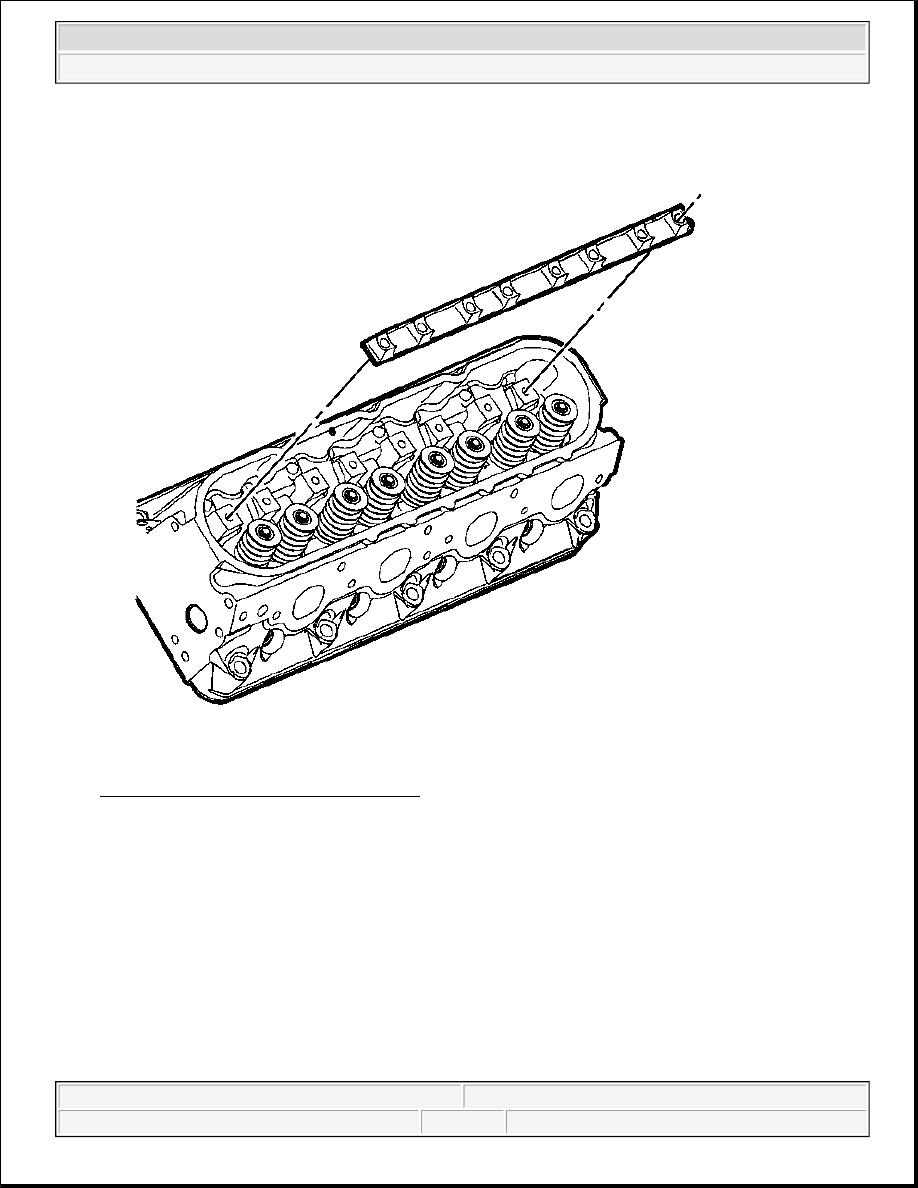

Fig. 95: Valve Rocker Arm Pivot Support
Courtesy of GENERAL MOTORS CORP.

4. Remove the valve rocker arm pivot support.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



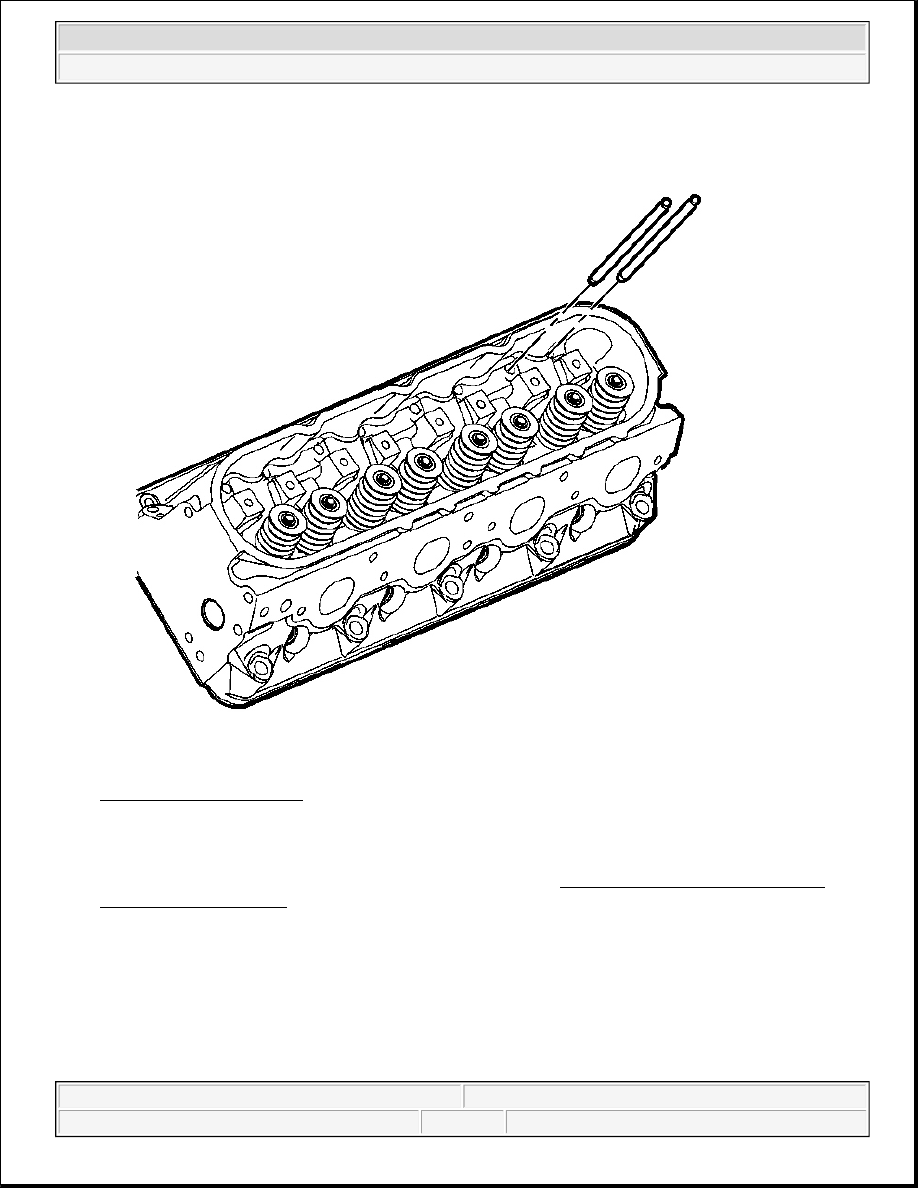

Fig. 96: View Of Pushrods
Courtesy of GENERAL MOTORS CORP.

5. Remove the pushrods.

6. Clean and inspect the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rods

Cleaning and Inspection .

Installation Procedure

Valve lash is net build, no valve adjustment is required.

IMPORTANT: When reusing the valve train components, always install the components to the

original location and position.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 97: Valve Rocker Arm Pivot Support
Courtesy of GENERAL MOTORS CORP.

1. Lubricate the valve rocker arms and pushrods with clean engine oil.

2. Lubricate the flange of the valve rocker arm bolts with clean engine oil.

Lubricate the flange or washer surface of the bolt that will contact the valve rocker arm.

3. Install the valve rocker arm pivot support.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 98: View Of Pushrods
Courtesy of GENERAL MOTORS CORP.

4. Install the pushrods.

IMPORTANT: Make sure that the pushrods seat properly to the valve lifter sockets.
